Model # 917386040 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917386040 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Lock Nut 83923
#43

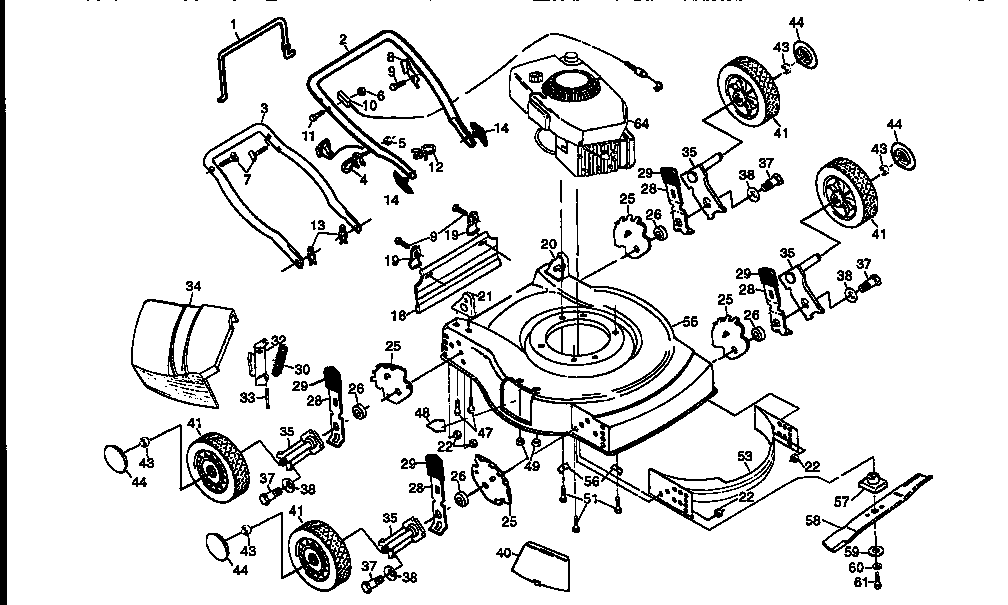

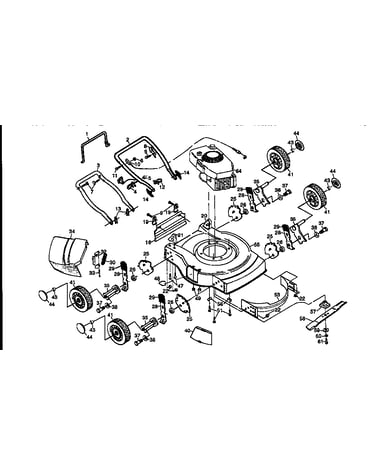

Replacement parts diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 141114
#58

Replacement parts diagram

Lawn mower blade

Part #141114

Replaced by #532406713

?
Manufacturer substitution
This part replaces 141114. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Lock Nut 751592
#22

Replacement parts diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Lawn Mower Blade Adapter 851514
#57

Replacement parts diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lawn Mower Wheel Assembly 151157
#41

Replacement parts diagram

Lawn mower wheel assembly

Part #151157

Replaced by #532151155

?
Manufacturer substitution
This part replaces 151157. Substitute parts can look different from the original.
$27.28 |
18% OFF Phone Price : $33.28
In Stock
Rod.hinge.co 147286
#33

Replacement parts diagram

Rod.hinge.co

Part #147286

Replaced by #532147286

?
Manufacturer substitution
This part replaces 147286. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Height Spacer 146630
#26

Replacement parts diagram

Height spacer

Part #146630

Replaced by #532401629

?
Manufacturer substitution
This part replaces 146630. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Upstop Bracket 850733X004
#8

Replacement parts diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Lawn Mower Bolt 74350424
#11

Replacement parts diagram

Lawn mower bolt

Part #74350424

This item is not returnable
$2.91
In Stock
Rope Guide 132001
#4

Replacement parts diagram

Rope guide

Part #132001

Replaced by #586122501

?
Manufacturer substitution
This part replaces 132001. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
