Model # CGD2M5WSTC Official Gibson gas range - lg32488190

Here are the diagrams and repair parts for Official Gibson CGD2M5WSTC gas range - lg32488190, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Igniter 08009420
#22

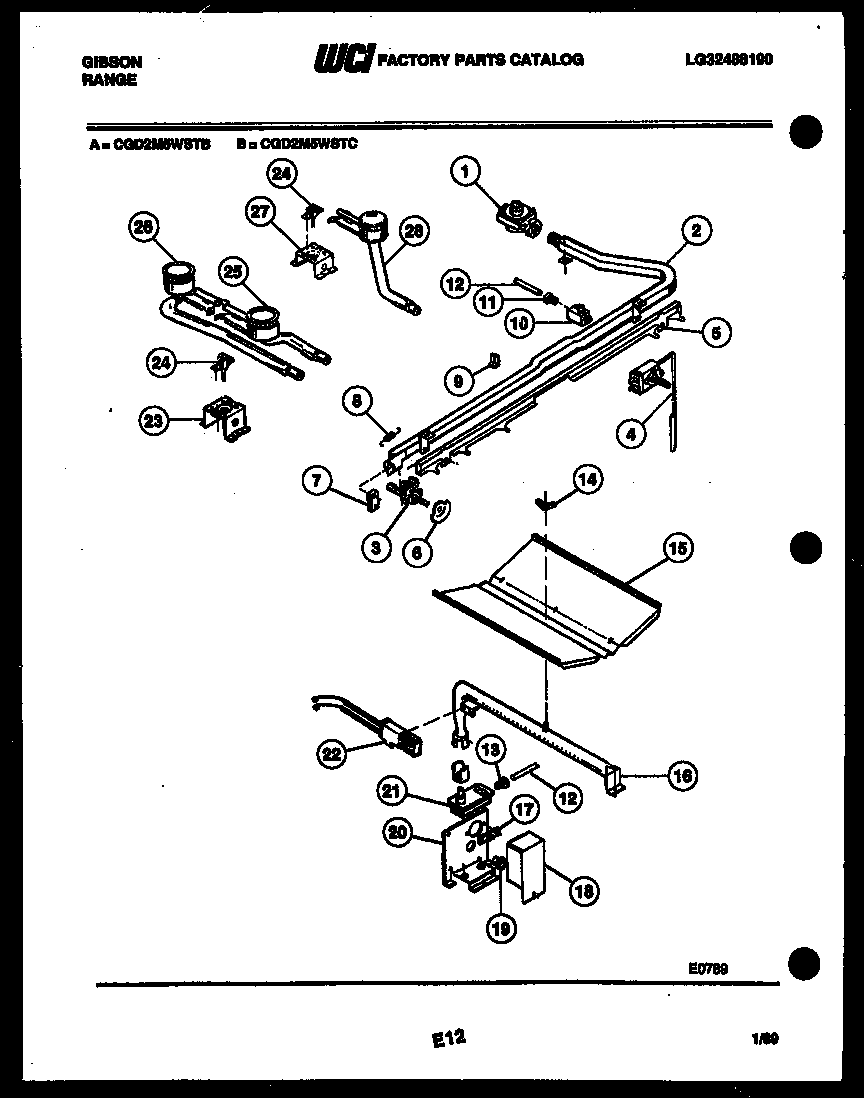

Burner parts diagram

Igniter

Part #08009420

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 08009420. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Light Bulb/l 3051082
#18

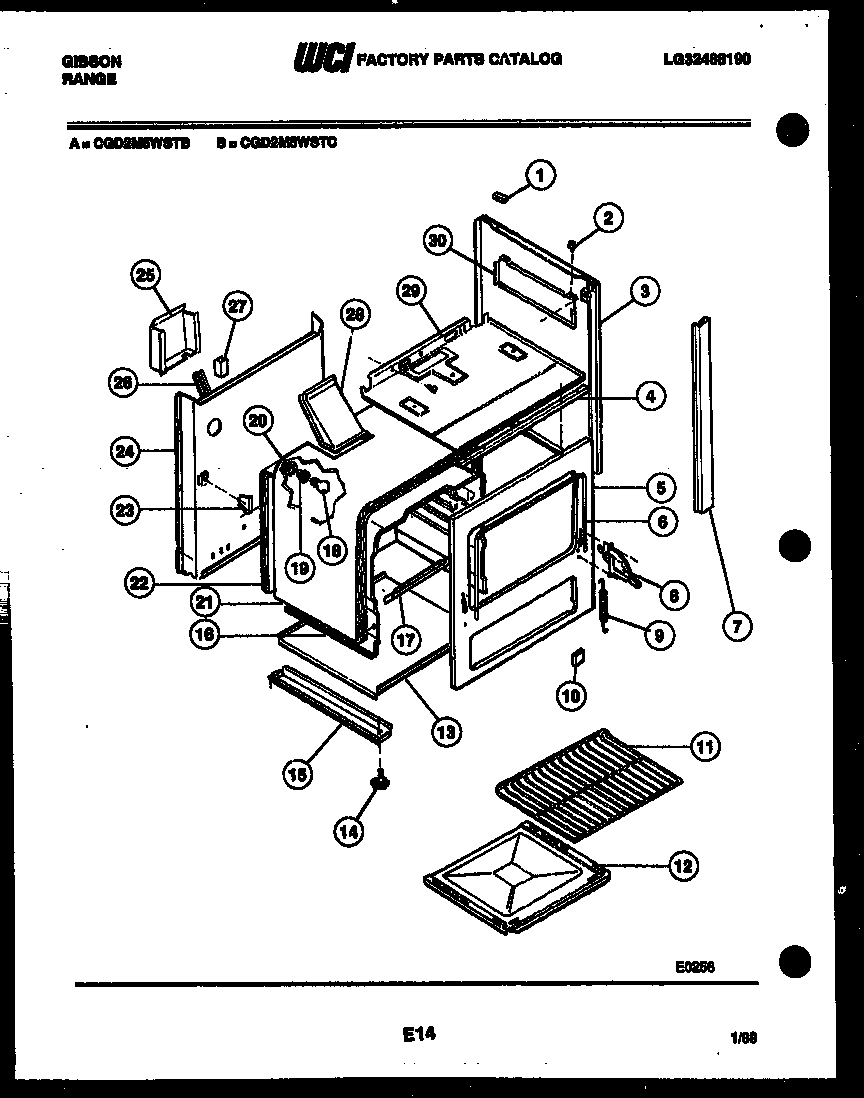

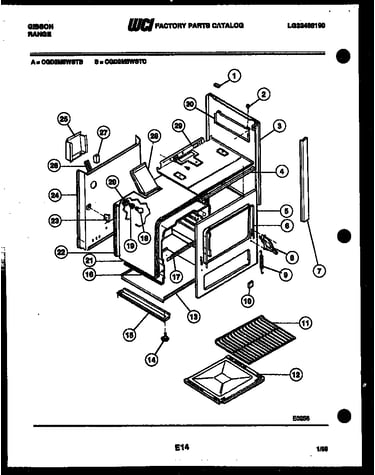

Body parts diagram

Light bulb/l

Part #3051082

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3051082. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Receptacle 3009410
#19

Body parts diagram

Receptacle

Part #3009410

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3009410. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Hinge 3051077
#8

Body parts diagram

Hinge

Part #3051077

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3051077. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Regulator 08007974
#1

Burner parts diagram

Regulator

Part #08007974

Replaced by #5308007974

?
Manufacturer substitution
This part replaces 08007974. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
Switch 08015487
#3

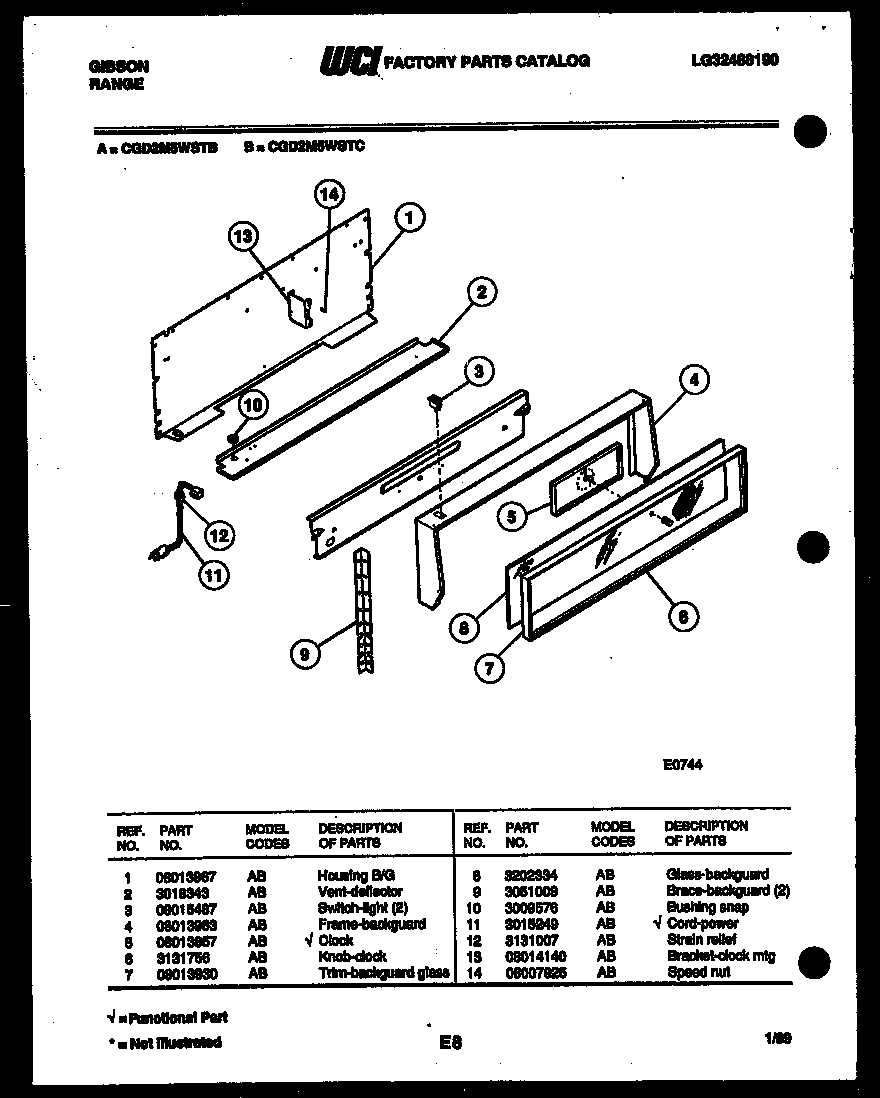

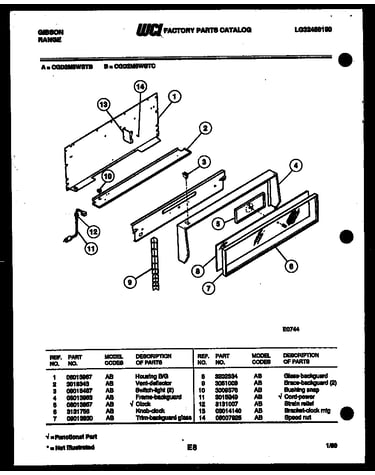

Backguard diagram

Switch

Part #08015487

Replaced by #5308015487

?
Manufacturer substitution
This part replaces 08015487. Substitute parts can look different from the original.
$49.40 |
11% OFF Phone Price : $55.40
In Stock

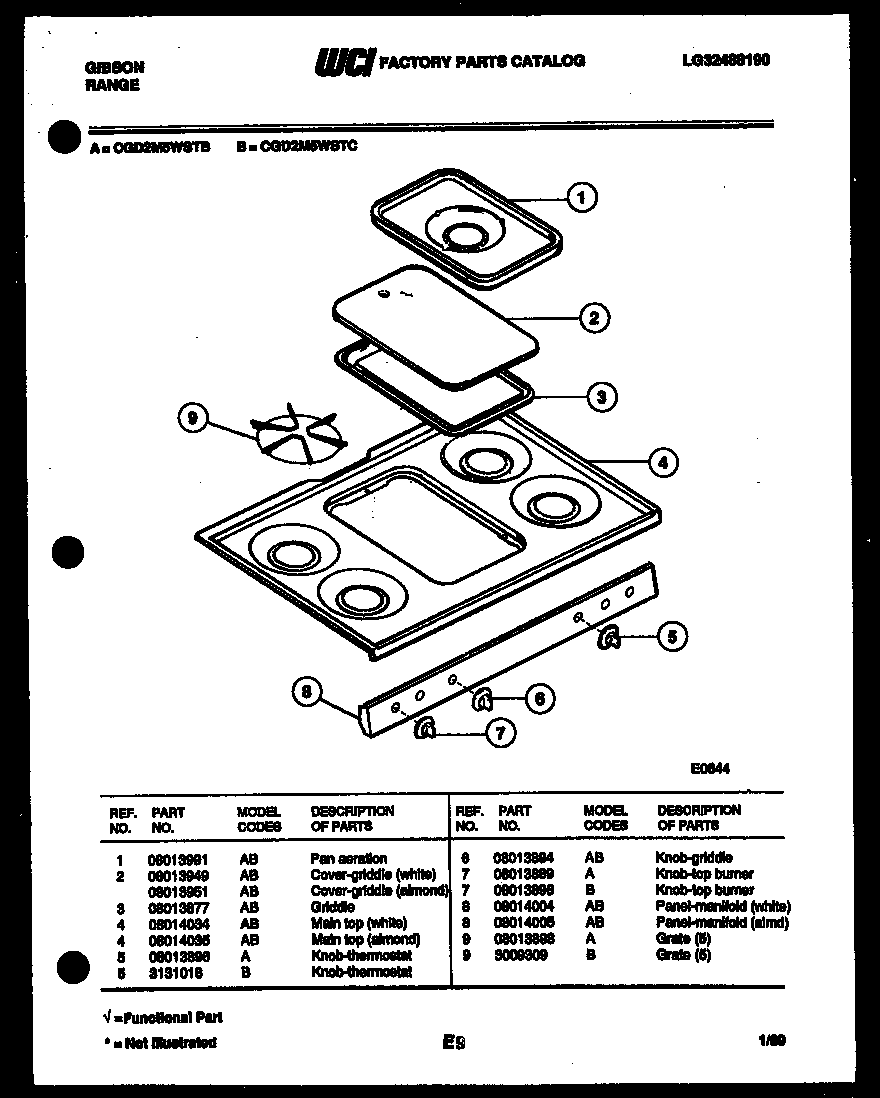

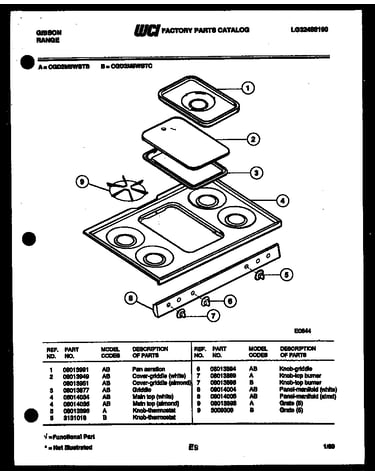

Knob 08013898
Knob

Part #08013898

Replaced by #5308013898

?
Manufacturer substitution
This part replaces 08013898. Substitute parts can look different from the original.
$26.73
In Stock

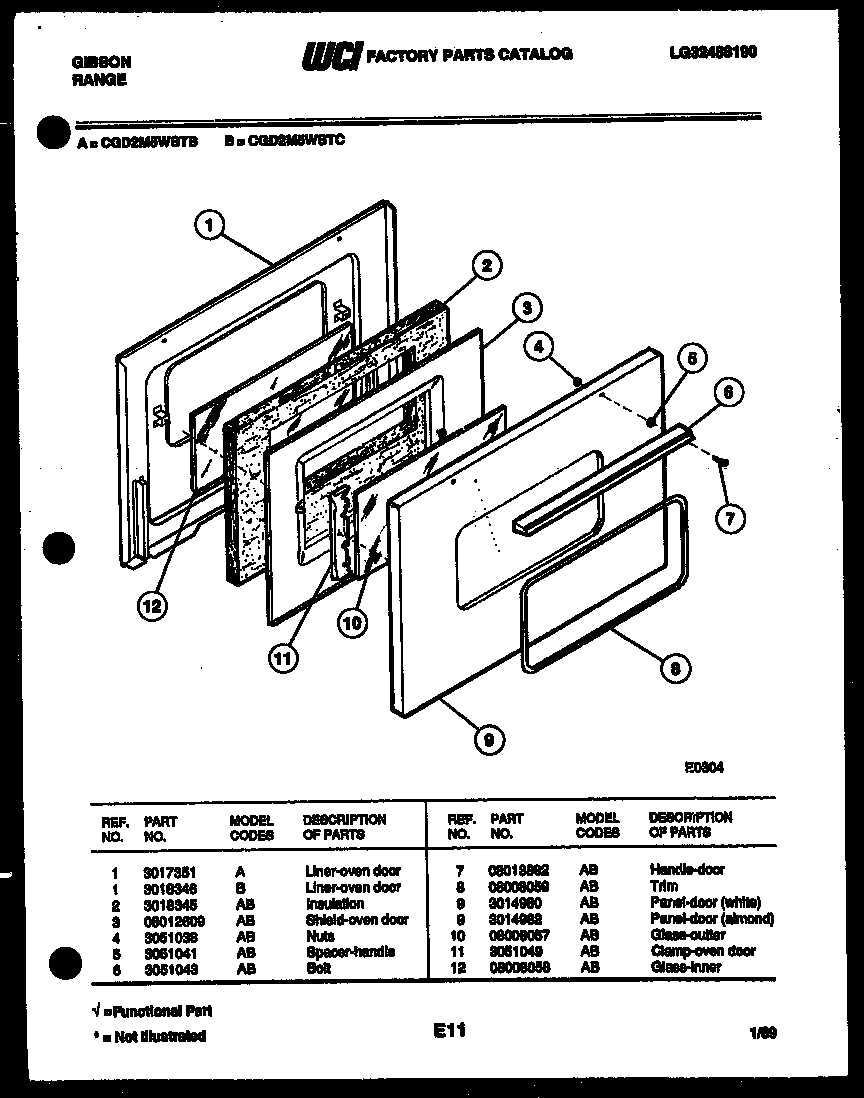

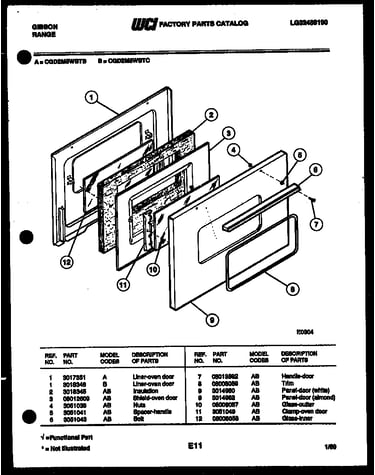

Nut 3051038
Nut

Part #3051038

This item is not returnable
$2.91
In Stock

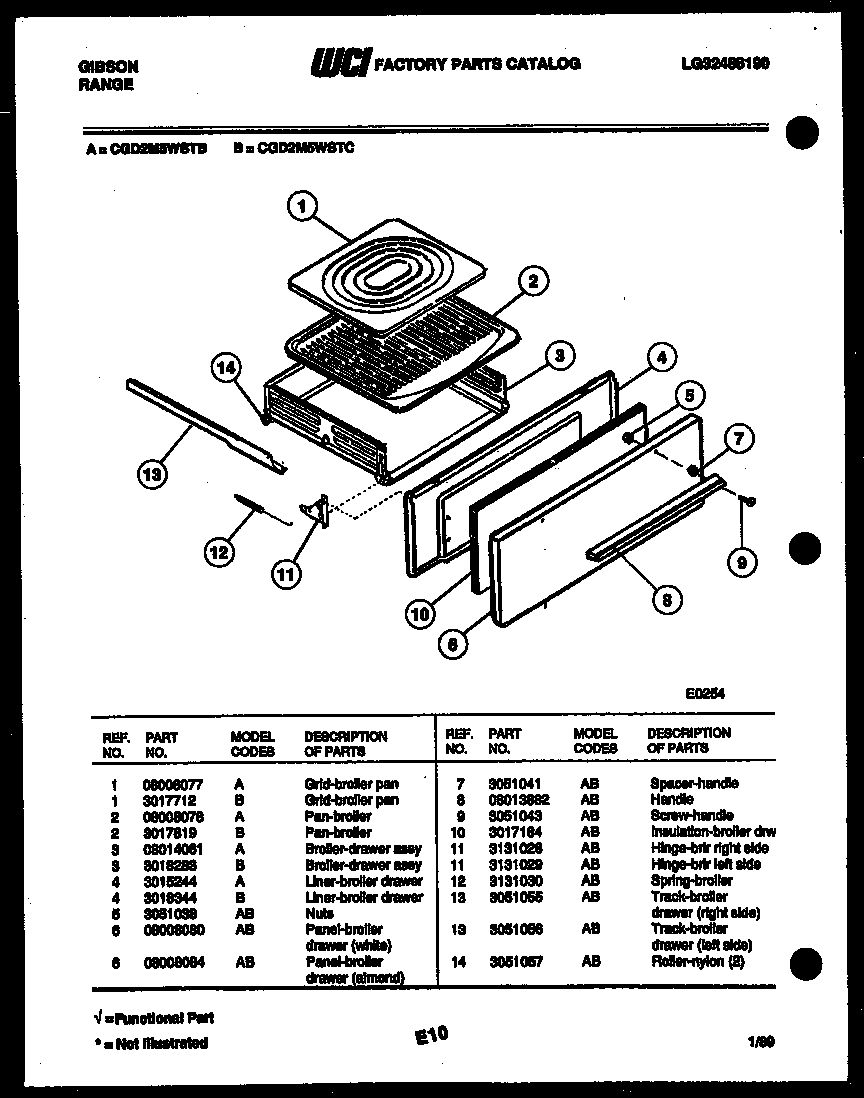

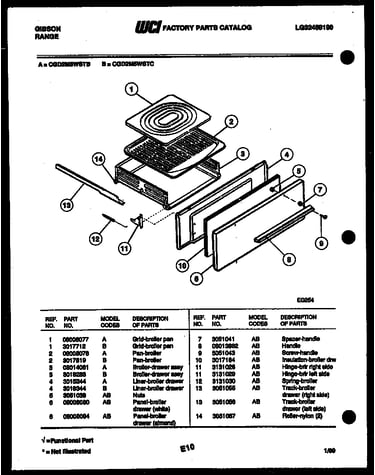

Screw 3051043
Screw

Part #3051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 3051043. Substitute parts can look different from the original.
$13.29
In Stock
Bracket 08014140
#13

Backguard diagram

Bracket

Part #08014140

Replaced by #5308008076

?
Manufacturer substitution
This part replaces 08014140. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
