Countertop Microwave

Model # 7218901391 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218901391 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Microwave Switch 505163
#4002

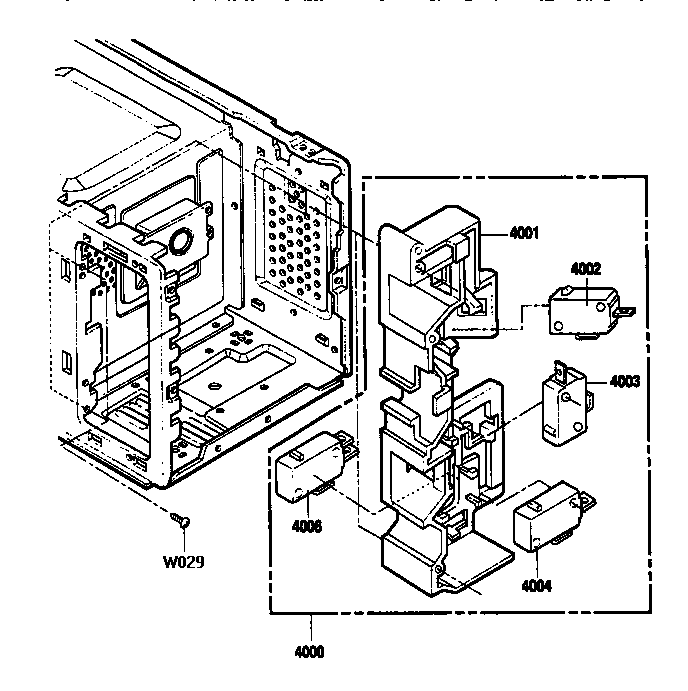

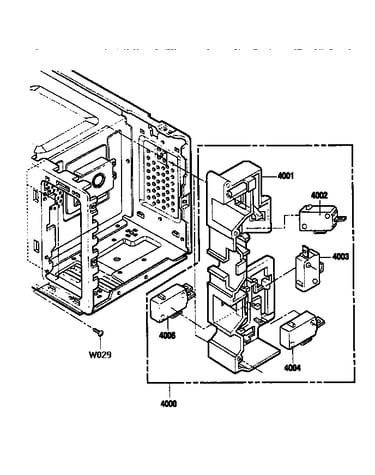

Latch board diagram

Microwave switch

Part #505163

The manufacturer no longer makes this part, and there's no substitute part

Truss Head 504672
#W094

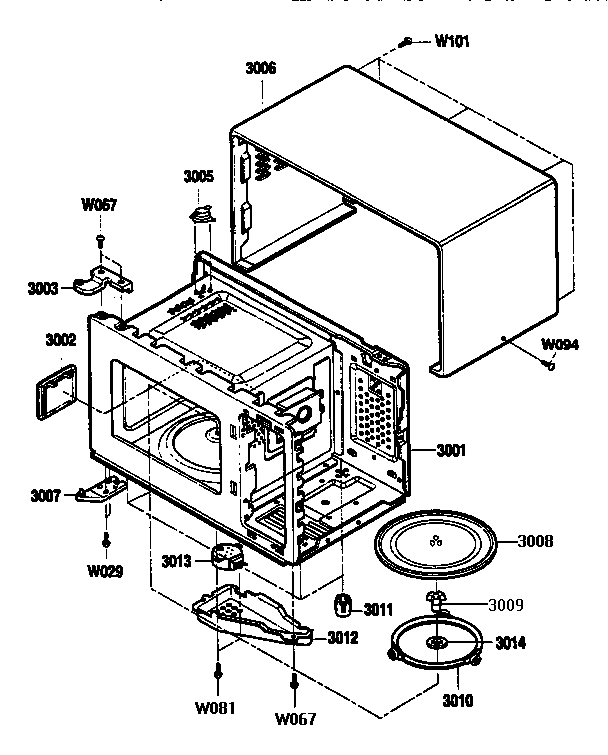

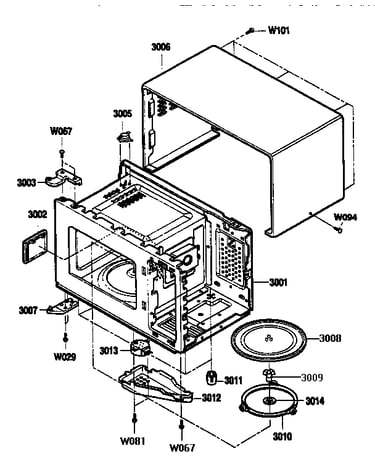

Oven cavity diagram

Truss head

Part #504672

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 504672. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Screw 501098
Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Thermostat 505974
#5012

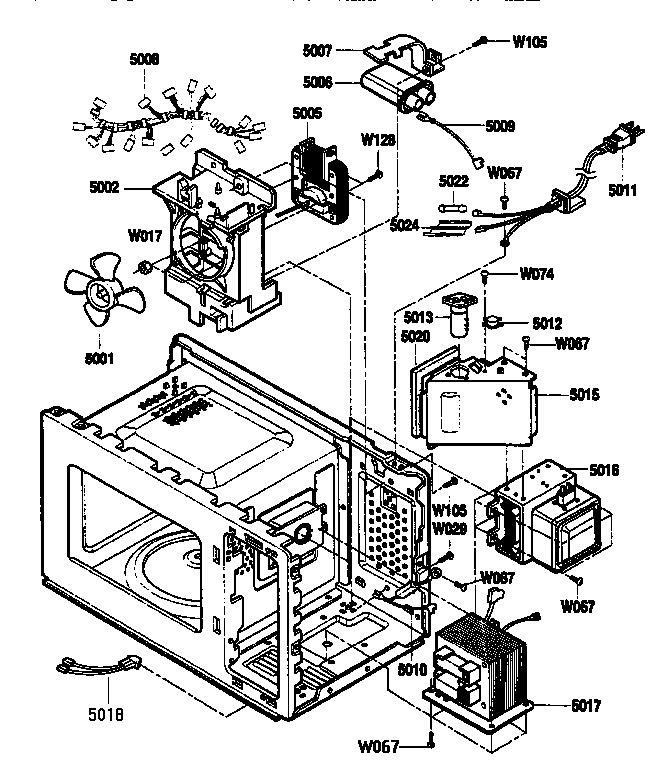

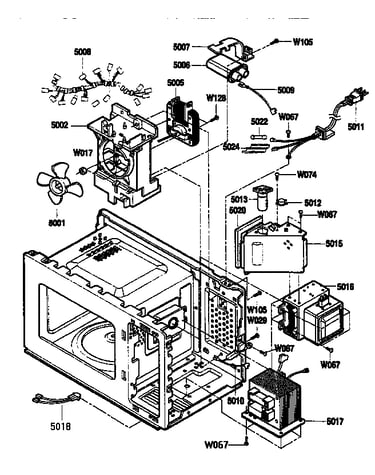

Oven interior diagram

Thermostat

Part #505974

Replaced by #6930W1A003C

?
Manufacturer substitution
This part replaces 505974. Substitute parts can look different from the original.
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Ring 507010
#3010

Oven cavity diagram

Ring

Part #507010

Replaced by #5889W2A005B

?
Manufacturer substitution
This part replaces 507010. Substitute parts can look different from the original.
$8.10
In Stock
Switch 505427
#4006

Latch board diagram

Switch

Part #505427

The manufacturer no longer makes this part, and there's no substitute part

Spring 500359
#2002

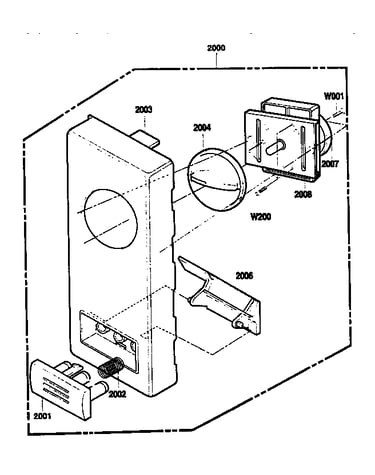

Control panel diagram

Spring

Part #500359

Replaced by #4B72023A

?
Manufacturer substitution
This part replaces 500359. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Switch 502448
#4003

Latch board diagram

Switch

Part #502448

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#5022

Oven interior diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Spring 505950
#1006

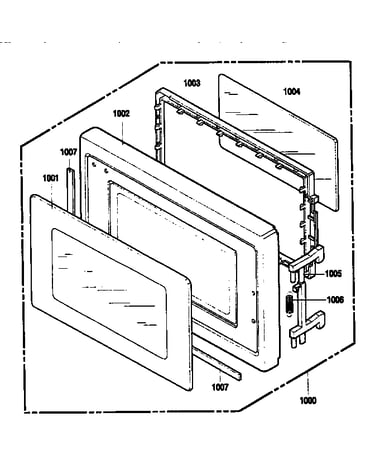

Door diagram

Spring

Part #505950

Replaced by #4970WRA001A

?
Manufacturer substitution
This part replaces 505950. Substitute parts can look different from the original.
$8.29
In Stock
