Model # PVM9179BL1TS Official GE microwave/hood combo
Here are the diagrams and repair parts for Official GE PVM9179BL1TS microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

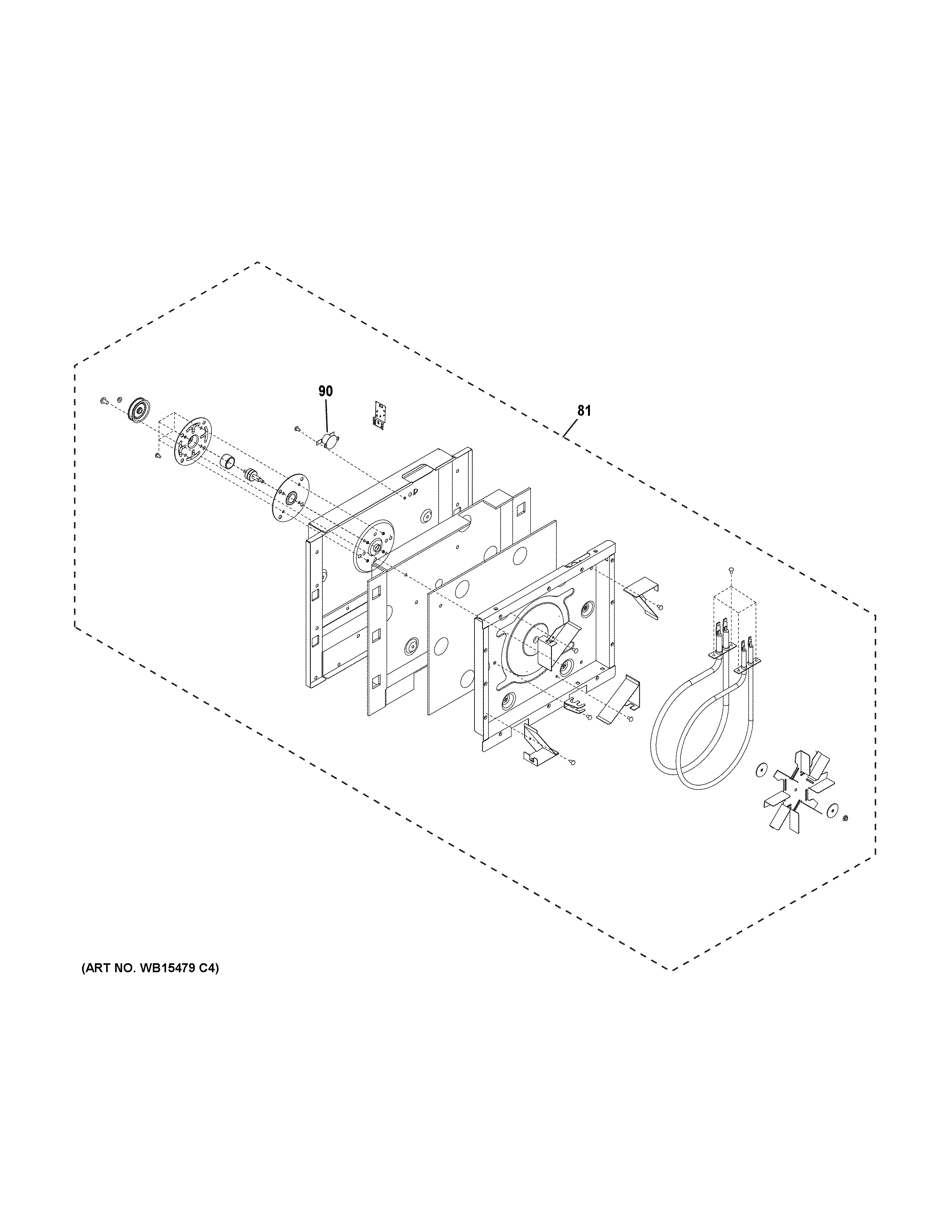

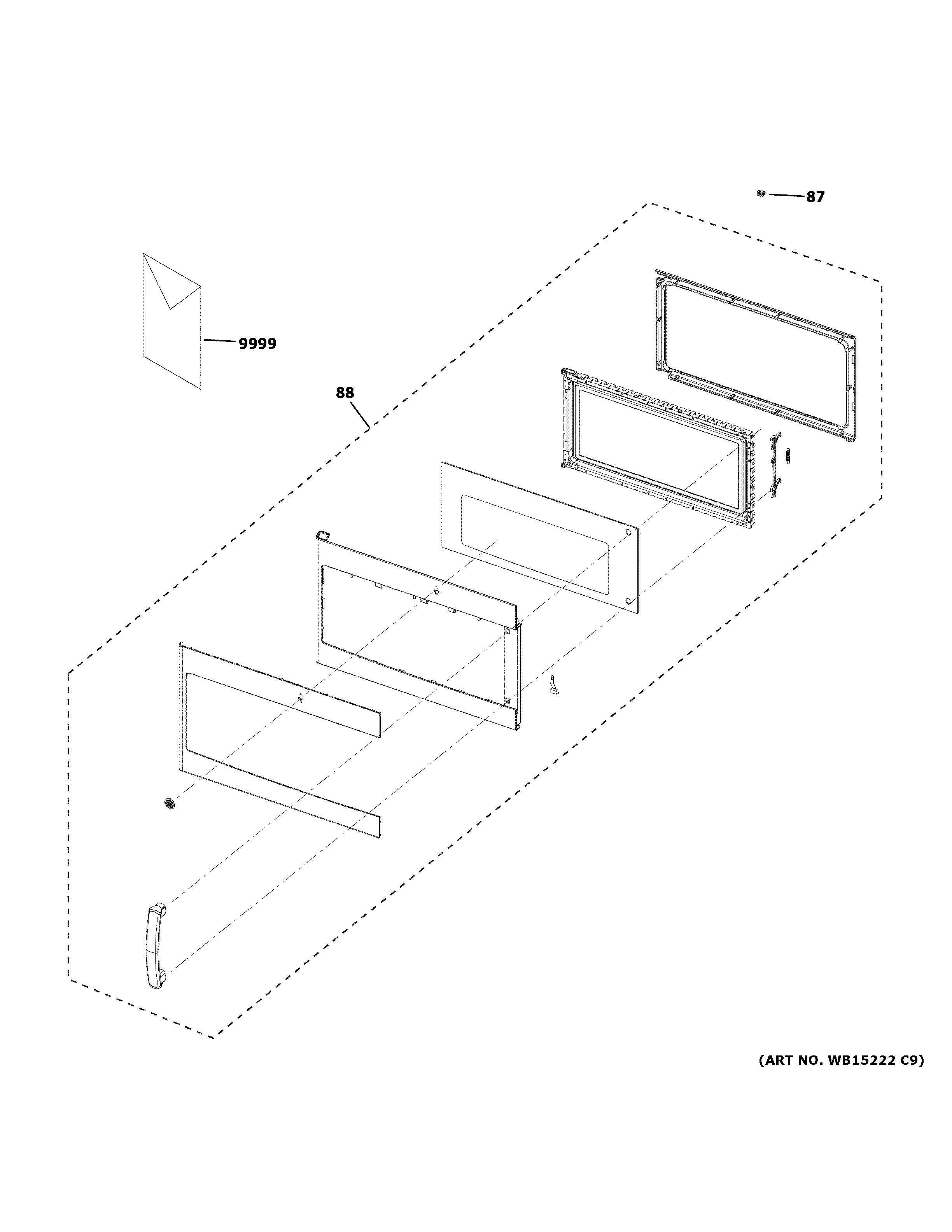

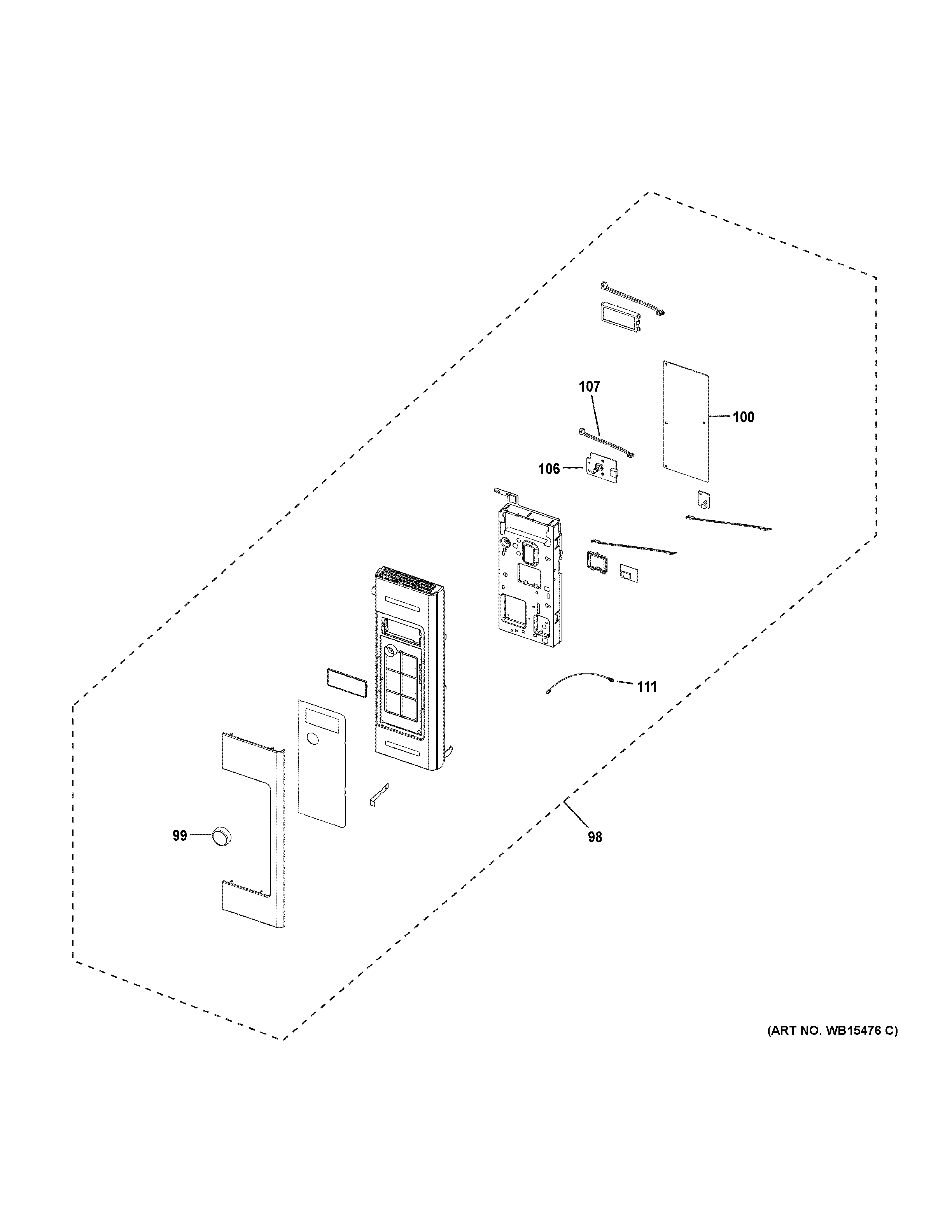

SELECT DIAGRAM
Browse Parts for
PVM9179BL1TS Microwave/Hood Combo
#39

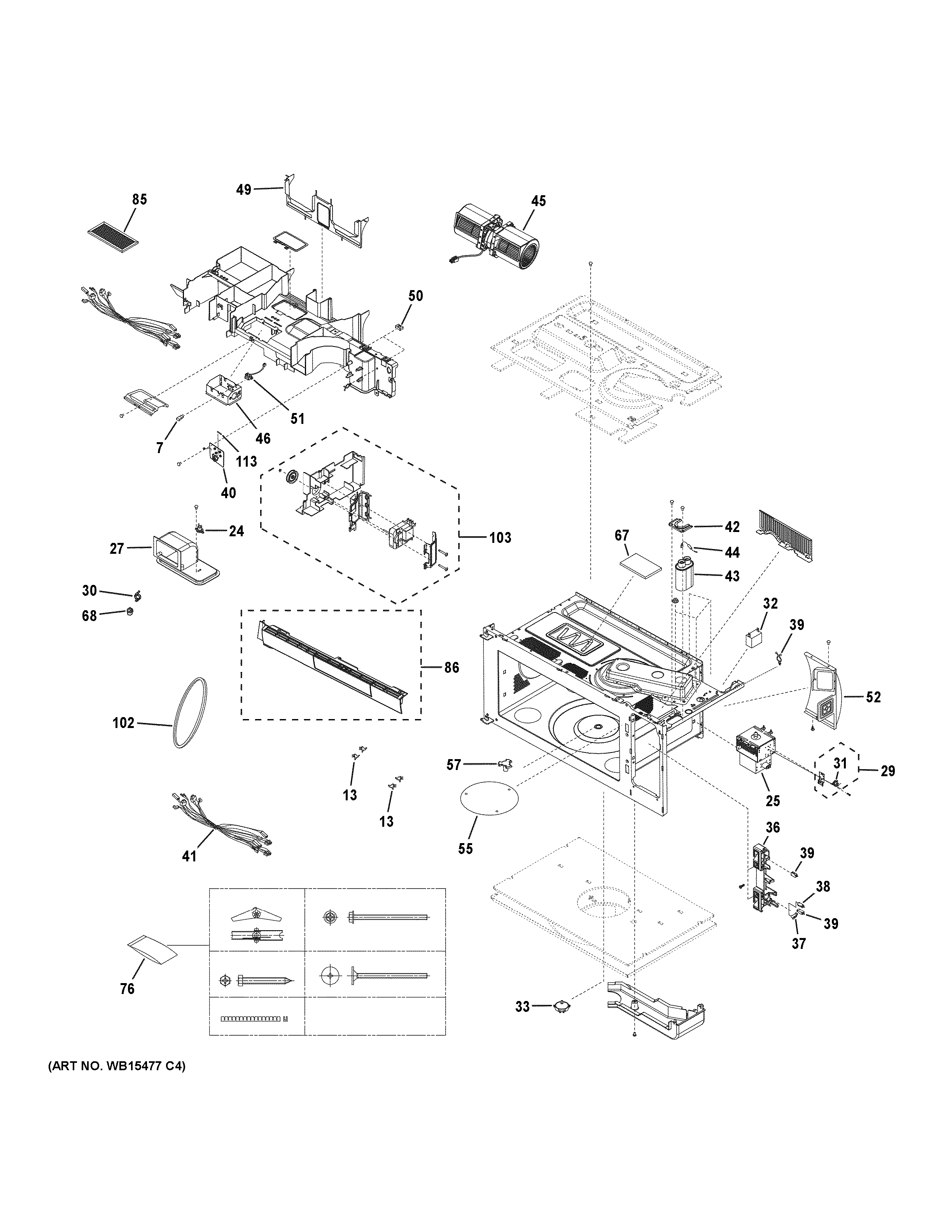

Oven cavity parts (1) diagram
Switch-micro
Part #WB24X10038
Replaced by #WB24X829
?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#38
Oven cavity parts (1) diagram
Micro-switch
Part #WB24X10075
Replaced by #WB24X830
?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
$29.53 |
17% OFF Phone Price : $35.53
In Stock
#44
Oven cavity parts (1) diagram
Microwave high-voltage diode (replaces wb27x608)
Part #WB27X1160
$79.22 |
7% OFF Phone Price : $85.22
In Stock
#68
Oven cavity parts (1) diagram
Microwave gas sensor (replaces wb24x0799)
Part #WB24X799
$151.05 |
7% OFF Phone Price : $163.05
In Stock
#17

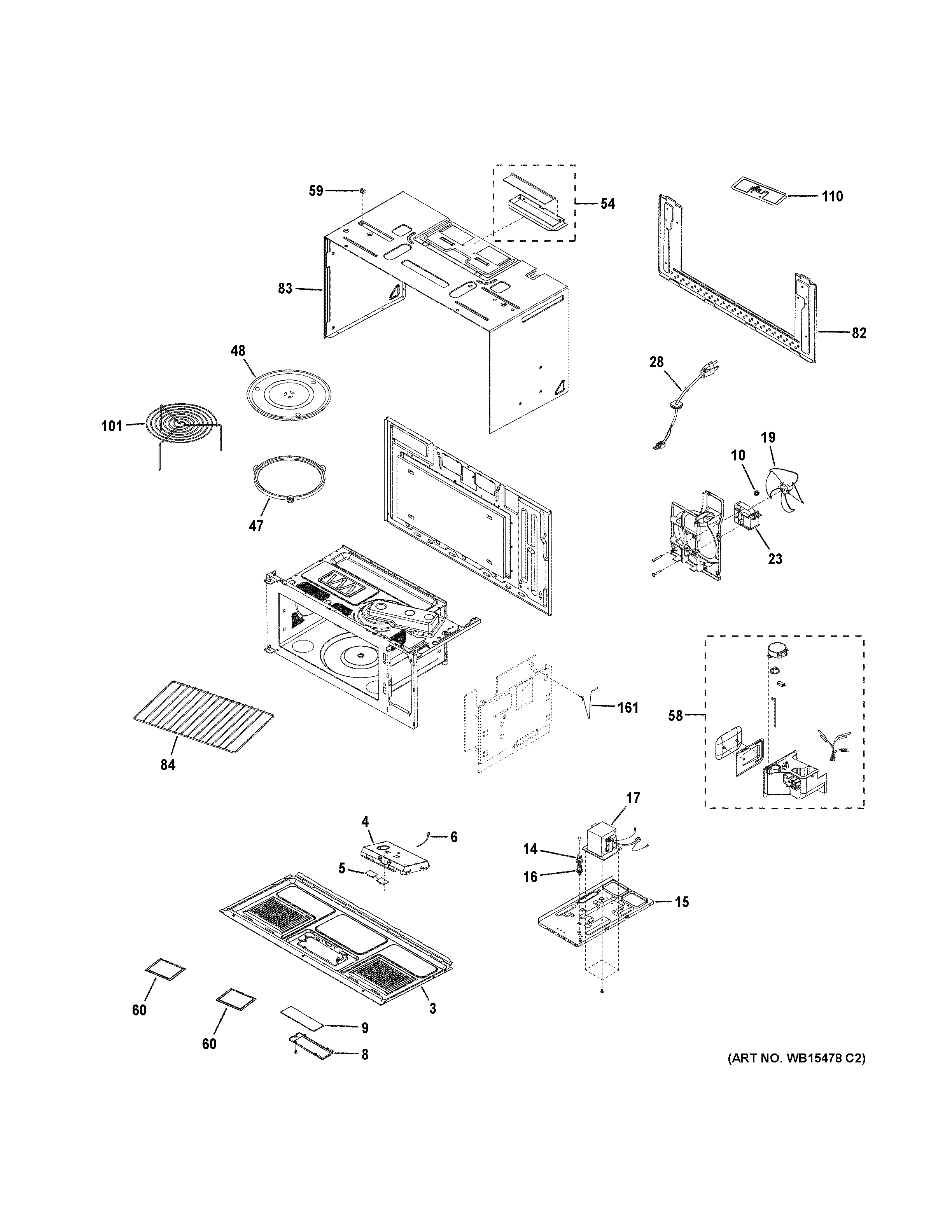

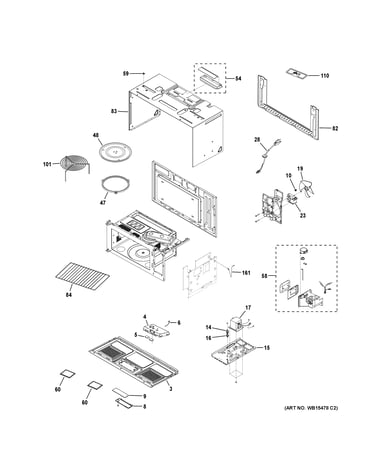

Oven cavity parts (2) diagram
Trans h.v
Part #WB20X10044
Replaced by #WB27X10910
?
Manufacturer substitution
This part replaces WB20X10044. Substitute parts can look different from the original.
$238.79 |
5% OFF Phone Price : $250.79
In Stock
#25
Oven cavity parts (1) diagram
Microwave magnetron
Part #WB27X10939
$148.42 |
7% OFF Phone Price : $160.42
In Stock
#43
Oven cavity parts (1) diagram
Microwave high-voltage capacitor (replaces wb27x598)
Part #WB27X10240
$89.57 |
6% OFF Phone Price : $95.57
In Stock
#33
Oven cavity parts (1) diagram
Microwave turntable motor
Part #WB26X10233
$32.99 |
15% OFF Phone Price : $38.99
In Stock
#24
Oven cavity parts (1) diagram
Microwave thermal cut-off
Part #WB24X29270
$57.26 |
9% OFF Phone Price : $63.26
In Stock
#14
Oven cavity parts (2) diagram
Microwave thermal cut-off
Part #WB21X10162
This item is not returnable
$12.98 |
13% OFF Phone Price : $14.98
In Stock
