Frigidaire
Countertop Microwave

Model # MC1335L2 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC1335L2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Range Oven Light Bulb 5303013071
#4

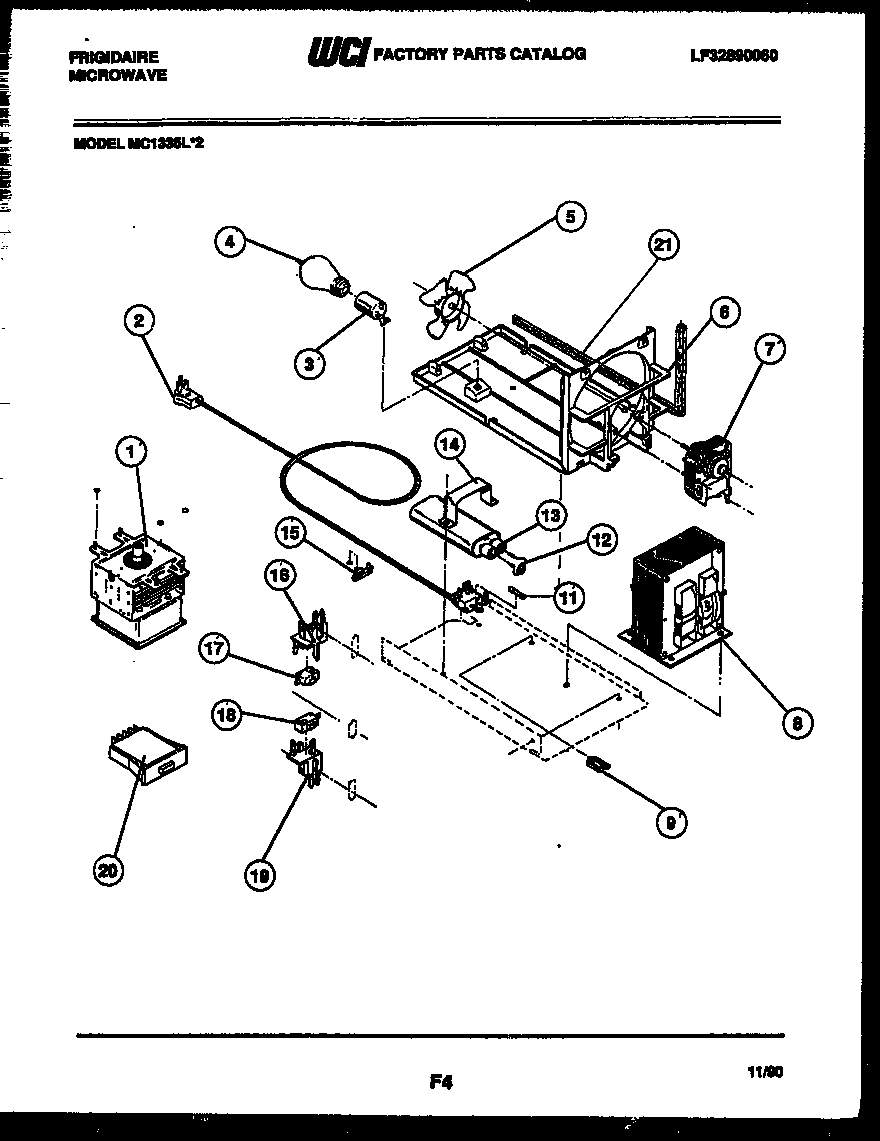

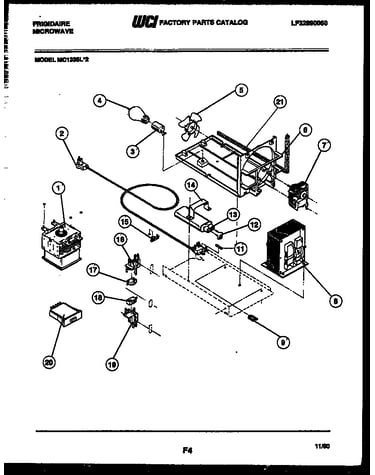

Power control diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Plug 5303013626
#28

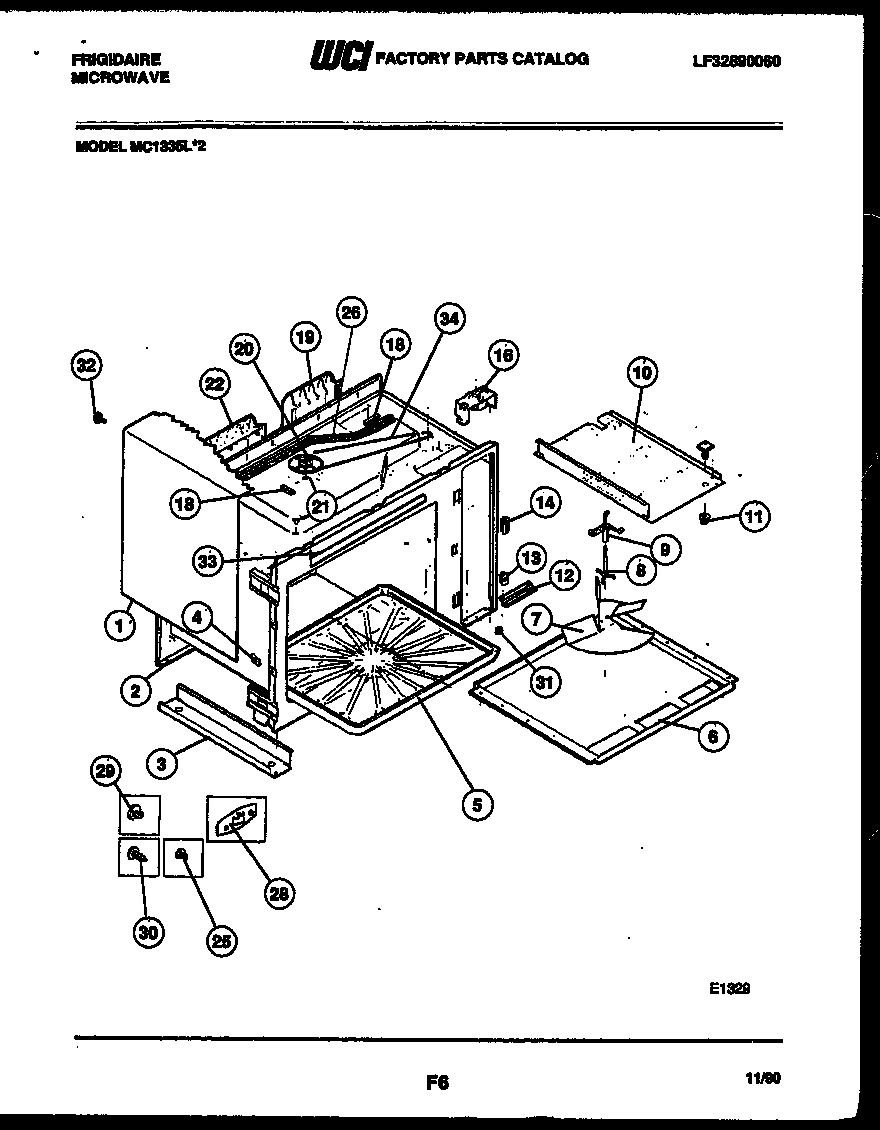

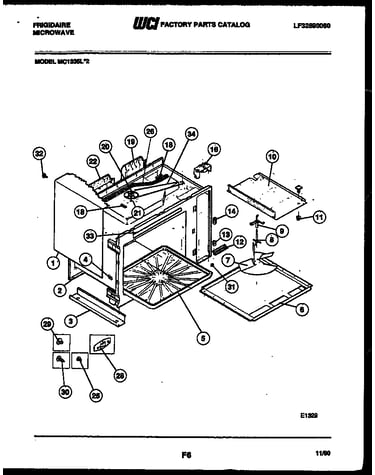

Body parts diagram

Plug

Part #5303013626

This item is not returnable
$2.34
In Stock
Door 5303211147
#5

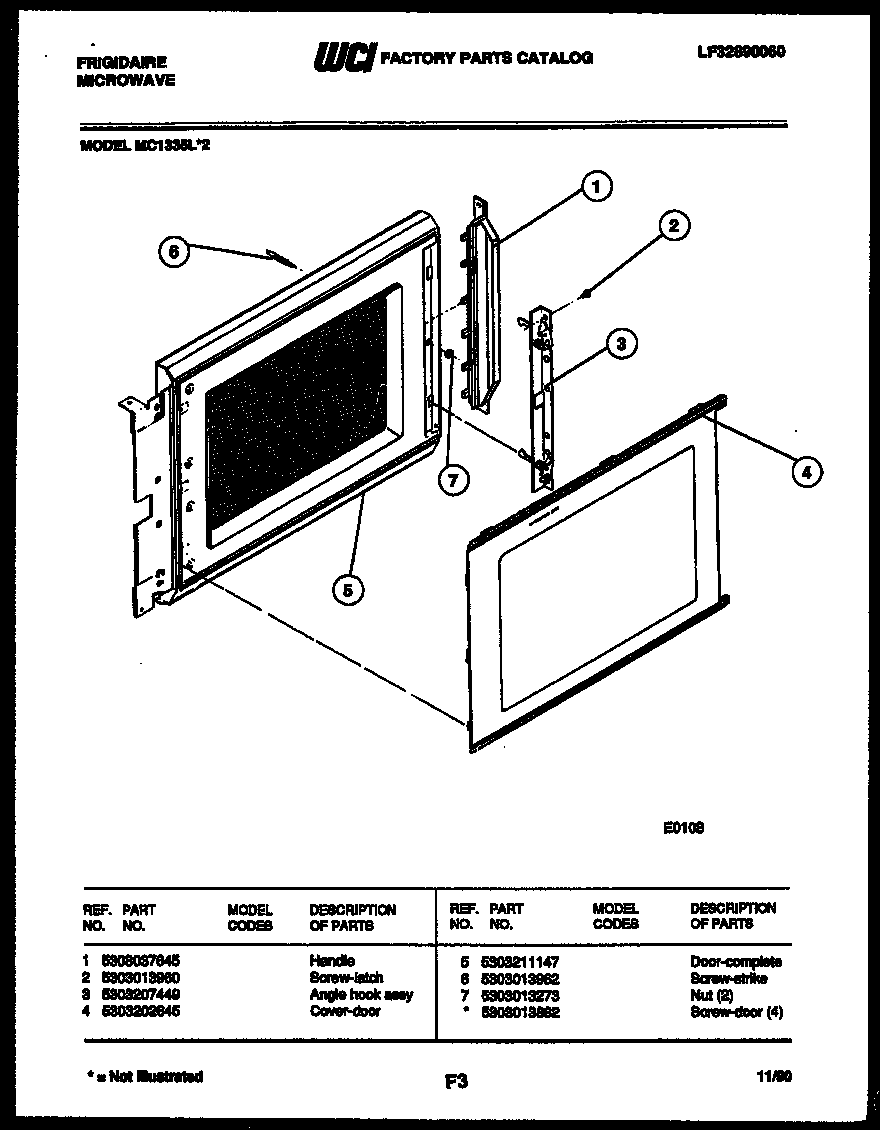

Door parts diagram

Door

Part #5303211147

$138.49
In Stock
Screw 5303091100
#32

Body parts diagram

Screw

Part #5303091100

This item is not returnable
$2.16
In Stock
Label 5303018849
#33

Body parts diagram

Label

Part #5303018849

This item is not returnable
$2.99
In Stock
Blade 5303012284
#7

Body parts diagram

Blade

Part #5303012284

This item is not returnable
$5.99
In Stock
Tape 5303017864
#21

Power control diagram

Tape

Part #5303017864

Replaced by #5303922194

?
Manufacturer substitution
This part replaces 5303017864. Substitute parts can look different from the original.
$54.07
In Stock
Clip 5303012323
#4

Body parts diagram

Clip

Part #5303012323

Replaced by #3203010

?
Manufacturer substitution
This part replaces 5303012323. Substitute parts can look different from the original.
$14.69
In Stock
Screw 5303013962
#6

Door parts diagram

Screw

Part #5303013962

The manufacturer no longer makes this part, and there's no substitute part

Door Cover 5303202645
#4

Door parts diagram

Door cover

Part #5303202645

The manufacturer no longer makes this part, and there's no substitute part
