Kenmore
Electric Range

Model # 8504268390 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 8504268390 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Light Bulb STD372401
#70

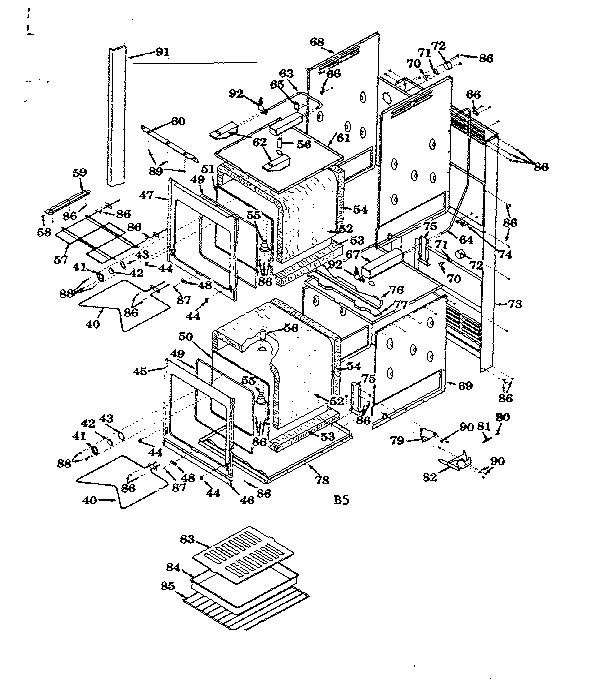

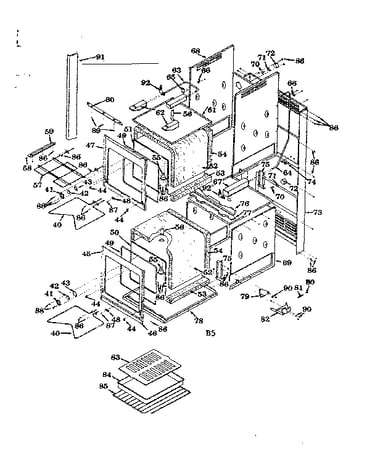

Body section diagram

Light bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bake Element 70855
#40

Body section diagram

Bake element

Part #70855

Replaced by #WP3177420

?
Manufacturer substitution
This part replaces 70855. Substitute parts can look different from the original.
$81.55 |
7% OFF Phone Price : $87.55
In Stock
Oven Broiler Element 22415
#57

Body section diagram

Oven broiler element

Part #22415

The manufacturer no longer makes this part, and there's no substitute part

Oven Broiler Grid 22584
#83

Body section diagram

Oven broiler grid

Part #22584

Replaced by #4396923

?
Manufacturer substitution
This part replaces 22584. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 22586
#84

Body section diagram

Broiler pan

Part #22586

Replaced by #4396923

?
Manufacturer substitution
This part replaces 22586. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw STD610807
#25

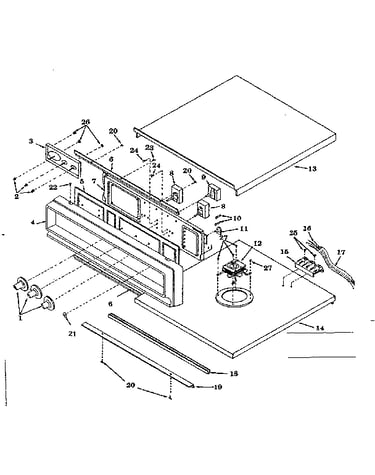

Control section diagram

Screw

Part #STD610807

The manufacturer no longer makes this part, and there's no substitute part

Main 22100
#73

Body section diagram

Main

Part #22100

The manufacturer no longer makes this part, and there's no substitute part

Oven Rack 70431
#85

Body section diagram

Oven rack

Part #70431

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 31962
#69

Body section diagram

Cabinet

Part #31962

The manufacturer no longer makes this part, and there's no substitute part

Support 22031
#60

Body section diagram

Support

Part #22031

The manufacturer no longer makes this part, and there's no substitute part
