Jenn-Air
Side-By-Side Refrigerator

Model # JCD2389DTW Official Jenn-Air refrigerator

Here are the diagrams and repair parts for Official Jenn-Air JCD2389DTW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

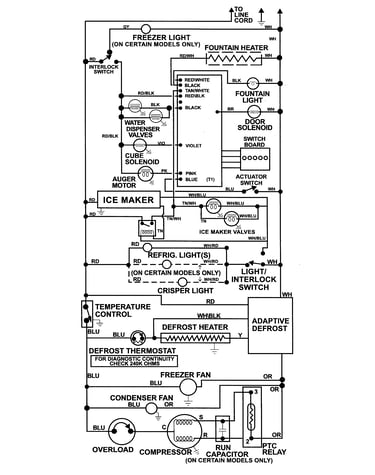

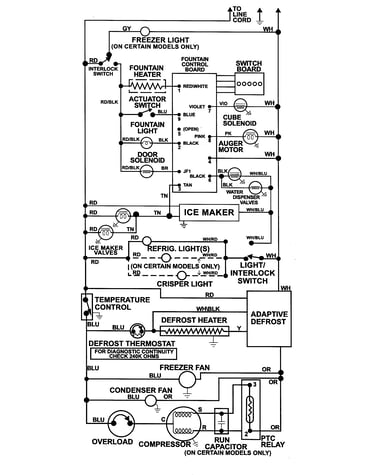

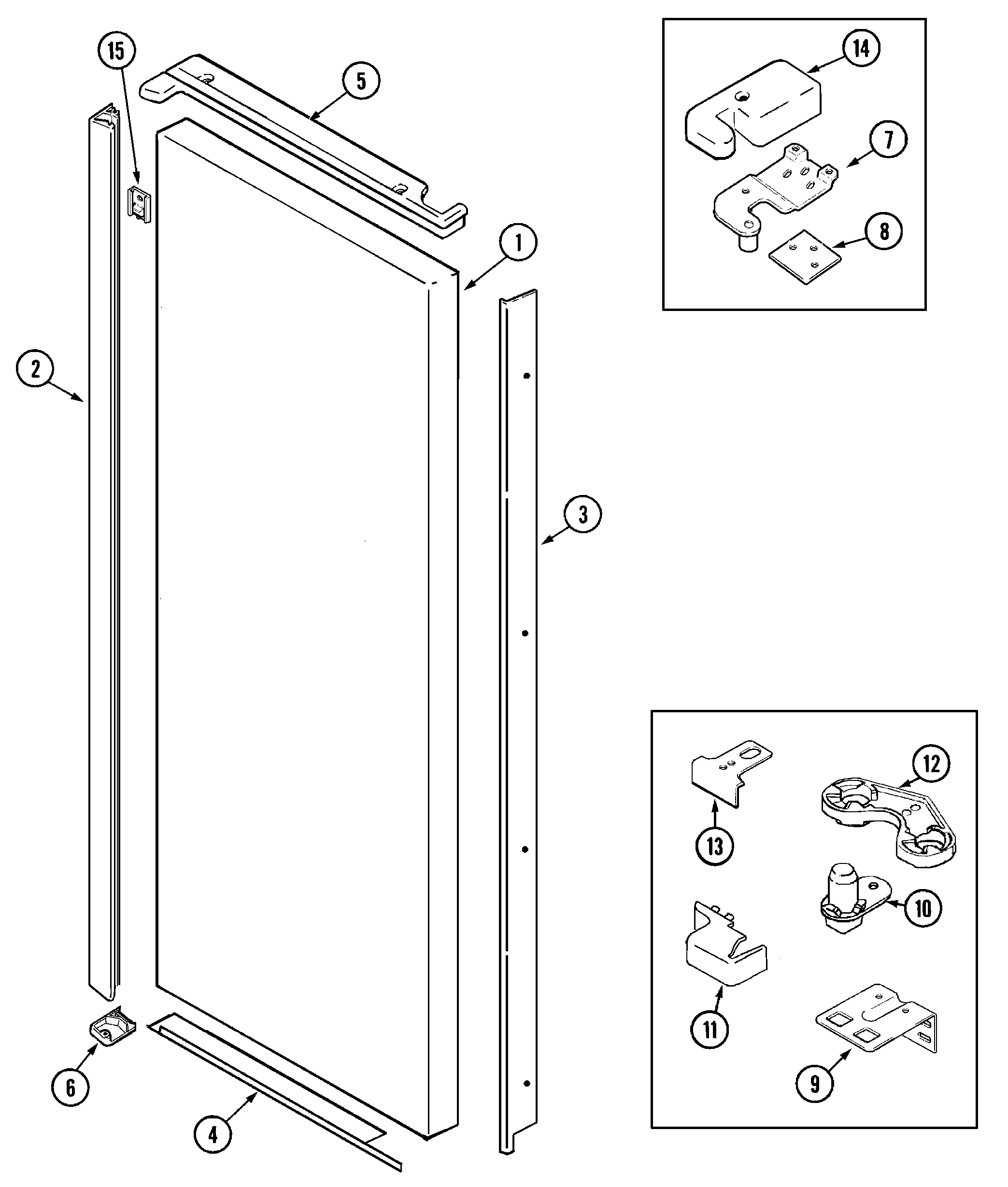

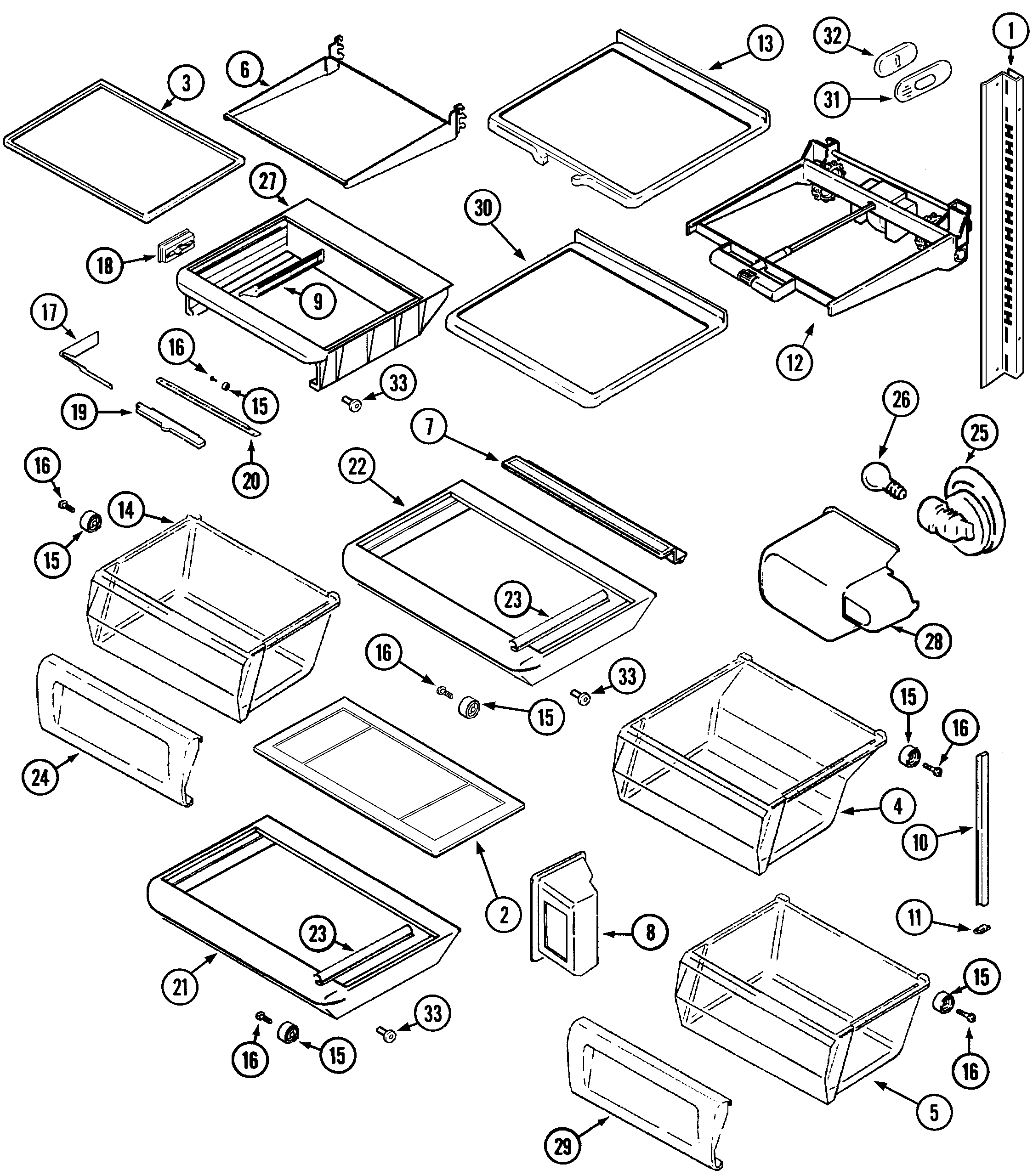

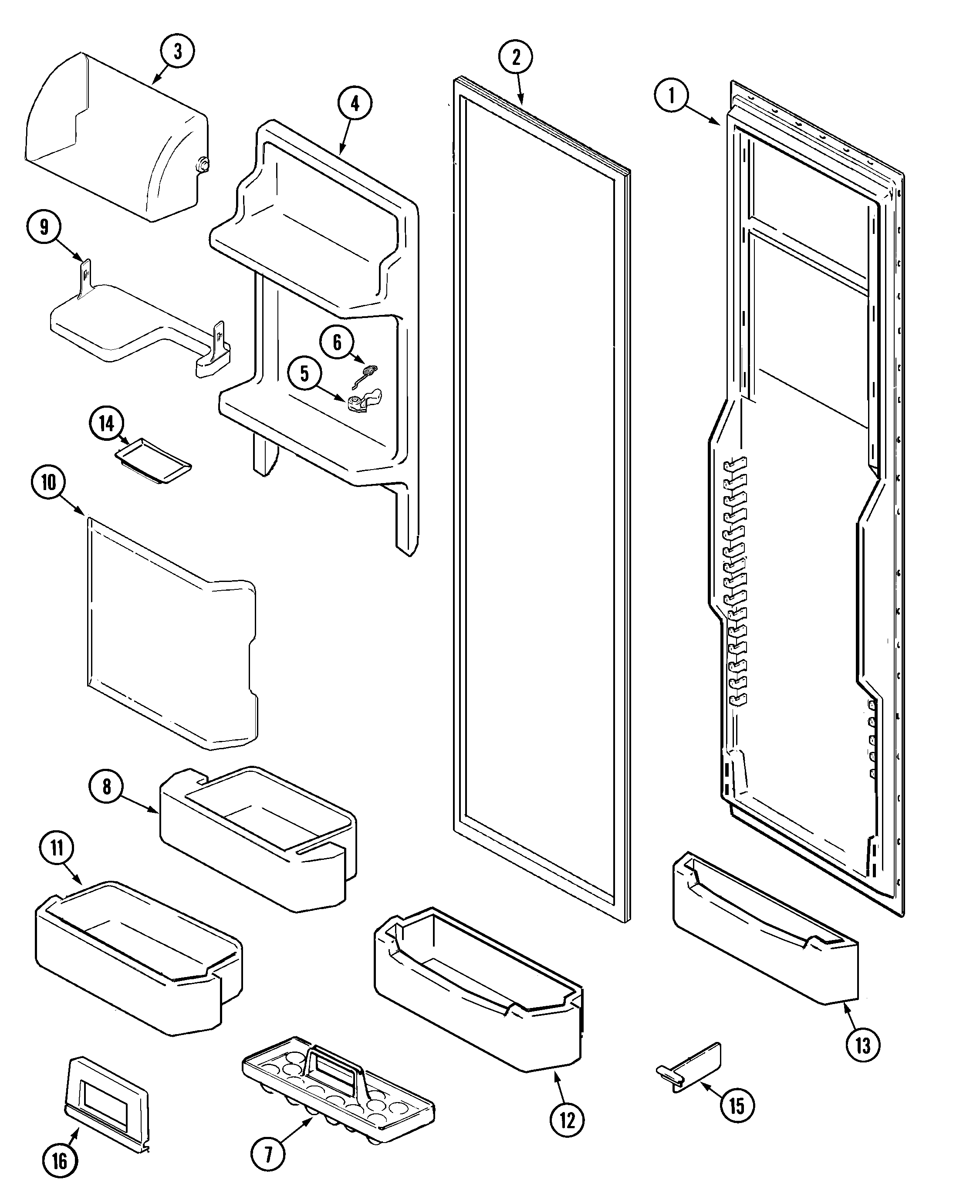

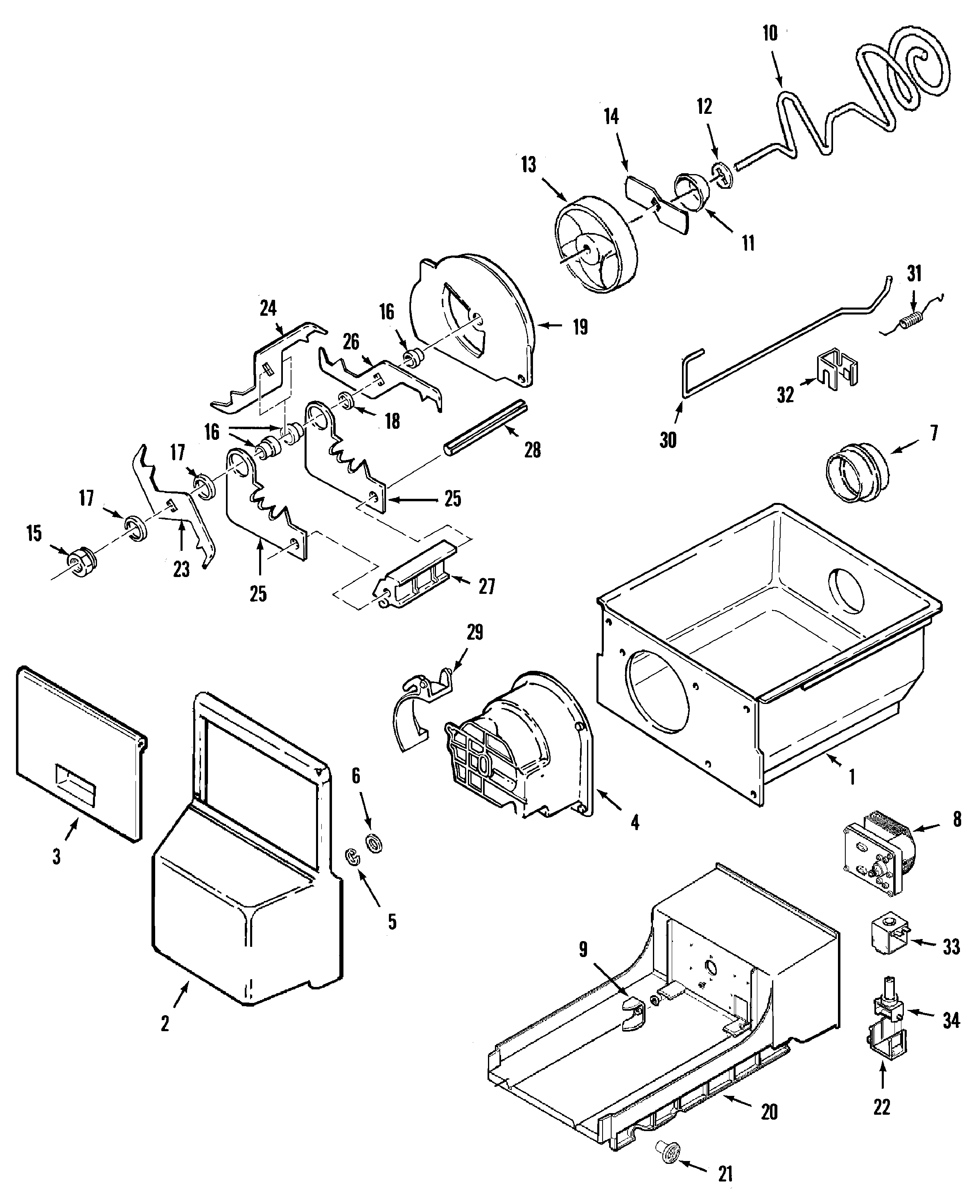

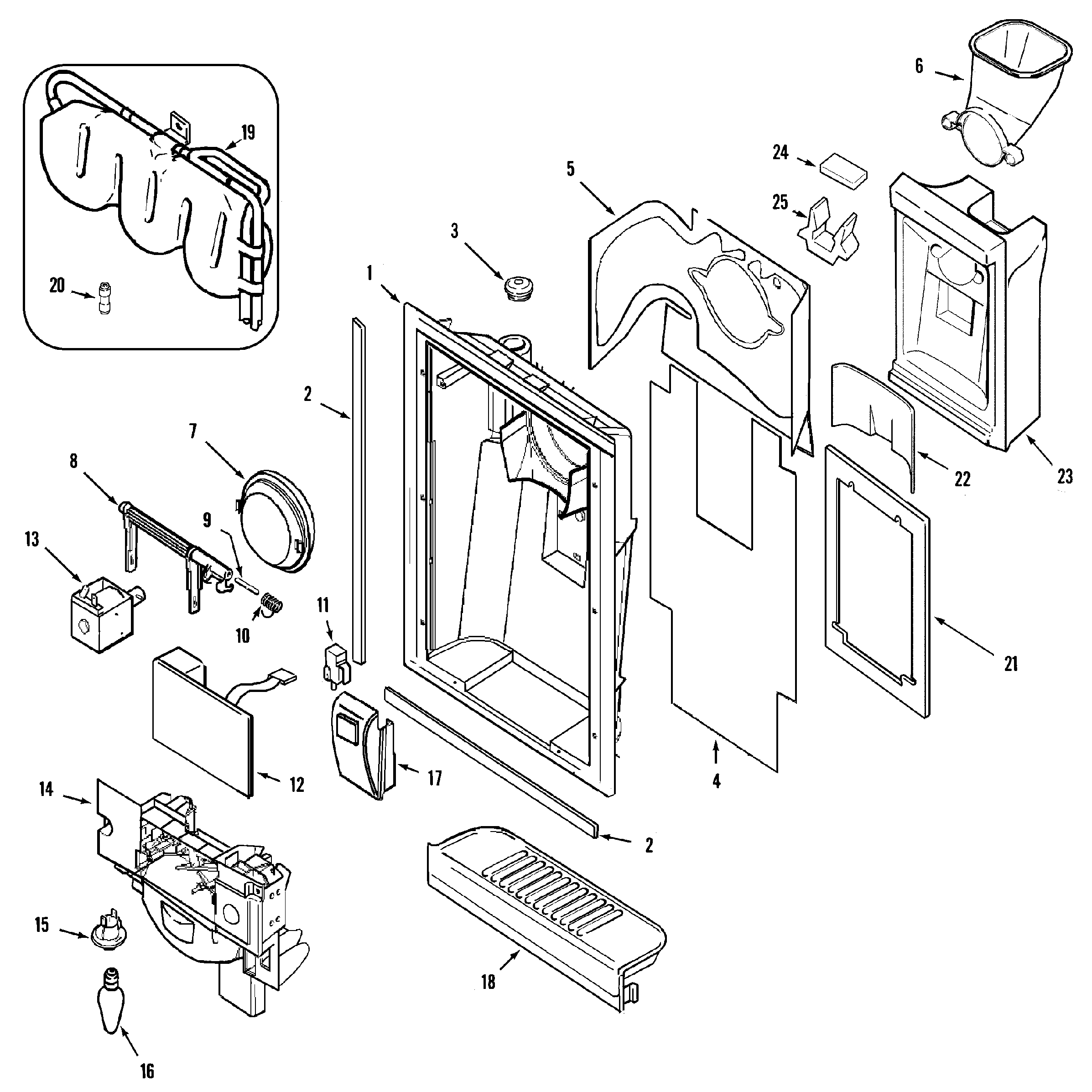

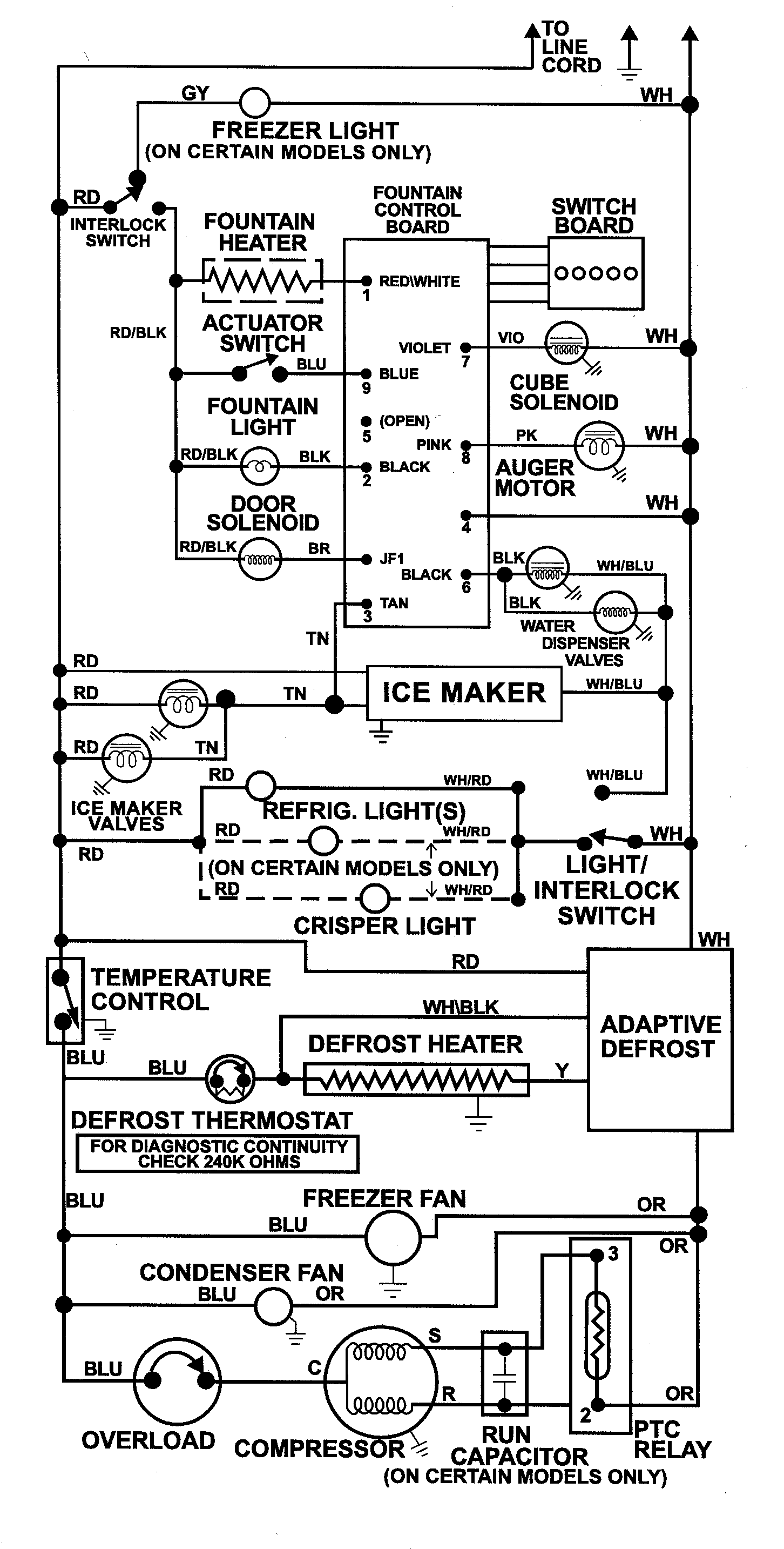

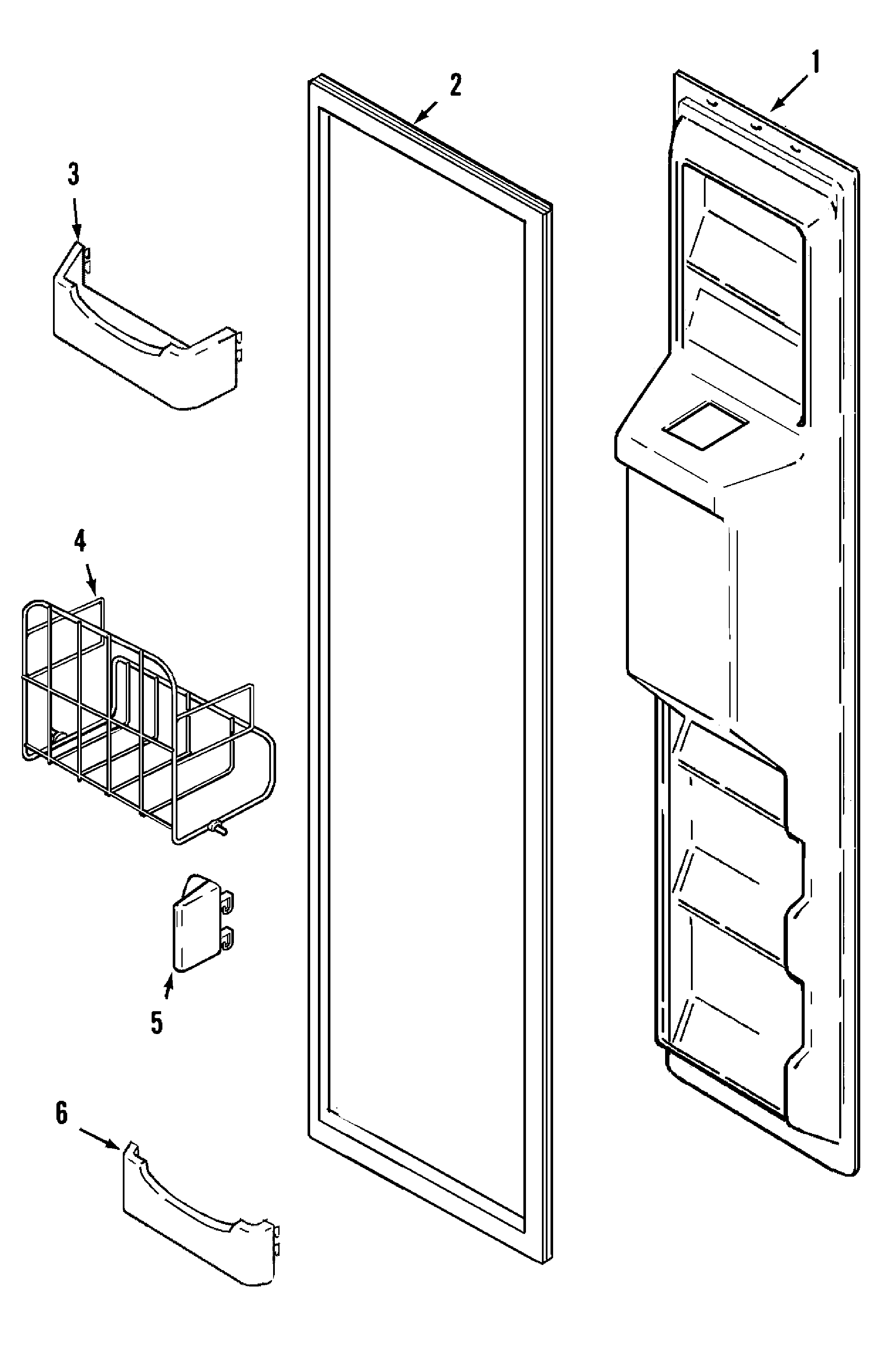

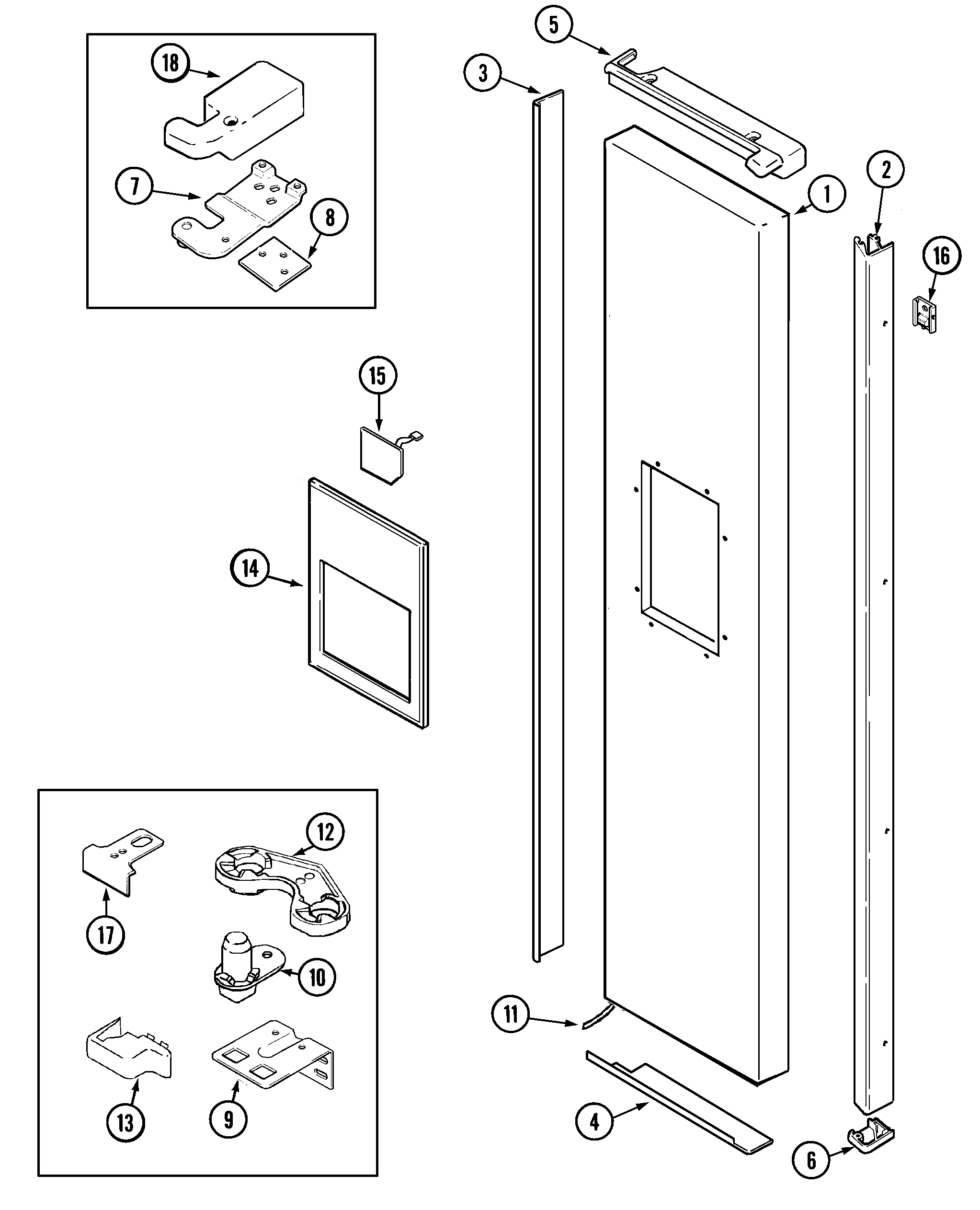

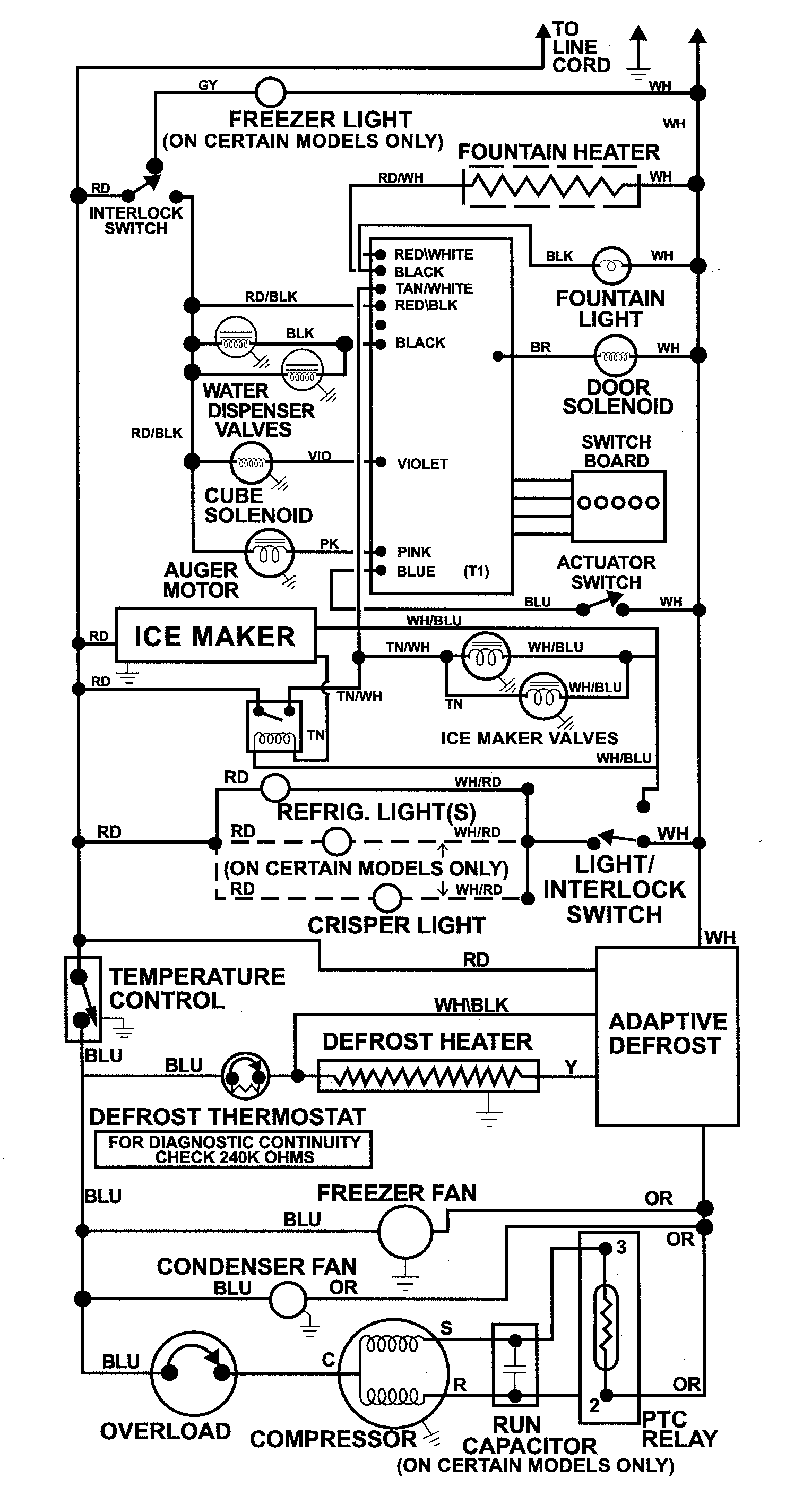

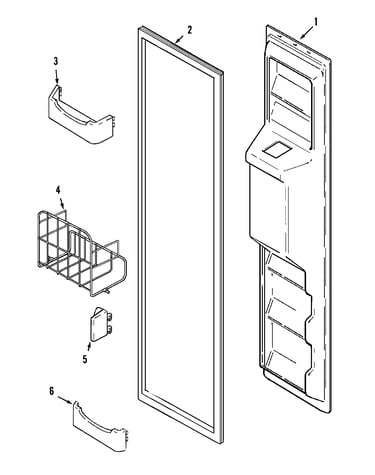

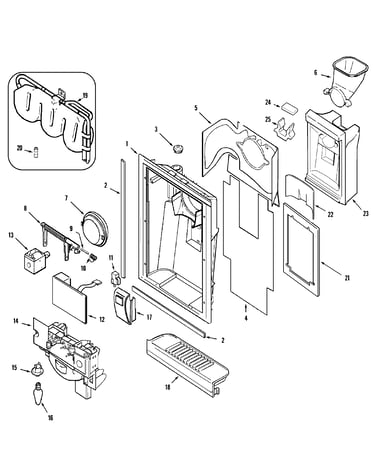

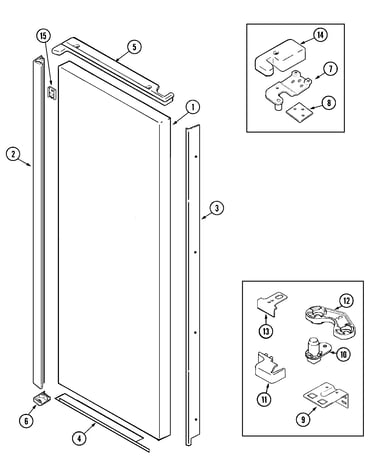

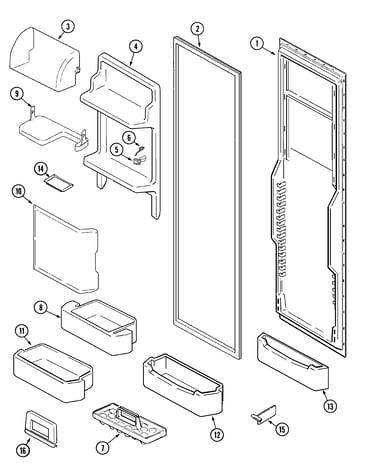

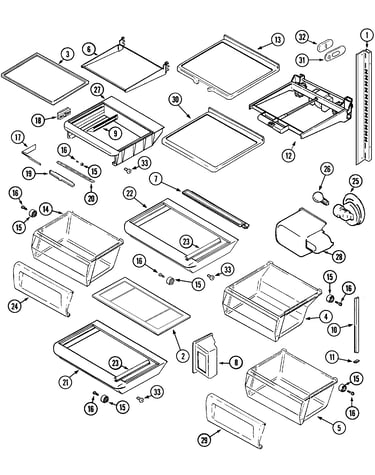

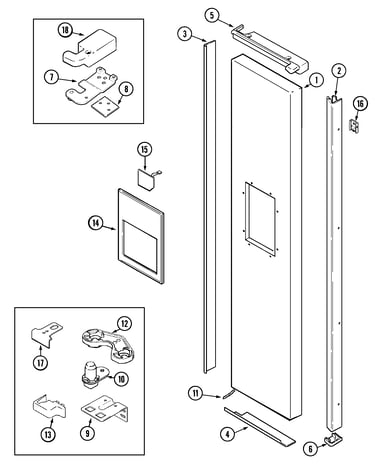

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 360 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

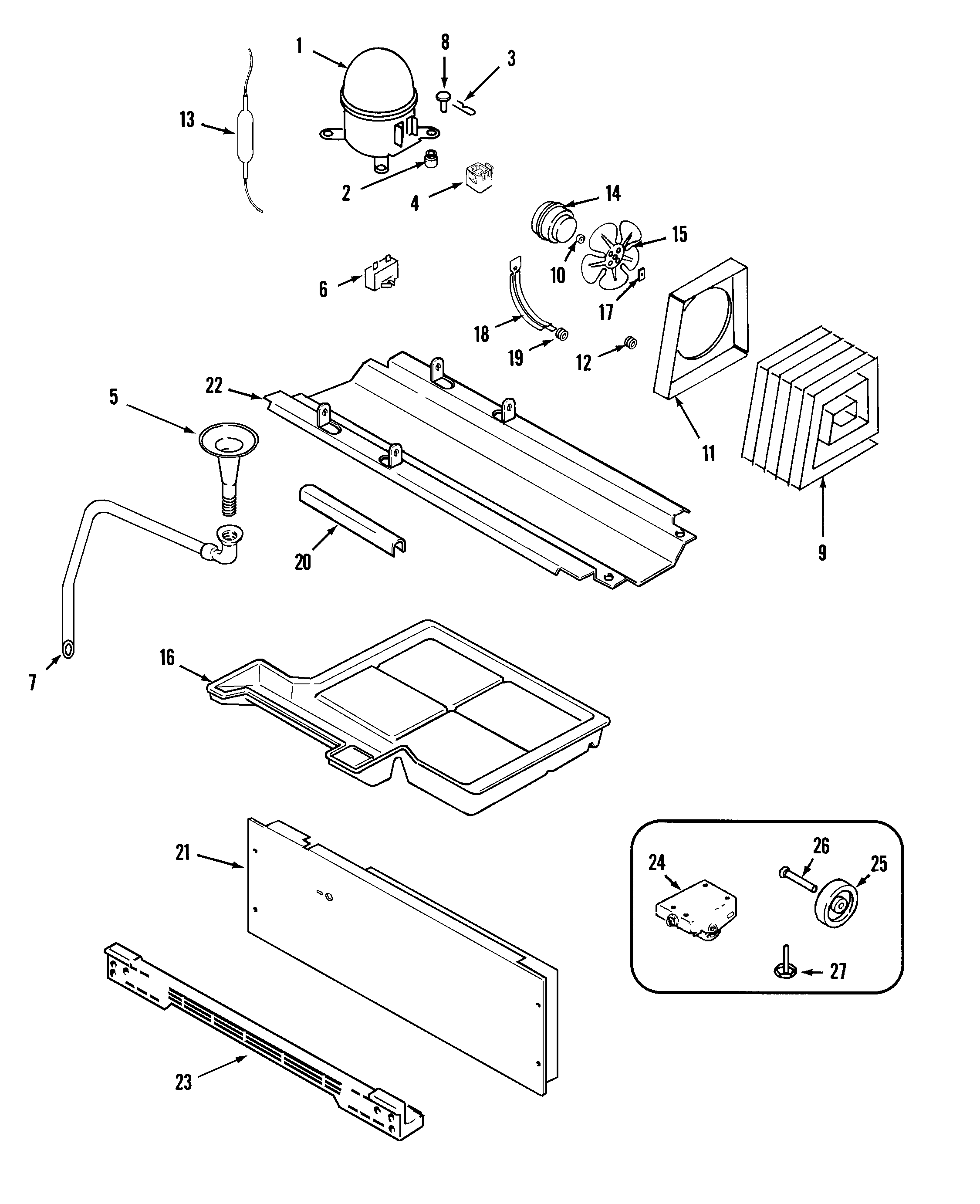

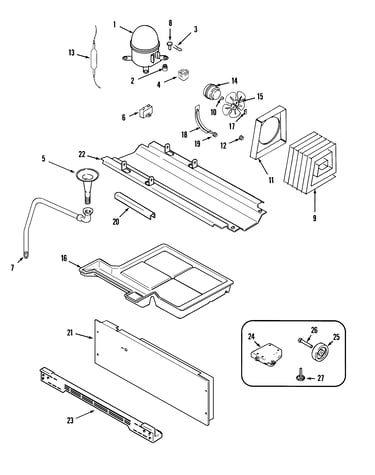

Compressor (jcd2389dtb/w) diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Module 95109-1
#1

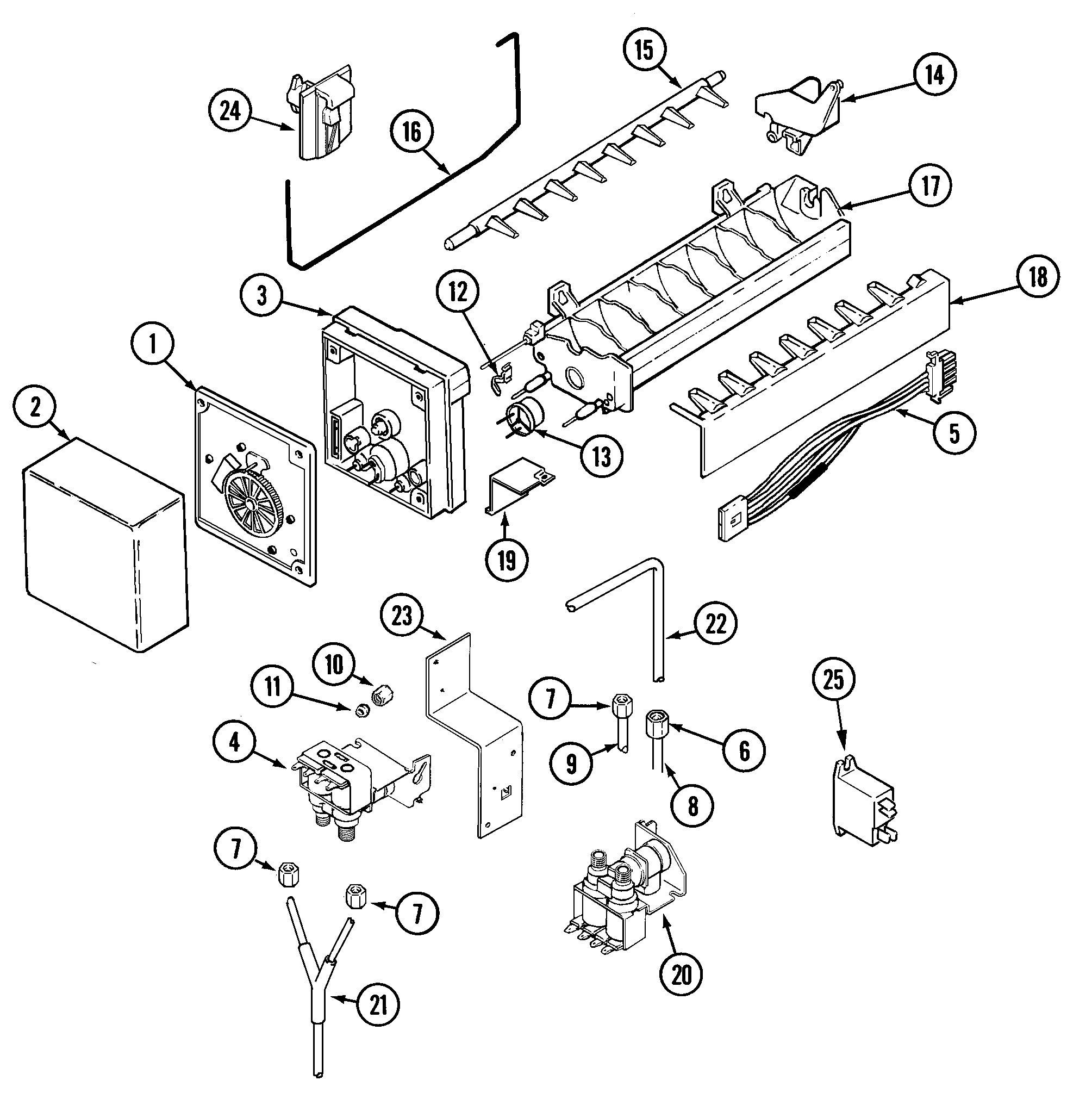

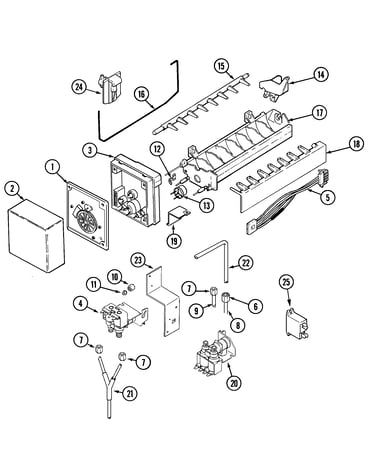

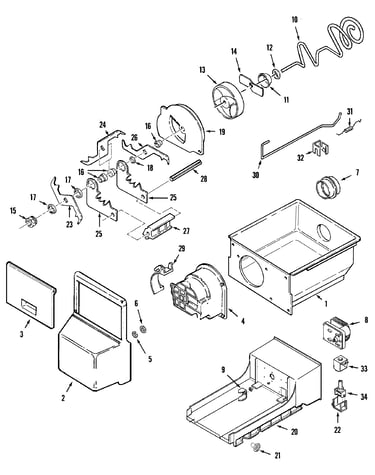

Ice maker (jcd2389dtb/w) diagram

Refrigerator ice maker module

Part #95109-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95109-1. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb 31956-1
#30

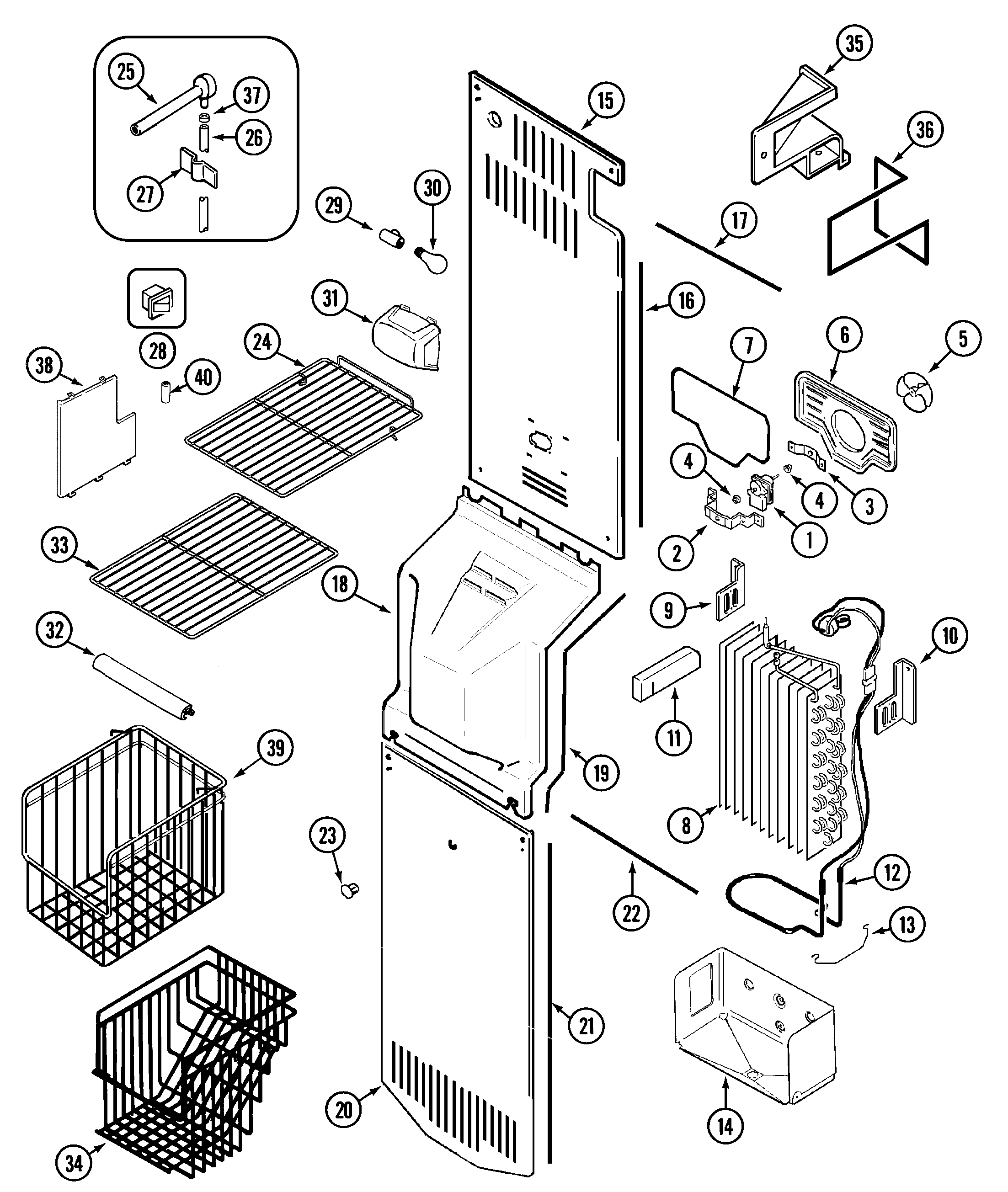

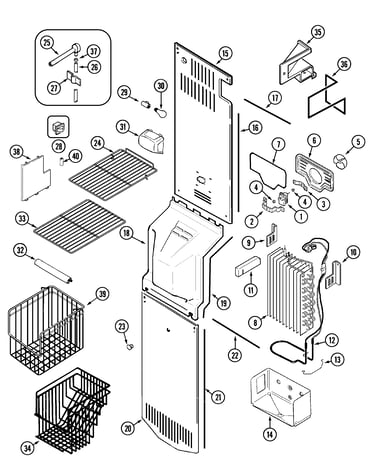

Freezer compartment (jcd2389dtb/w) diagram

Refrigerator light bulb

Part #31956-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956-1. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 61003661
#20

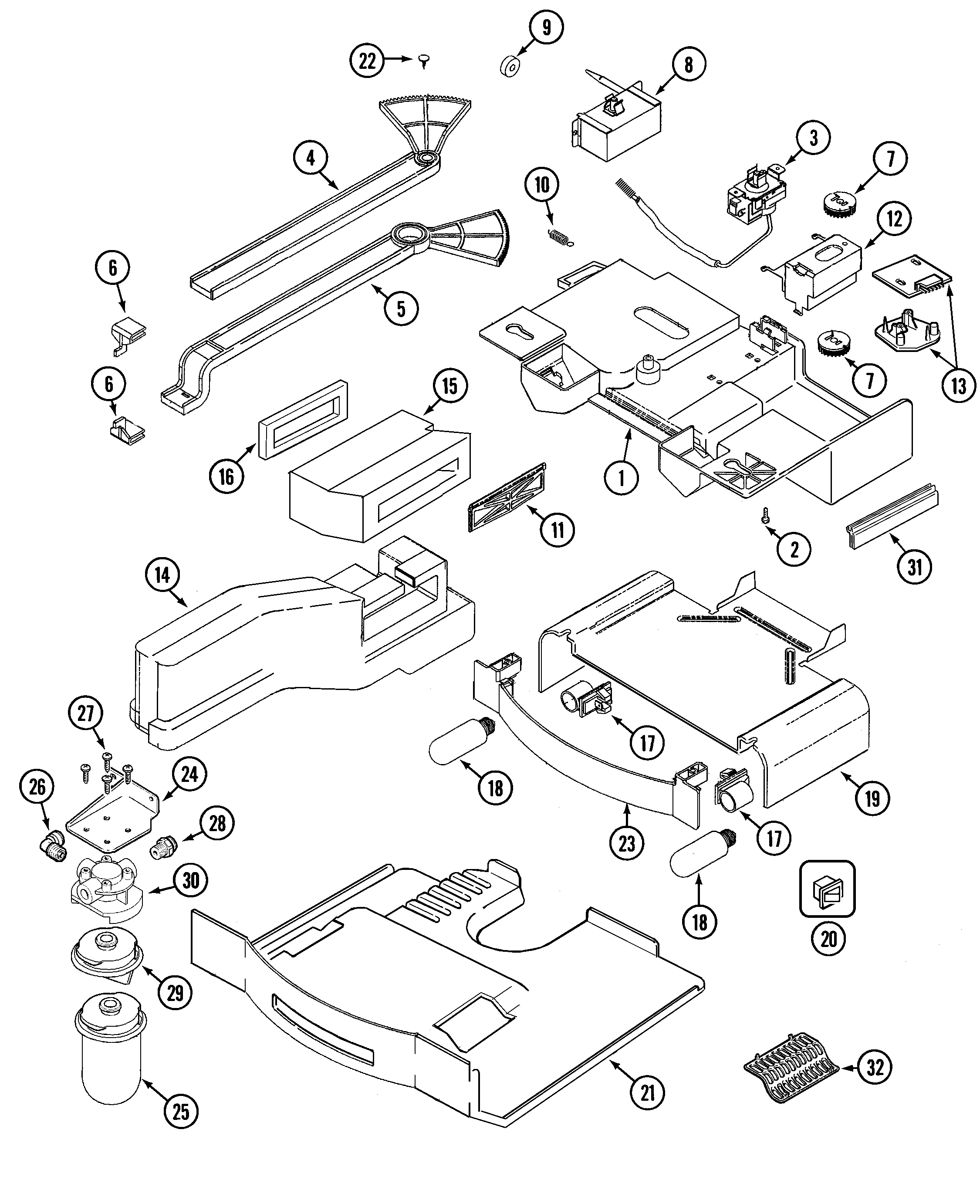

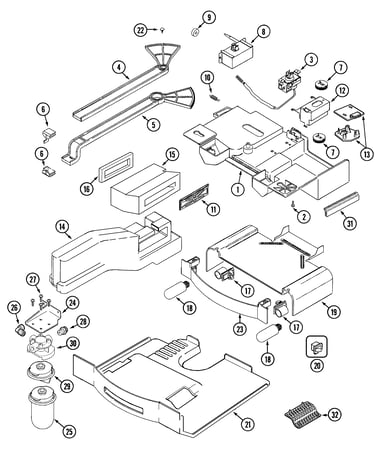

Controls (jcd2389dtb/w) diagram

Refrigerator light switch

Part #61003661

Replaced by #12002646

?
Manufacturer substitution
This part replaces 61003661. Substitute parts can look different from the original.
BEST SELLER
$26.49
In Stock
Refrigerator Light Switch 61005052
#28

Freezer compartment (jcd2389dtb/w) diagram

Refrigerator light switch

Part #61005052

Replaced by #12002646

?
Manufacturer substitution
This part replaces 61005052. Substitute parts can look different from the original.
BEST SELLER
$26.49
In Stock
Screw (#8 Ab 61004314
#2

Controls (jcd2389dtb/w) diagram

Screw (#8 ab

Part #61004314

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 61004314. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Compressor Start Capacitor 65889-4
#6

Compressor (jcd2389dtb/w) diagram

Refrigerator compressor start capacitor

Part #65889-4

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces 65889-4. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw 95106-1
#3A

Ice maker (jcd2389dtb/w) diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Compressor A 12001777
#1

Compressor (jcd2389dtb/w) diagram

Compressor a

Part #12001777

Replaced by #W10309995

?
Manufacturer substitution
This part replaces 12001777. Substitute parts can look different from the original.
BEST SELLER
$479.89 |
$12.00 OFF Phone Price : $491.89
In Stock
