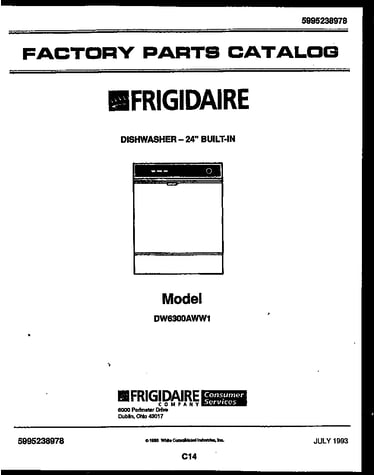

Model # DW6300AWW1 Official Frigidaire 24" built-in dishwasher - 5995238978

Here are the diagrams and repair parts for Official Frigidaire DW6300AWW1 24" built-in dishwasher - 5995238978, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

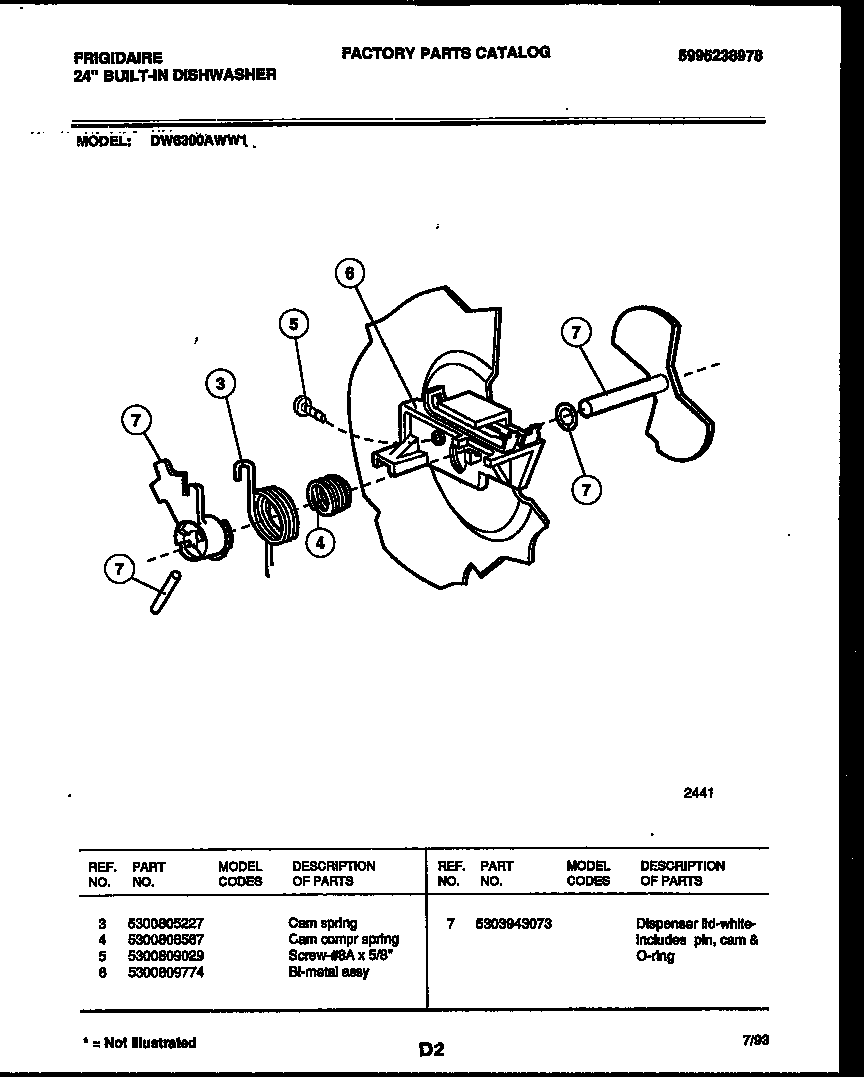

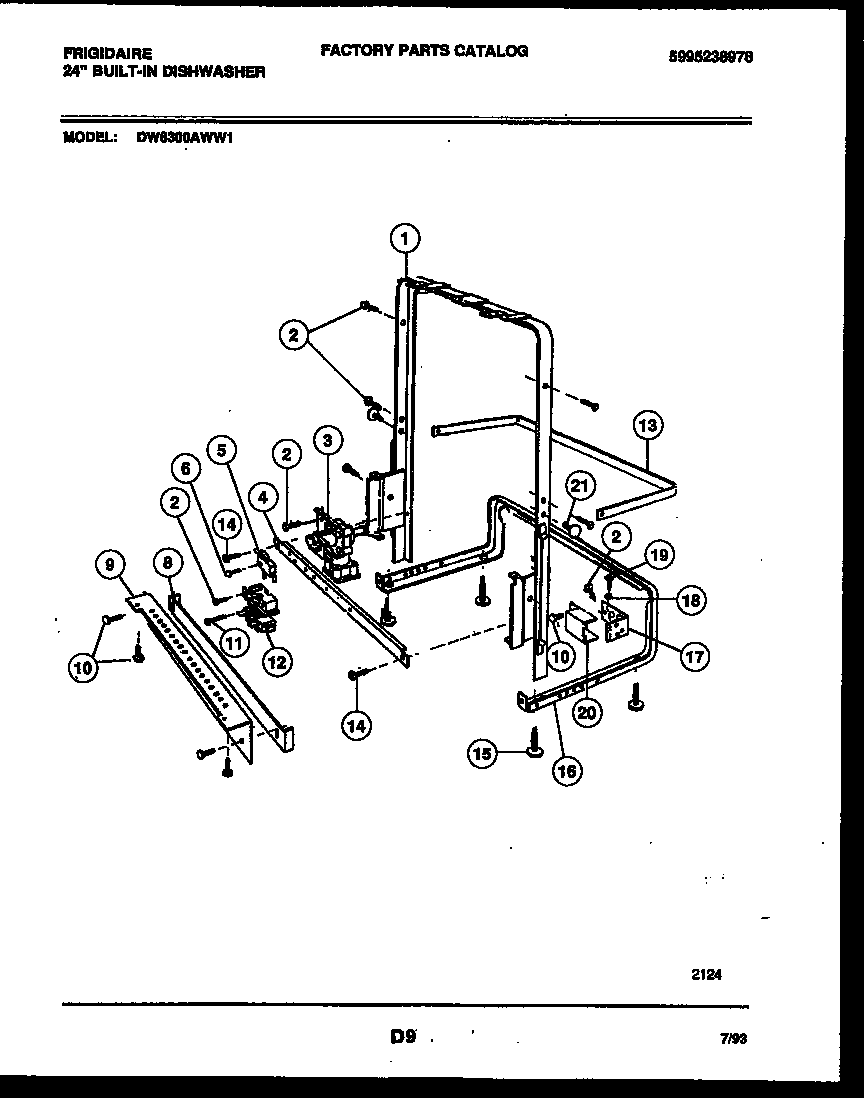

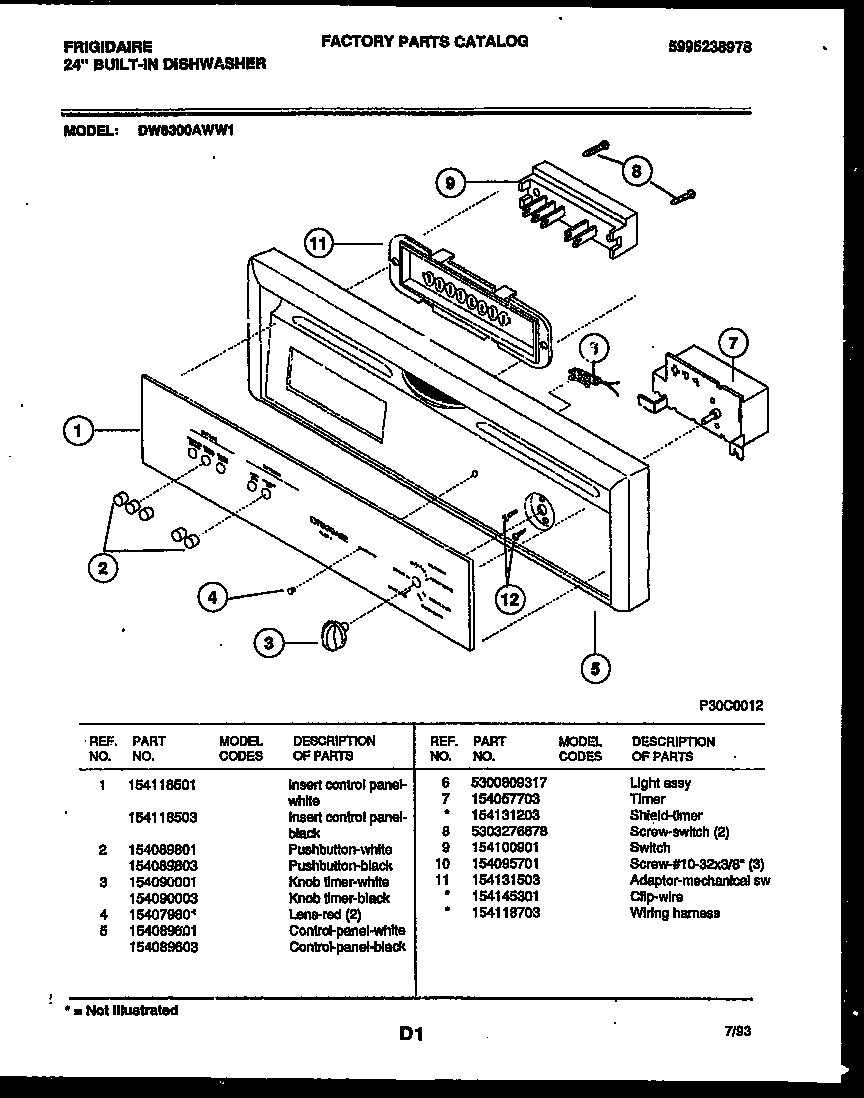

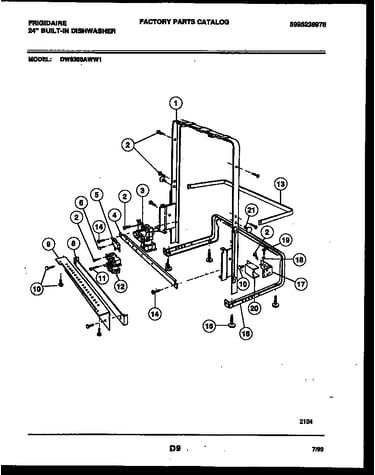

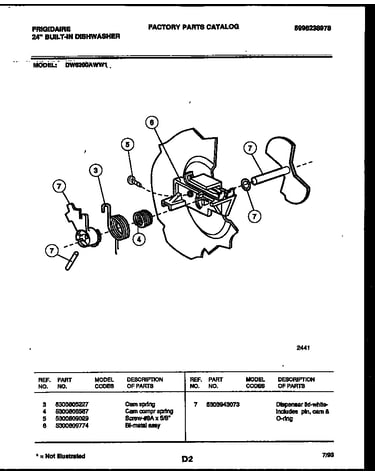

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Dishwasher Dishrack Roller, Lower 5300809640
#7

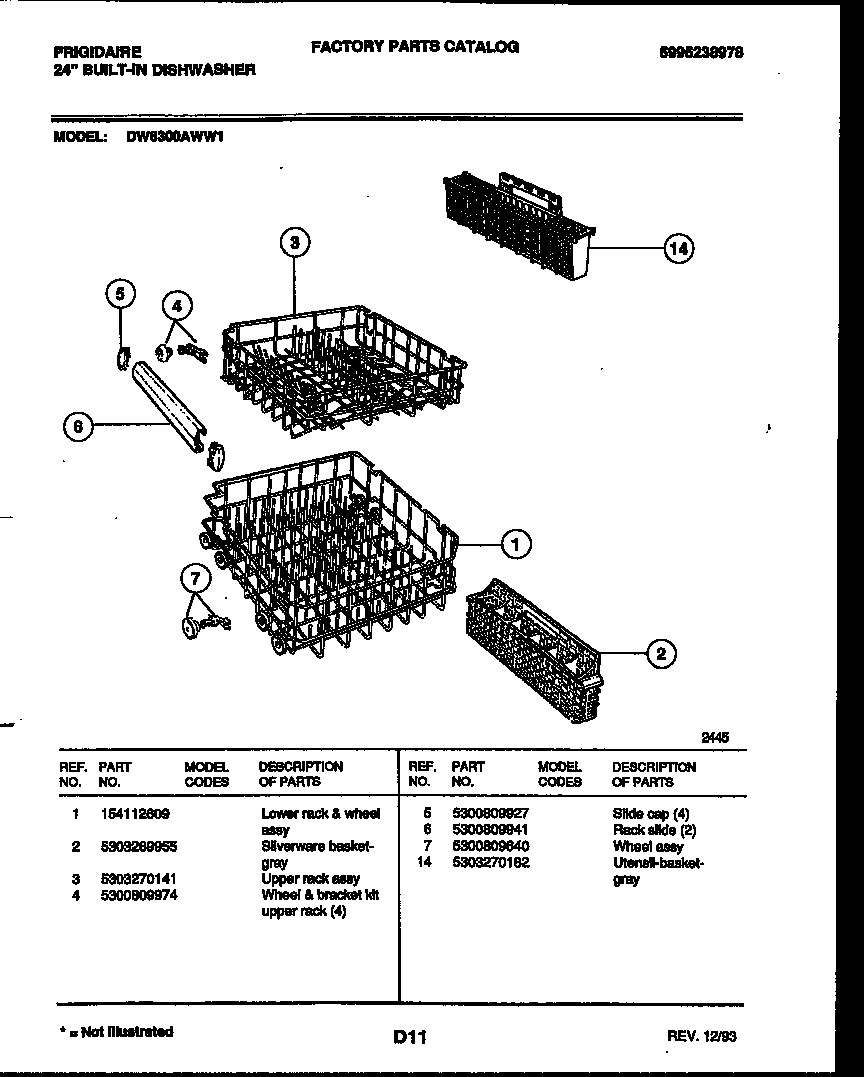

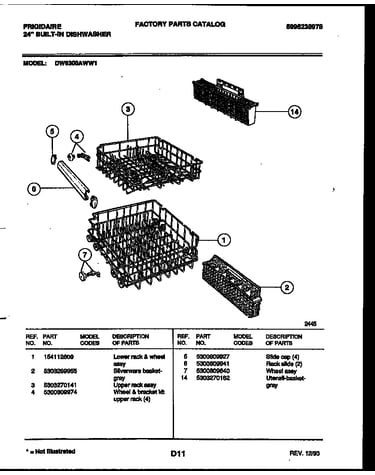

Racks and trays diagram

Dishwasher dishrack roller, lower

Part #5300809640

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 5300809640. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Basket 5303269955
#2

Racks and trays diagram

Basket

Part #5303269955

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 5303269955. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Nut-c'arm 154079601
#6

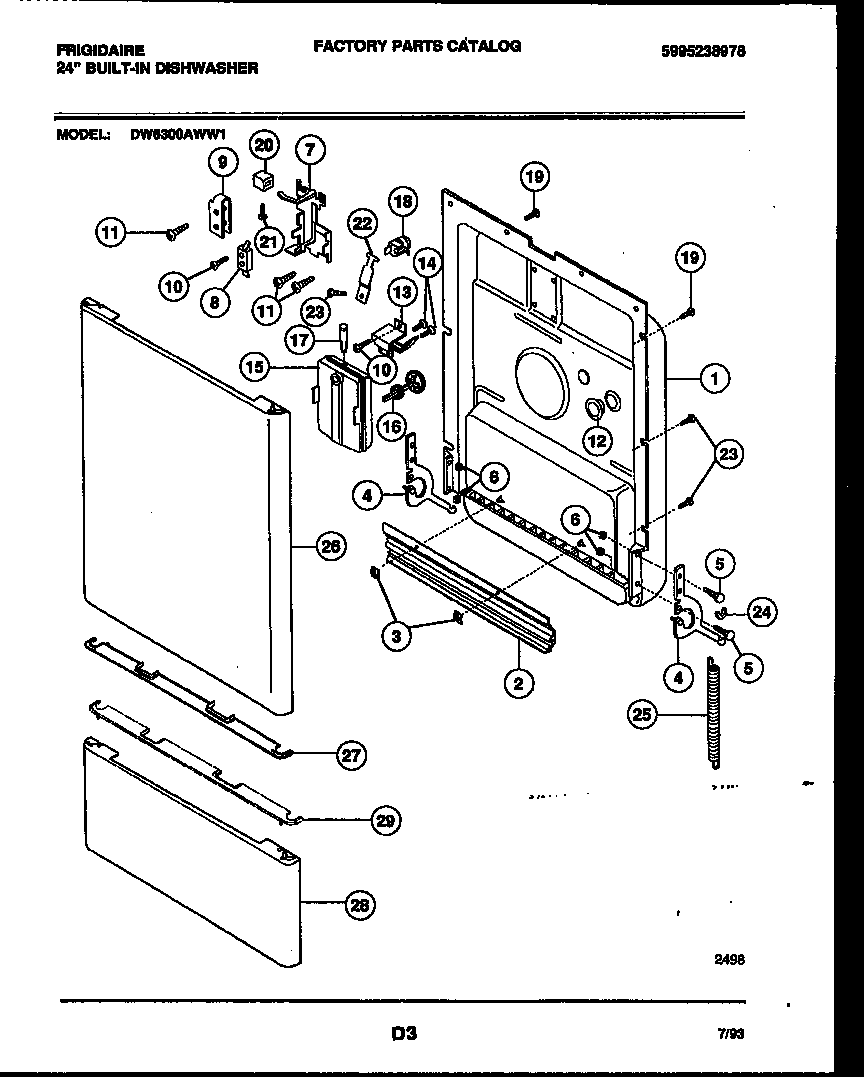

Door parts diagram

Nut-c'arm

Part #154079601

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 154079601. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Dishwasher Screw 154093301
#5

Door parts diagram

Dishwasher screw

Part #154093301

This item is not returnable
$2.31
In Stock
Roller 154080001
#6

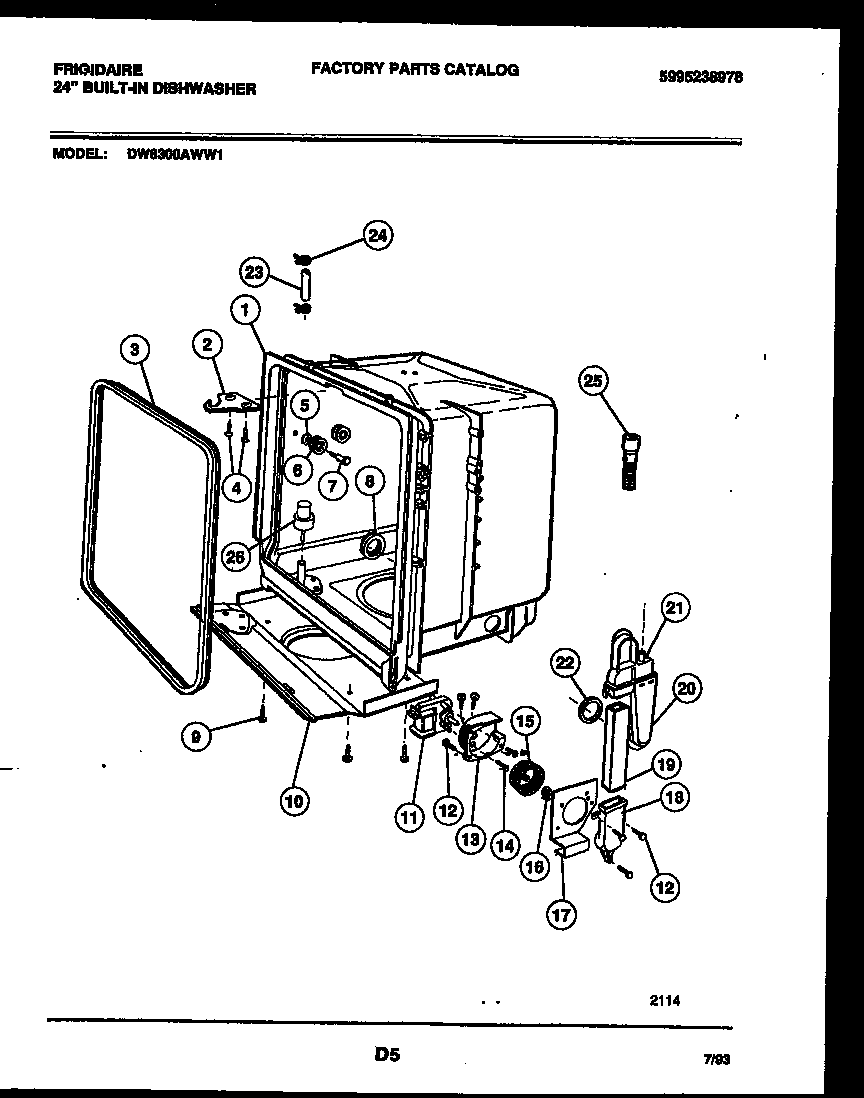

Tub and frame parts diagram

Roller

Part #154080001

Replaced by #5304507405

?
Manufacturer substitution
This part replaces 154080001. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Dishwasher O-ring 5300806521
#9

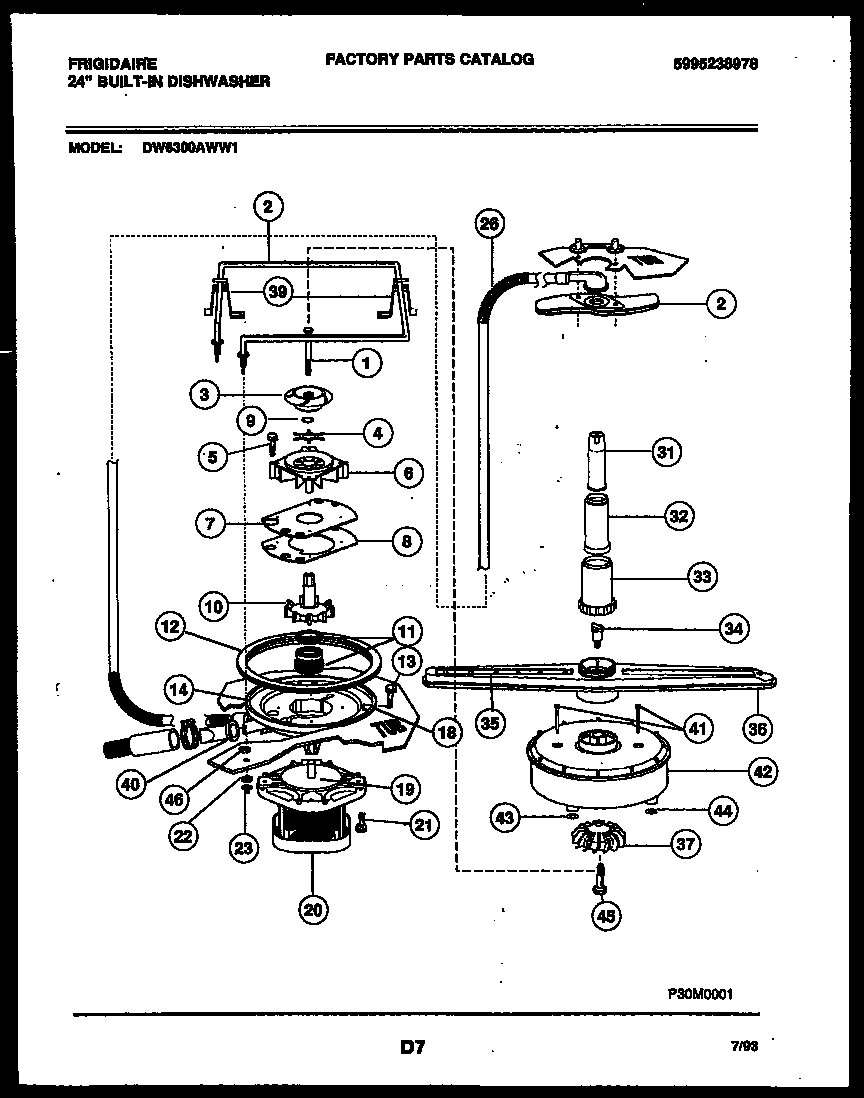

Motor pump parts diagram

Dishwasher o-ring

Part #5300806521

$24.89
In Stock
Dishwasher Circulation Impeller 5300809918
#3

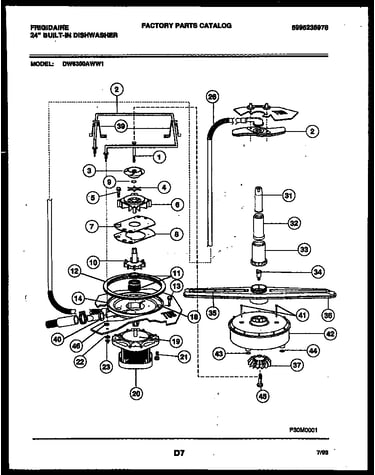

Motor pump parts diagram

Dishwasher circulation impeller

Part #5300809918

$64.09
In Stock
Dishwasher Drain Hose 3100021801
#25

Tub and frame parts diagram

Dishwasher drain hose

Part #3100021801

$59.93
In Stock
Washer 5300809968
#5

Tub and frame parts diagram

Washer

Part #5300809968

$32.67
In Stock
Dishwasher Spray Arm Shield 5300809938
#36

Motor pump parts diagram

Dishwasher spray arm shield

Part #5300809938

$34.98
In Stock
