Model # KSRG22FKSS05 Official KitchenAid side-by-side refrigerator
Here are the diagrams and repair parts for Official KitchenAid KSRG22FKSS05 side-by-side refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part

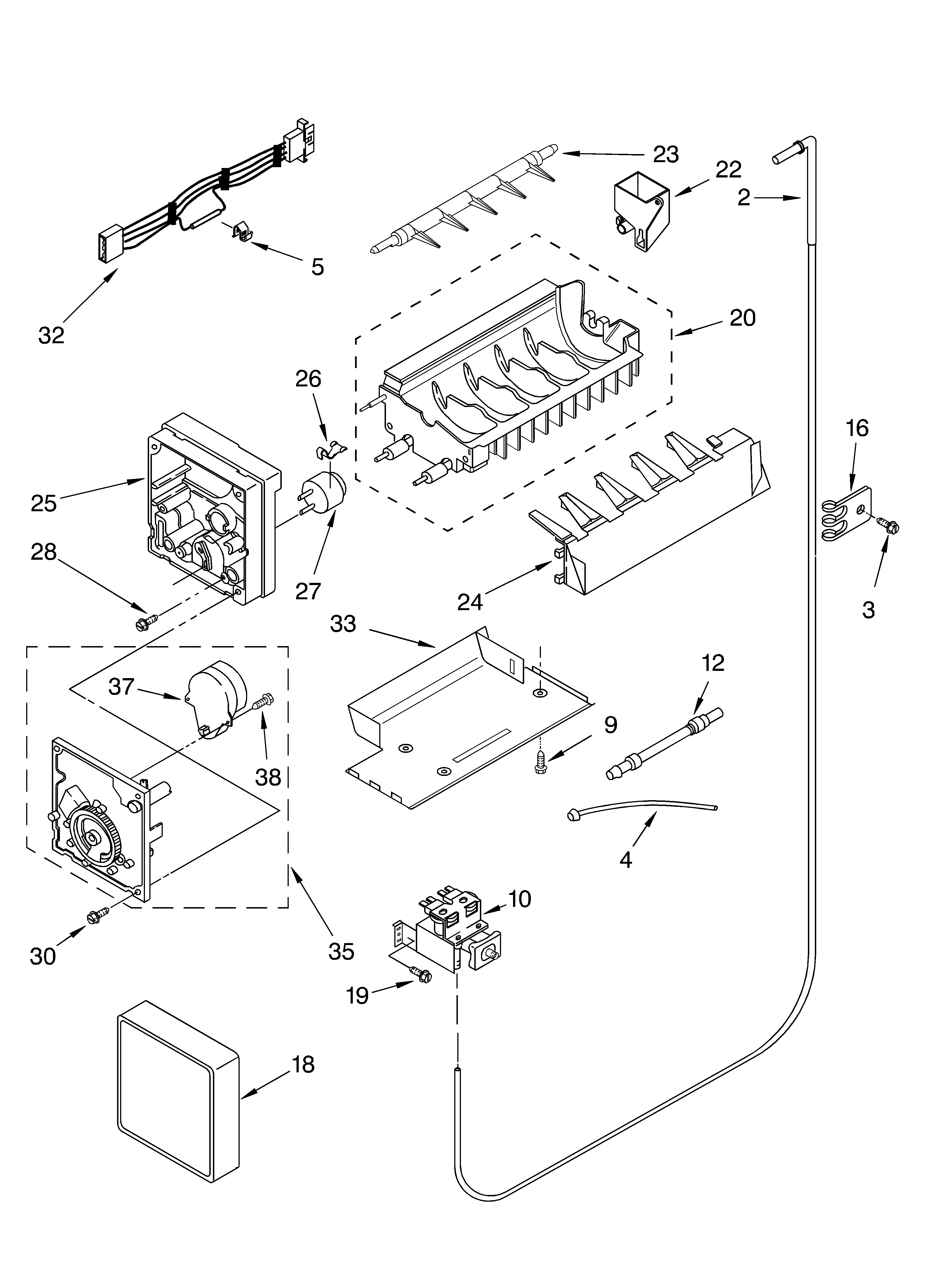

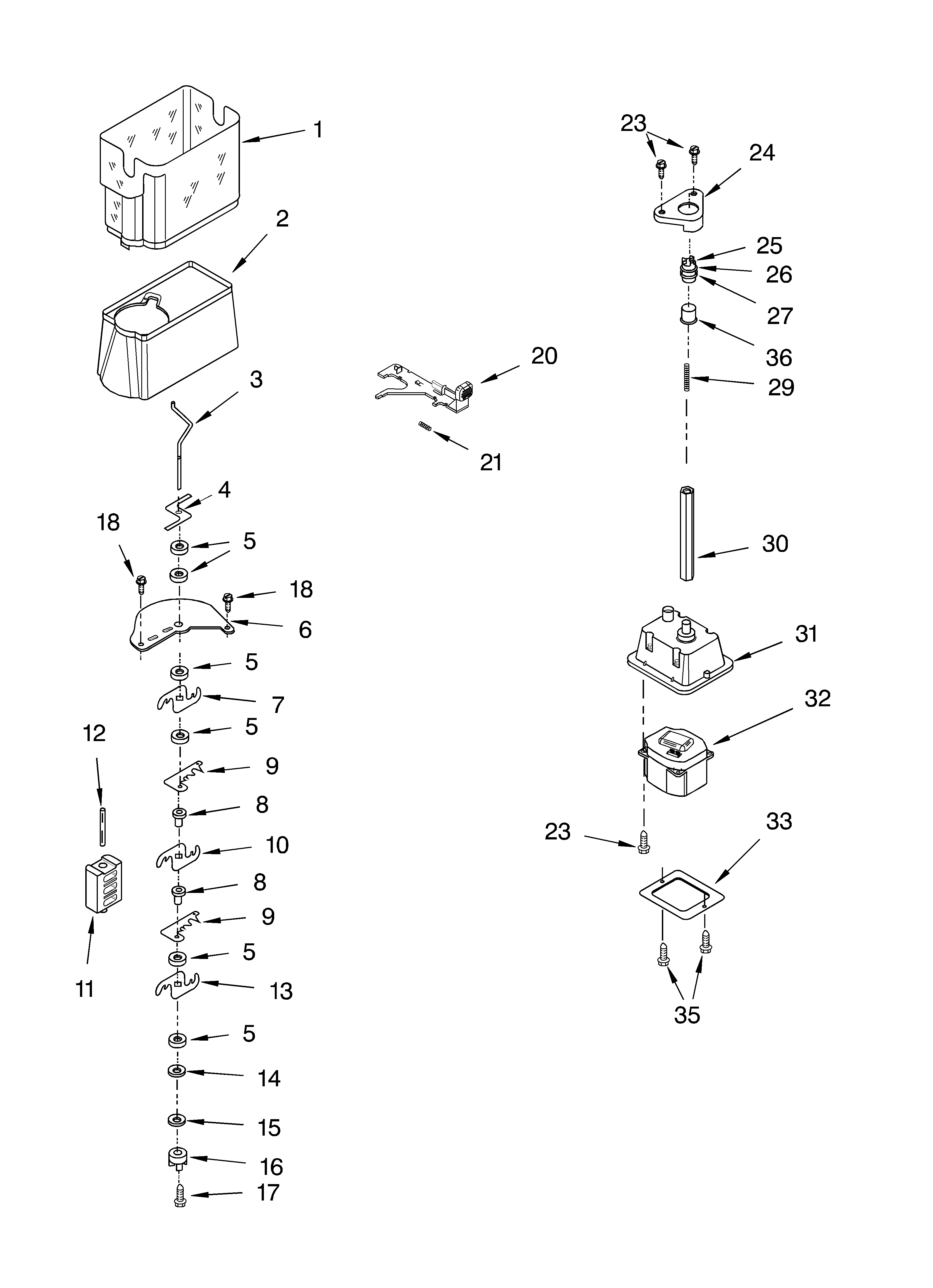

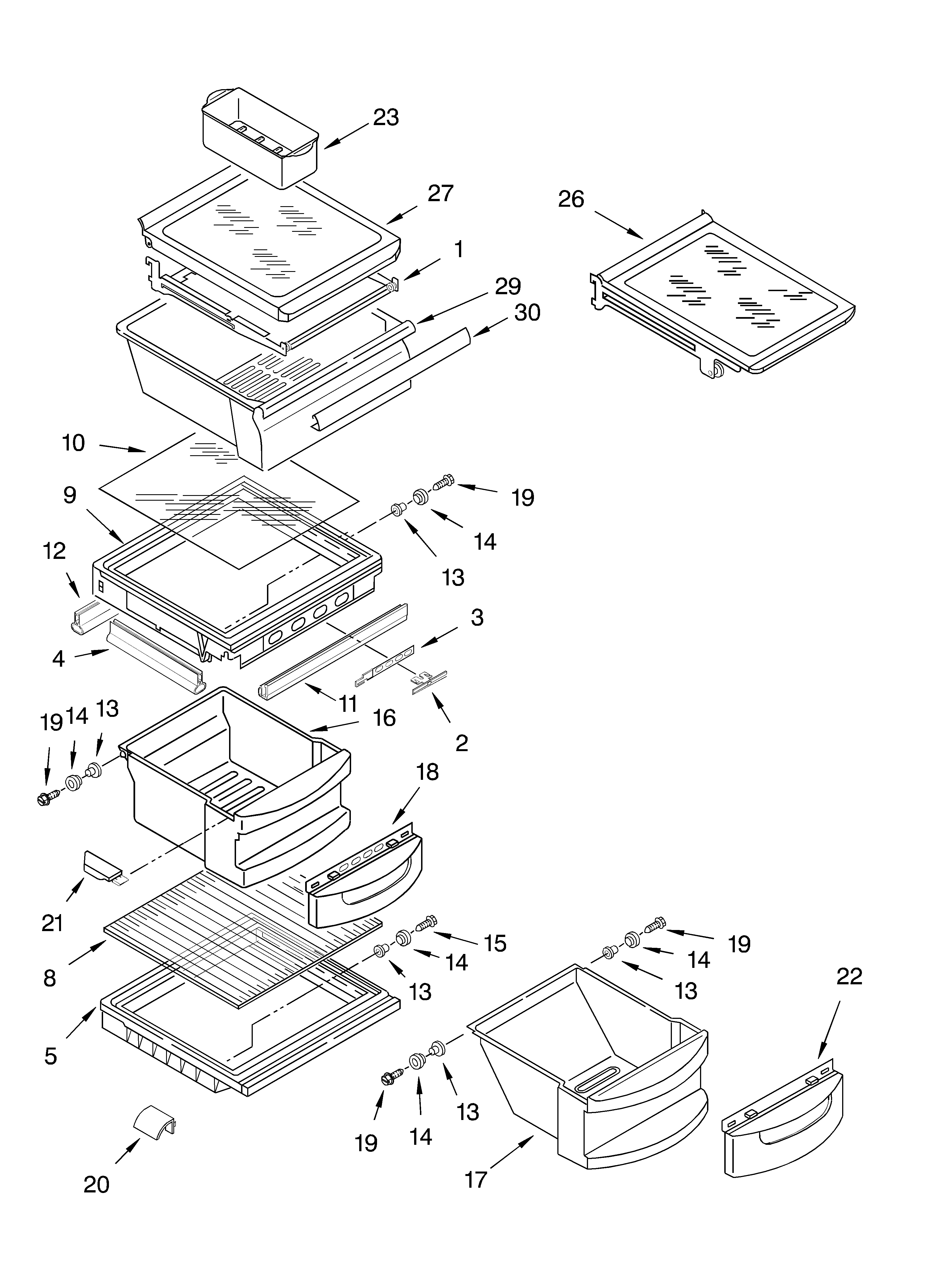

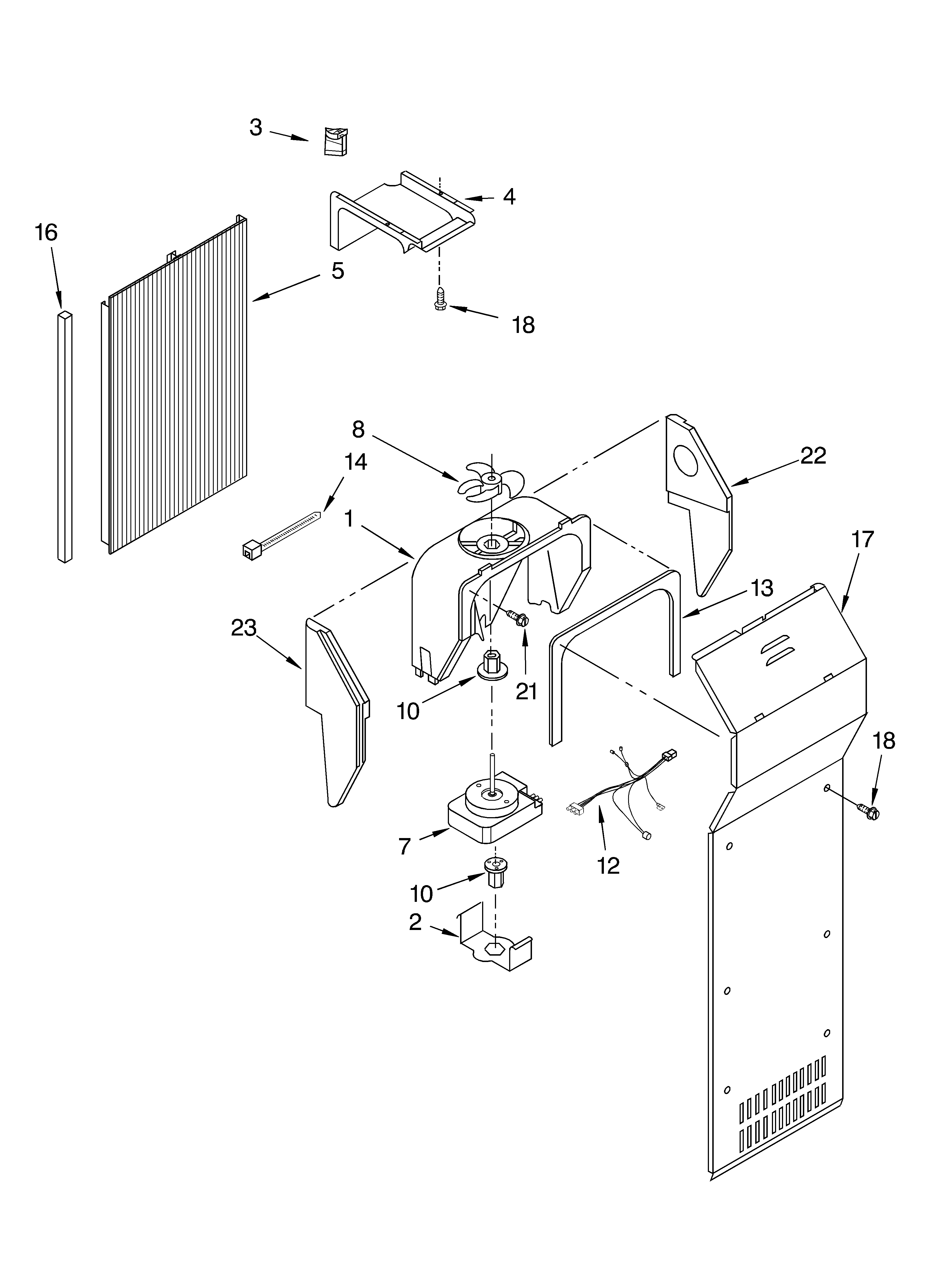

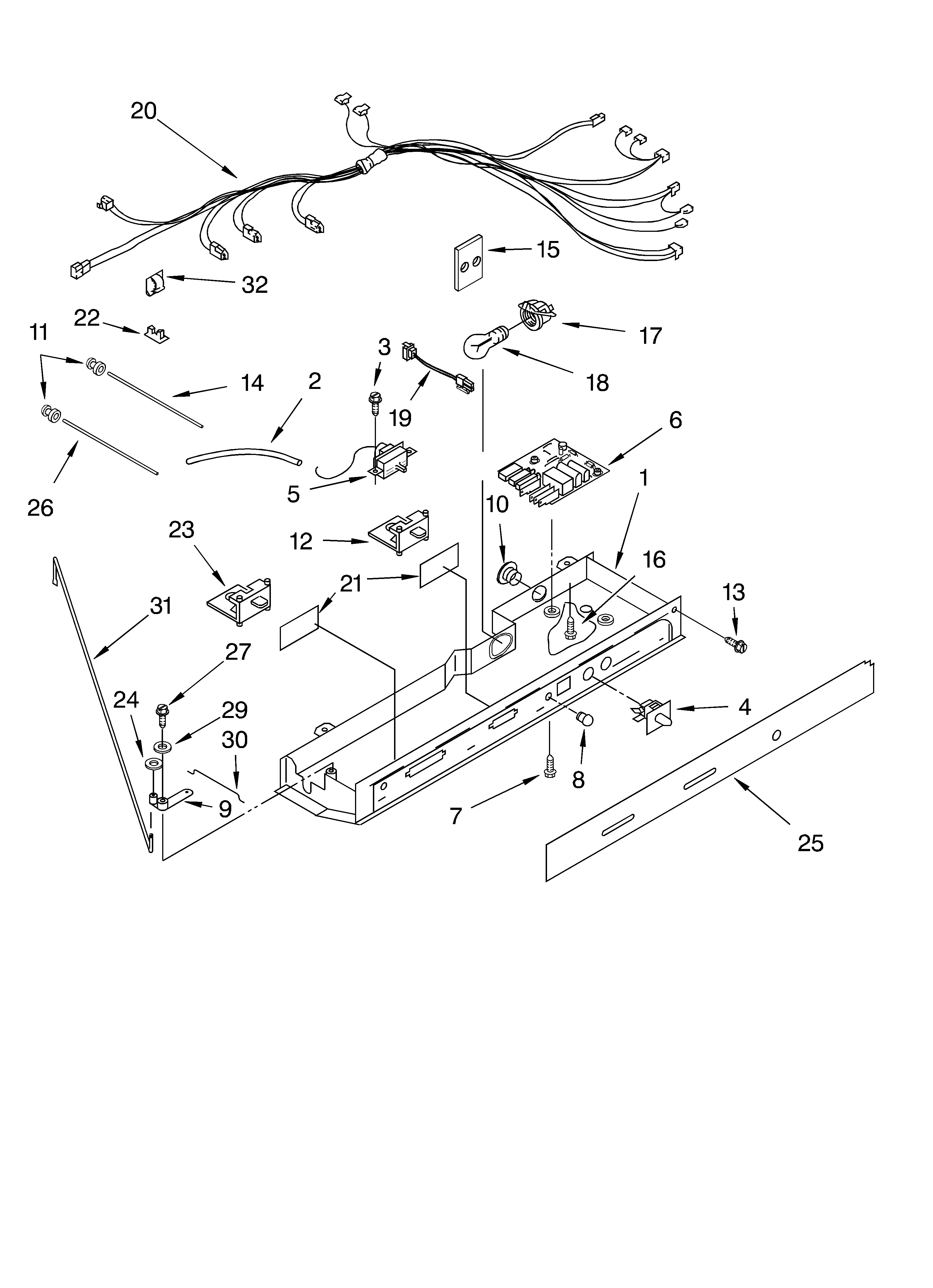

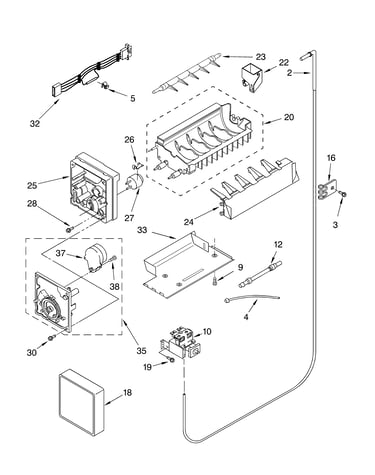

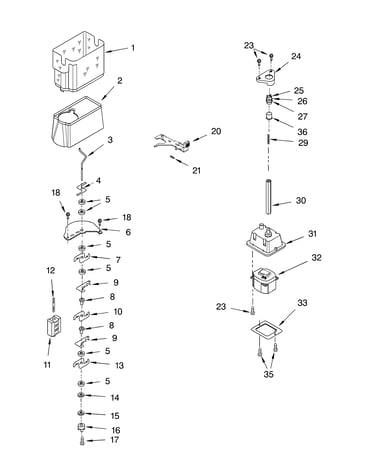

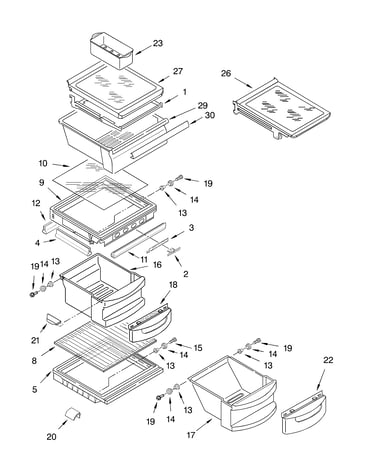

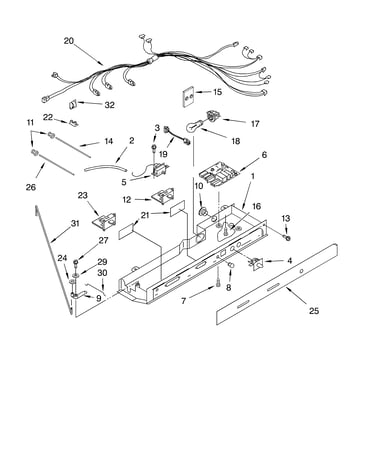

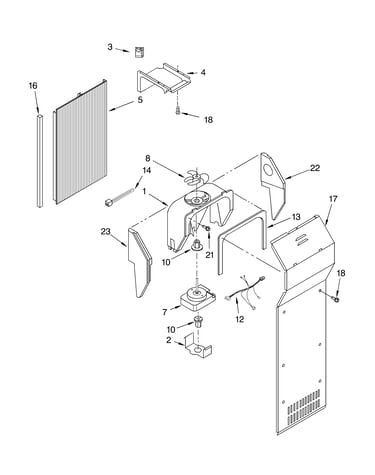

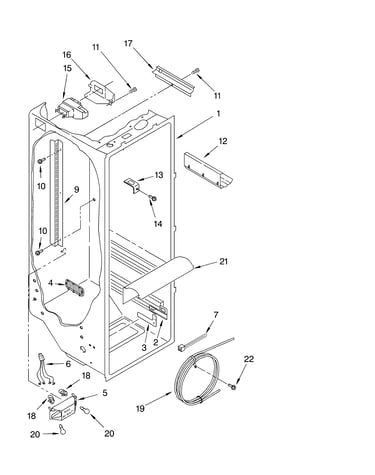

SELECT DIAGRAM
Browse Parts for
KSRG22FKSS05 Refrigerators
#16

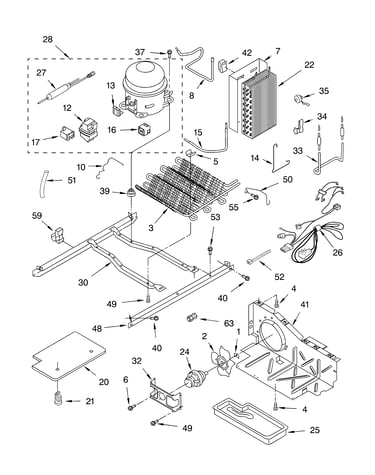

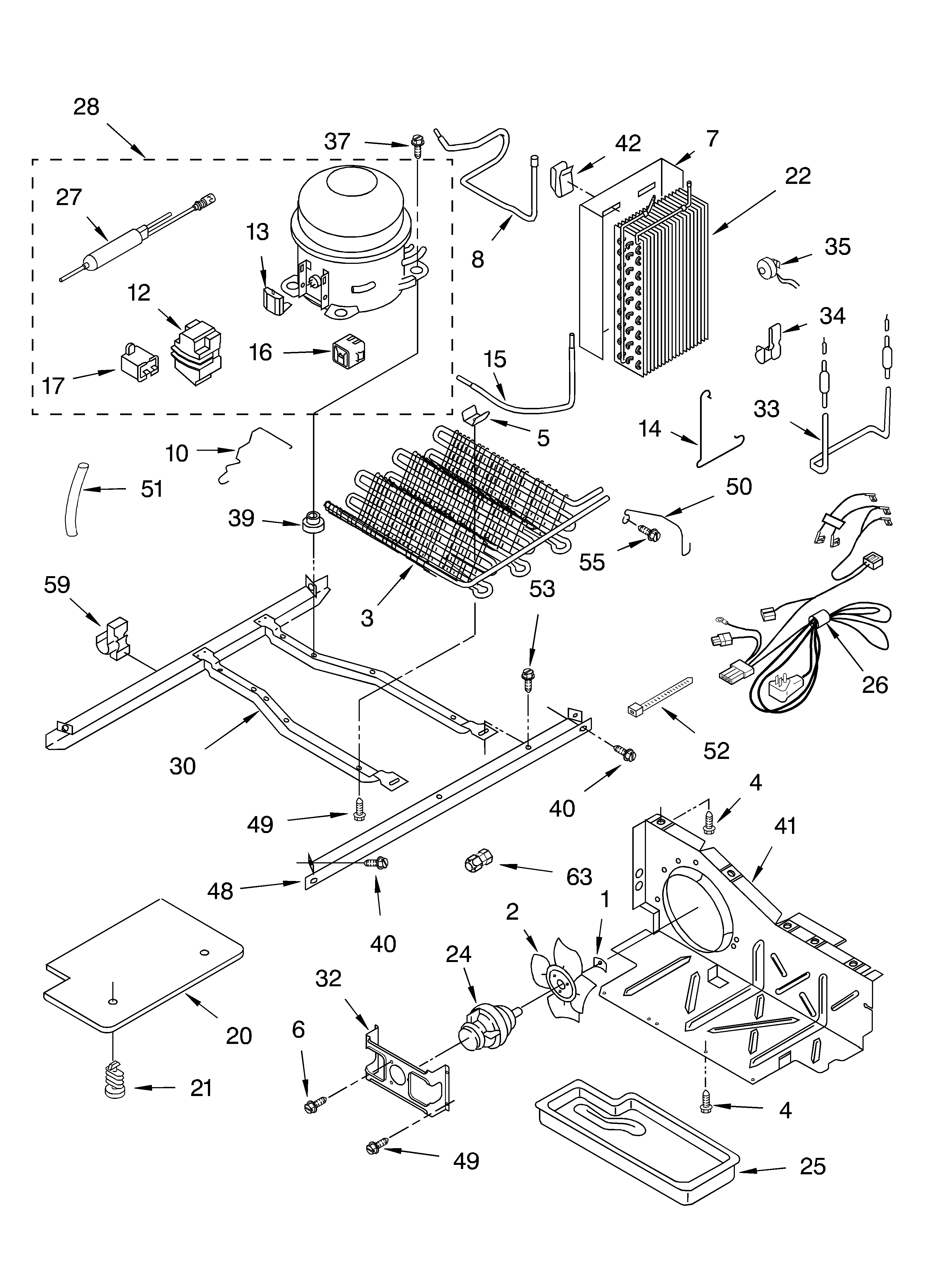

Unit parts diagram
Start device
Part #2220474
Replaced by #8201786
?
Manufacturer substitution
This part replaces 2220474. Substitute parts can look different from the original.
$61.07 |
9% OFF Phone Price : $67.07
In Stock
#35
Unit parts diagram
Refrigerator defrost bi-metal
Part #2196155
Replaced by #WPW10225581
?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
$29.50 |
17% OFF Phone Price : $35.50
In Stock
#14

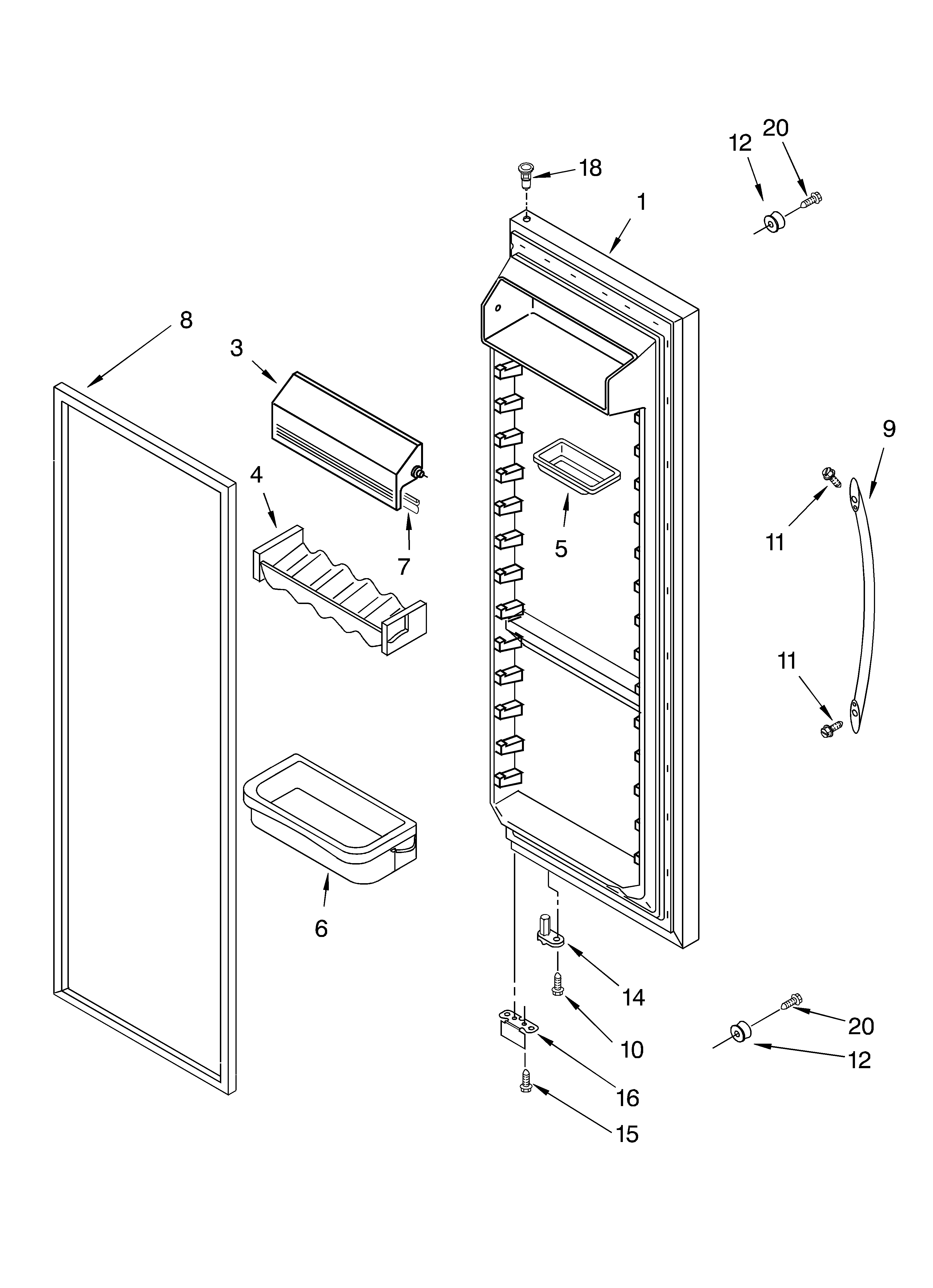

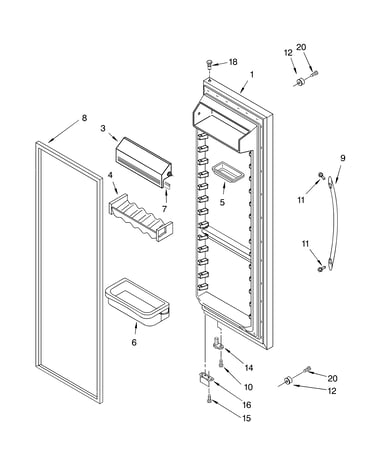

Refrigerator door parts diagram
Refrigerator door cam (black)
Part #2182178
Replaced by #WP2182179
?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
$10.02 |
17% OFF Phone Price : $12.02
In Stock
#12

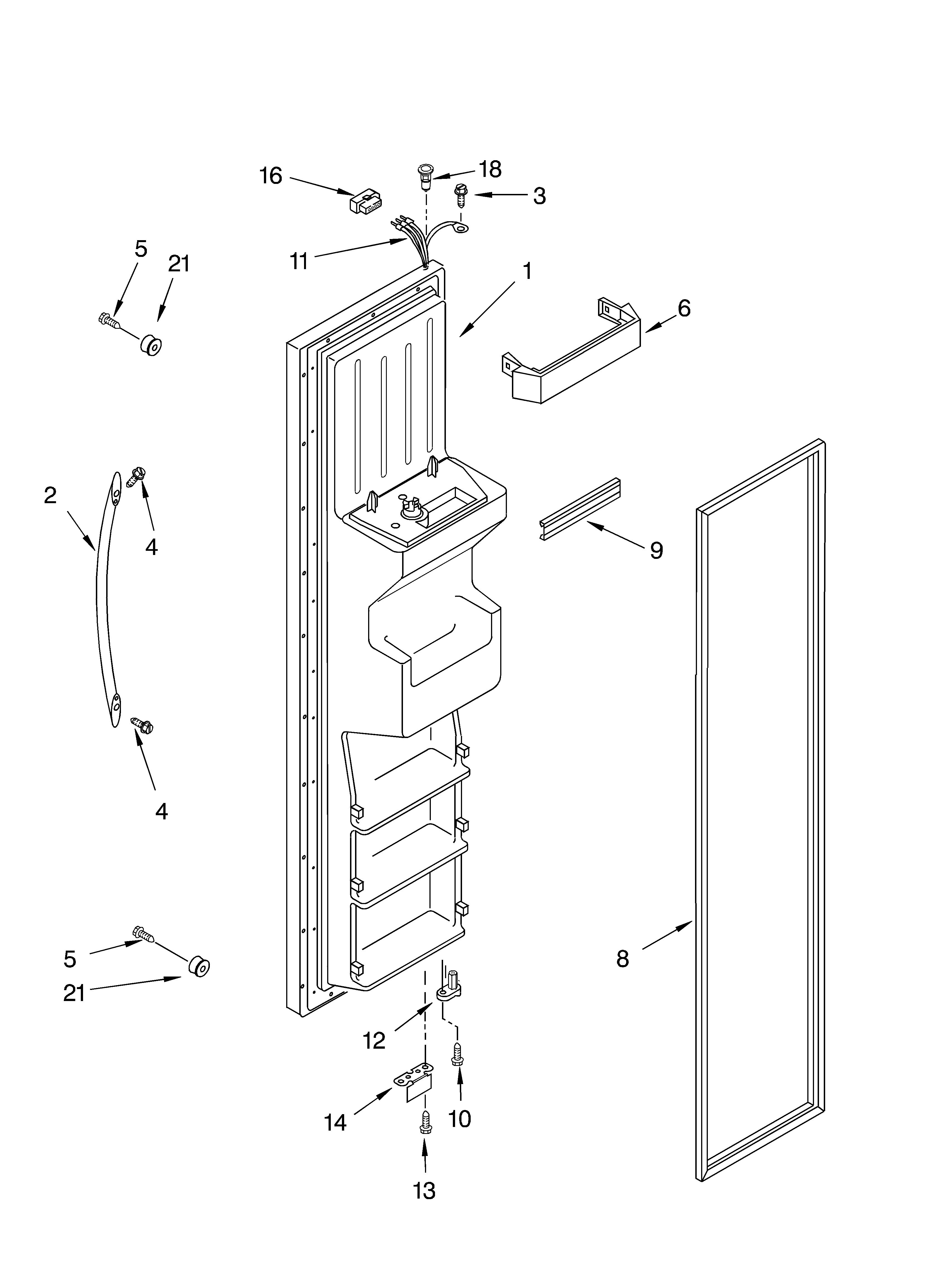

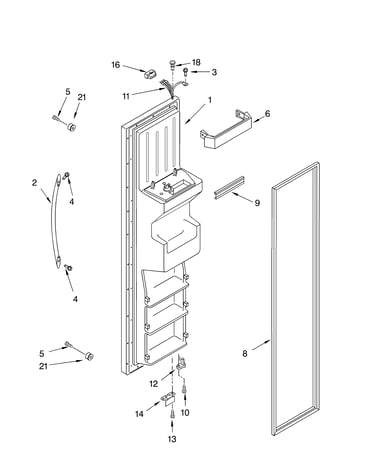

Freezer door parts diagram
Refrigerator door closer cam
Part #2182179
Replaced by #WP2182179
?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
$10.02 |
17% OFF Phone Price : $12.02
In Stock

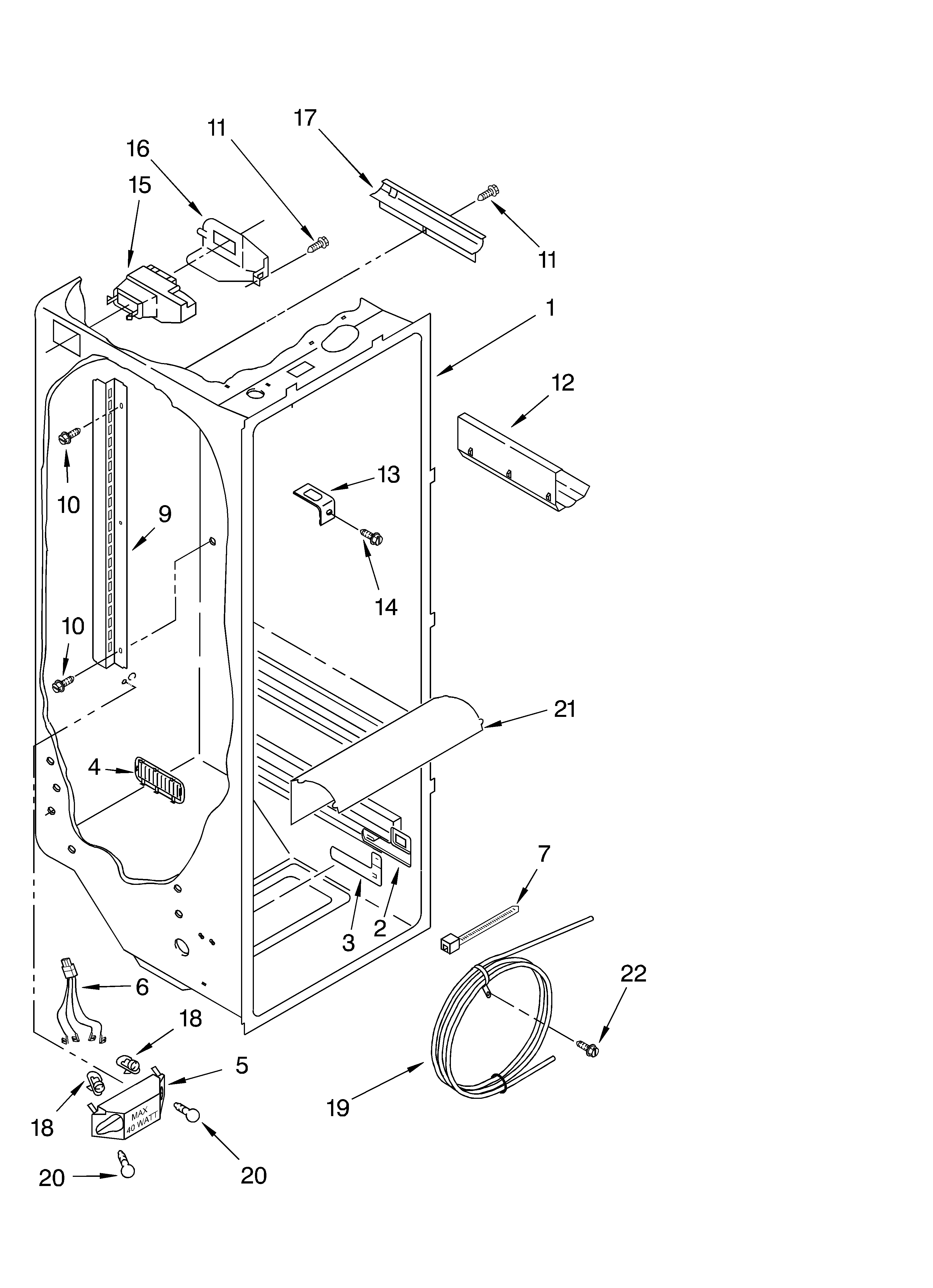

Light bulb
Part #527949
Replaced by #40A15
?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
$16.73 |
11% OFF Phone Price : $18.73
In Stock
#8

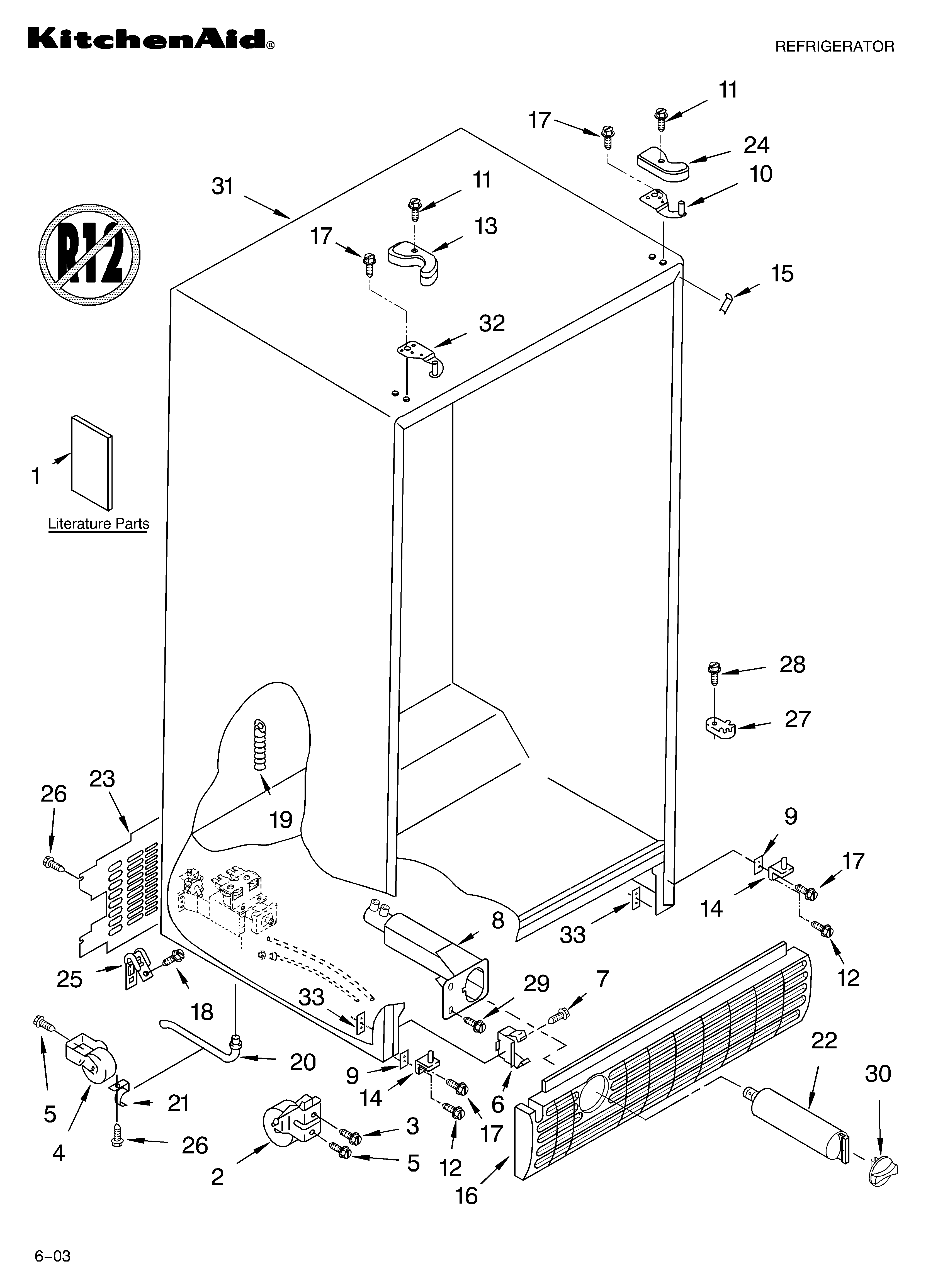

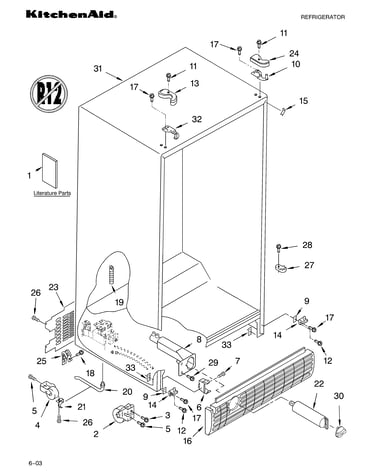

Cabinet parts diagram
Refrigerator water filter housing
Part #2186443
Replaced by #WP2186443
?
Manufacturer substitution
This part replaces 2186443. Substitute parts can look different from the original.
$51.04 |
11% OFF Phone Price : $57.04
In Stock
#15

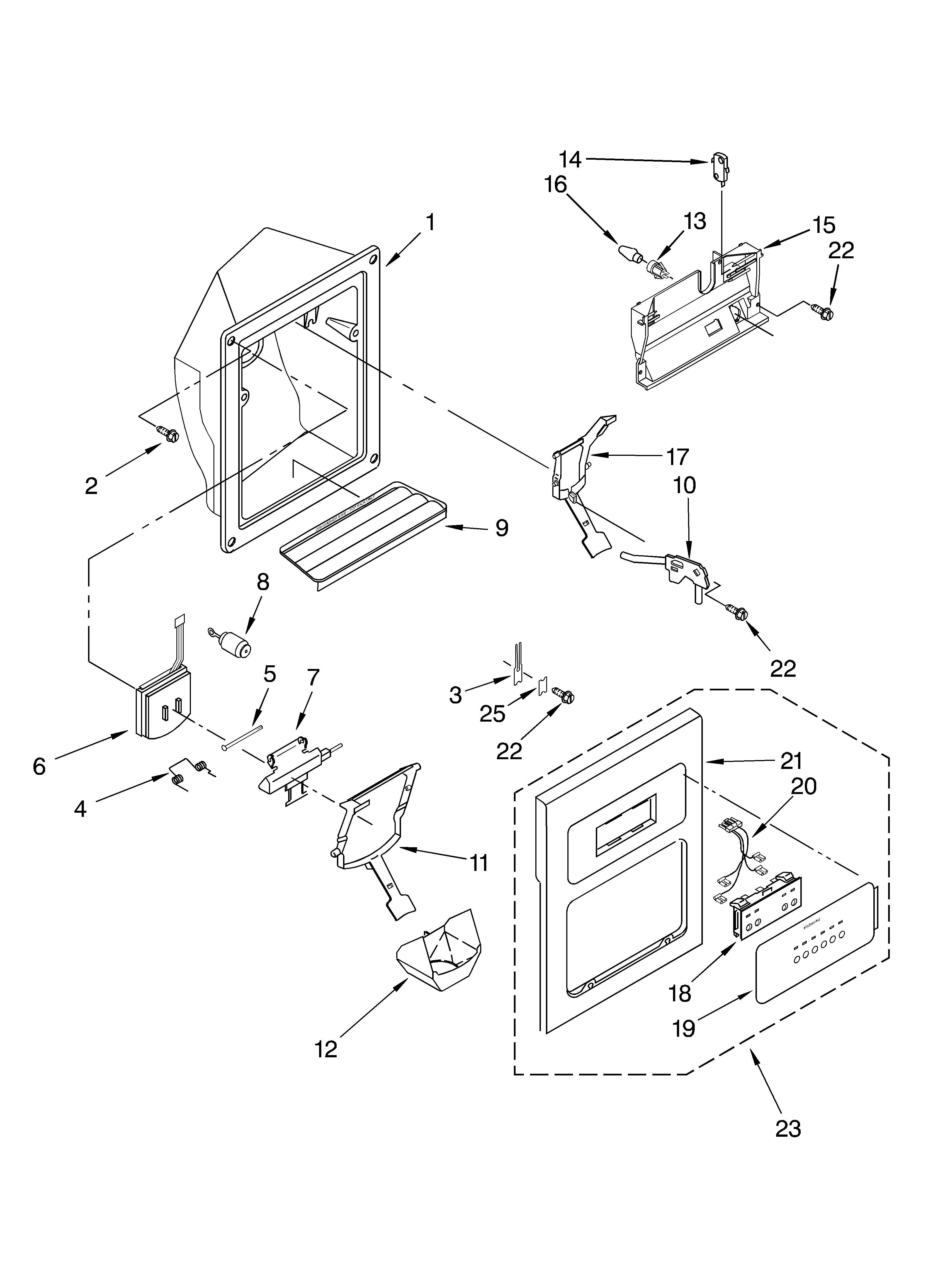

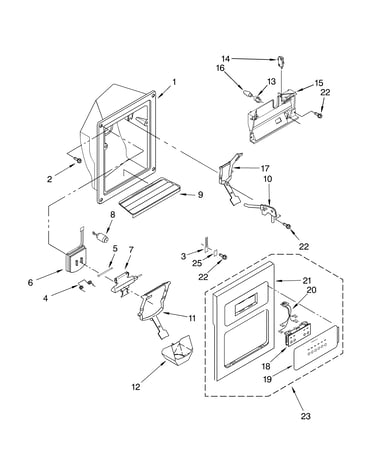

Dispenser front parts diagram
Refrigerator bracket
Part #2183771
Replaced by #WP2180226
?
Manufacturer substitution
This part replaces 2183771. Substitute parts can look different from the original.
$17.53 |
10% OFF Phone Price : $19.53
In Stock
#27
Cabinet parts diagram
Refrigerator door closer cam
Part #2155311
Replaced by #WPW10329686
?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
$9.09 |
10% OFF Phone Price : $10.09
In Stock
#38

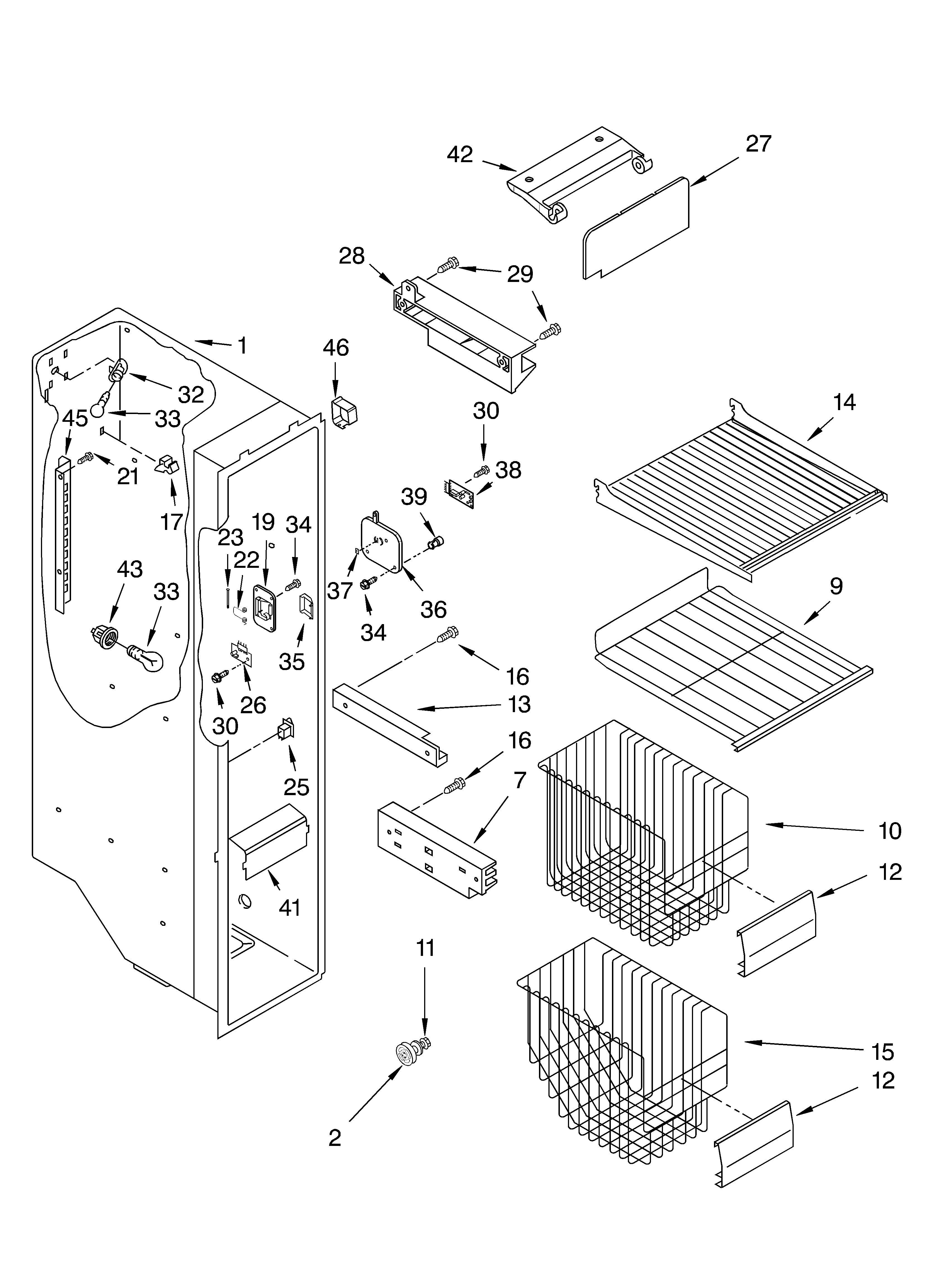

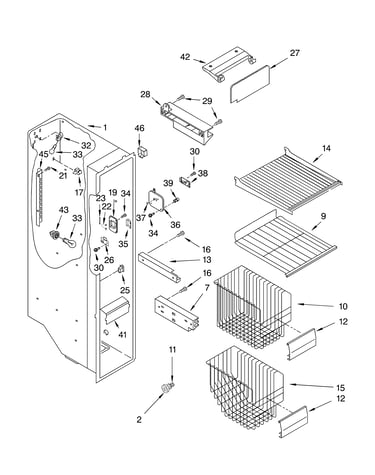

Freezer liner parts diagram
Refrigerator microcomputer
Part #2255114
Replaced by #W11629974
?
Manufacturer substitution
This part replaces 2255114. Substitute parts can look different from the original.
$232.70 |
5% OFF Phone Price : $244.70
In Stock
#26
Freezer liner parts diagram
Refrigerator microcomputer
Part #2220398
Replaced by #W11629974
?
Manufacturer substitution
This part replaces 2220398. Substitute parts can look different from the original.
$232.70 |
5% OFF Phone Price : $244.70
In Stock
