Sharp
Countertop Microwave

Model # R-1M53 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1M53 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Sharp Motor Assembly 505468
#8

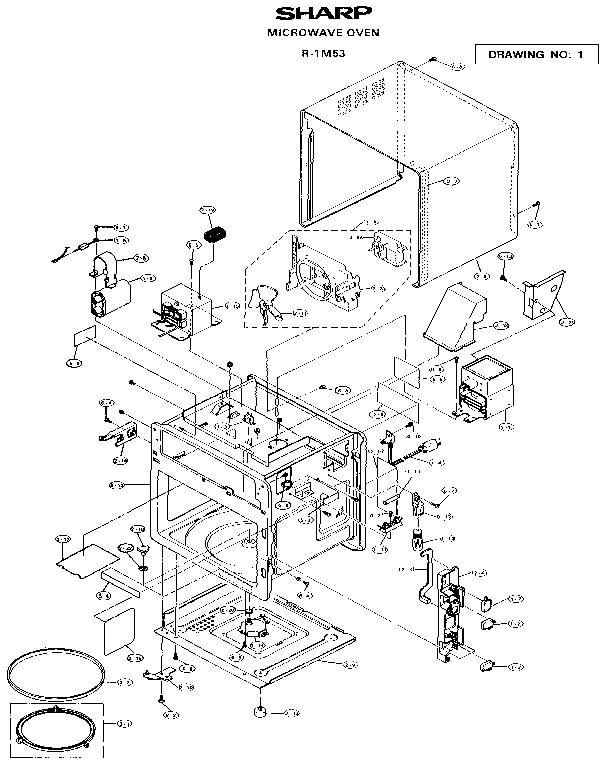

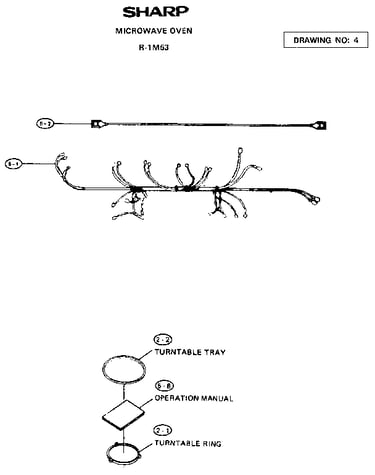

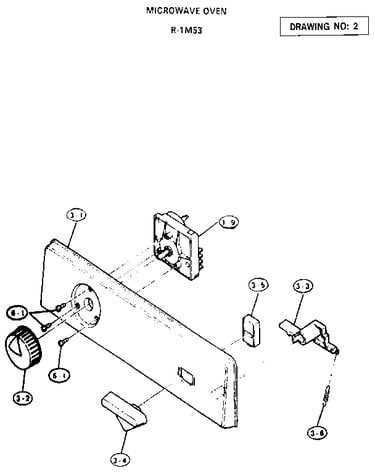

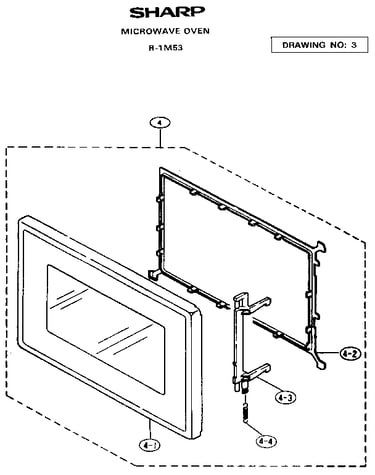

Microwave parts diagram

Sharp motor assembly

Part #505468

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Microwave Fuse Holder 501541
#10

Microwave parts diagram

Kenmore microwave fuse holder

Part #501541

The manufacturer no longer makes this part, and there's no substitute part

Foot 501554
#25

Microwave parts diagram

Foot

Part #501554

The manufacturer no longer makes this part, and there's no substitute part

Screw 501523
#44

Microwave parts diagram

Screw

Part #501523

The manufacturer no longer makes this part, and there's no substitute part

Sharp Motor 505318
#13

Microwave parts diagram

Sharp motor

Part #505318

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Lamp Socket 501607
#11

Microwave parts diagram

Kenmore lamp socket

Part #501607

The manufacturer no longer makes this part, and there's no substitute part

Temperature Fuse 501542
#3

Microwave parts diagram

Temperature fuse

Part #501542

The manufacturer no longer makes this part, and there's no substitute part

Microwave Ring 505089
Microwave ring

Part #505089

The manufacturer no longer makes this part, and there's no substitute part

Screw 501533
#47

Microwave parts diagram

Screw

Part #501533

The manufacturer no longer makes this part, and there's no substitute part

Switch 501467
#2

Microwave parts diagram

Switch

Part #501467

The manufacturer no longer makes this part, and there's no substitute part
