Model # DE-728 Official Norcold refrigerator

Here are the diagrams and repair parts for Official Norcold DE-728 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Refrigerator Cover 613655

#11B

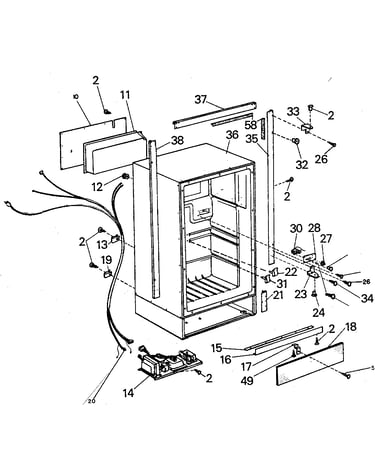

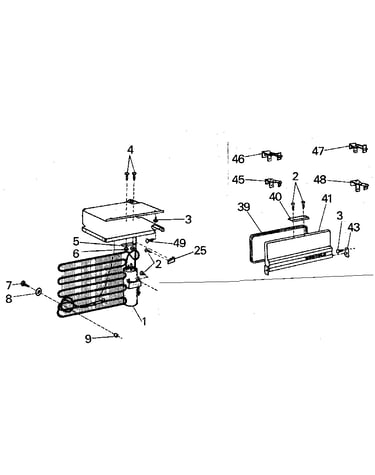

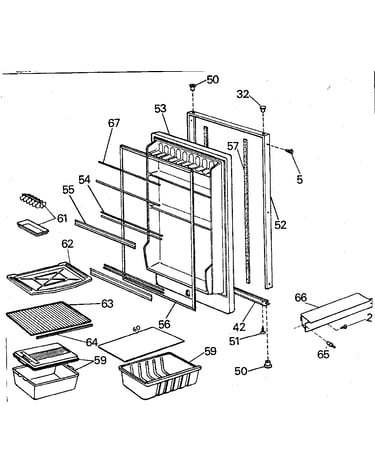

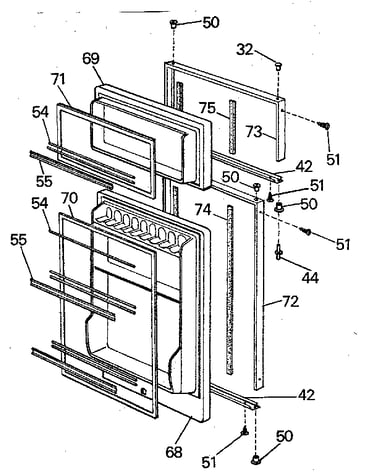

All parts diagram

Refrigerator cover

Part #613655

The manufacturer no longer makes this part, and there's no substitute part

Door Foamd 613131

#54A

All parts diagram

Door foamd

Part #613131

The manufacturer no longer makes this part, and there's no substitute part

Tp Break Str 613536

#37A

All parts diagram

Tp break str

Part #613536

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Rail 613132

#54B

All parts diagram

Refrigerator rail

Part #613132

The manufacturer no longer makes this part, and there's no substitute part

Cab Assem 613621

#36C

All parts diagram

Cab assem

Part #613621

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hex Nut 611565

#6

All parts diagram

Refrigerator hex nut

Part #611565

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Assembly 613730-01

#53A

All parts diagram

Refrigerator door assembly

Part #613730-01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clamp 613469

#13

All parts diagram

Refrigerator clamp

Part #613469

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Strip 613819

#35C

All parts diagram

Refrigerator strip

Part #613819

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf Trim 613452

#64

All parts diagram

Refrigerator shelf trim

Part #613452

The manufacturer no longer makes this part, and there's no substitute part
