Model # 11652313202 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652313202 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Lens Bulb 747286
#55

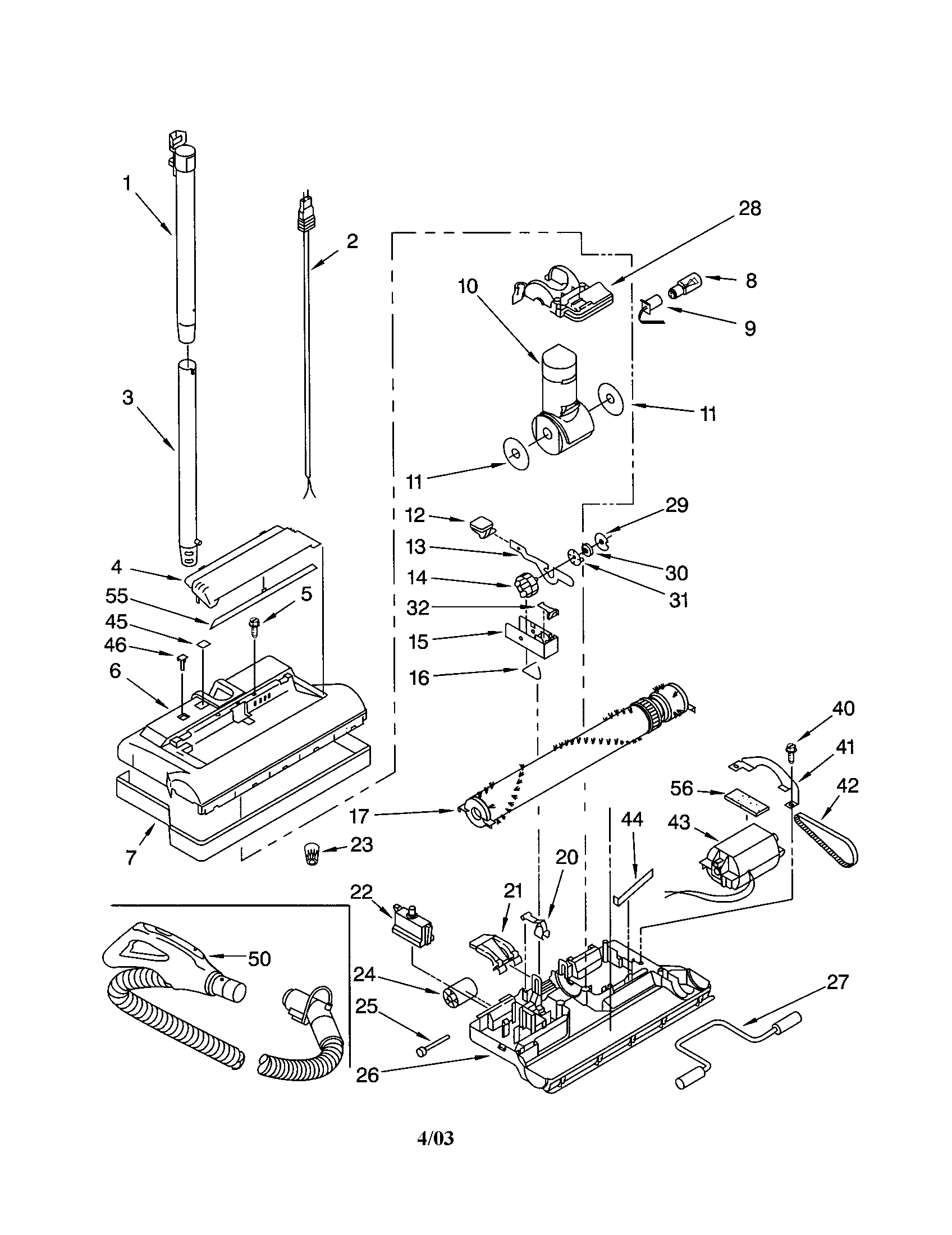

Power-mate diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#31

Power-mate diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle 4370728
#20

Power-mate diagram

Vacuum nozzle

Part #4370728

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#27

Power-mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4370720
#13

Power-mate diagram

Swivel

Part #4370720

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4370941
#46

Power-mate diagram

Extension button

Part #4370941

The manufacturer no longer makes this part, and there's no substitute part

Bridge 705093
#41

Power-mate diagram

Bridge

Part #705093

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Ratchet (white) 742016
#32

Power-mate diagram

Vacuum ratchet (white)

Part #742016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Overload Reset Switch 8175256
#22

Power-mate diagram

Vacuum overload reset switch

Part #8175256

The manufacturer no longer makes this part, and there's no substitute part

Wand Unit 8192350
#3

Power-mate diagram

Wand unit

Part #8192350

The manufacturer no longer makes this part, and there's no substitute part
