Roper
Side-By-Side Refrigerator

Model # RS25AQXGN02 Official Roper side-by-side refrigerator

Here are the diagrams and repair parts for Official Roper RS25AQXGN02 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

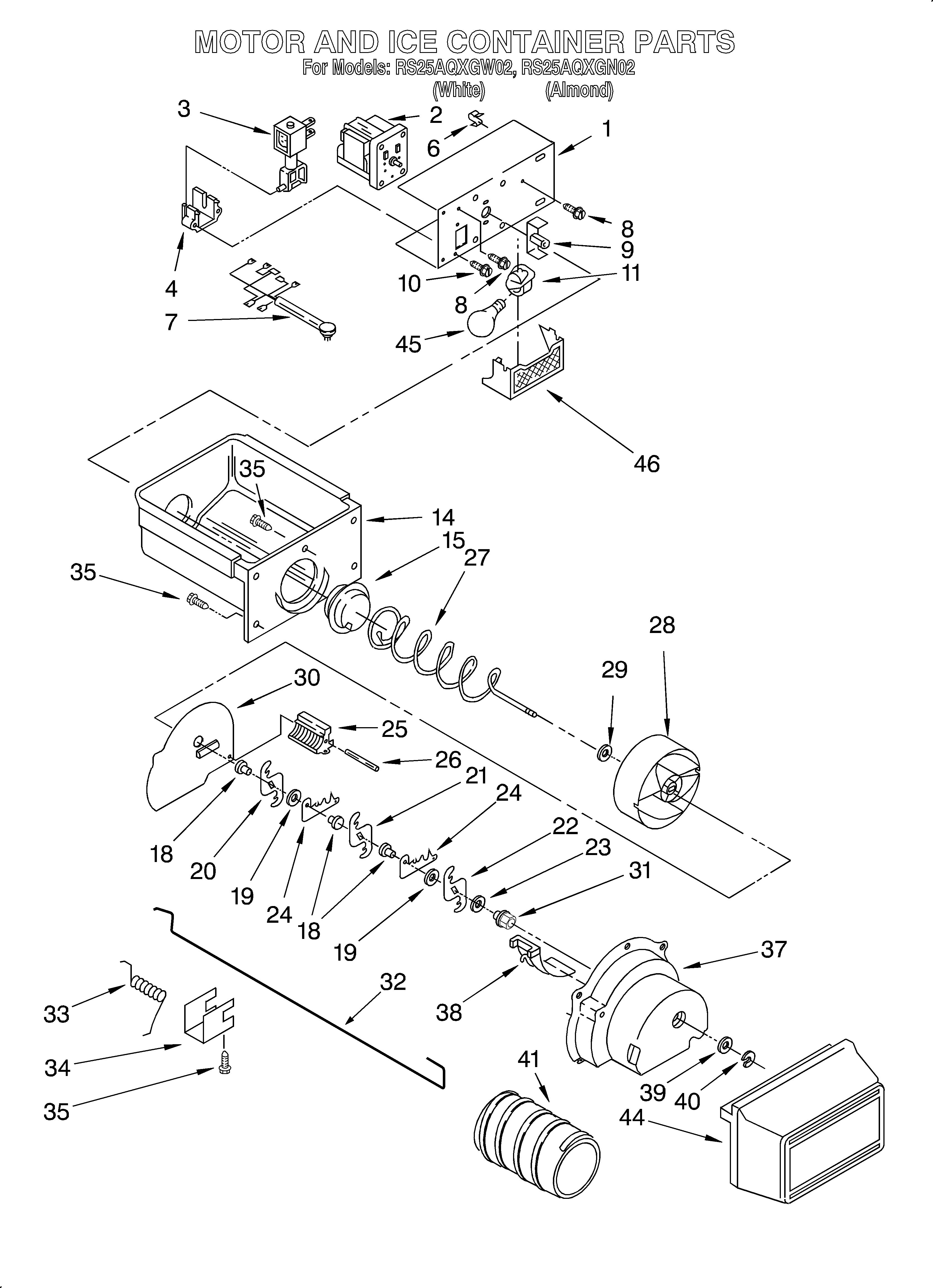

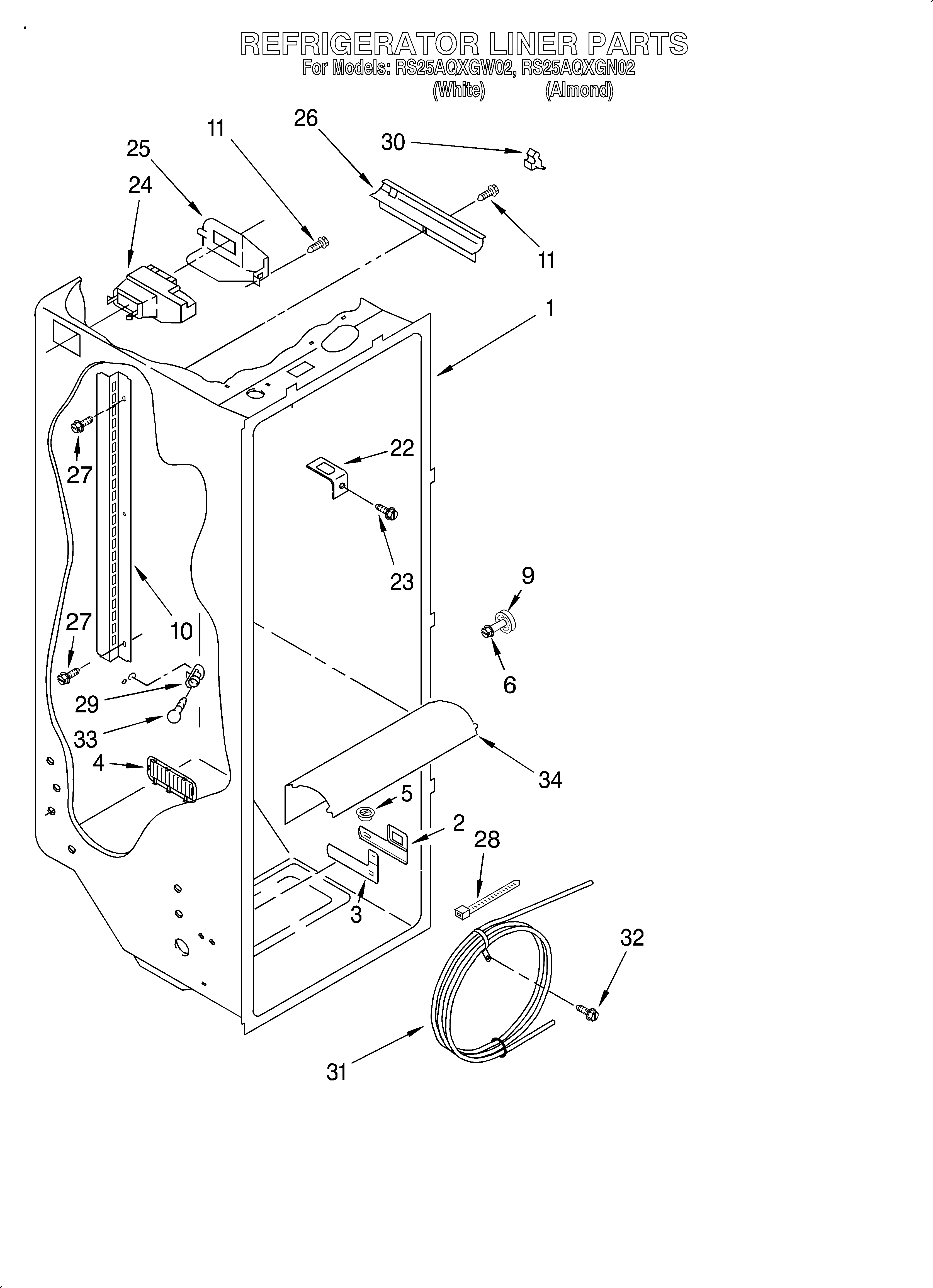

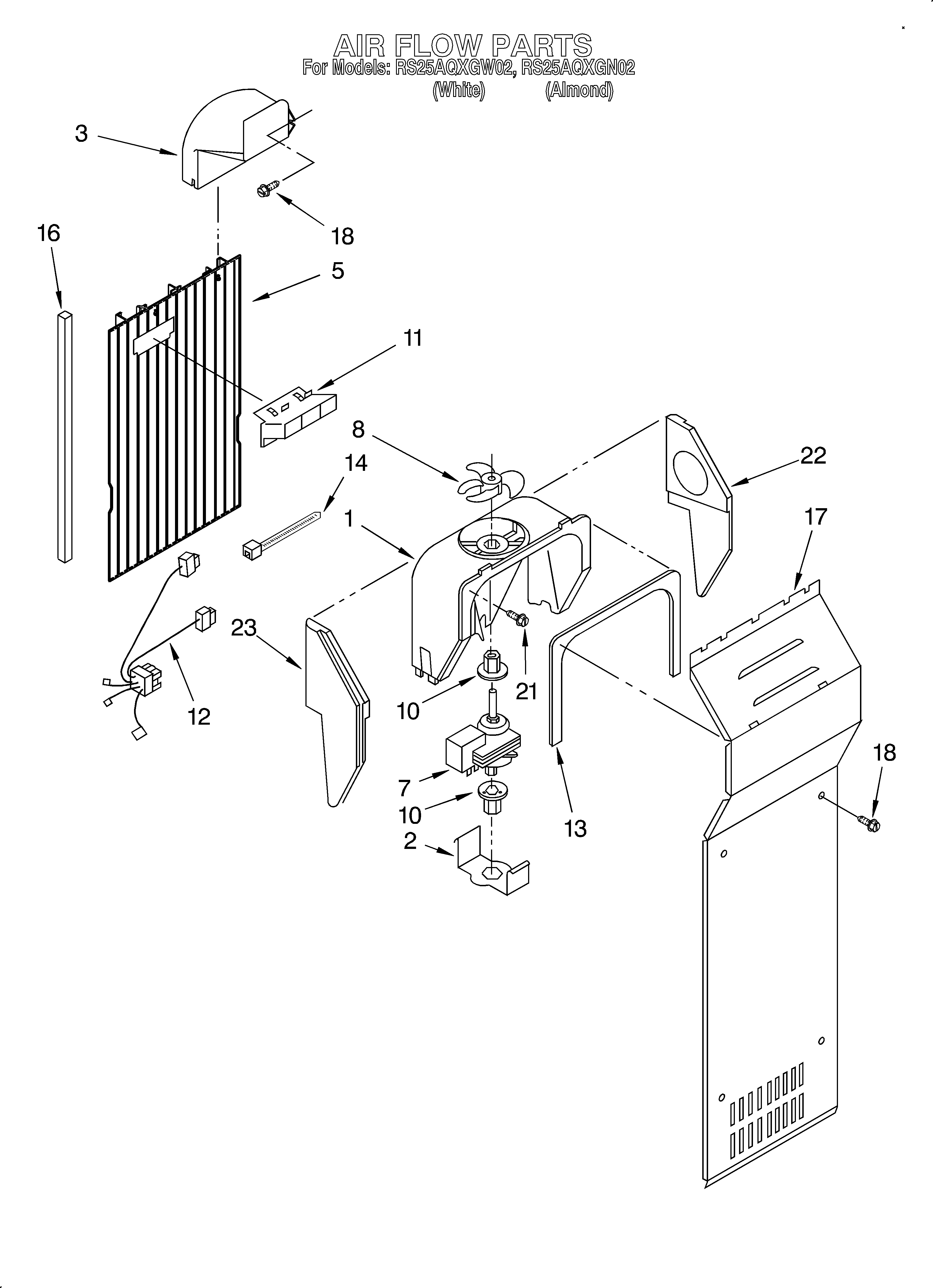

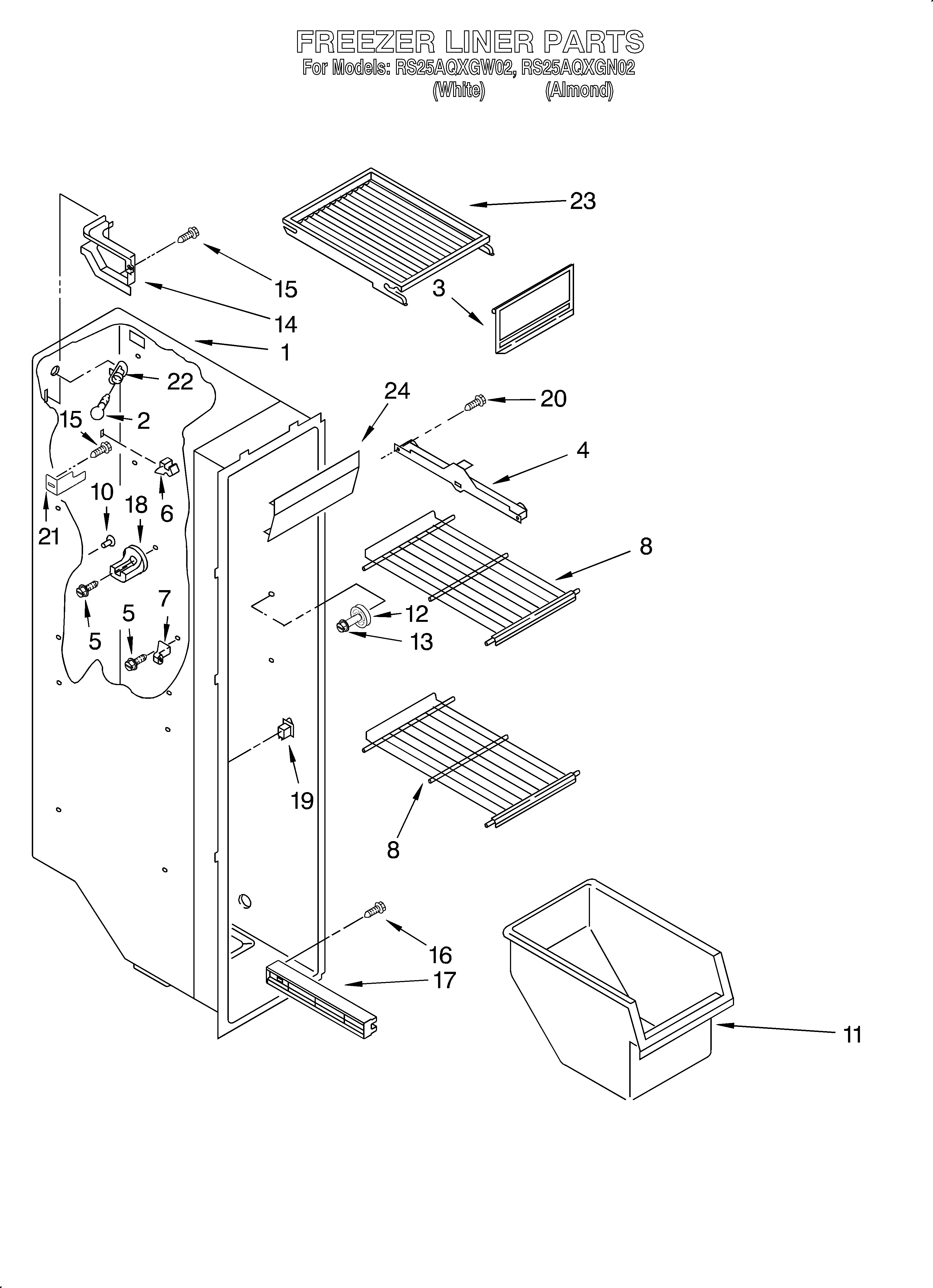

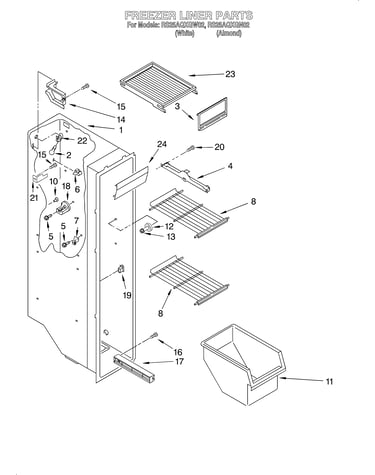

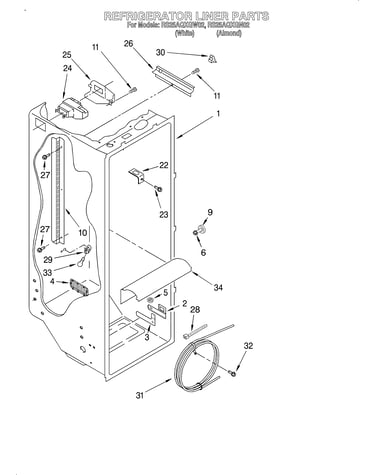

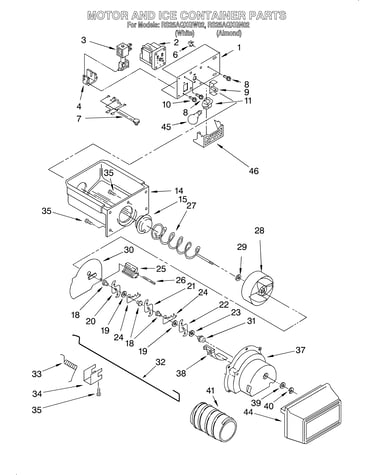

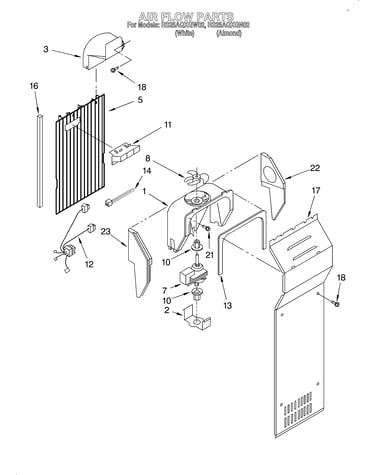

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 317 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

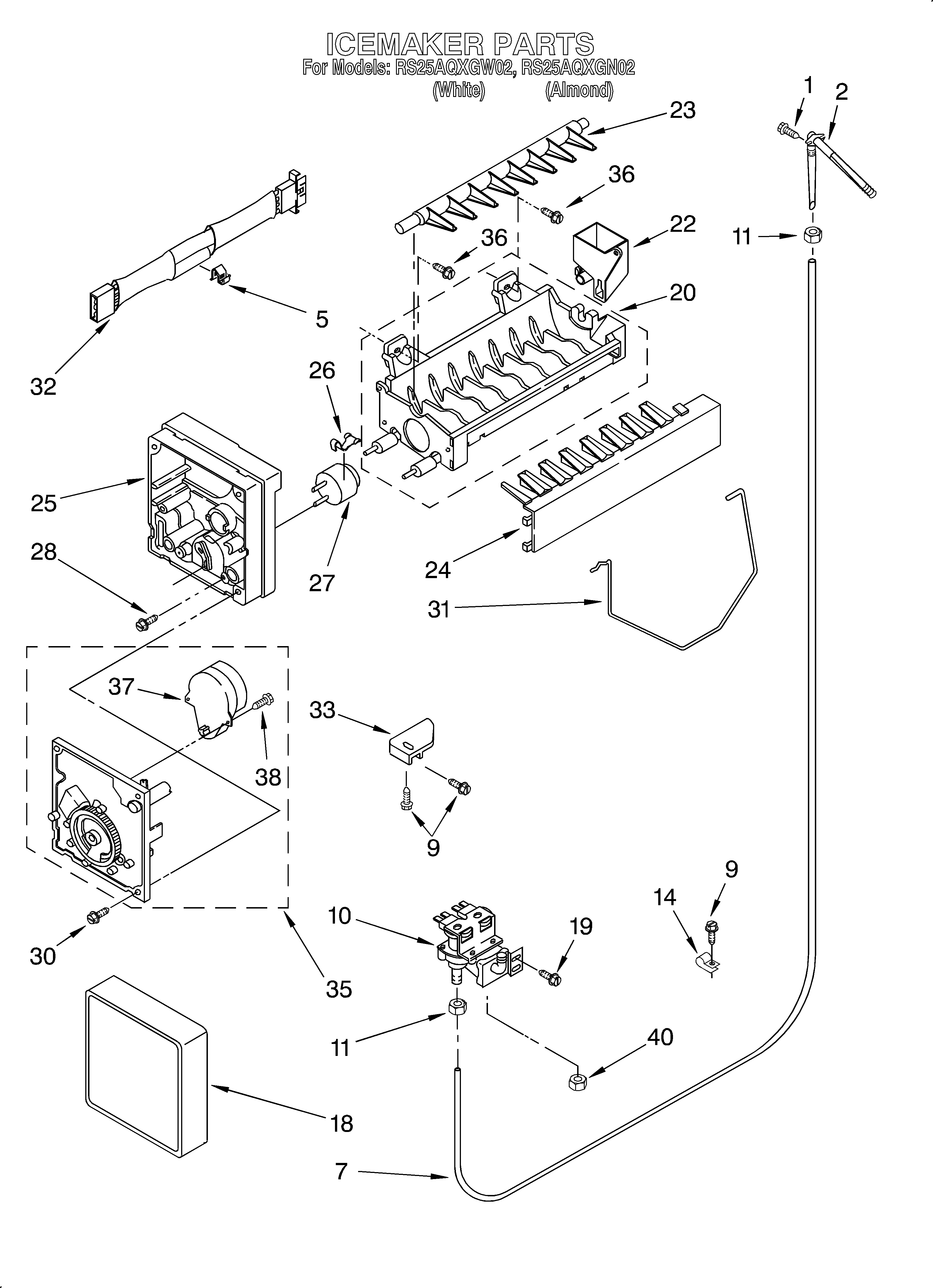

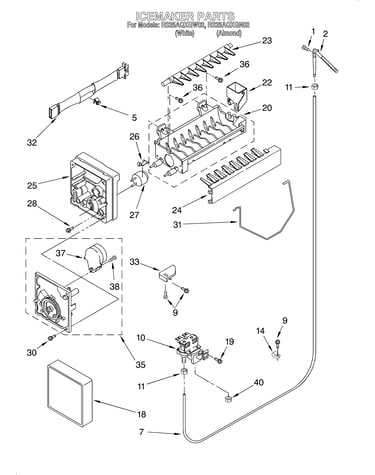

Icemaker/optional diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Thermostat 2198202
#9

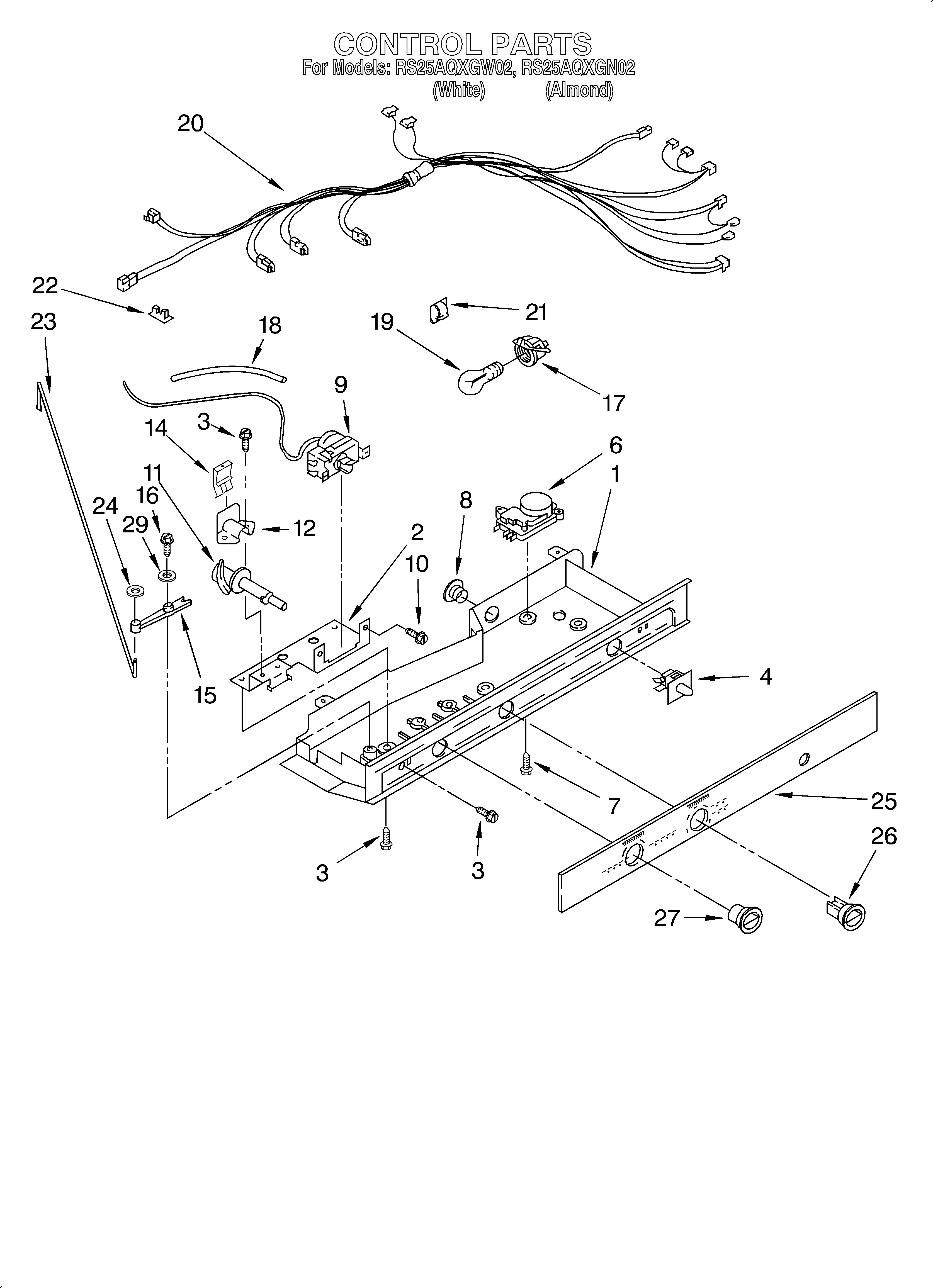

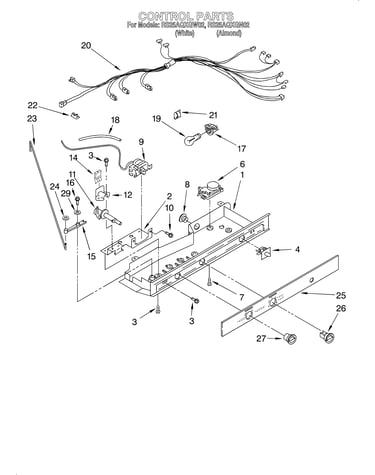

Control diagram

Refrigerator thermostat

Part #2198202

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2198202. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

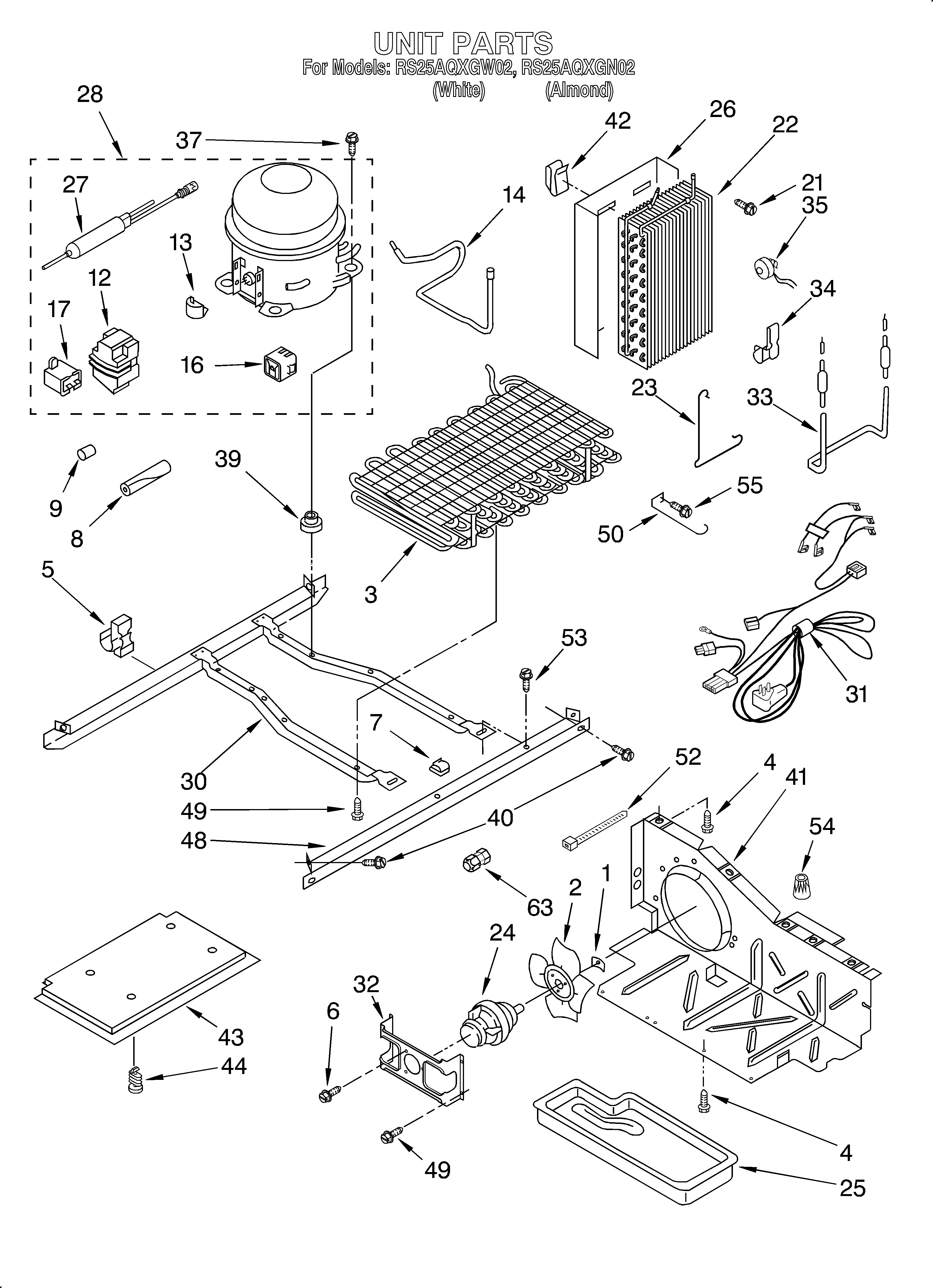

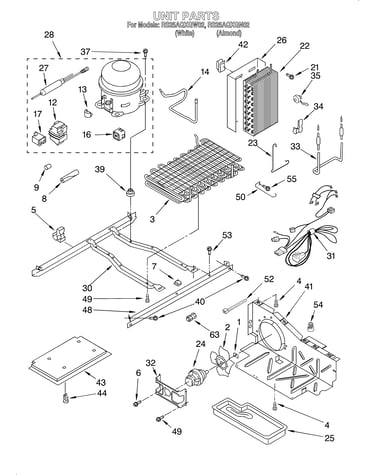

Unit diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Closer Cam 2182179
#11

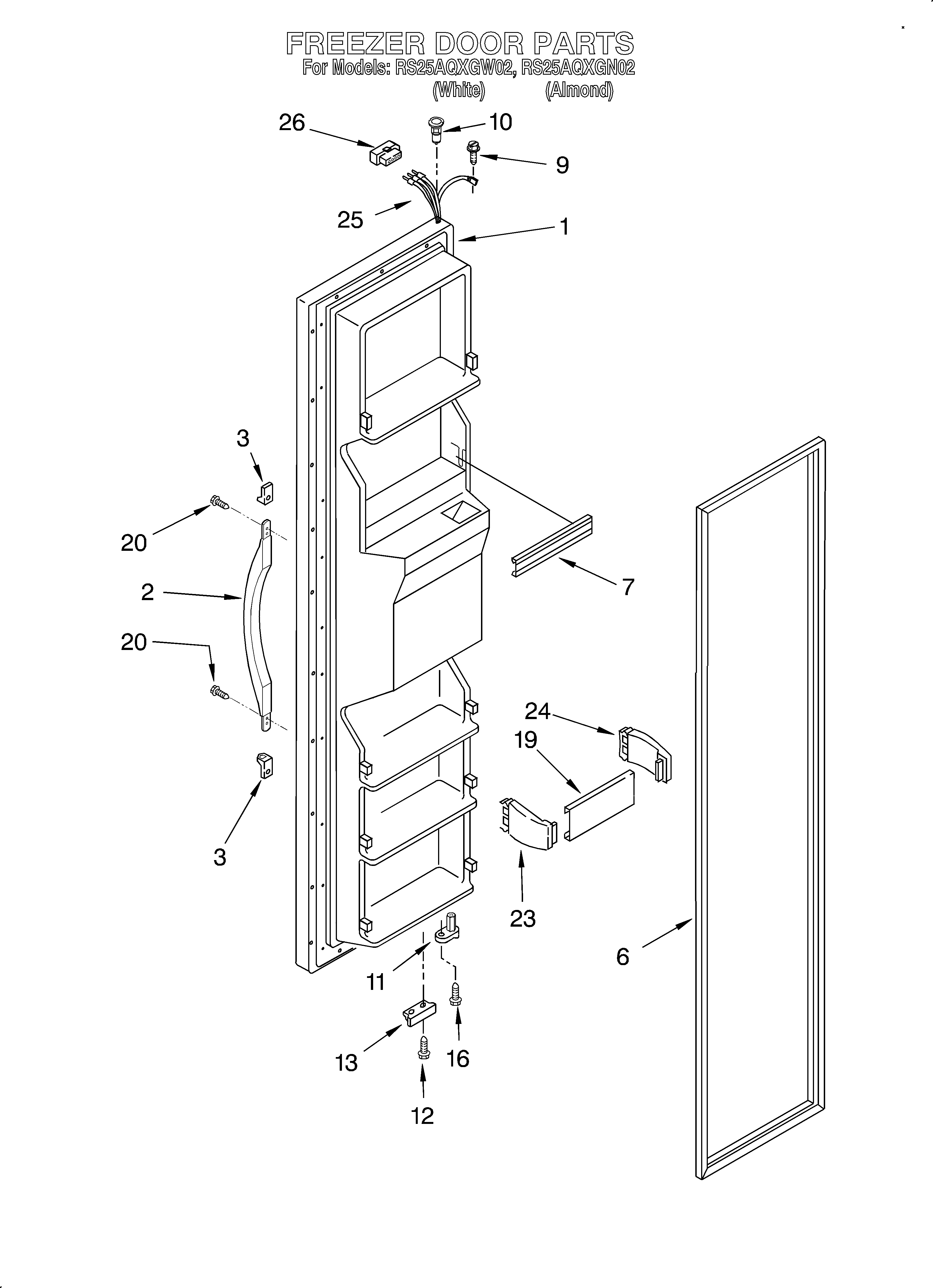

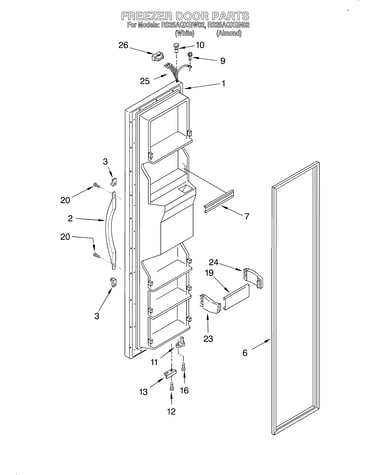

Freezer door diagram

Refrigerator door closer cam

Part #2182179

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Door Cam (black) 2182178
#11

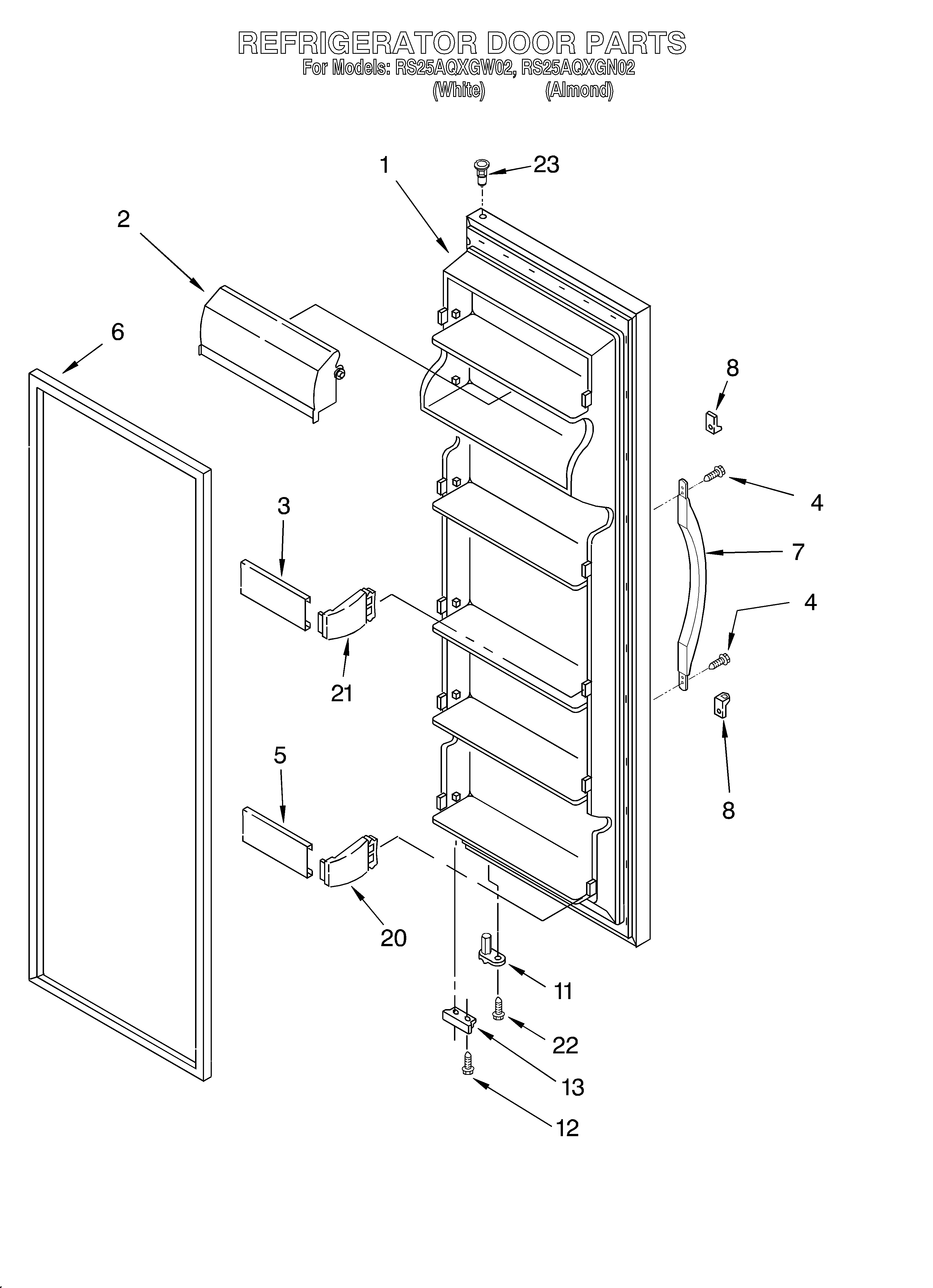

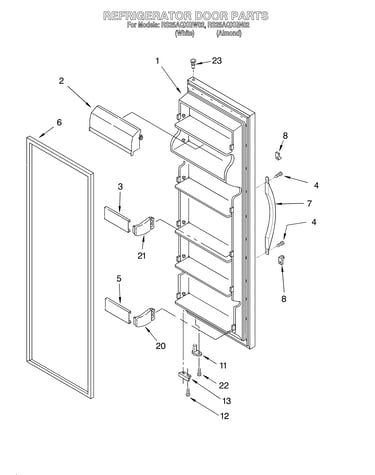

Refrigerator door diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Meat Pan 2196480
#17

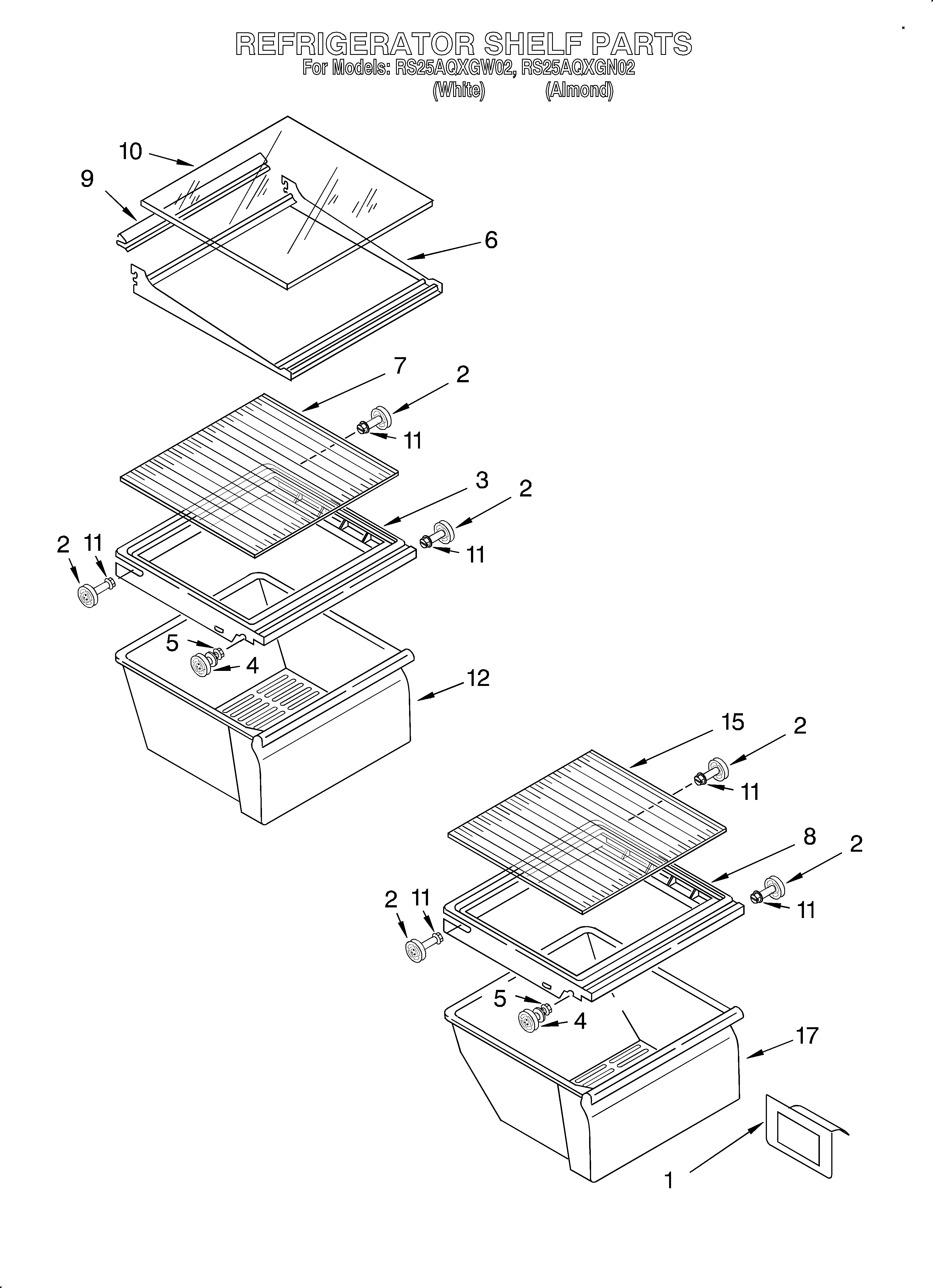

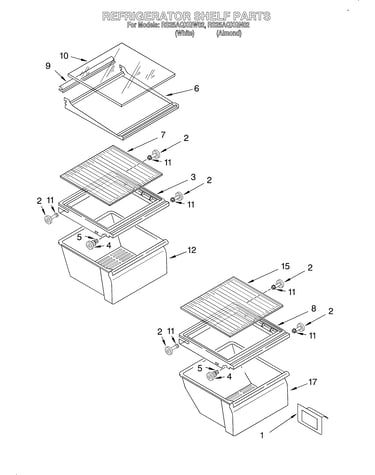

Refrigerator shelf diagram

Refrigerator meat pan

Part #2196480

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196480. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Door Closer Cam 2155311
#27

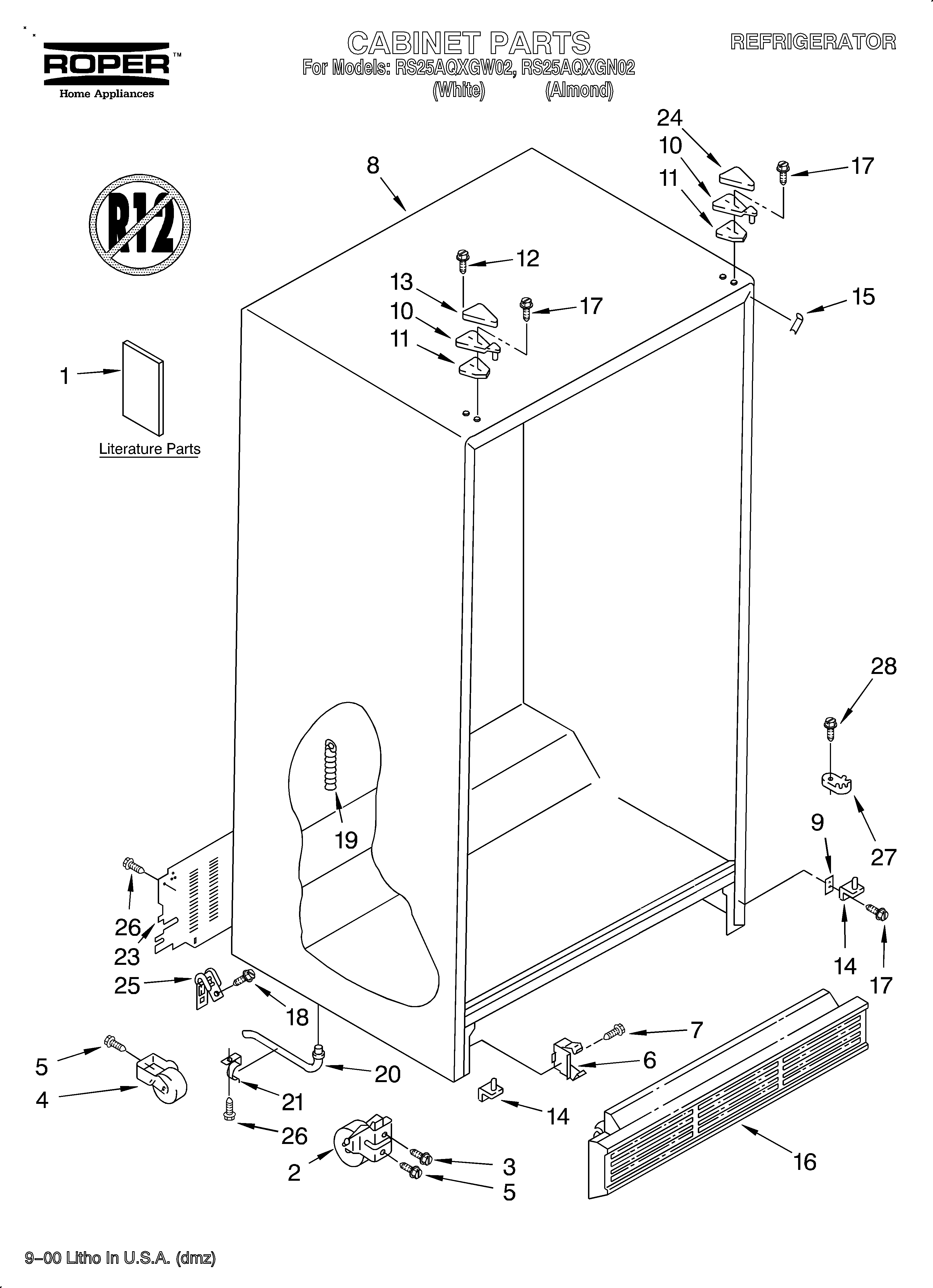

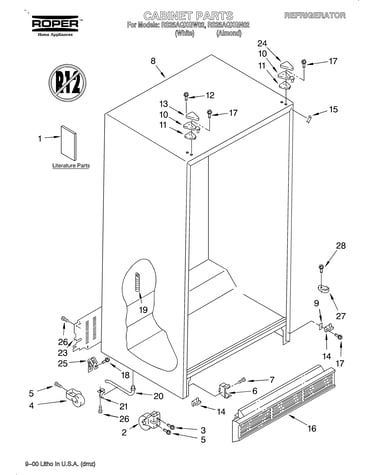

Cabinet/literature diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Bracket 2183771
#15

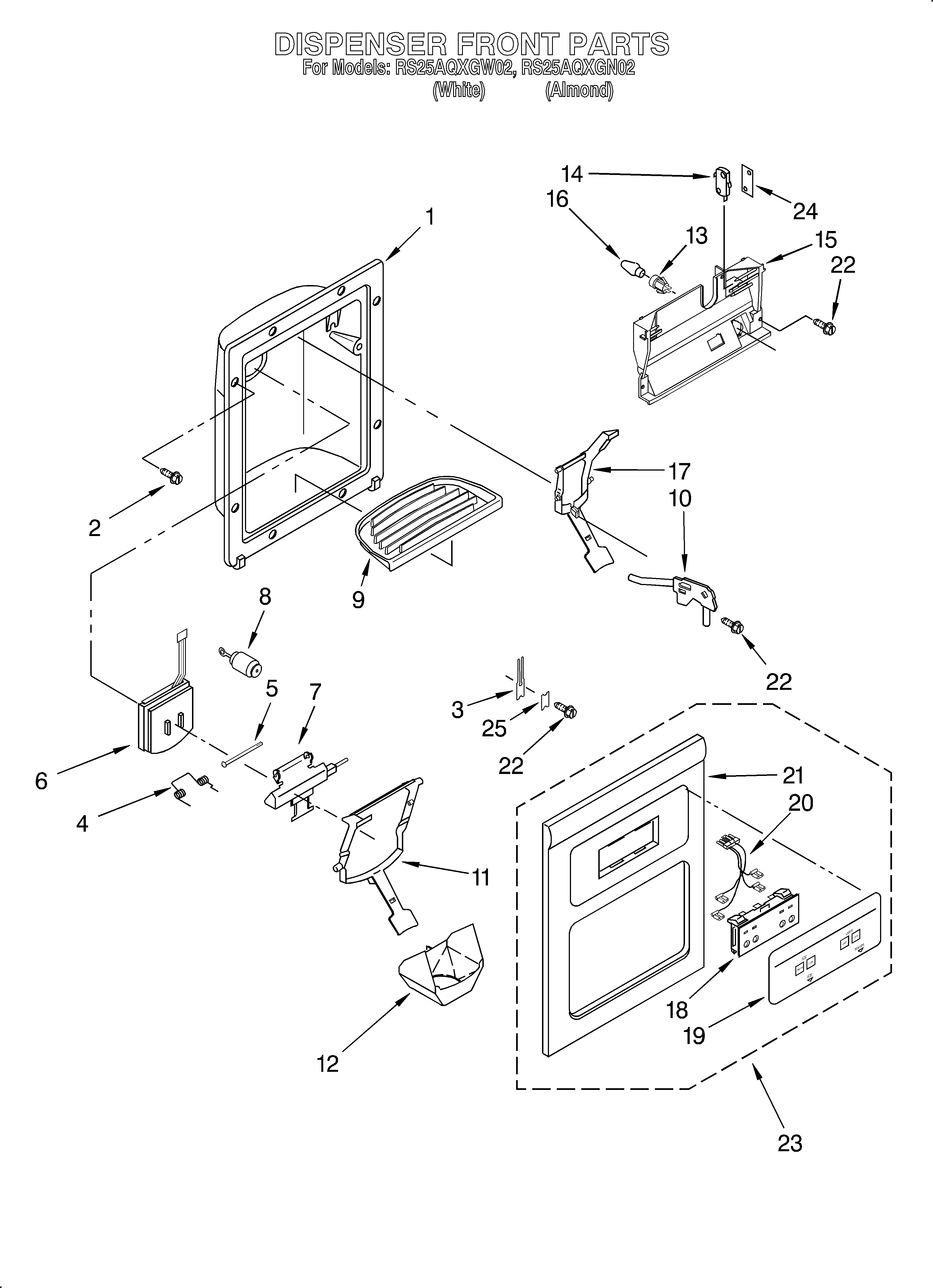

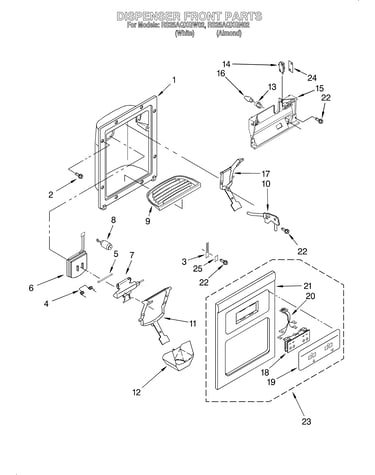

Dispenser front diagram

Refrigerator bracket

Part #2183771

Replaced by #WP2180226

?
Manufacturer substitution
This part replaces 2183771. Substitute parts can look different from the original.
BEST SELLER
$20.33 |
23% OFF Phone Price : $26.33
In Stock
Refrigerator Mechanism 2205686
#8

Dispenser front diagram

Refrigerator mechanism

Part #2205686

The manufacturer no longer makes this part, and there's no substitute part
