Kenmore
Air Purifier

Model # 635733100 Official Kenmore air cleaner

Here are the diagrams and repair parts for Official Kenmore 635733100 air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Filter 42-7317
#10

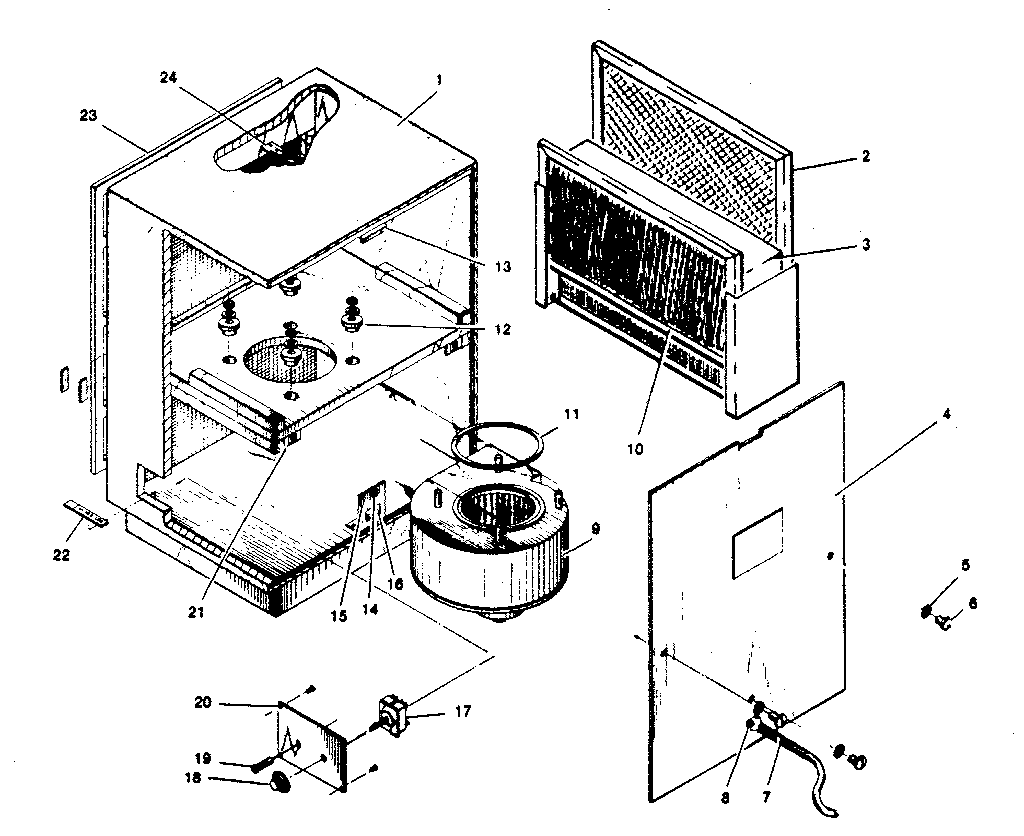

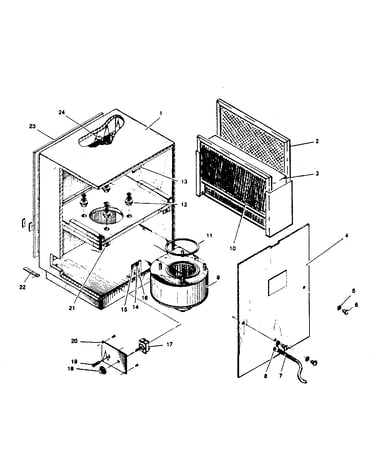

Unit parts diagram

Filter

Part #42-7317

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor 428272-001
#9

Unit parts diagram

Blower motor

Part #428272-001

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 122837-001
#15

Unit parts diagram

Receptacle

Part #122837-001

The manufacturer no longer makes this part, and there's no substitute part

Gasket 228284-001
#11

Unit parts diagram

Gasket

Part #228284-001

The manufacturer no longer makes this part, and there's no substitute part

Bracket 122956-001
#13

Unit parts diagram

Bracket

Part #122956-001

The manufacturer no longer makes this part, and there's no substitute part

Hepa Filter 339266-001
#3

Unit parts diagram

Hepa filter

Part #339266-001

The manufacturer no longer makes this part, and there's no substitute part

Bracket 225854-001
#21

Unit parts diagram

Bracket

Part #225854-001

The manufacturer no longer makes this part, and there's no substitute part

Bushing 128287-001
#12

Unit parts diagram

Bushing

Part #128287-001

The manufacturer no longer makes this part, and there's no substitute part

Pre-filter 123324-003
#2

Unit parts diagram

Pre-filter

Part #123324-003

The manufacturer no longer makes this part, and there's no substitute part

Clip 122896-001

#NI

All parts diagram

Clip

Part #122896-001

The manufacturer no longer makes this part, and there's no substitute part
