Here are the diagrams and repair parts for Official KitchenAid KTRA22EMBL00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

Owner’s manual

Error Codes

By Schematic

By Part

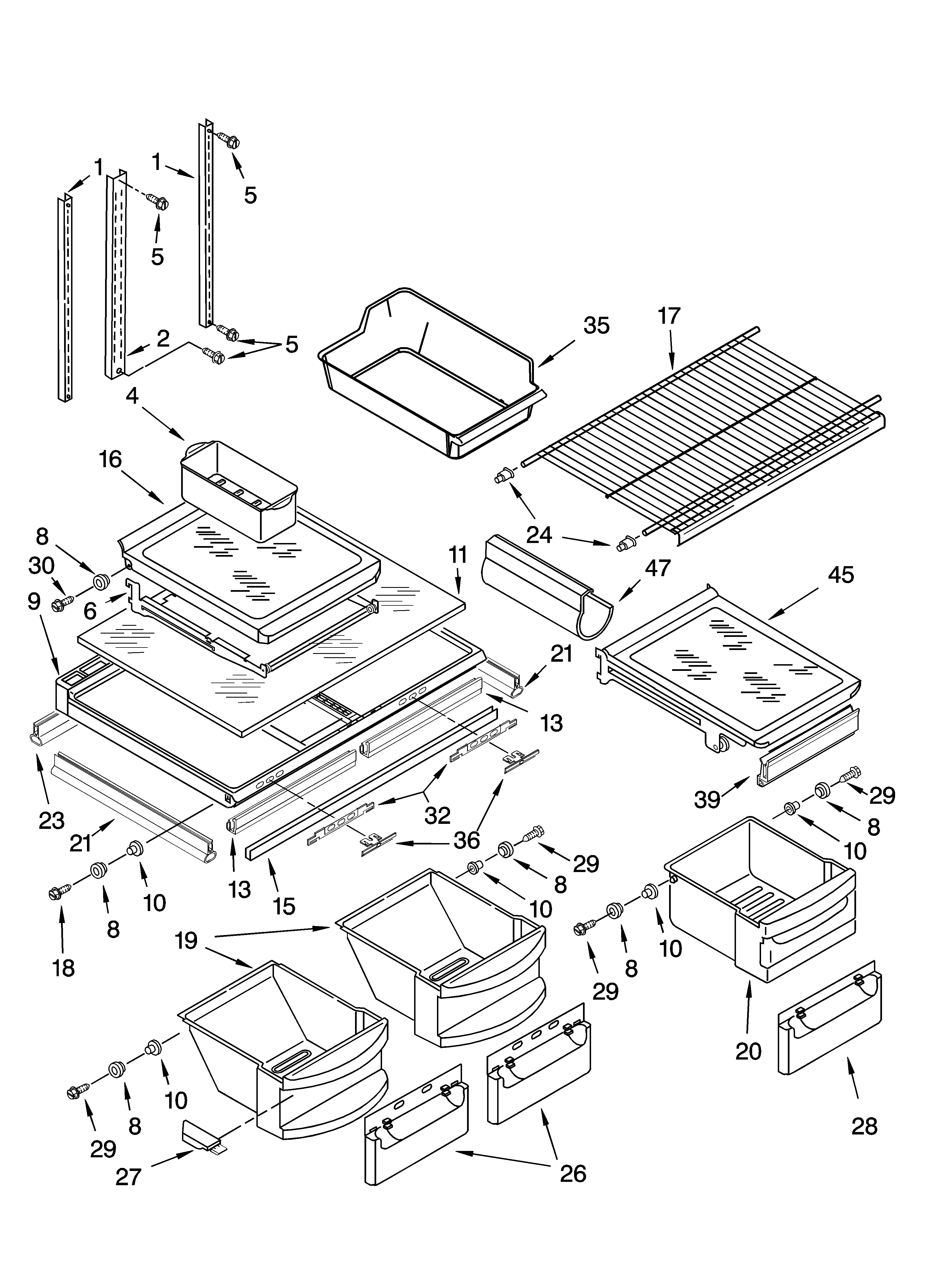

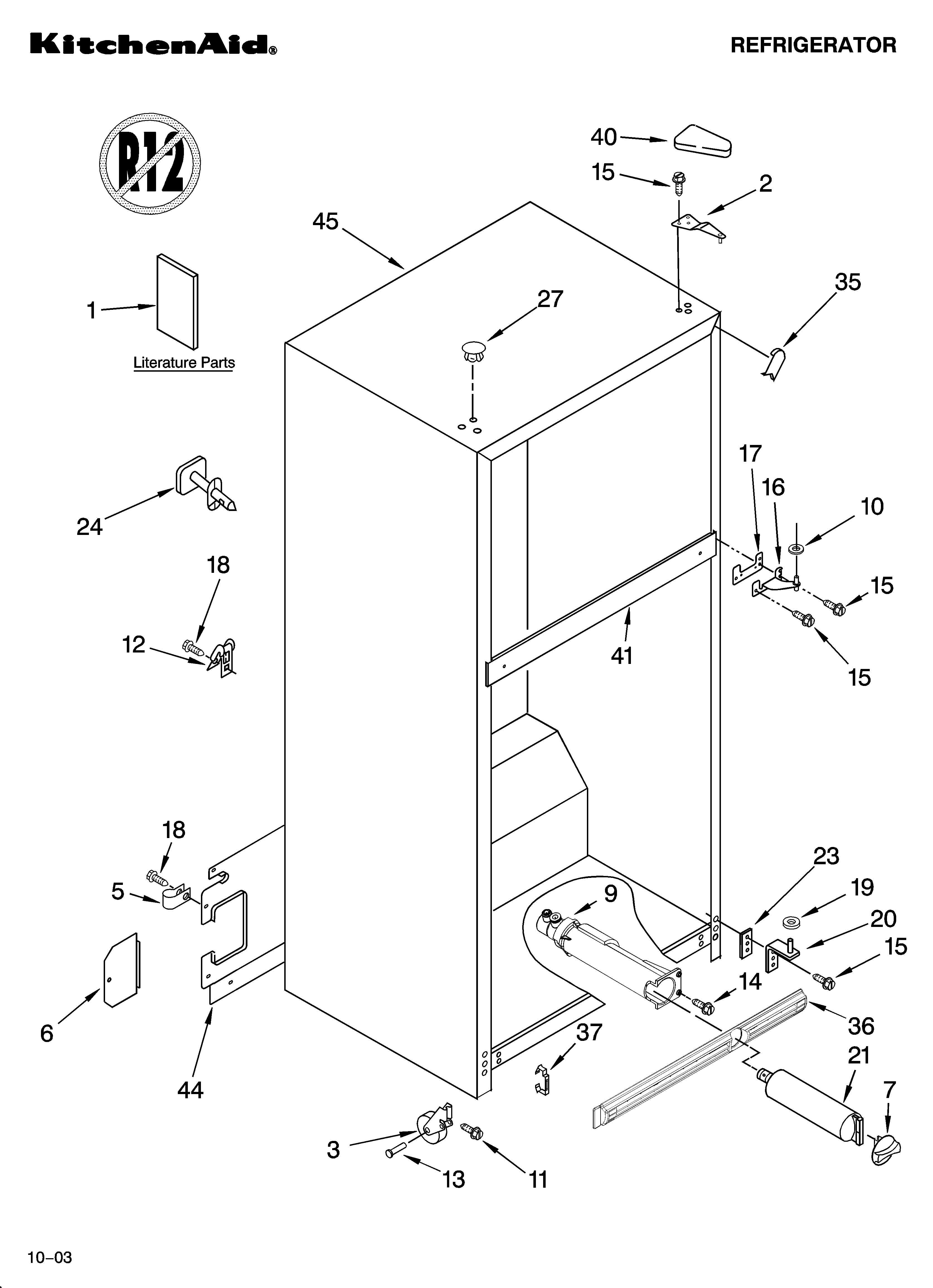

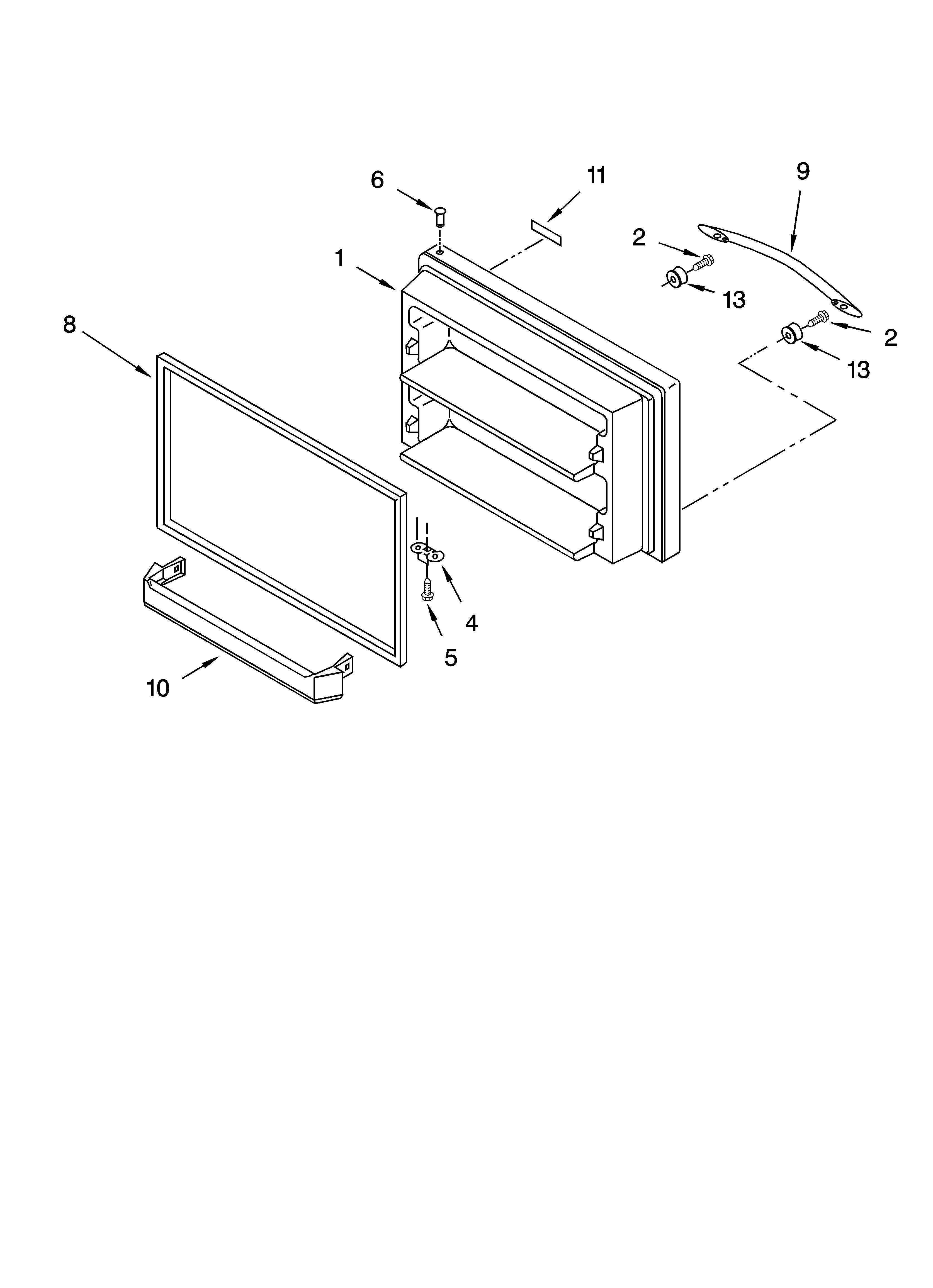

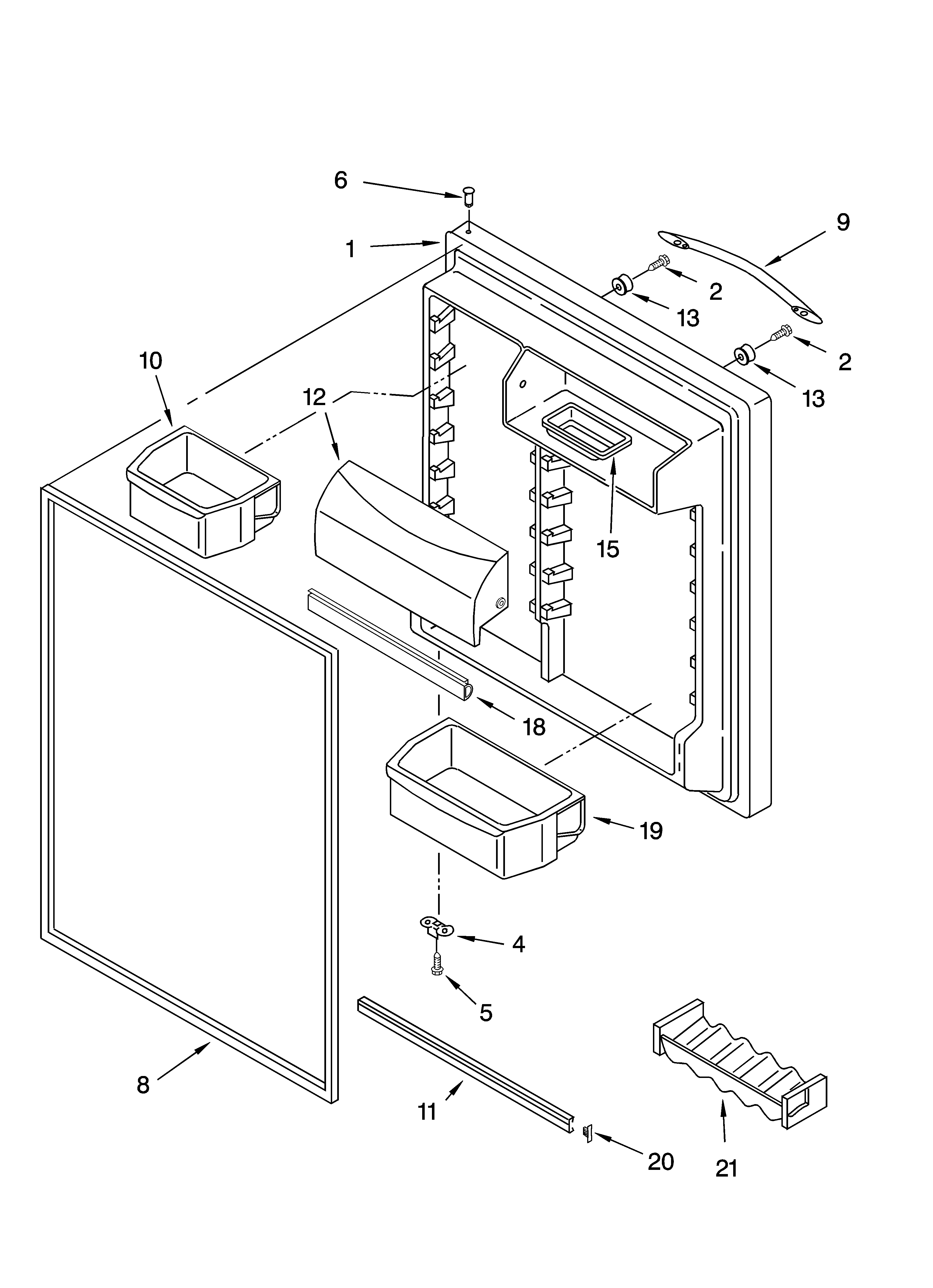

SELECT DIAGRAM

Browse Parts forKTRA22EMBL00 Refrigerators

#100

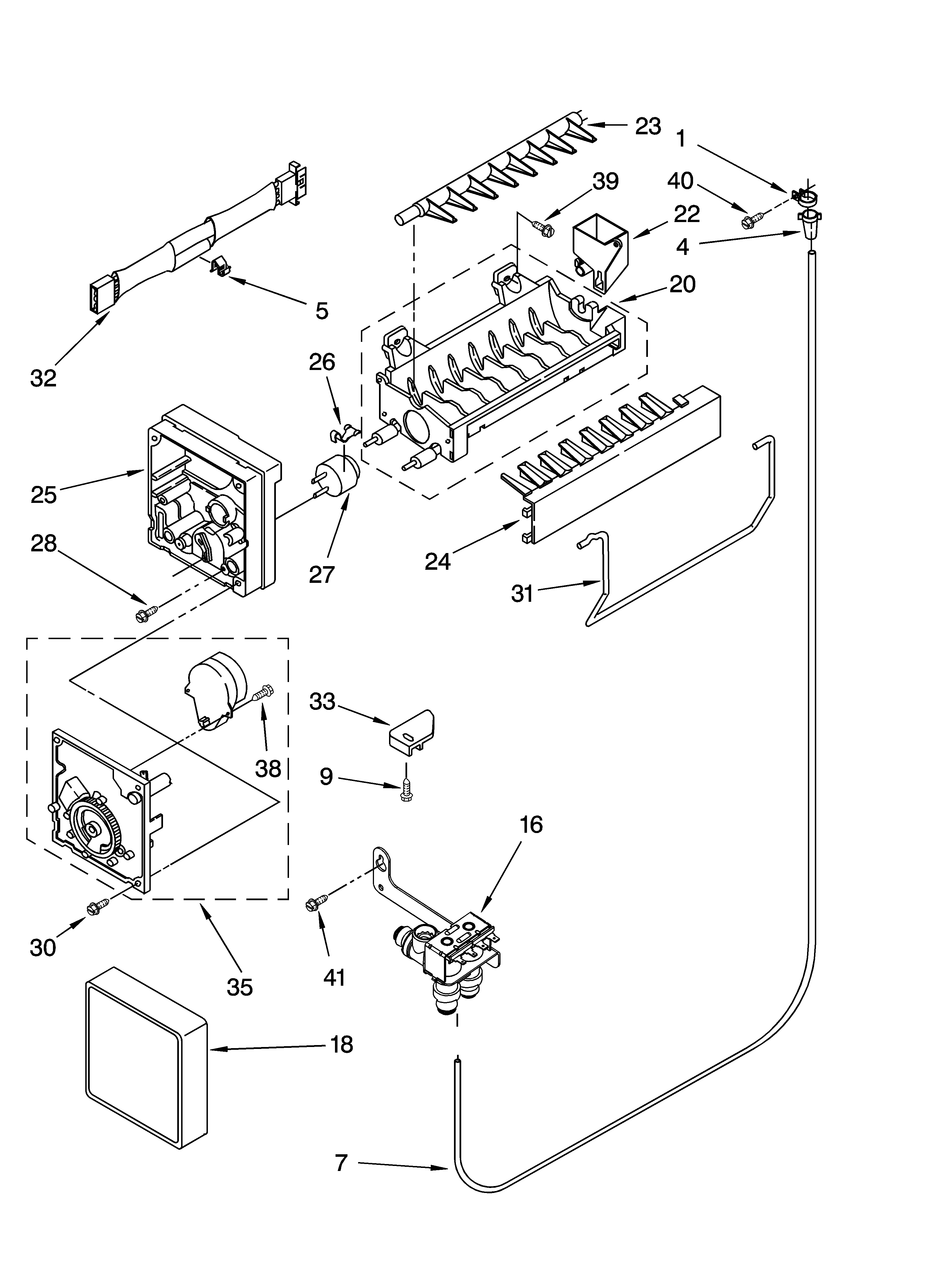

Icemaker parts diagram
Ice maker assembly - refrigerator ice maker by whirlpool
Part #4317943
4.29 (82)
$107.27 |
10% OFF Phone Price : $119.27
In Stock
Qty
#19

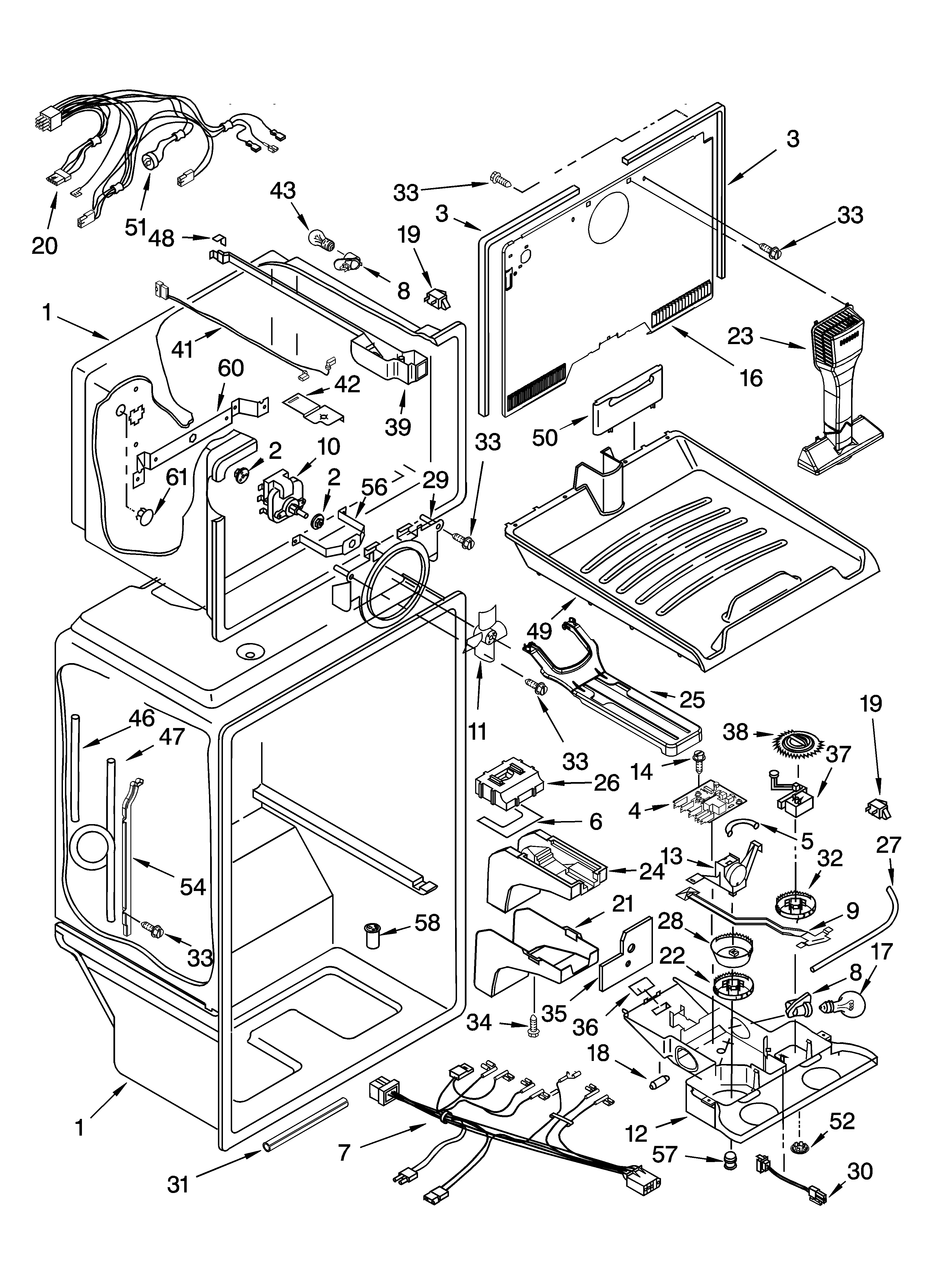

Liner parts diagram
Refrigerator light switch
Part #1118894
Replaced by #W11384469
?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
3.82 (11)
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Qty
#29A

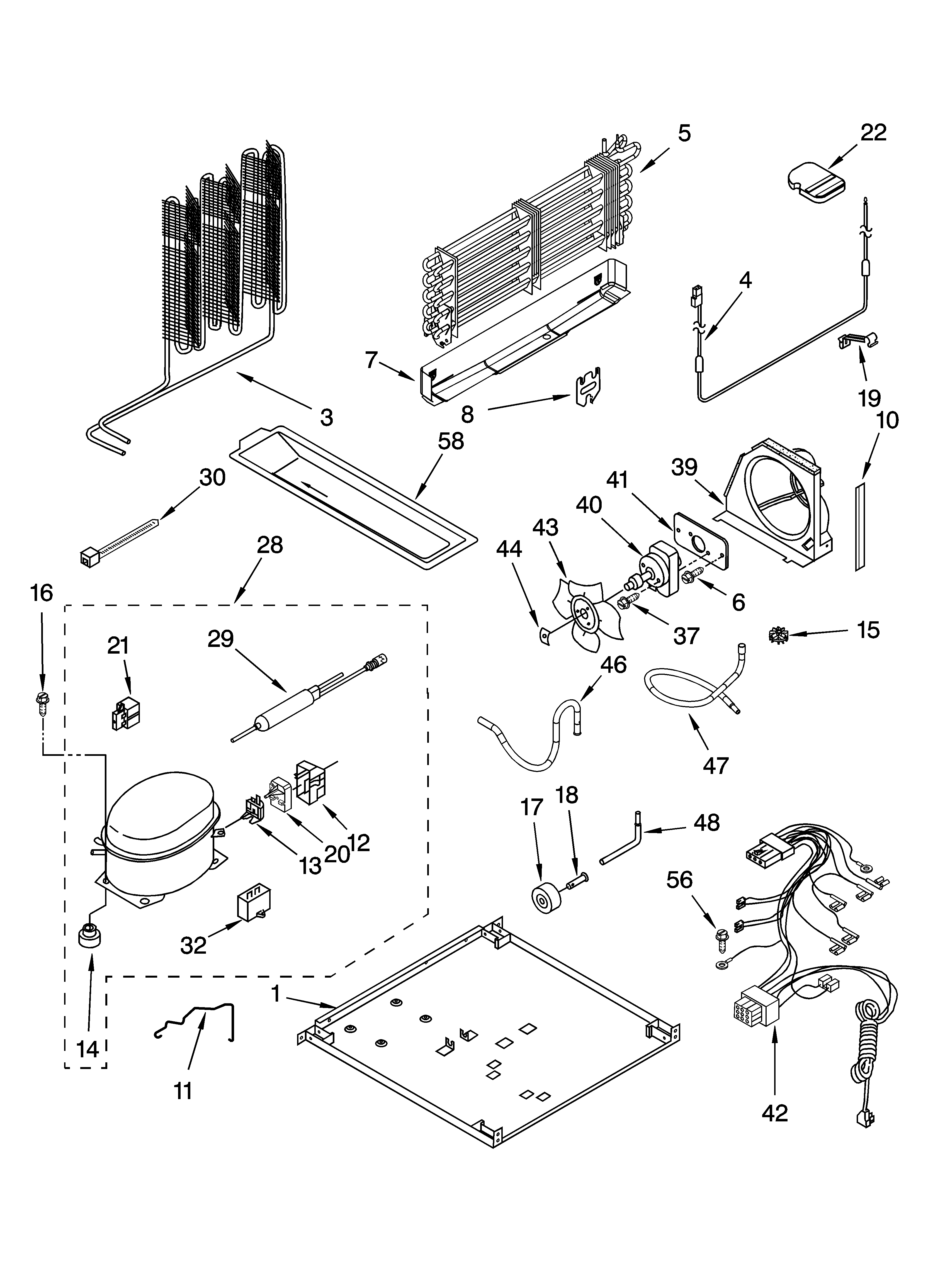

Unit parts diagram
Refrigerator dryer tube
Part #4387019
Replaced by #W10843121
?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
$30.51 |
16% OFF Phone Price : $36.51
In Stock
Qty
#29
Unit parts diagram
Drier-tue
Part #2199167
Replaced by #W10843121
?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
$30.51 |
16% OFF Phone Price : $36.51
In Stock
Qty
#47
Liner parts diagram
Filter tube
Part #2188744
Replaced by #8201597
?
Manufacturer substitution
This part replaces 2188744. Substitute parts can look different from the original.
3.79 (14)
$27.17 |
18% OFF Phone Price : $33.17
In Stock
Qty
#32A
Unit parts diagram
Run capacitor
Part #1118576
Replaced by #WPW10662129
?
Manufacturer substitution
This part replaces 1118576. Substitute parts can look different from the original.
5 (9)
$41.38 |
13% OFF Phone Price : $47.38
In Stock
Qty
#32
Unit parts diagram
Upright freezer run capacitor
Part #2169373
Replaced by #WPW10662129
?
Manufacturer substitution
This part replaces 2169373. Substitute parts can look different from the original.
5 (9)
$41.38 |
13% OFF Phone Price : $47.38
In Stock
Qty
#7
Icemaker parts diagram
Refrigerator water tube
Part #2210514
Replaced by #W10823511
?
Manufacturer substitution
This part replaces 2210514. Substitute parts can look different from the original.
3.25 (8)
$31.23 |
16% OFF Phone Price : $37.23
In Stock
Qty
#6

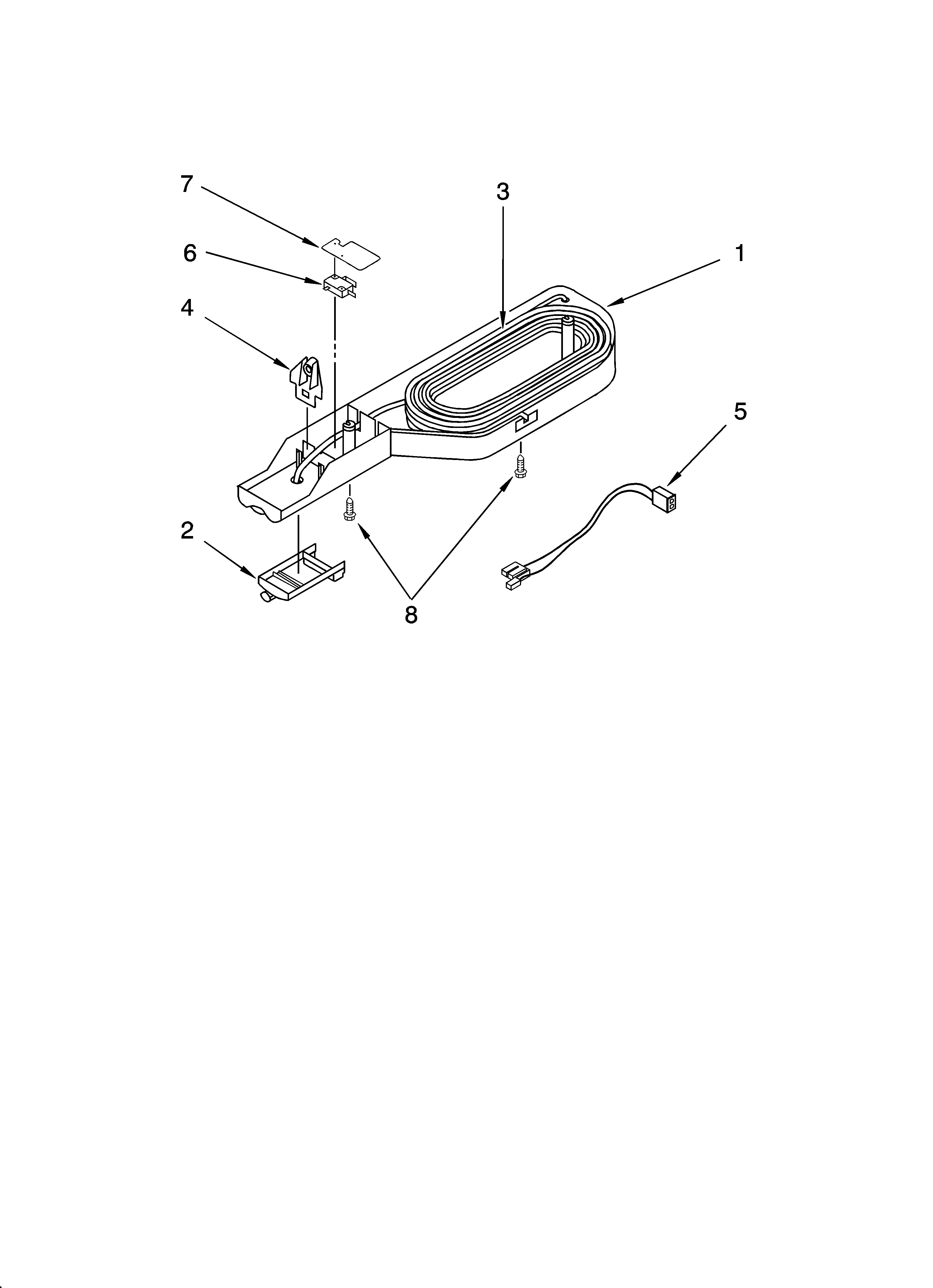

Water dispenser parts, optional parts diagram
Refrigerator dispenser switch
Part #2162361
Replaced by #WP2162361
?
Manufacturer substitution
This part replaces 2162361. Substitute parts can look different from the original.
4.23 (13)
$15.34 |
15% OFF Was : $18.08
In Stock
Qty
#28
Unit parts diagram
Refrigerator compressor
Part #2216049
Replaced by #W10309988
?
Manufacturer substitution
This part replaces 2216049. Substitute parts can look different from the original.
5 (1)
$282.03 |
$12.00 OFF Phone Price : $294.03
In Stock
Qty
