Whirlpool
Side-By-Side Refrigerator

Model # 5VED7GTKKT01 Official Whirlpool side-by-side refrigerator

Here are the diagrams and repair parts for Official Whirlpool 5VED7GTKKT01 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

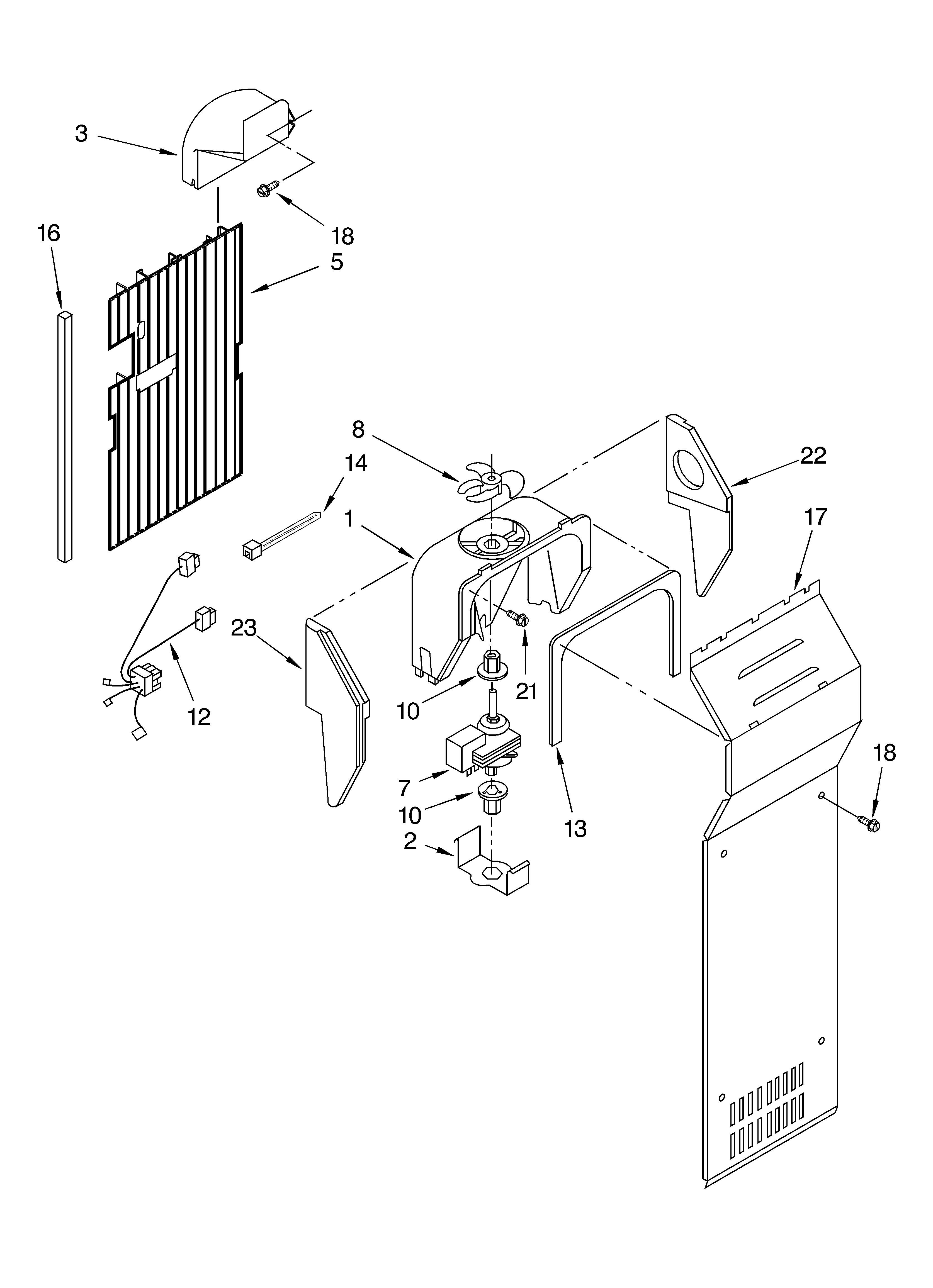

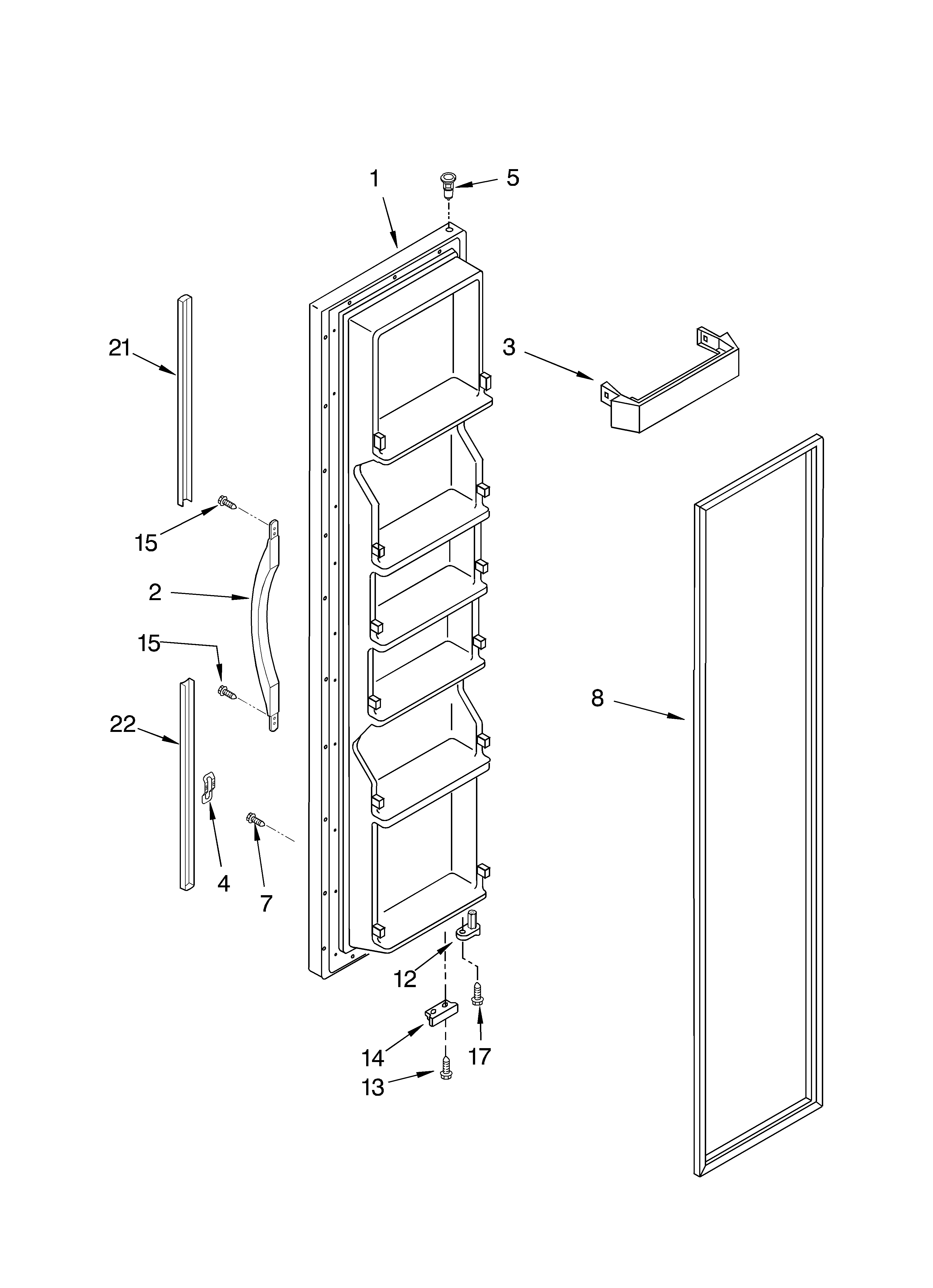

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Refrigerator Thermostat 2198202
#9

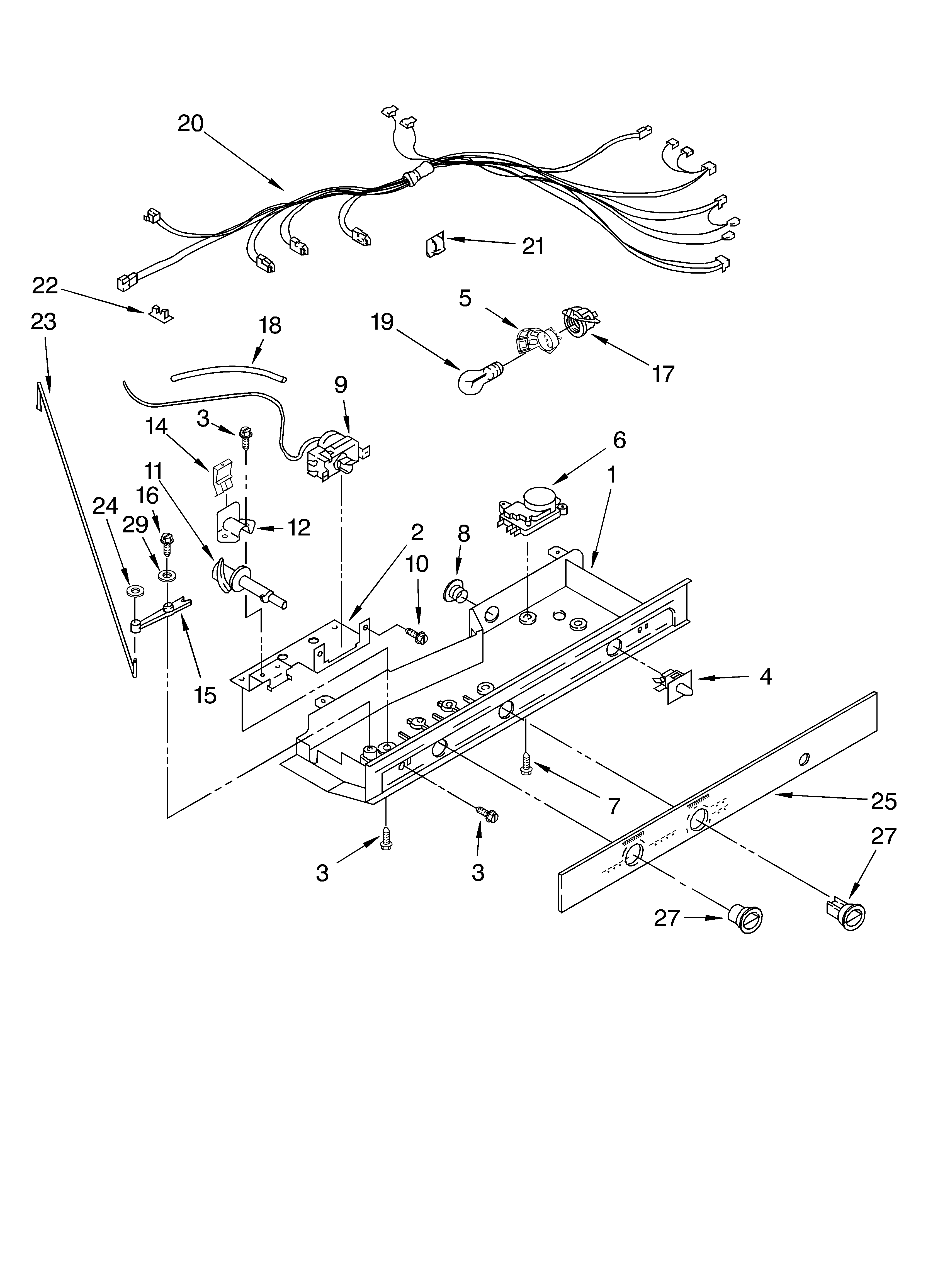

Control parts diagram

Refrigerator thermostat

Part #2198202

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2198202. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

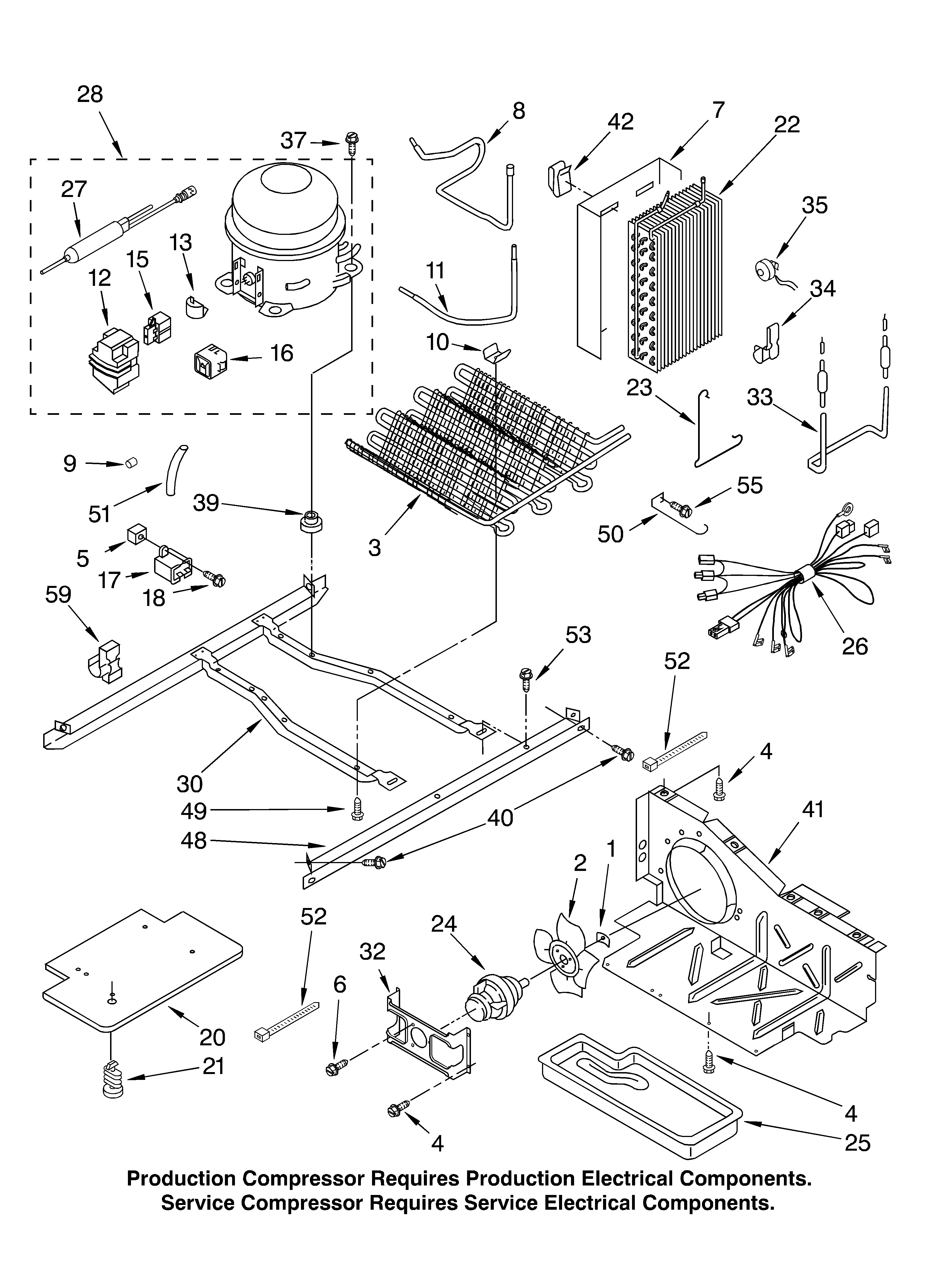

Unit parts, parts not illustrated diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Cam (black) 2182178
Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Meat Pan 2196162
#20

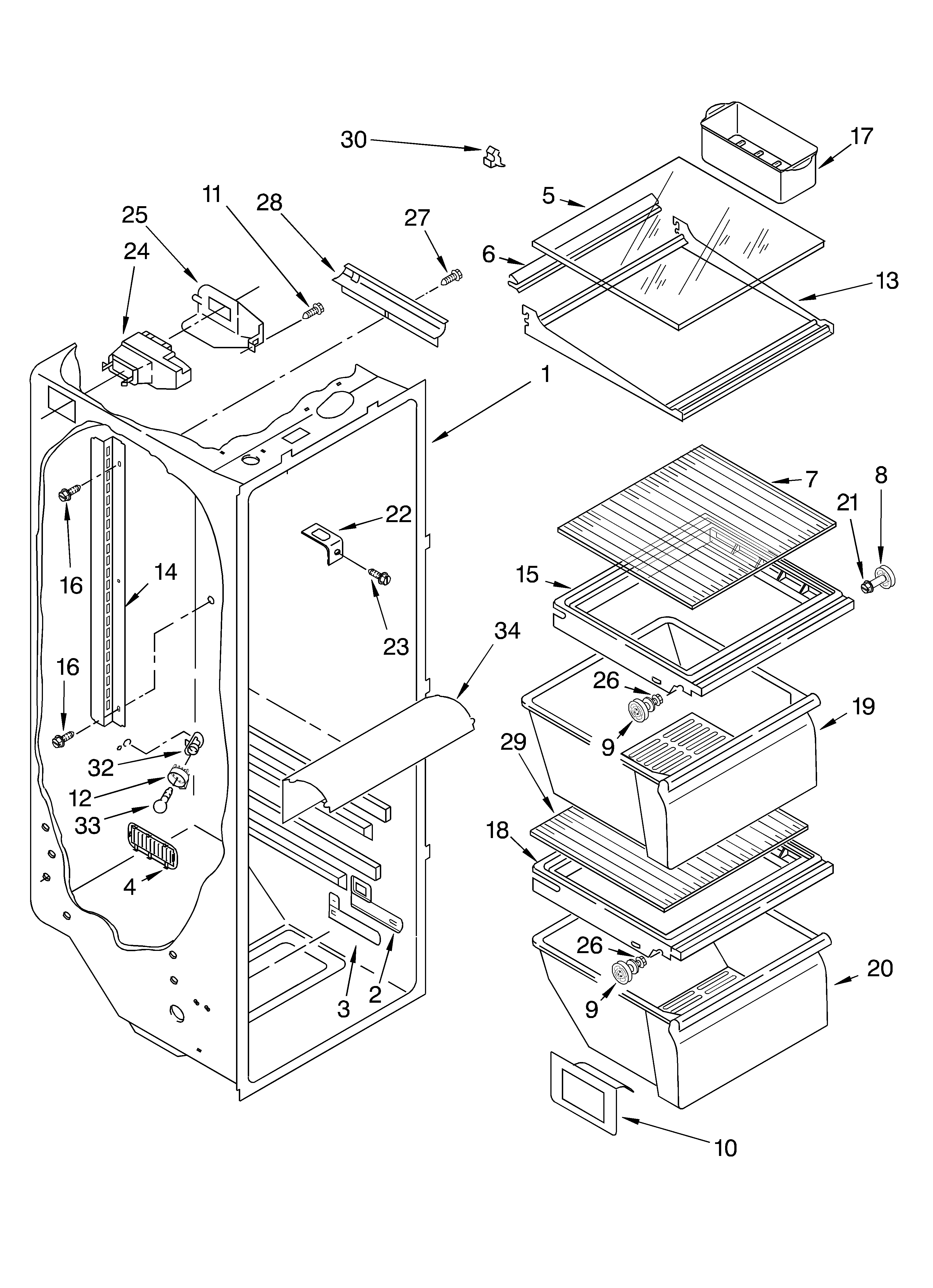

Refrigerator liner parts diagram

Refrigerator meat pan

Part #2196162

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196162. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Door Closer Cam 2155311
#6

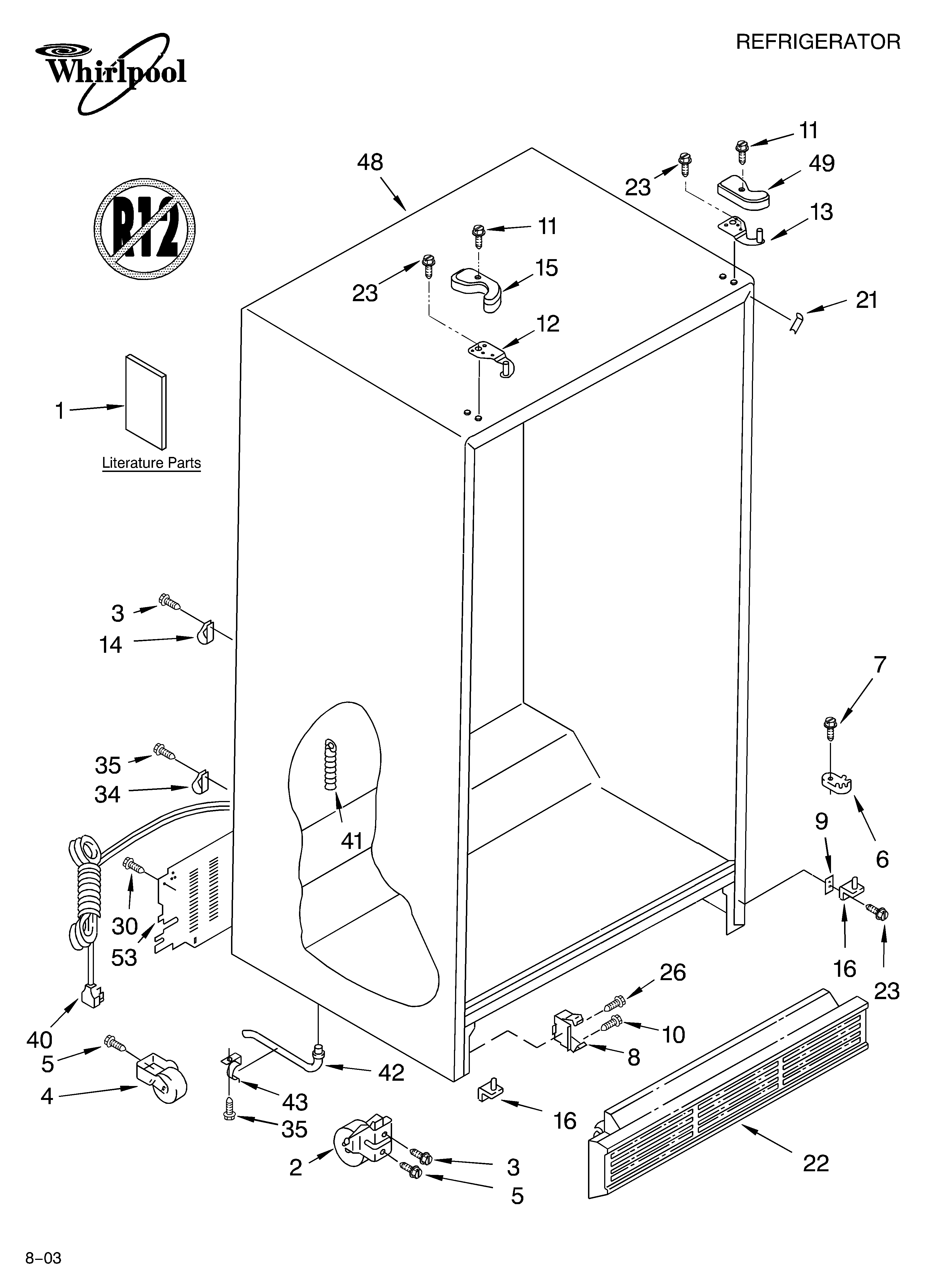

Cabinet parts diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Door Bin 2187172
#3

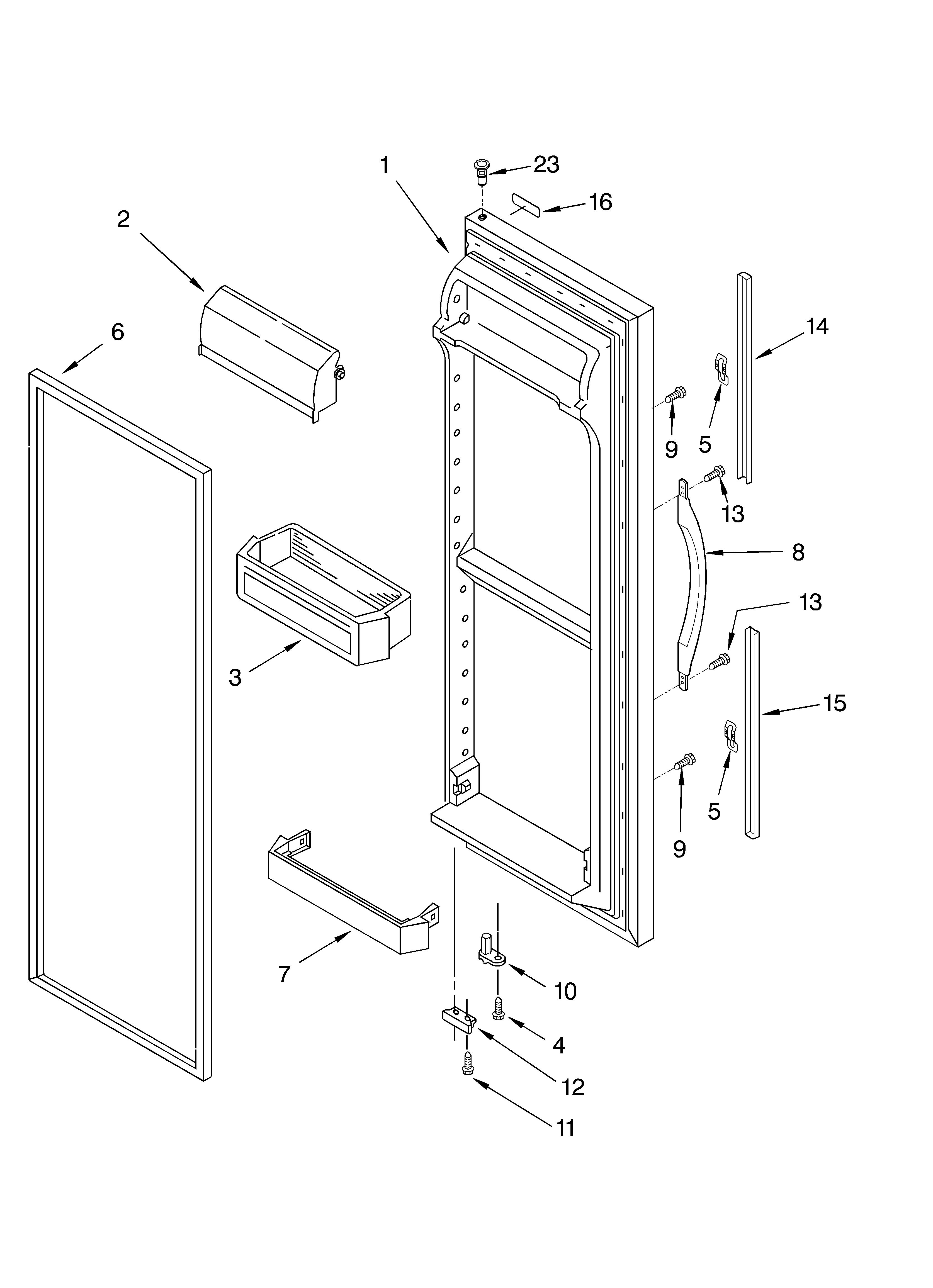

Refrigerator door parts diagram

Refrigerator door bin

Part #2187172

Replaced by #WP2187172

?
Manufacturer substitution
This part replaces 2187172. Substitute parts can look different from the original.
BEST SELLER
$30.38 |
16% OFF Phone Price : $36.38
In Stock
Refrigerator Light Switch 1118894
#25

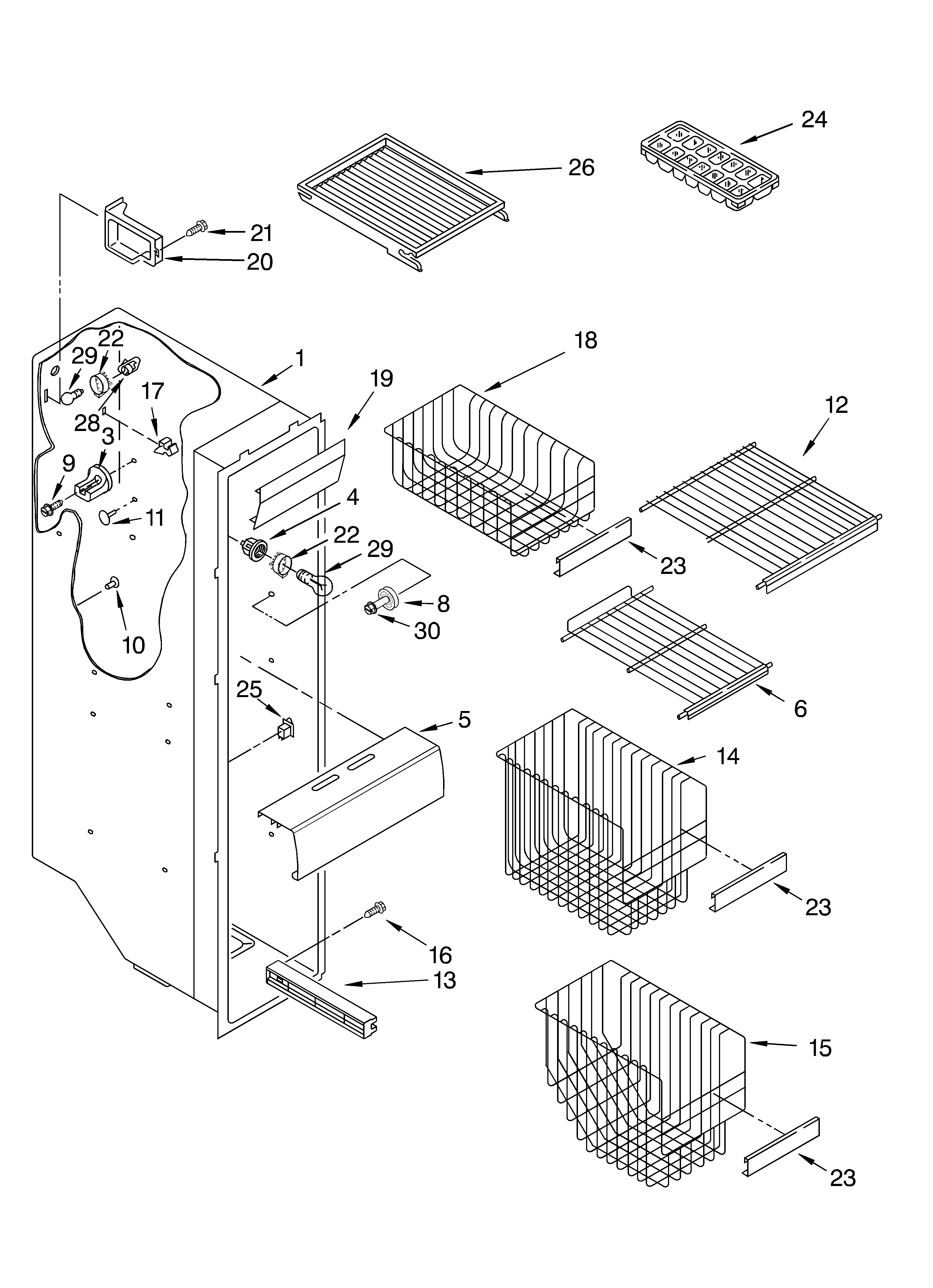

Freezer liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier-tue 2199167
#27

Unit parts, parts not illustrated diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Evaporator 2209611
#22

Unit parts, parts not illustrated diagram

Refrigerator evaporator

Part #2209611

Replaced by #WP2188823

?
Manufacturer substitution
This part replaces 2209611. Substitute parts can look different from the original.
BEST SELLER
$293.72 |
$12.00 OFF Phone Price : $305.72
In Stock
Refrigerator Gasket Panel (white) 2221302
#6

Refrigerator door parts diagram

Refrigerator gasket panel (white)

Part #2221302

Replaced by #2159075

?
Manufacturer substitution
This part replaces 2221302. Substitute parts can look different from the original.
BEST SELLER
$167.72 |
9% OFF Was : $184.31
In Stock
