Model # DDSS475GA0WW Official GE dryer

Here are the diagrams and repair parts for Official GE DDSS475GA0WW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

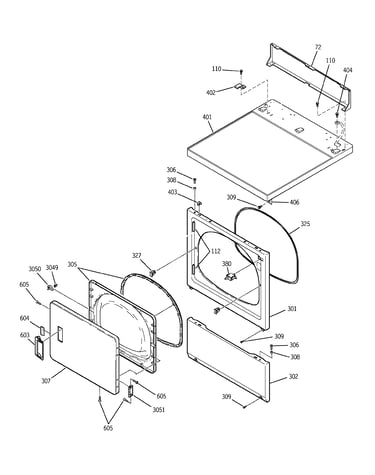

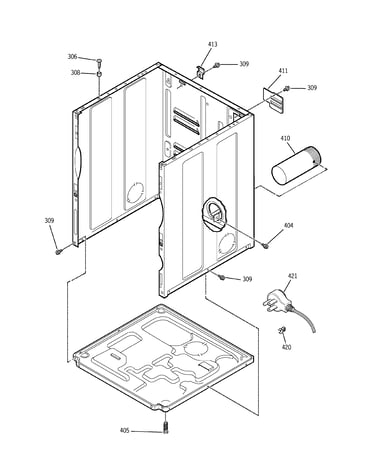

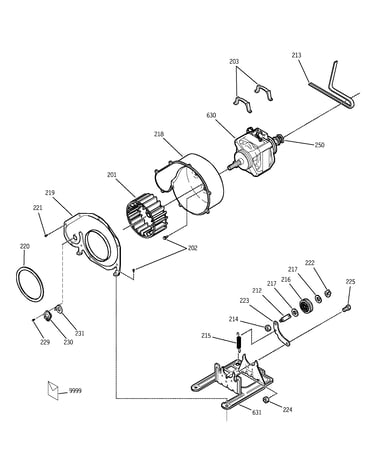

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Drum WE21X10008
#500

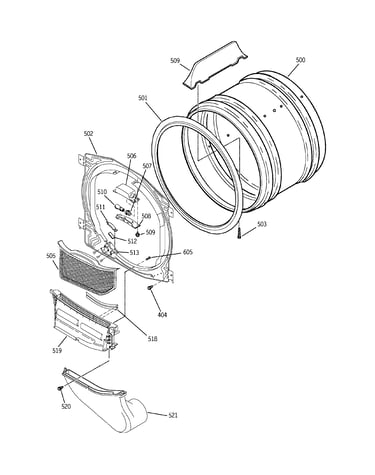

Front bulkhead, air duct & drum diagram

Drum

Part #WE21X10008

The manufacturer no longer makes this part, and there's no substitute part

Duct, Air-lo WE14X10037
#521

Front bulkhead, air duct & drum diagram

Duct, air-lo

Part #WE14X10037

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8t-32 WE02X10044
#719

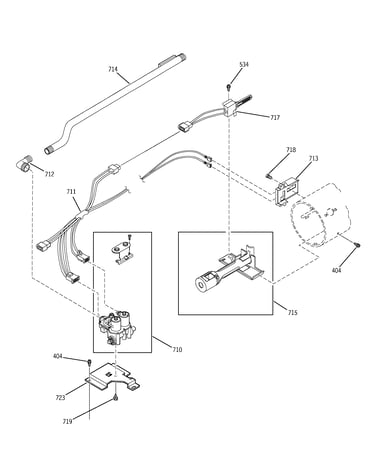

Gas valve, igniter & gas conversion diagram

Screw, 8t-32

Part #WE02X10044

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8b-18 WE02X10043
#718

Gas valve, igniter & gas conversion diagram

Screw, 8b-18

Part #WE02X10043

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Mounting-gas WE01X10121
#723

Gas valve, igniter & gas conversion diagram

Bracket, mounting-gas

Part #WE01X10121

The manufacturer no longer makes this part, and there's no substitute part

Timer, 5 Cyc WE04X10073
#100

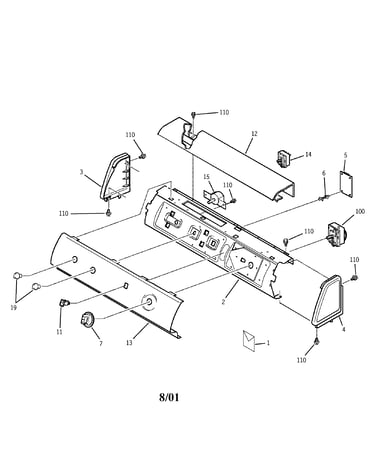

Control panel diagram

Timer, 5 cyc

Part #WE04X10073

The manufacturer no longer makes this part, and there's no substitute part

Screw, 10bt- WE02X10041
#503

Front bulkhead, air duct & drum diagram

Screw, 10bt-

Part #WE02X10041

The manufacturer no longer makes this part, and there's no substitute part

Lead-in Pipe WE01X10120
#714

Gas valve, igniter & gas conversion diagram

Lead-in pipe

Part #WE01X10120

The manufacturer no longer makes this part, and there's no substitute part

Rear Bulkhead WE14X10038
#525

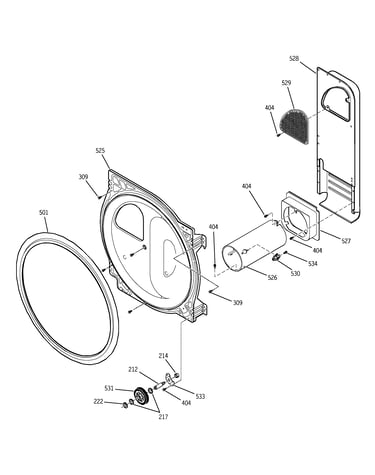

Rear bulkhead, rollers & air duct a diagram

Rear bulkhead

Part #WE14X10038

The manufacturer no longer makes this part, and there's no substitute part

Signal Switch WE04X10071
#14

Control panel diagram

Signal switch

Part #WE04X10071

The manufacturer no longer makes this part, and there's no substitute part
