Model # 540.000 Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana 540000 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

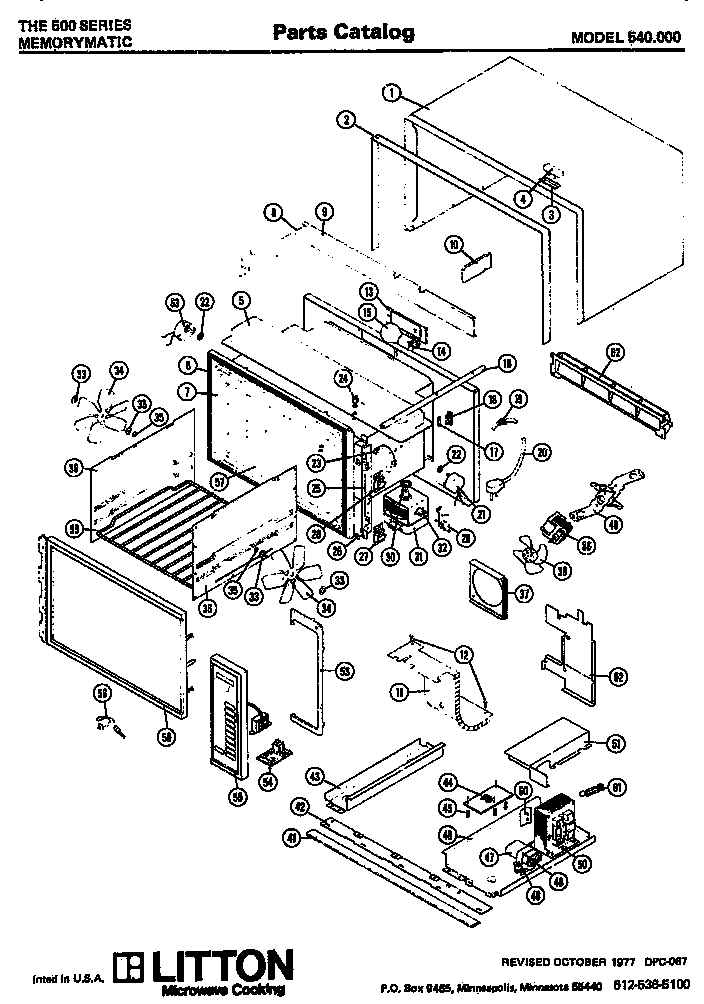

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
H. V. Lead #32 M5D188
#63F

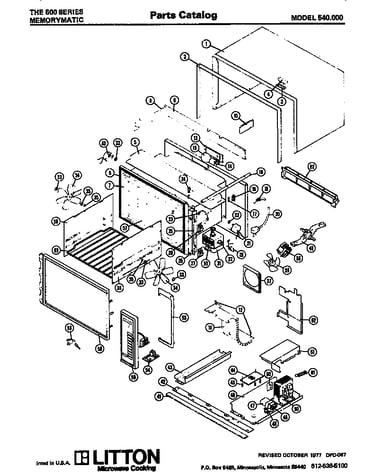

(540.000) diagram

H. v. lead #32

Part #M5D188

The manufacturer no longer makes this part, and there's no substitute part

Ground Lead M5D120
#23

(540.000) diagram

Ground lead

Part #M5D120

The manufacturer no longer makes this part, and there's no substitute part

Clip, Stirrer Blade Mtg M1D78
#35

(540.000) diagram

Clip, stirrer blade mtg

Part #M1D78

The manufacturer no longer makes this part, and there's no substitute part

Blade, Blower Motor M35D16
#38

(540.000) diagram

Blade, blower motor

Part #M35D16

The manufacturer no longer makes this part, and there's no substitute part

H. V. Barrier M2D329
#60

(540.000) diagram

H. v. barrier

Part #M2D329

The manufacturer no longer makes this part, and there's no substitute part

Screw, Bracket Mounting M1D665
#25B

(540.000) diagram

Screw, bracket mounting

Part #M1D665

The manufacturer no longer makes this part, and there's no substitute part

Outer Case (includes Ref. No. 2) M80D55
#1A

(540.000) diagram

Outer case (includes ref. no. 2)

Part #M80D55

The manufacturer no longer makes this part, and there's no substitute part

Access Cover M7D309
#13A

(540.000) diagram

Access cover

Part #M7D309

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief Bushing M1D600
#19

(540.000) diagram

Strain relief bushing

Part #M1D600

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Blade M35D18
#34

(540.000) diagram

Stirrer blade

Part #M35D18

The manufacturer no longer makes this part, and there's no substitute part
