Model # 453812000 Official Kenmore 20" 2-speed fan

Here are the diagrams and repair parts for Official Kenmore 453812000 20" 2-speed fan, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Foot 2011804
#15

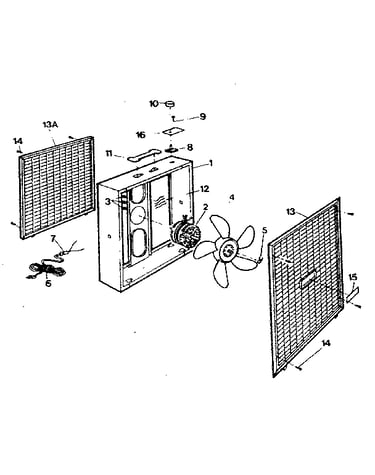

Replacement parts diagram

Foot

Part #2011804

The manufacturer no longer makes this part, and there's no substitute part

Strn Relief 2091401
#7

Replacement parts diagram

Strn relief

Part #2091401

The manufacturer no longer makes this part, and there's no substitute part

Rear Grille 2011115
#13A

Replacement parts diagram

Rear grille

Part #2011115

The manufacturer no longer makes this part, and there's no substitute part

Front Grille 2011105
#13

Replacement parts diagram

Front grille

Part #2011105

The manufacturer no longer makes this part, and there's no substitute part

Power Supply 2051001
#6

Replacement parts diagram

Power supply

Part #2051001

The manufacturer no longer makes this part, and there's no substitute part

2 Spd Switch 2057052
#8

Replacement parts diagram

2 spd switch

Part #2057052

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 7092211
#3

Replacement parts diagram

Hex nut

Part #7092211

The manufacturer no longer makes this part, and there's no substitute part

2 Spd Motor 2031202
#2

Replacement parts diagram

2 spd motor

Part #2031202

The manufacturer no longer makes this part, and there's no substitute part

Switch Screw 2091113
#9

Replacement parts diagram

Switch screw

Part #2091113

The manufacturer no longer makes this part, and there's no substitute part

Knob 2011715
#10

Replacement parts diagram

Knob

Part #2011715

The manufacturer no longer makes this part, and there's no substitute part
