Craftsman
Reciprocating Saw

Model # 315171600 Official Craftsman 1/2" stroke variable-speed sabre saw

Here are the diagrams and repair parts for Official Craftsman 315171600 1/2" stroke variable-speed sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Gear W/pins 999810-001
#7

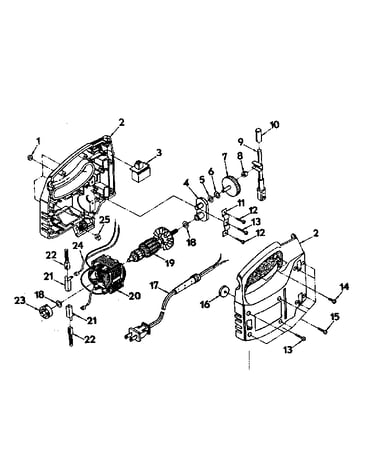

Section "a" diagram

Gear w/pins

Part #999810-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 930836-801
#2

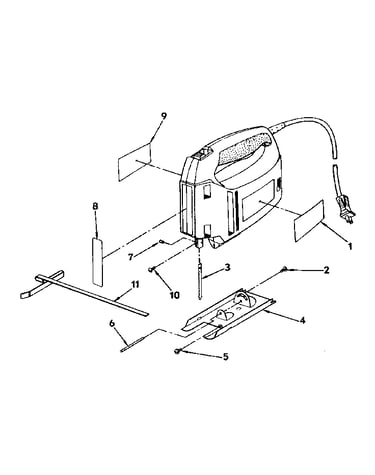

Base assembly diagram

Screw

Part #930836-801

The manufacturer no longer makes this part, and there's no substitute part

Field 999820-001
#20

Section "a" diagram

Field

Part #999820-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 990705-009
#14

Section "a" diagram

Screw

Part #990705-009

The manufacturer no longer makes this part, and there's no substitute part

Brg Clamp 999817-001
#11

Section "a" diagram

Brg clamp

Part #999817-001

The manufacturer no longer makes this part, and there's no substitute part

Hsg. Assy 999819-000
#2

Section "a" diagram

Hsg. assy

Part #999819-000

The manufacturer no longer makes this part, and there's no substitute part

Lead/term 999813-003
#24

Section "a" diagram

Lead/term

Part #999813-003

The manufacturer no longer makes this part, and there's no substitute part

Armature 990302-002
#19

Section "a" diagram

Armature

Part #990302-002

The manufacturer no longer makes this part, and there's no substitute part

Base 990154-007
#4

Base assembly diagram

Base

Part #990154-007

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 990839-001
#21

Section "a" diagram

Brush tube

Part #990839-001

The manufacturer no longer makes this part, and there's no substitute part
