Model # TBE14DATBRWH Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE TBE14DATBRWH top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

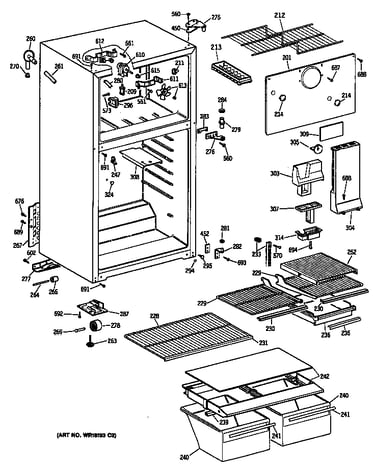

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Dryer Assembly WR86X86
#740

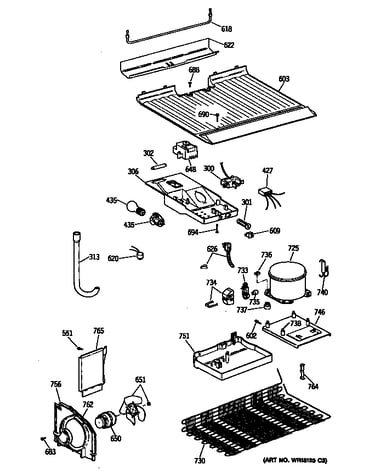

Compressor diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435A

Compressor diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Freezer Door Gasket (white) WR24X524
#23

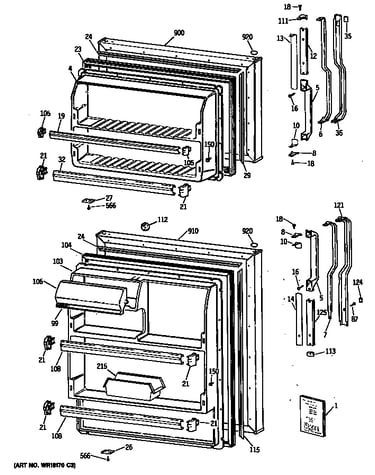

Doors diagram

Refrigerator freezer door gasket (white)

Part #WR24X524

Replaced by #WR24X10228

?
Manufacturer substitution
This part replaces WR24X524. Substitute parts can look different from the original.
$68.92 |
8% OFF Phone Price : $74.92
In Stock
Refrigerator Gasket WR24X518
#104

Doors diagram

Refrigerator gasket

Part #WR24X518

Replaced by #WR24X10231

?
Manufacturer substitution
This part replaces WR24X518. Substitute parts can look different from the original.
$64.22 |
9% OFF Phone Price : $70.22
In Stock
Terminal Socket WR2X7270
#435B

Compressor diagram

Terminal socket

Part #WR2X7270

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR2X7270. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Light Switch WR23X193
#609

Compressor diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Freezer Door Shelf Rail (replaces Wr02x8345, Wr2x7617) WR2X8345
#21

Doors diagram

Refrigerator freezer door shelf rail (replaces wr02x8345, wr2x7617)

Part #WR2X8345

This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Refrigerator Relay WR7X214
#733

Compressor diagram

Refrigerator relay

Part #WR7X214

Replaced by #WR07X26748

?
Manufacturer substitution
This part replaces WR7X214. Substitute parts can look different from the original.
This item is not returnable
$13.37 |
13% OFF Phone Price : $15.37
In Stock
Power Cord WR23X108
#626B

Compressor diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Door Hole Plug (white) WR2X8693
#112

Doors diagram

Refrigerator door hole plug (white)

Part #WR2X8693

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR2X8693. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
