Frigidaire
Electric Wall Oven

Model # FFEW3026TDE Official Frigidaire electric wall oven

Here are the diagrams and repair parts for Official Frigidaire FFEW3026TDE electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

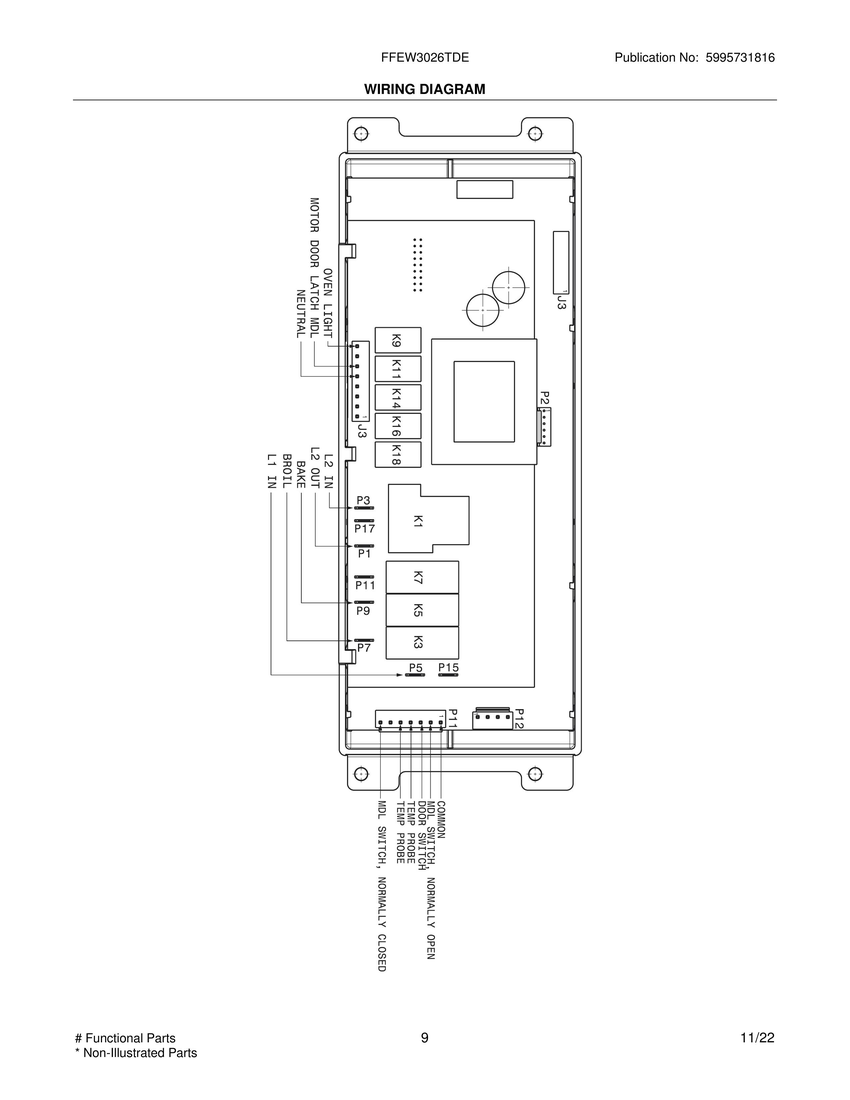

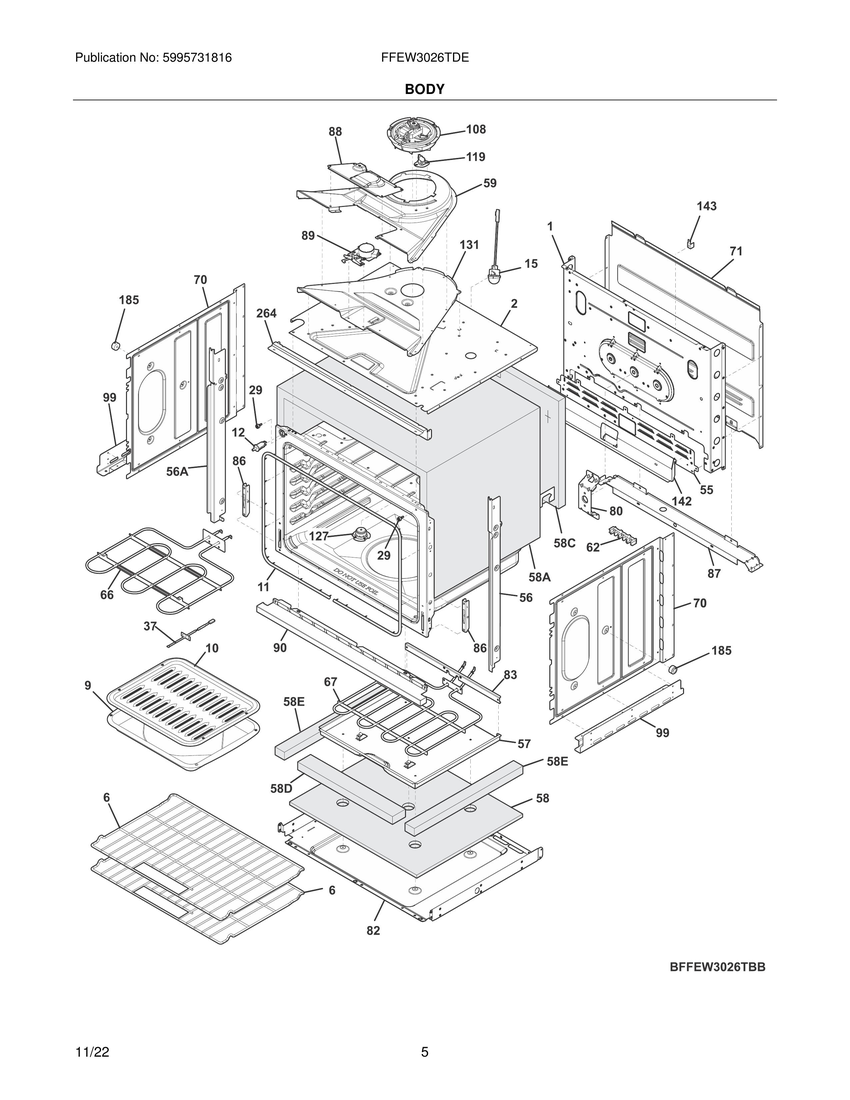

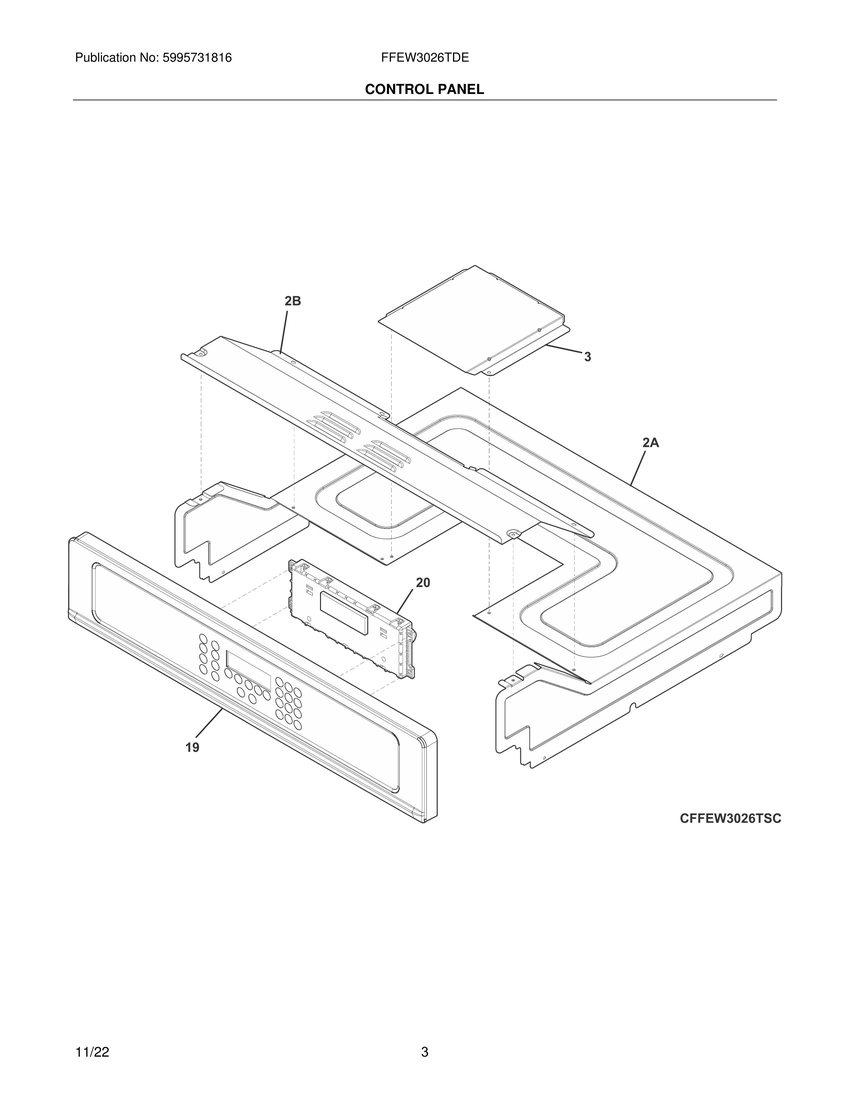

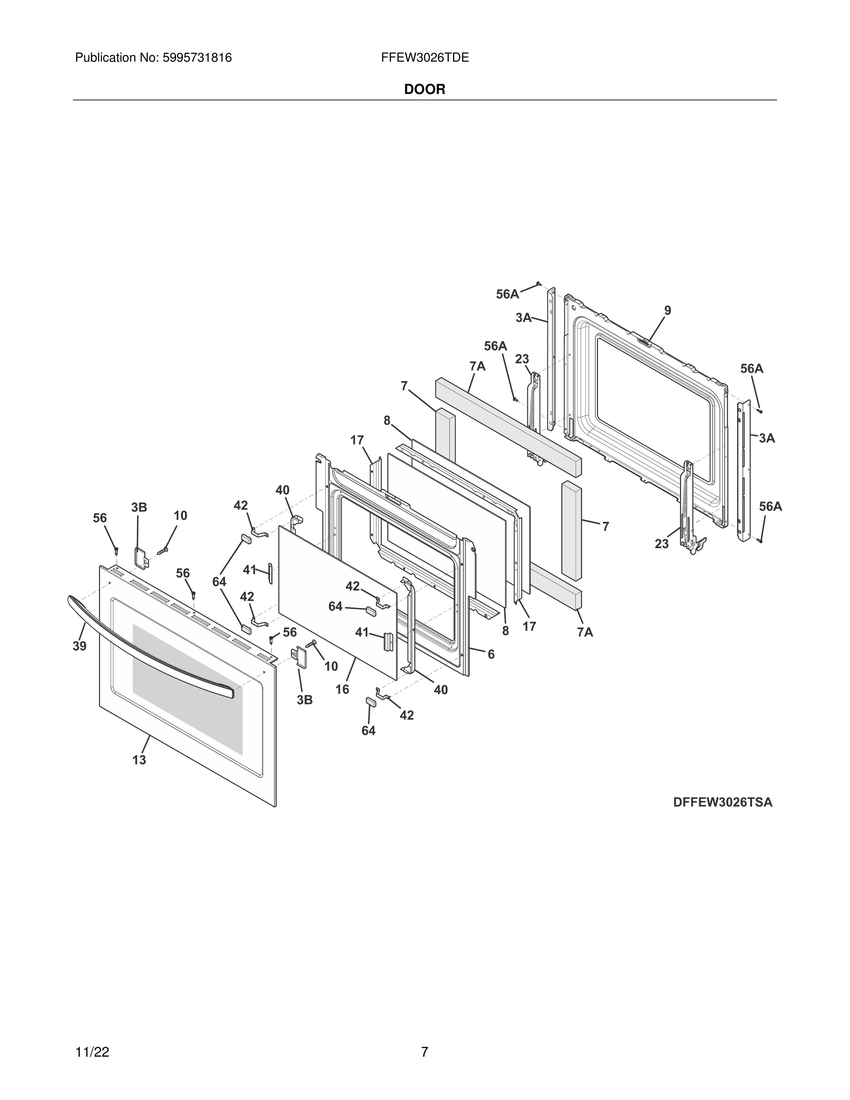

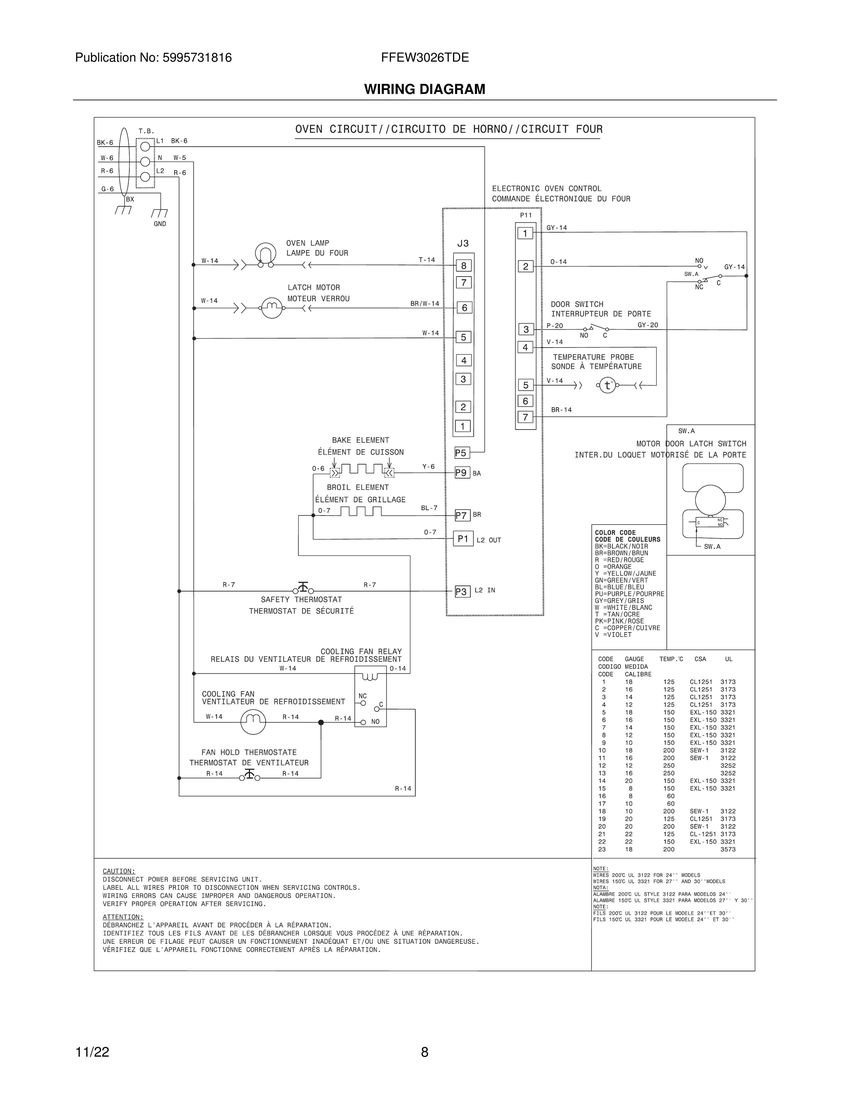

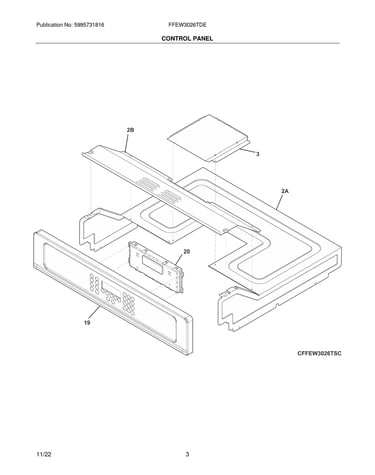

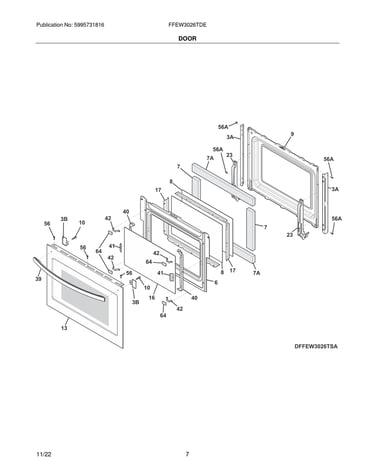

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Door diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Terminal Block 316056000
#62

Door diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Door diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$33.62 |
15% OFF Phone Price : $39.62
In Stock
Range Oven Door Outer Glass 316446400
#16

Body diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$51.96 |
10% OFF Phone Price : $57.96
In Stock
Range Control Panel Cooling Fan 318575612
#108

Door diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range Door Light Switch 318394802
#12

Door diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Ikea Range Oven Light Bulb (replaces 139009000) 5304528790
#15

Door diagram

Ikea range oven light bulb (replaces 139009000)

Part #5304528790

$23.49 |
20% OFF Phone Price : $29.49
In Stock
Ikea Wall Oven Control Board 5304514065
#20

Control panel diagram

Ikea wall oven control board

Part #5304514065

$243.63 |
5% OFF Phone Price : $255.63
In Stock
Ikea Wall Oven Door Lock Assembly (replaces 139021303) 5304528835
#89

Door diagram

Ikea wall oven door lock assembly (replaces 139021303)

Part #5304528835

$54.44
In Stock
Range Oven Vent And Smoke Eliminator 139042600
#127

Door diagram

Range oven vent and smoke eliminator

Part #139042600

$35.19 |
15% OFF Phone Price : $41.19
In Stock
