Poulan
Gas Chainsaw

Model # 220 TYPE 4 (RECON) Official Poulan chainsaw

Here are the diagrams and repair parts for Official Poulan 220-TYPE-4-RECON chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#5

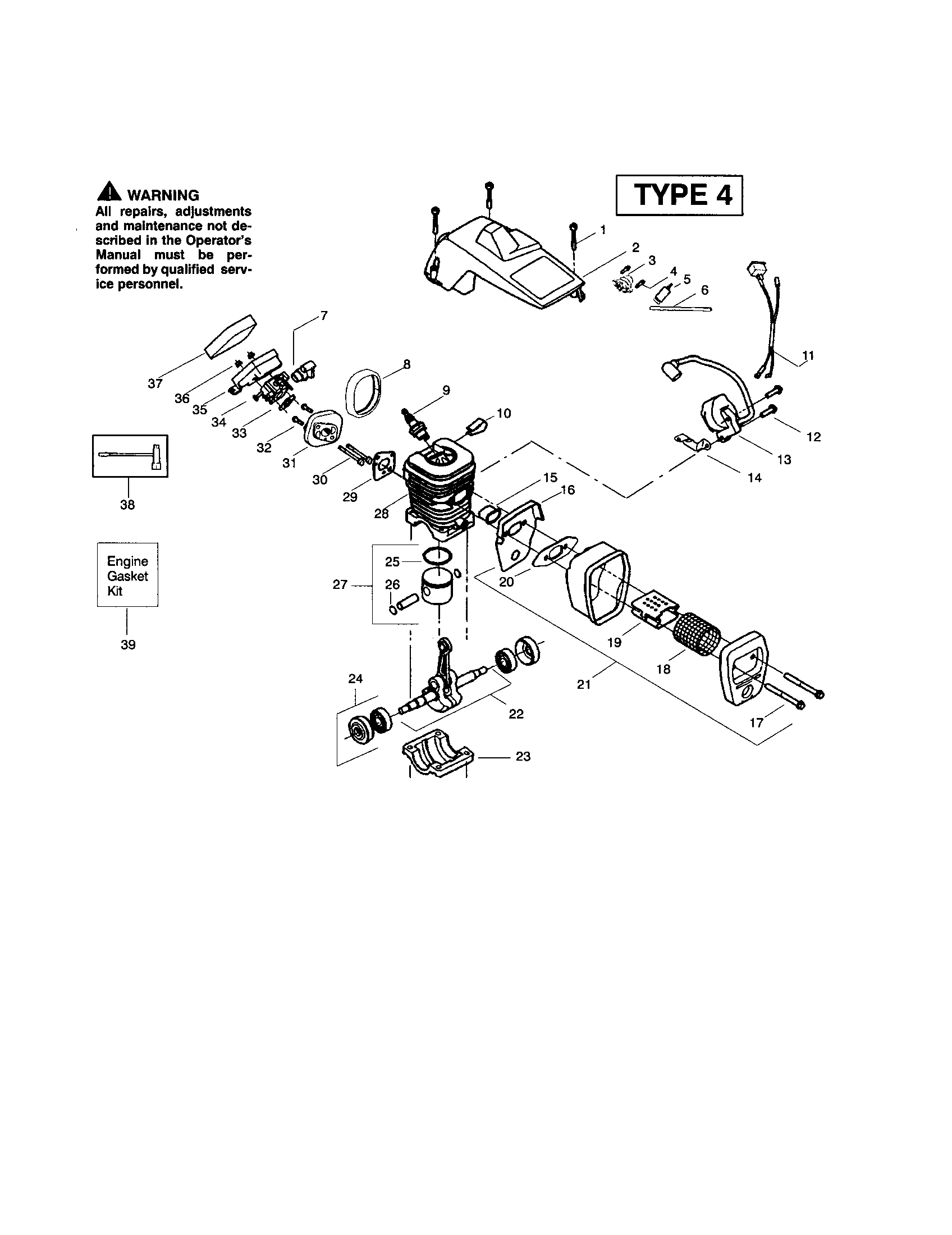

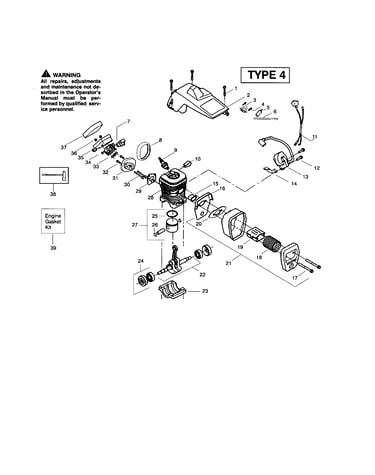

Cylinder/crankcase/crankshaft diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#6

Cylinder/crankcase/crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#33

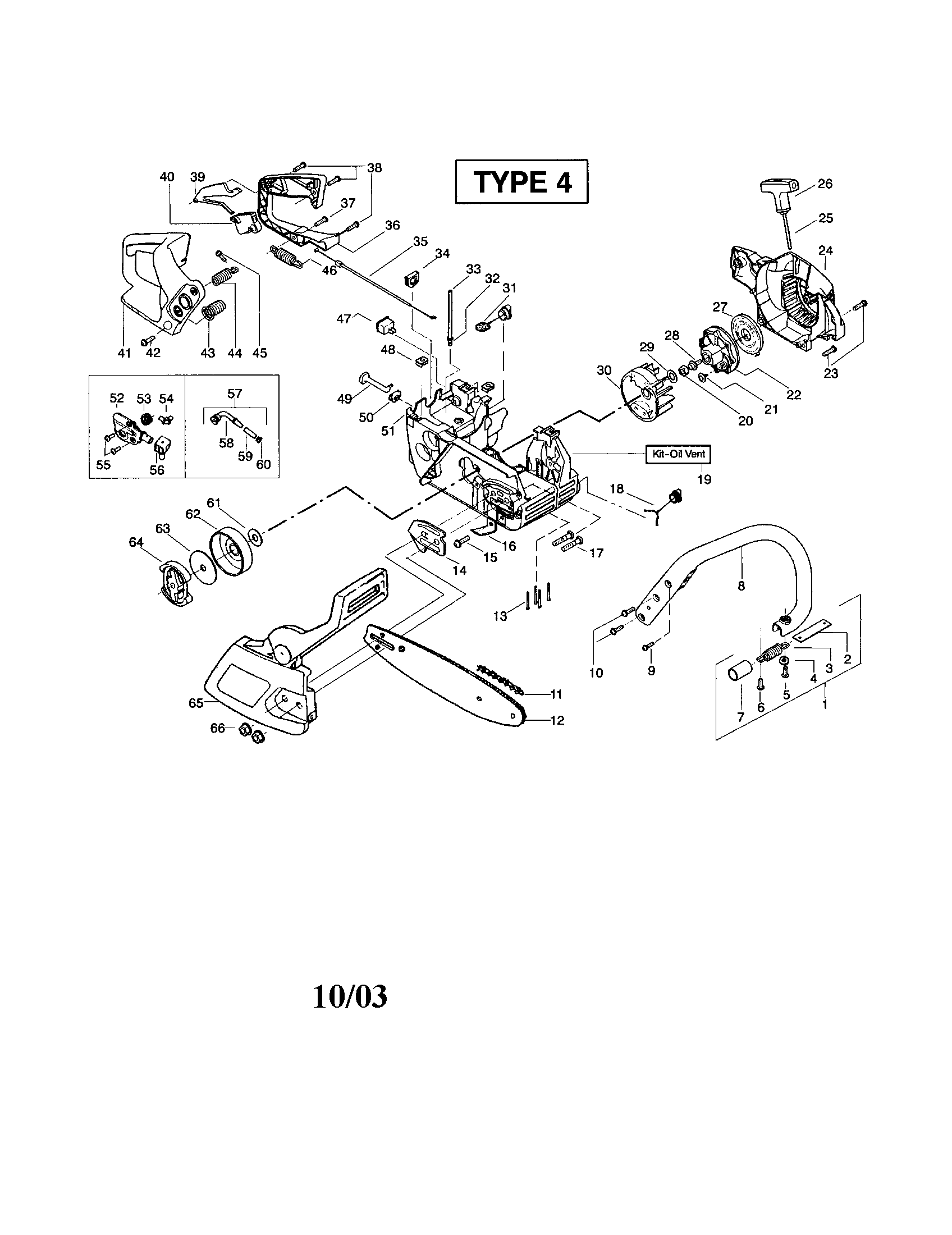

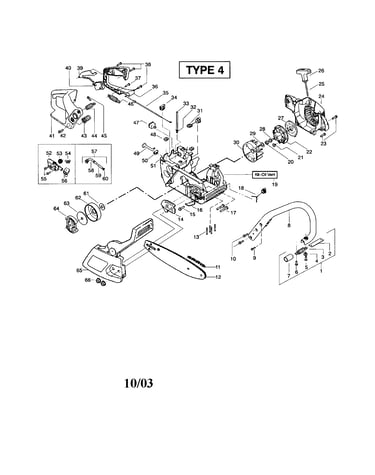

Chassis/bar/chain/flywheel diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Chain 952051211
#11

Chassis/bar/chain/flywheel diagram

Chain

Part #952051211

Replaced by #91PX056G

?
Manufacturer substitution
This part replaces 952051211. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.40 |
16% OFF Phone Price : $36.40
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#32

Chassis/bar/chain/flywheel diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Clutch Drum (replaces 530-047061, 530-069315) 530047061
#62

Chassis/bar/chain/flywheel diagram

Chainsaw clutch drum (replaces 530-047061, 530-069315)

Part #530047061

BEST SELLER
This item is not returnable
$21.67 |
22% OFF Phone Price : $27.67
In Stock
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#25

Chassis/bar/chain/flywheel diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Carburetor Adapter 530049700
#31

Cylinder/crankcase/crankshaft diagram

Chainsaw carburetor adapter

Part #530049700

This item is not returnable
$13.00 |
13% OFF Phone Price : $15.00
In Stock
Lawn & Garden Equipment Nut (replaces 5300159-17, 530-015917) 530015917
#66

Chassis/bar/chain/flywheel diagram

Lawn & garden equipment nut (replaces 5300159-17, 530-015917)

Part #530015917

This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Chainsaw Oil Pump (replaces 530053762, 530069957) 530071259
#52

Chassis/bar/chain/flywheel diagram

Chainsaw oil pump (replaces 530053762, 530069957)

Part #530071259

This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
