Model # CJP450 Official Olivetti printer

Here are the diagrams and repair parts for Official Olivetti CJP450 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Reduce Gear 789711H
#8

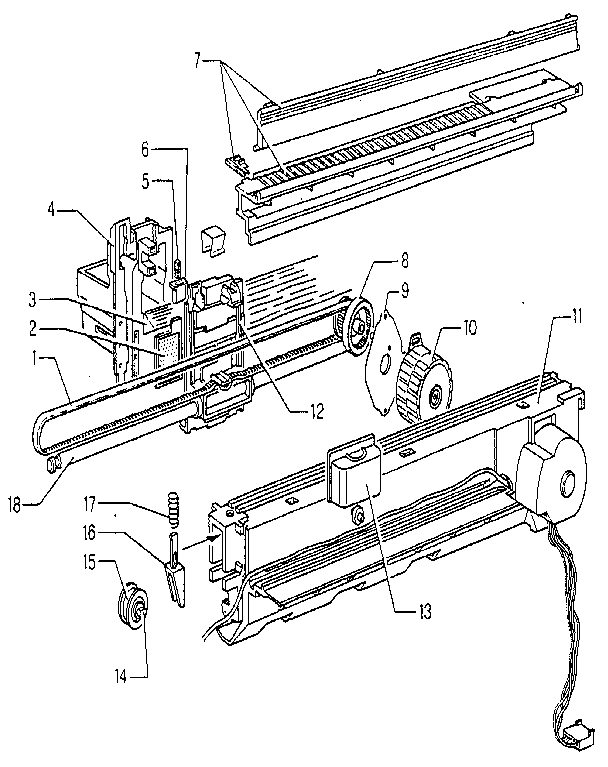

Print and carriage assembly diagram

Reduce gear

Part #789711H

The manufacturer no longer makes this part, and there's no substitute part

Carr Shaft 789723D
#18

Print and carriage assembly diagram

Carr shaft

Part #789723D

The manufacturer no longer makes this part, and there's no substitute part

Pulley 789736A
#15

Print and carriage assembly diagram

Pulley

Part #789736A

The manufacturer no longer makes this part, and there's no substitute part

Bracket Spring 789729K
#18

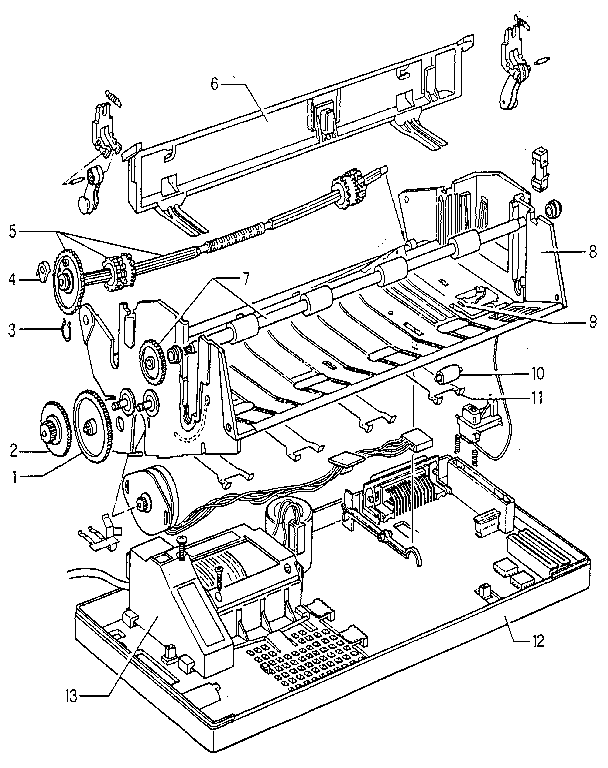

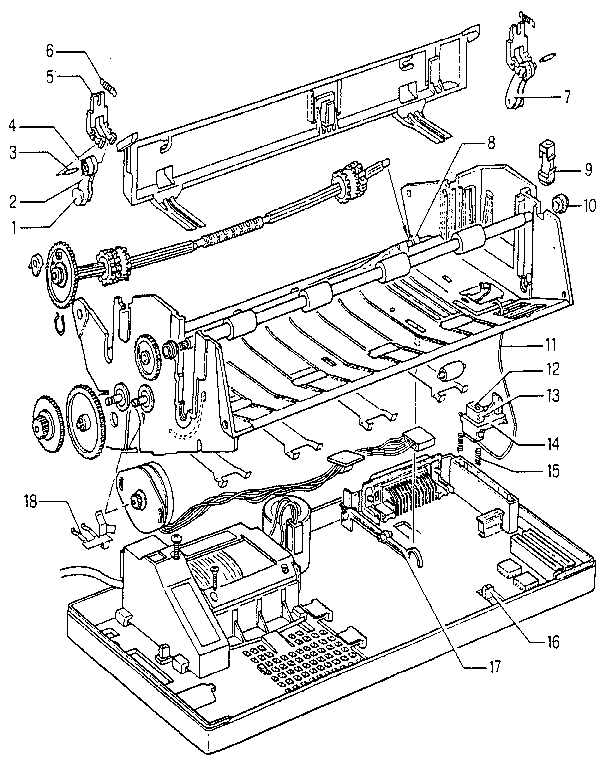

Power supply and paper feed assy diagram

Bracket spring

Part #789729K

The manufacturer no longer makes this part, and there's no substitute part

Lever 789721B
#6

Print and carriage assembly diagram

Lever

Part #789721B

The manufacturer no longer makes this part, and there's no substitute part

Tooth Clutch 789807B
Tooth clutch

Part #789807B

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly 789828F
#2

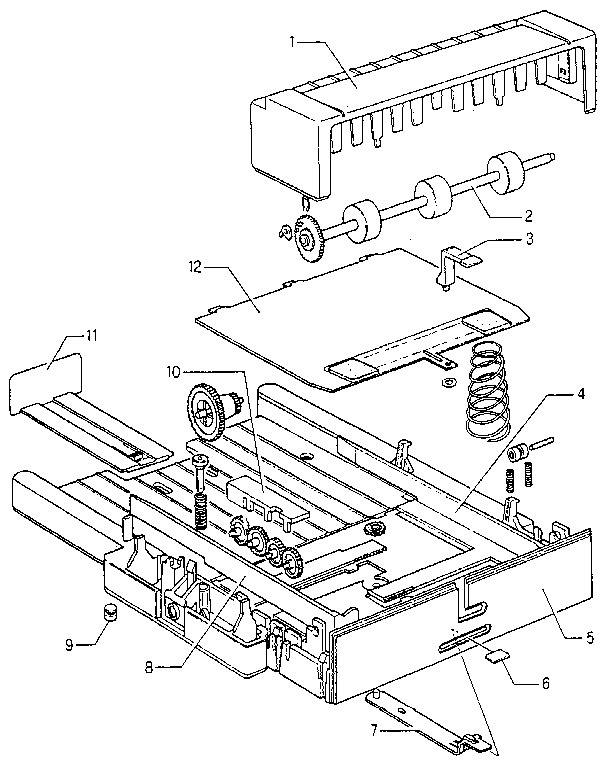

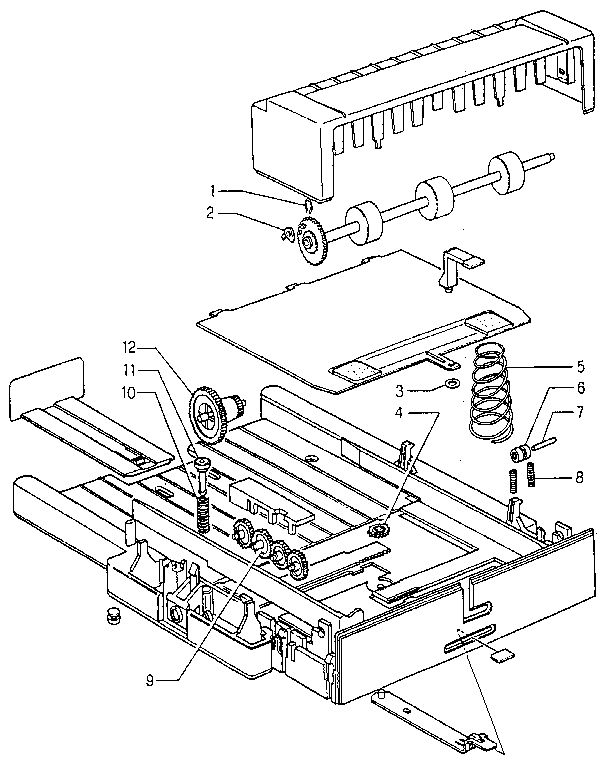

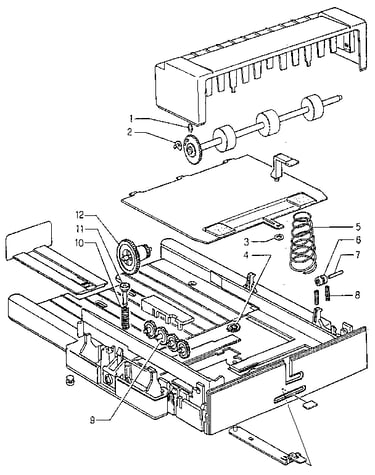

A. s. f. assembly diagram

Shaft assembly

Part #789828F

The manufacturer no longer makes this part, and there's no substitute part

Spring 789762L
#6

Power supply and paper feed assy diagram

Spring

Part #789762L

The manufacturer no longer makes this part, and there's no substitute part

#1 Keytop 1aq703-zy-1 (603.58200 & 603.58210 (charcoal Gray Keytops)) 1aq703-zu-1 (603.58030 (white Keytops)) N/P
#2

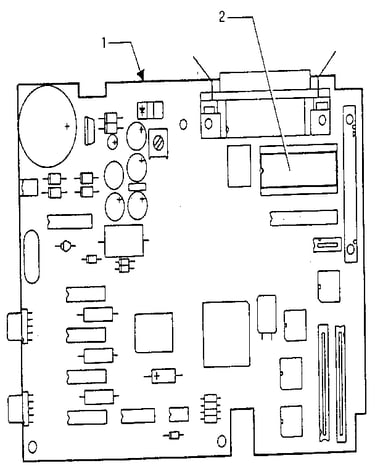

Basic board diagram

#1 keytop 1aq703-zy-1 (603.58200 & 603.58210 (charcoal gray keytops)) 1aq703-zu-1 (603.58030 (white keytops))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Exten Fold 789778U
#2

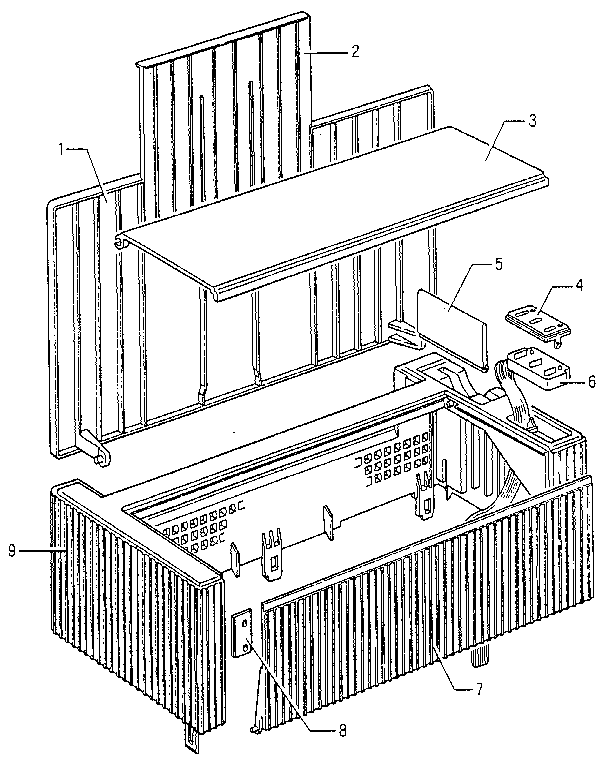

Casing assembly diagram

Exten fold

Part #789778U

The manufacturer no longer makes this part, and there's no substitute part
