Thermador
Electric Cooktop

Model # TMH45P01 Official Thermador cooktop

Here are the diagrams and repair parts for Official Thermador TMH45P01 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Rod 14-29-191-11
#11

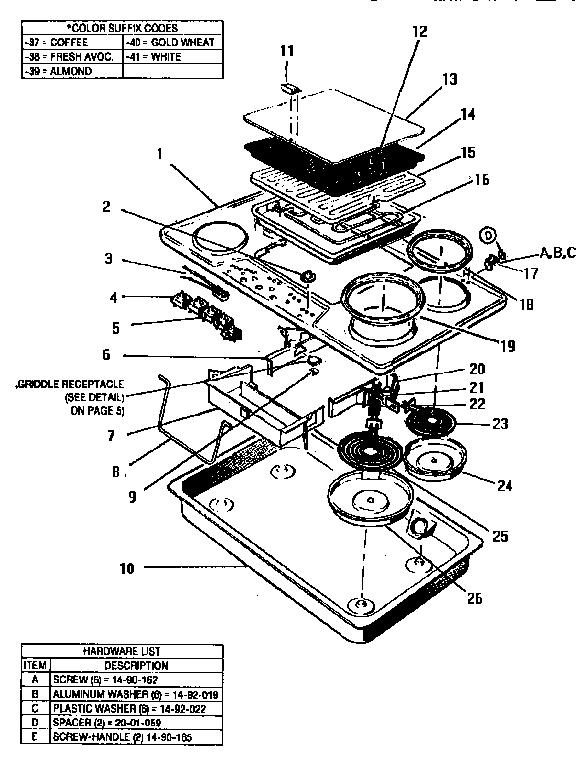

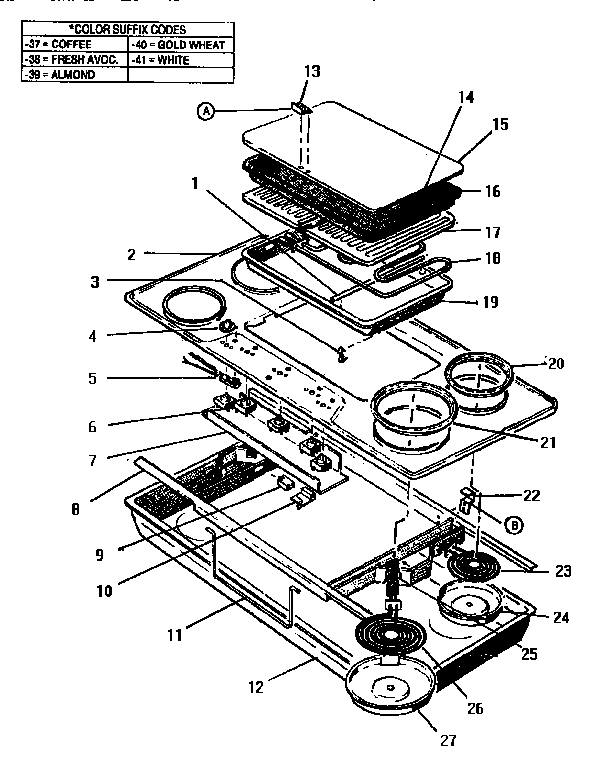

Tmh45p01 (tmh45p01) diagram

Rod

Part #14-29-191-11

$20.49
In Stock
Rod 14-19-477-11
#7

Cooktop diagram

Rod

Part #14-19-477-11

$14.99
In Stock
Main Top 14-41-335
#9A

Cooktop diagram

Main top

Part #14-41-335

$35.99
In Stock
Stand 14-29-767-11
Stand

Part #14-29-767-11

$13.49
In Stock
Terminal 14-29-992
Terminal

Part #14-29-992

The manufacturer no longer makes this part, and there's no substitute part

Element 14-29-661
Element

Part #14-29-661

Replaced by #00484782

?
Manufacturer substitution
This part replaces 14-29-661. Substitute parts can look different from the original.
$105.18
In Stock
Surface Element 14-41-747
#2

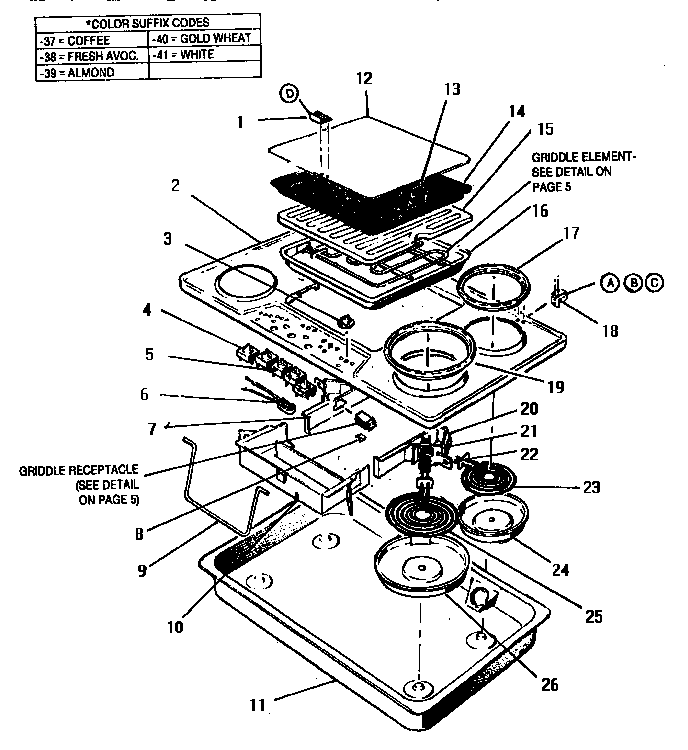

Cv213601 (cv213601) diagram

Surface element

Part #14-41-747

Replaced by #00484791

?
Manufacturer substitution
This part replaces 14-41-747. Substitute parts can look different from the original.
$110.98
In Stock
Element 14-29-662
Element

Part #14-29-662

Replaced by #00484783

?
Manufacturer substitution
This part replaces 14-29-662. Substitute parts can look different from the original.
$110.98
In Stock
Left Channel 14-51-775-03
Left channel

Part #14-51-775-03

The manufacturer no longer makes this part, and there's no substitute part

Inner Channel 14-41-333-03
#8

Cooktop diagram

Inner channel

Part #14-41-333-03

The manufacturer no longer makes this part, and there's no substitute part
