Model # 48GS024040300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GS024040300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

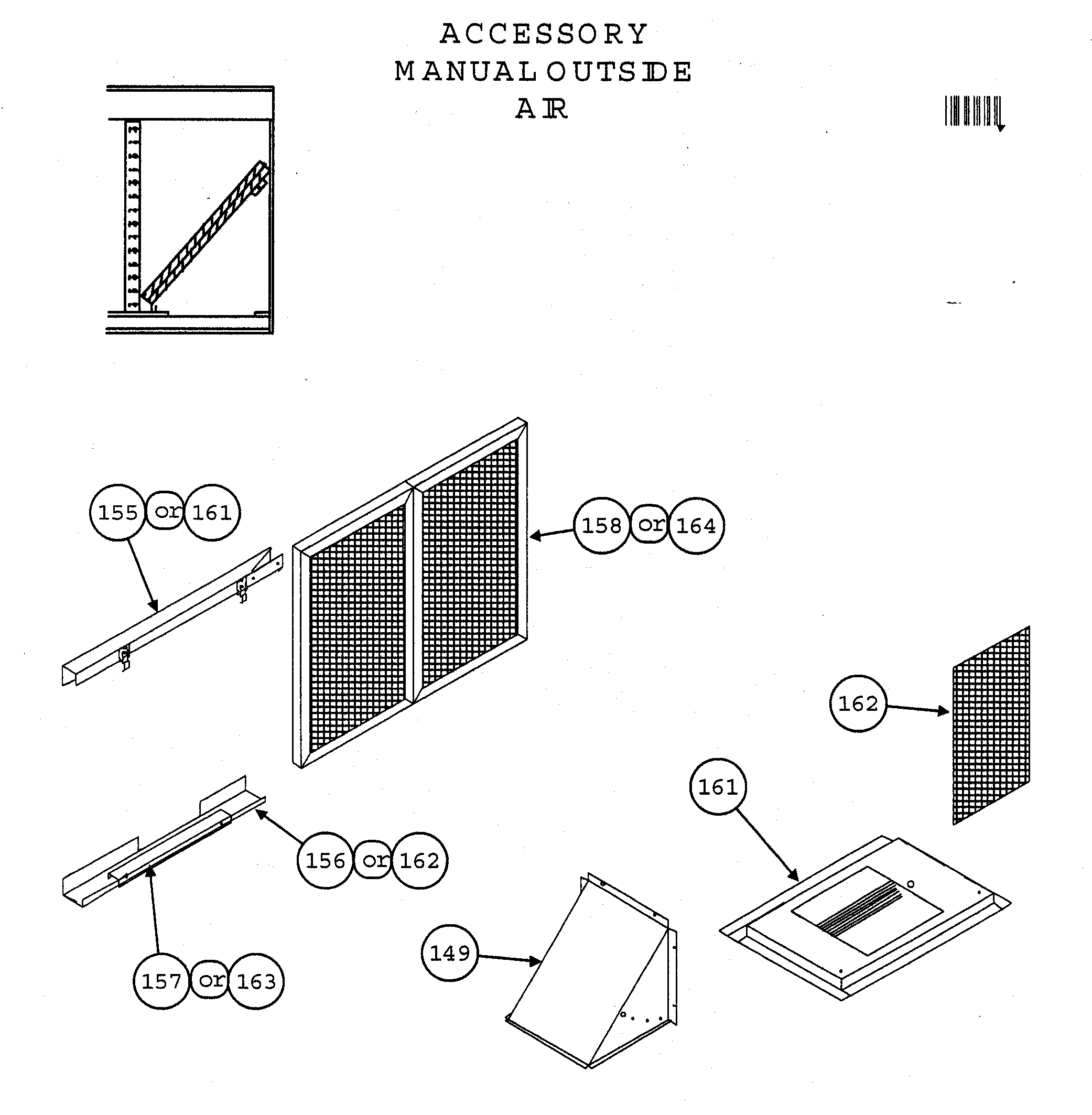

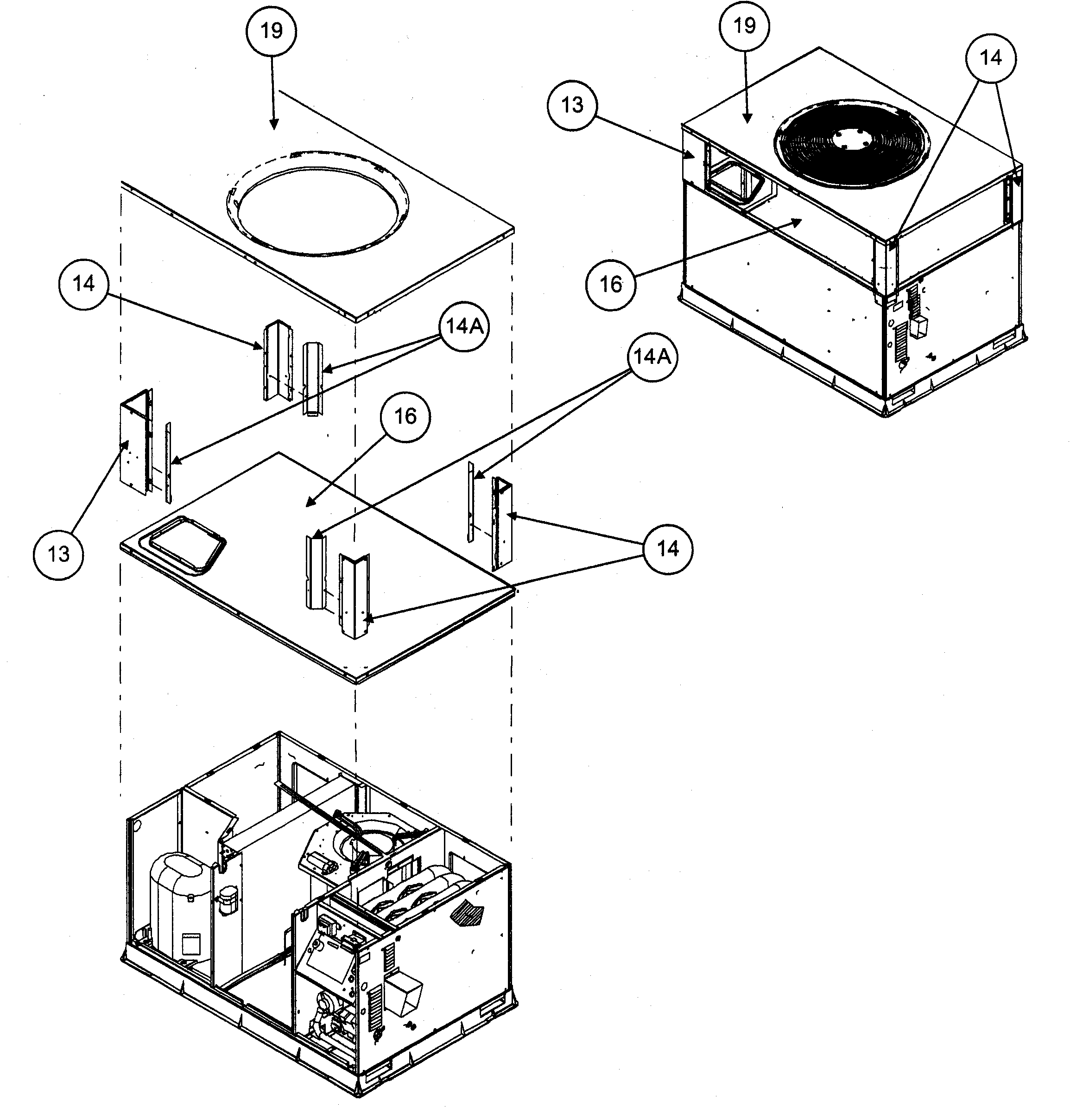

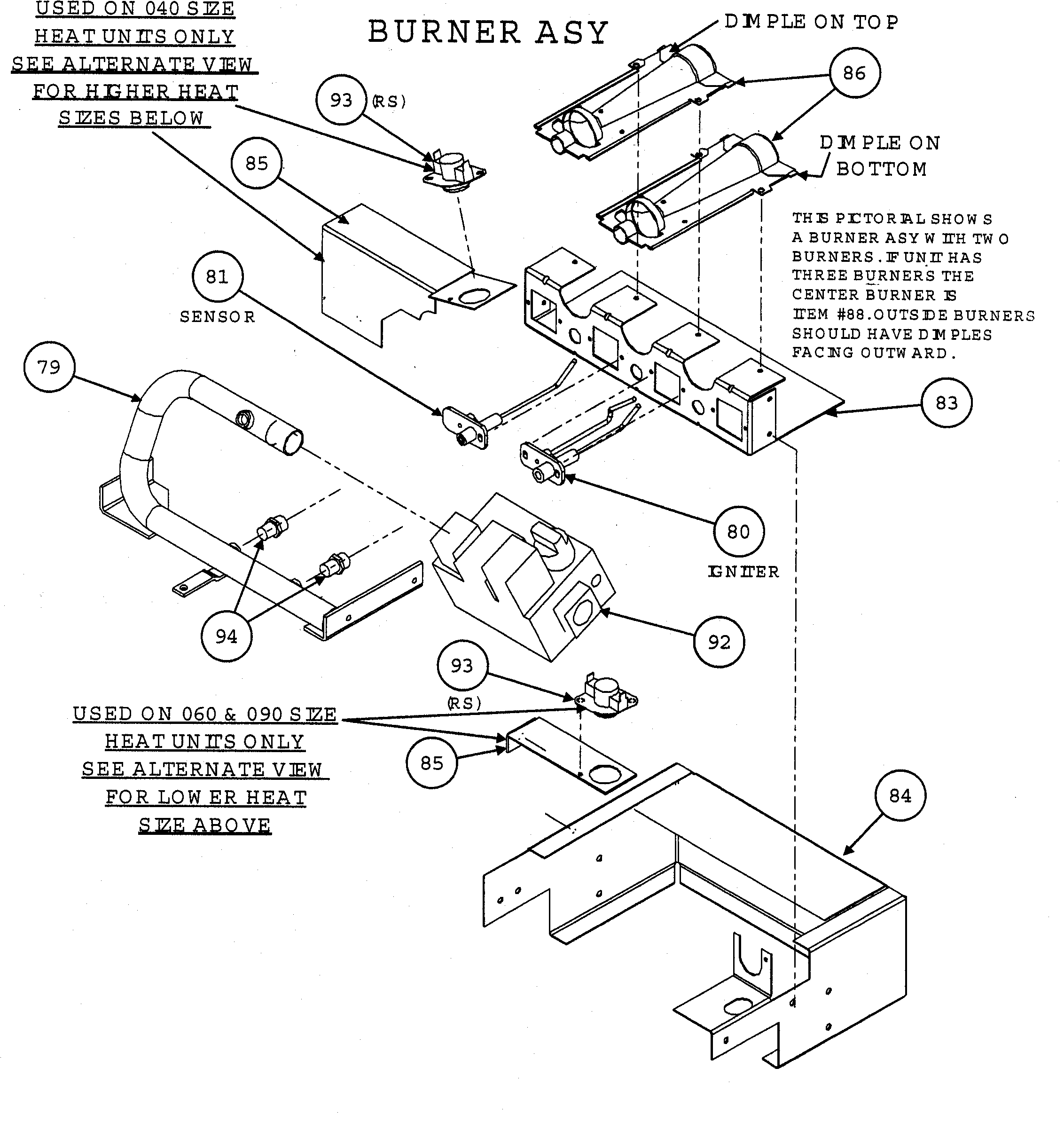

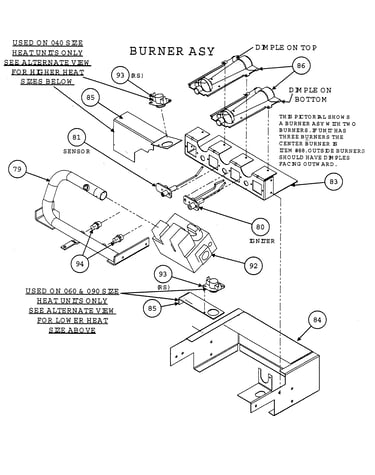

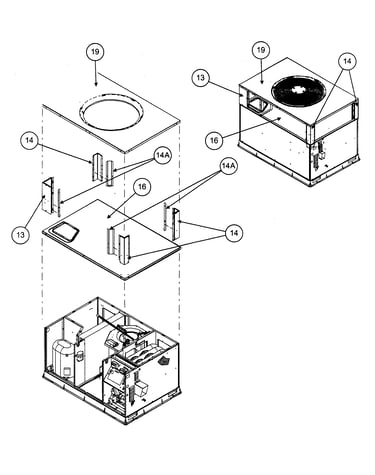

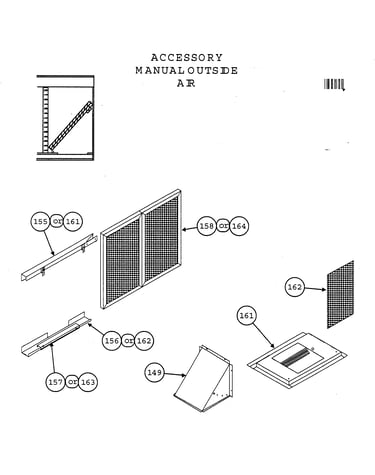

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |

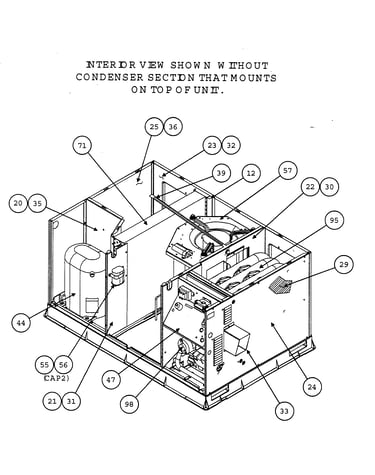

Capactr Dual P291-3553
#55

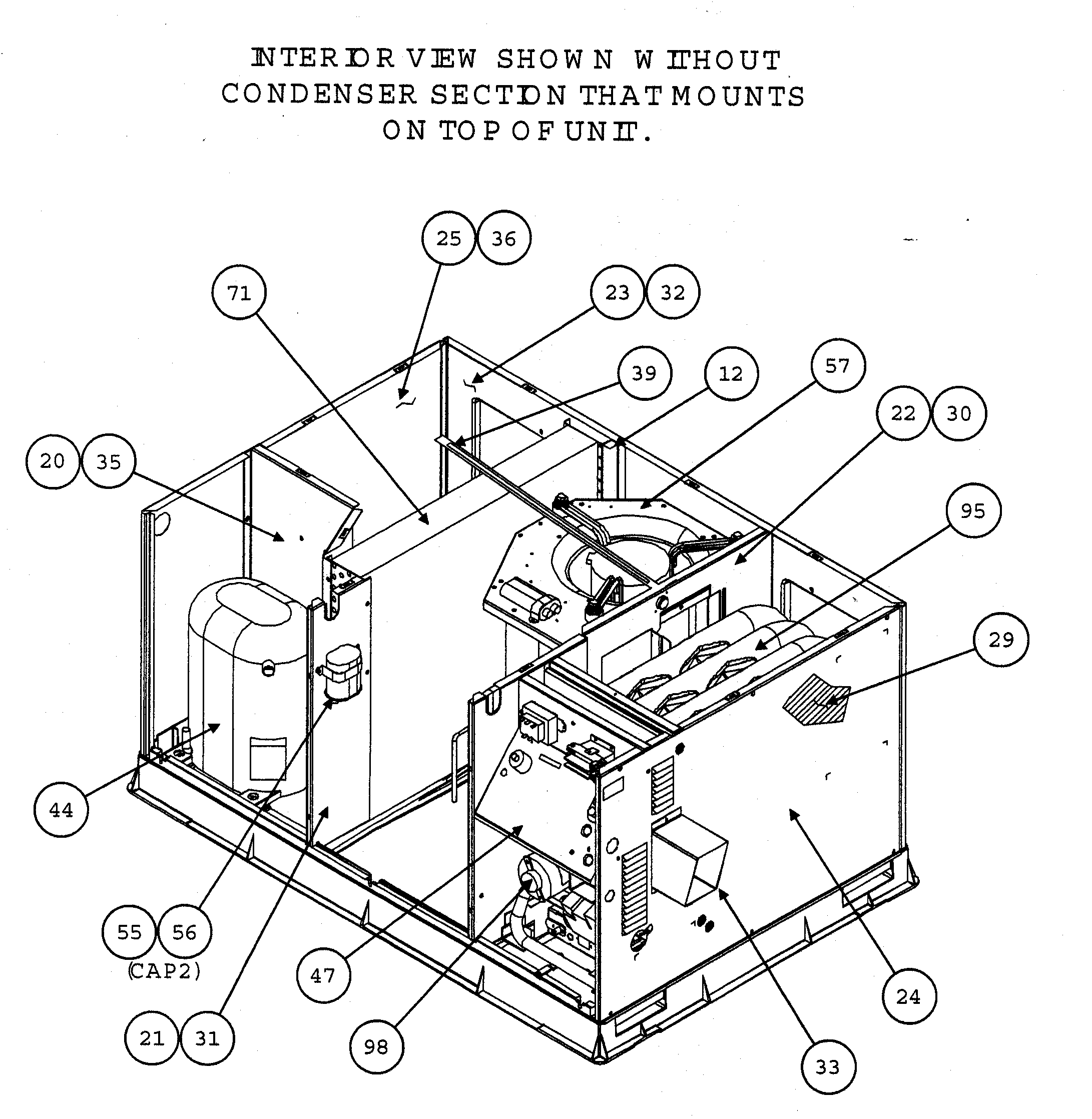

Inside view diagram

Capactr dual

Part #P291-3553

Replaced by #PAKTRCFD355

?
Manufacturer substitution
This part replaces P291-3553. Substitute parts can look different from the original.
BEST SELLER
$14.47 |
12% OFF Phone Price : $16.47
In Stock

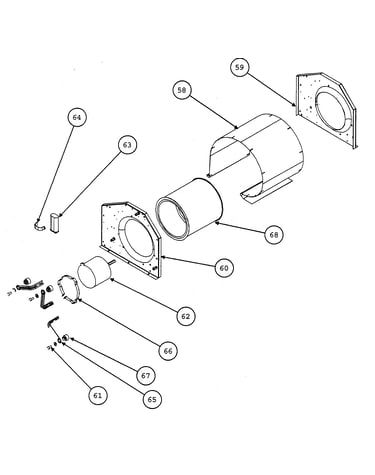

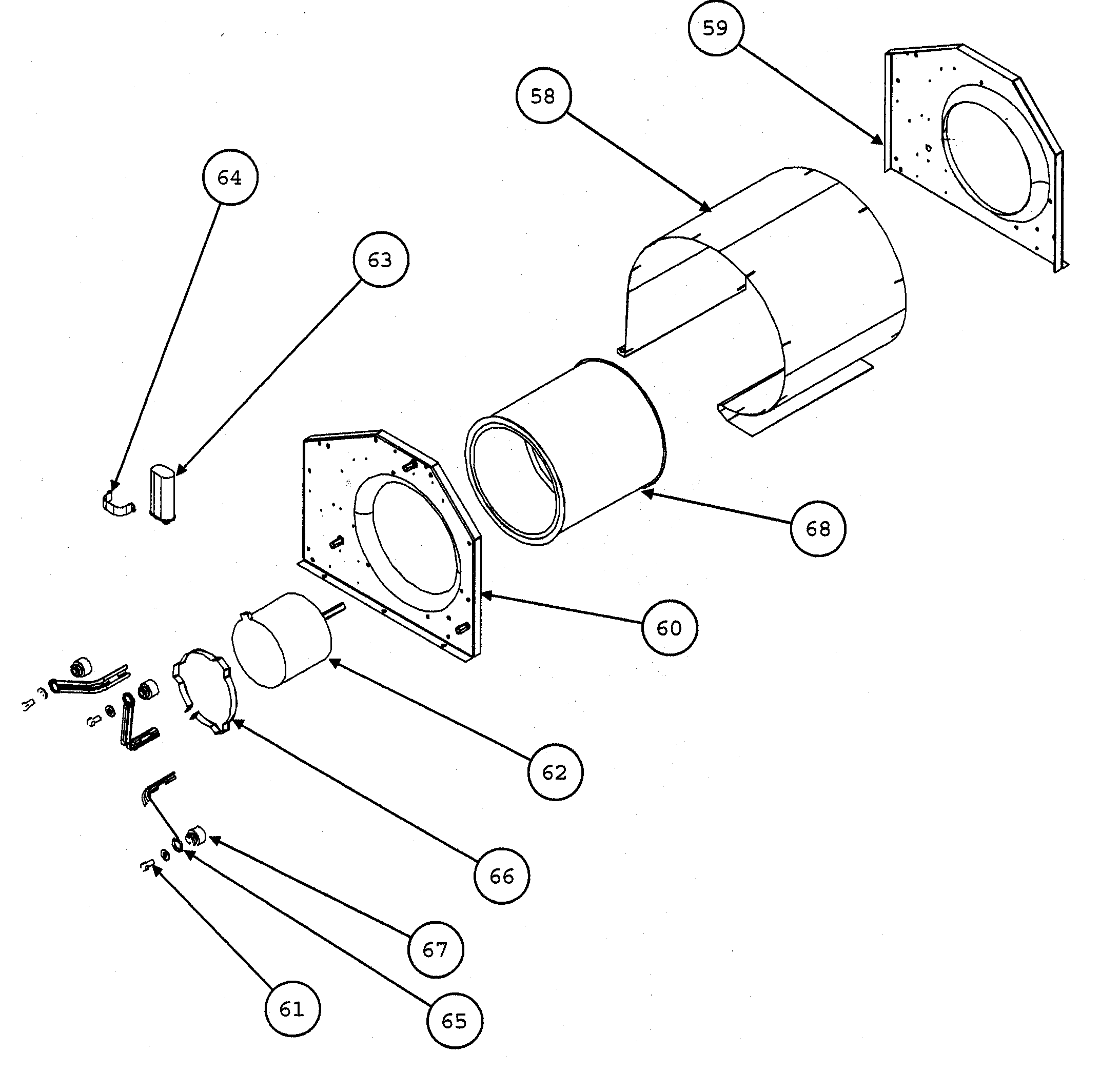

Blower Assembly 48GS400106
Blower assembly

Part #48GS400106

Replaced by #48GS400649

?
Manufacturer substitution
This part replaces 48GS400106. Substitute parts can look different from the original.
$708.46 |
$12.00 OFF Phone Price : $720.46
In Stock
Central Air Conditioner Condenser Fan Motor HC35GE235
Central air conditioner condenser fan motor

Part #HC35GE235

$509.50
In Stock

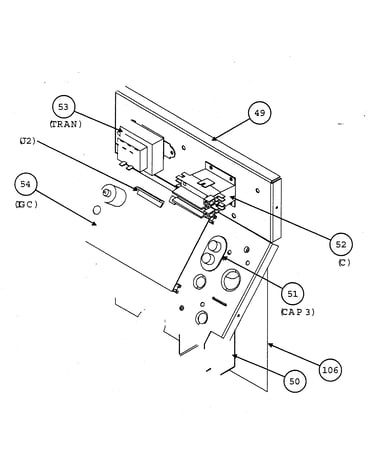

Harness 48GS400469
#48

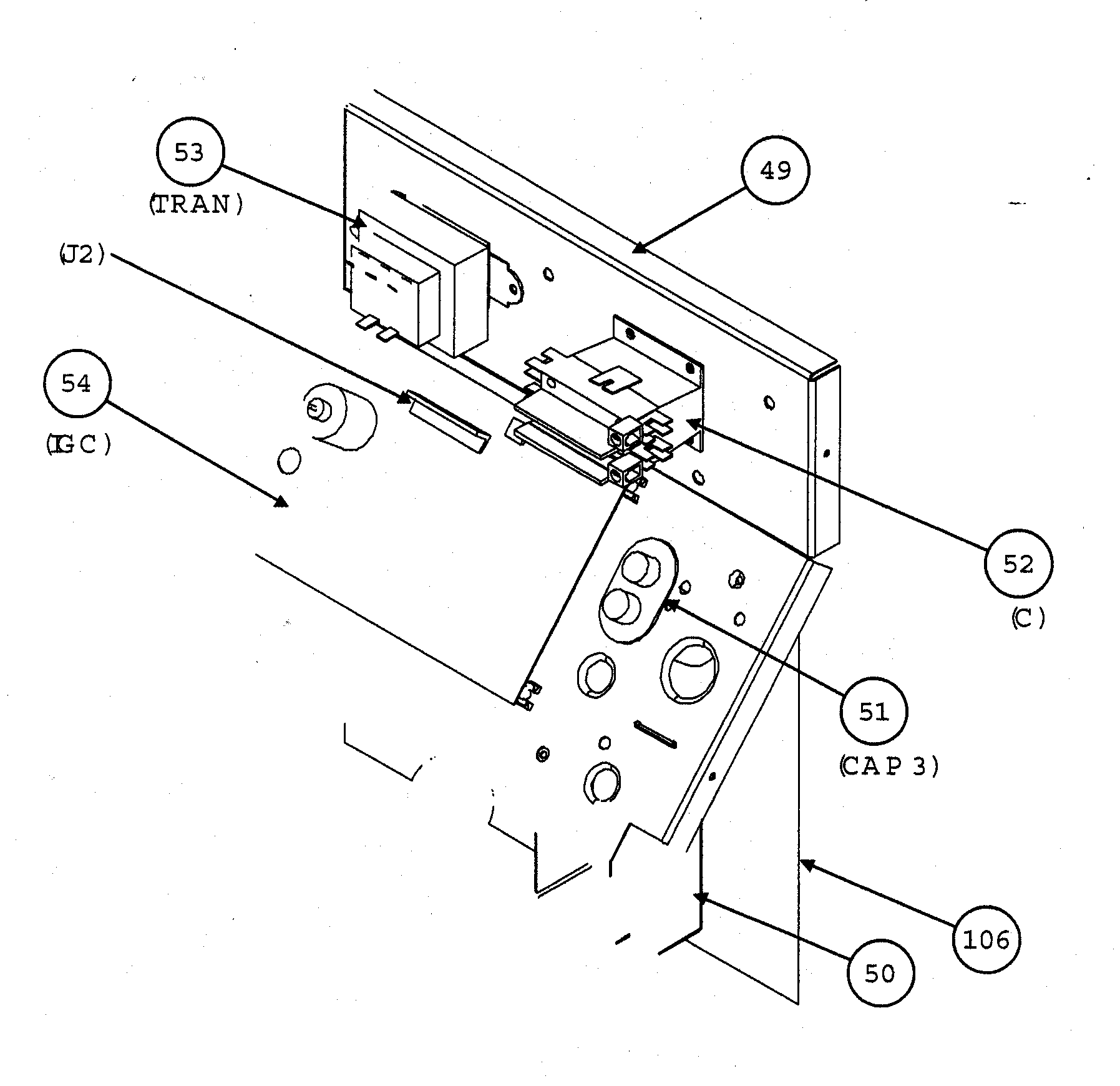

Control box assy diagram

Harness

Part #48GS400469

$524.03
In Stock
Motor M7415A1006
#109

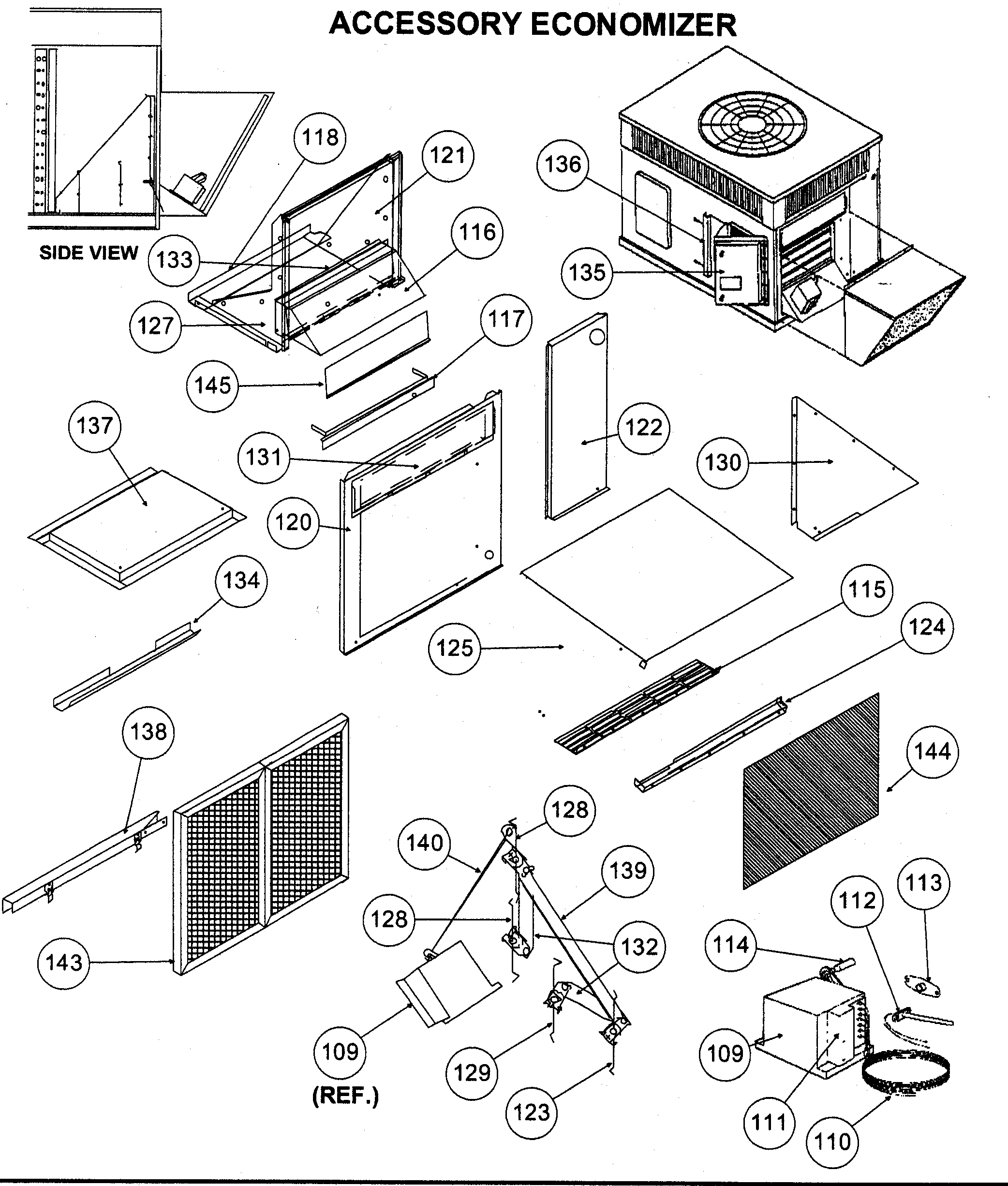

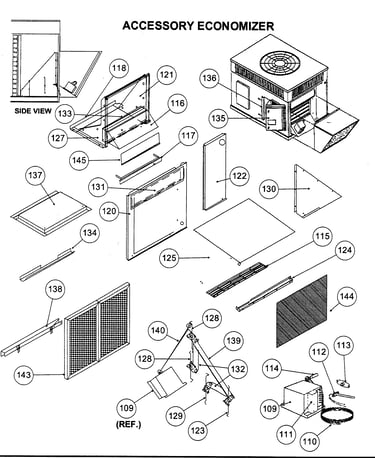

Accessory economizer diagram

Motor

Part #M7415A1006

$701.20
In Stock
Coil Cond 48GS400123
#72

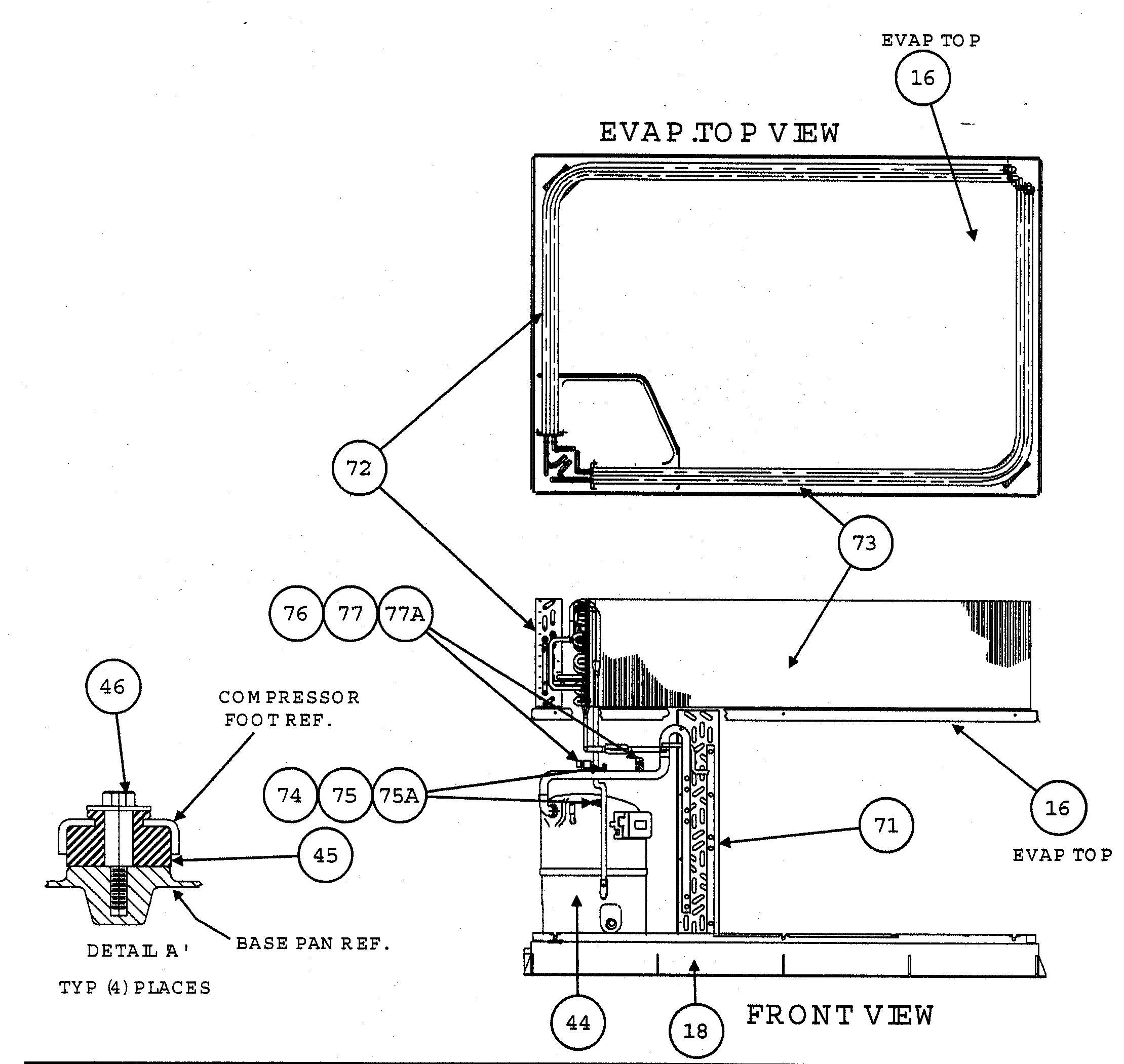

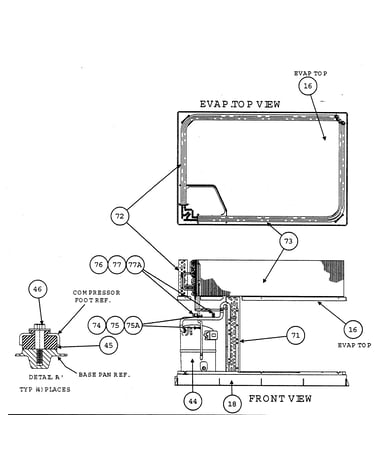

Evap top view diagram

Coil cond

Part #48GS400123

$2375.48
In Stock

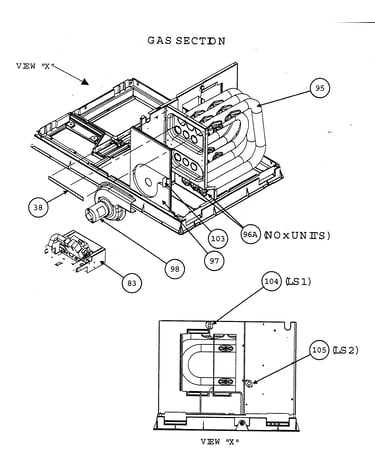

Furnace Heat Exchanger Cover 48GS400108
#97

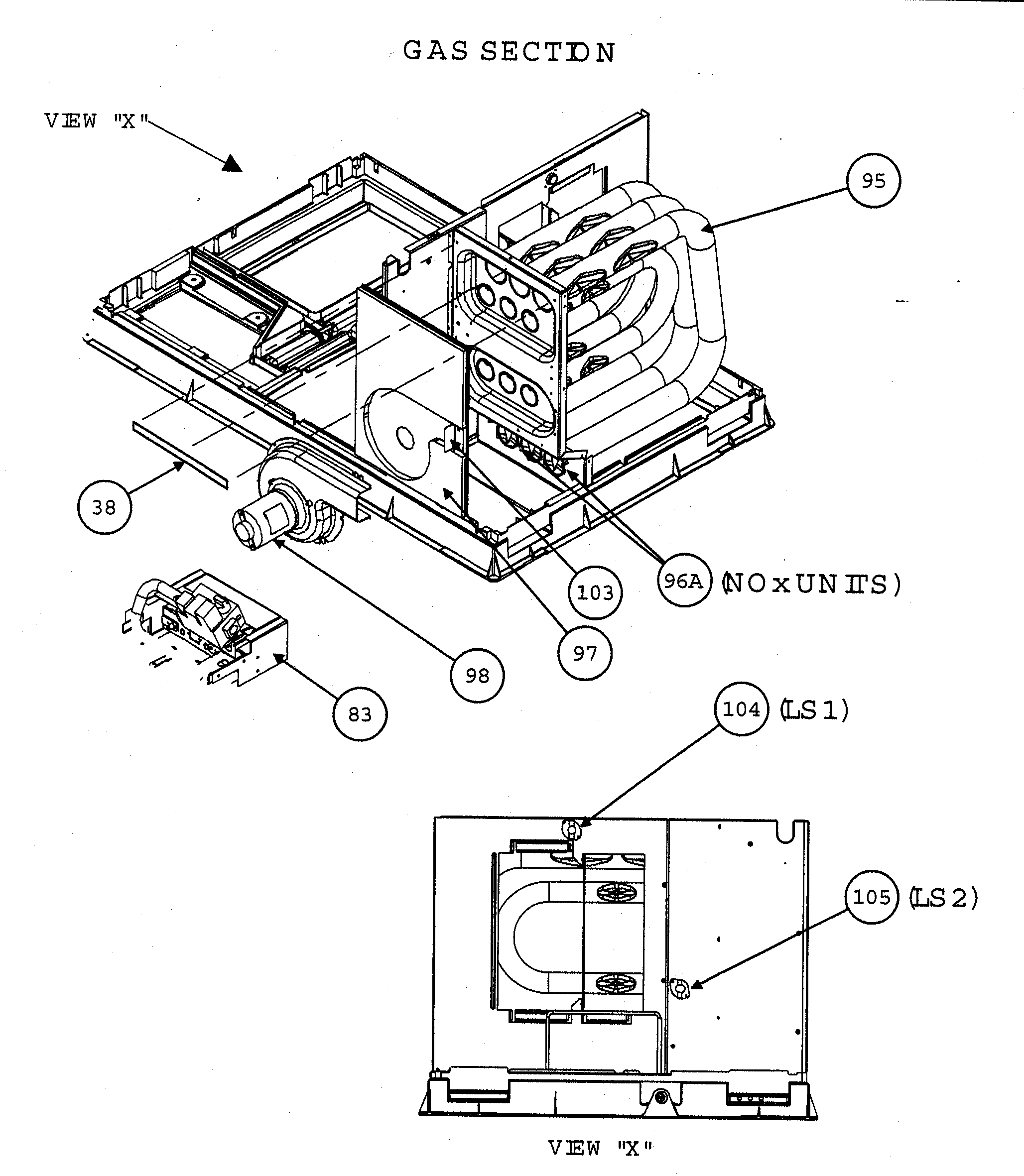

Gas section diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock
Shield 48GS500430
#106

Control box assy diagram

Shield

Part #48GS500430

$692.83
In Stock

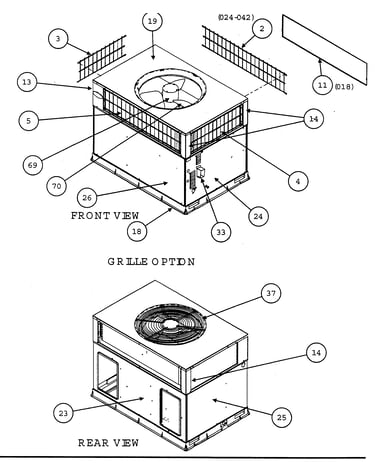

Payne Grille Assembly 48GS400256
#5

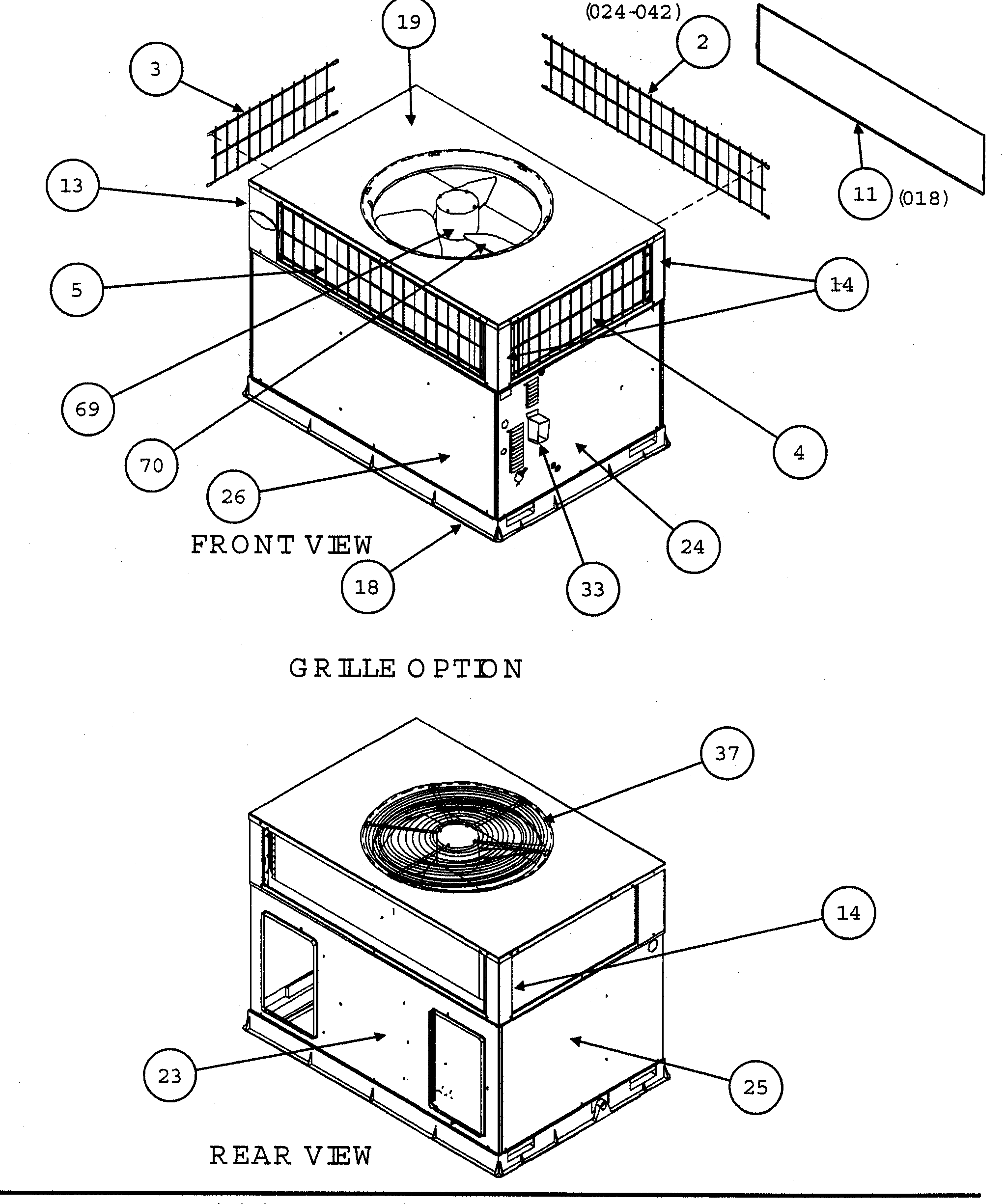

Front view/rear view diagram

Payne grille assembly

Part #48GS400256

$104.42
In Stock
Payne Panel 48GS400482
#8

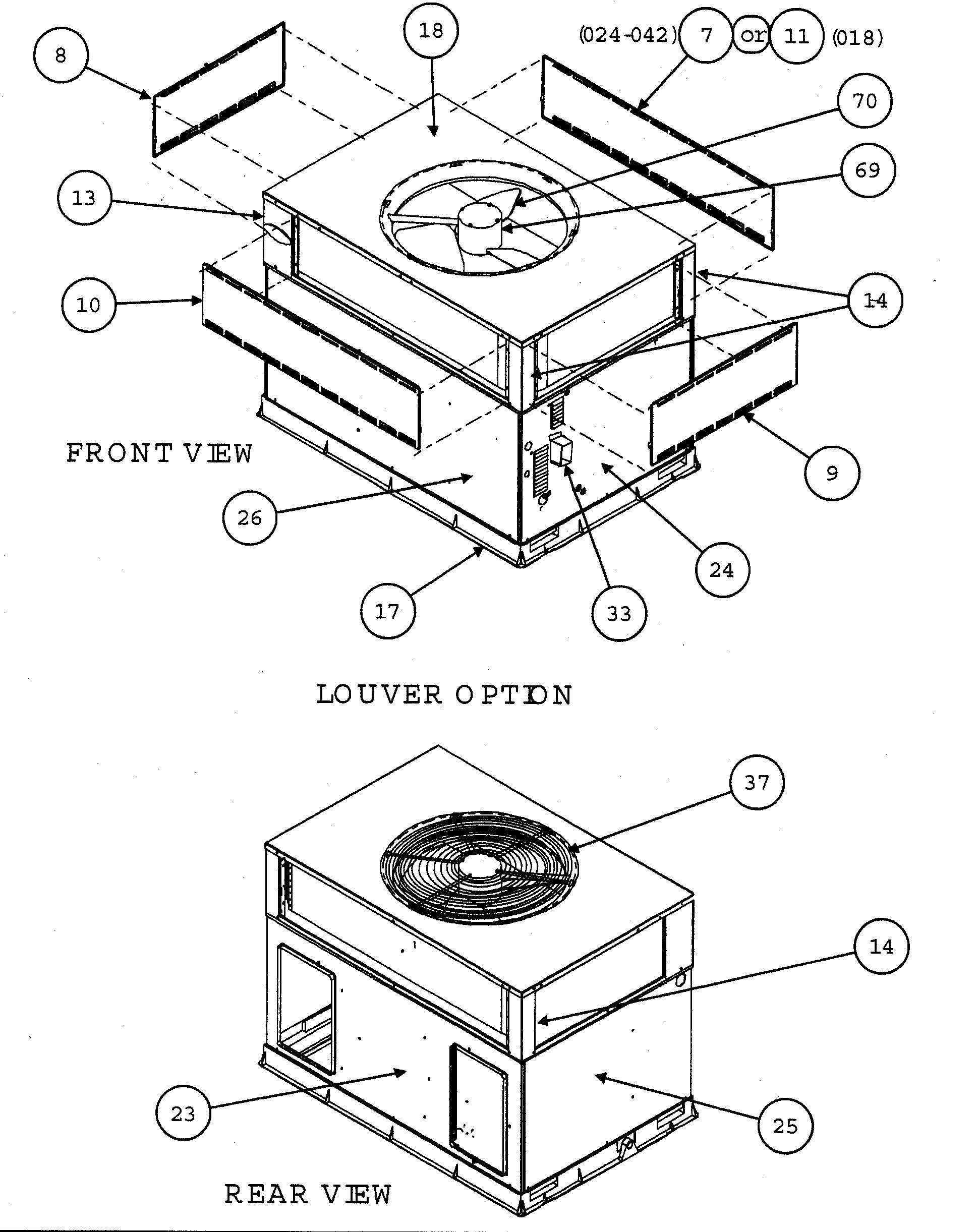

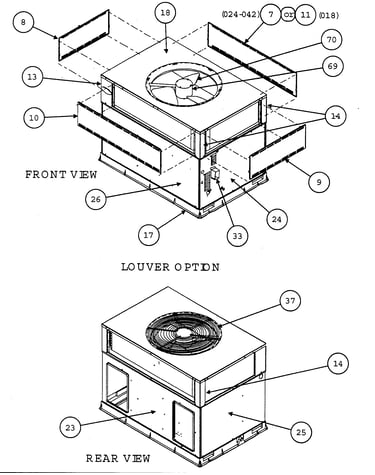

Front view/louver option/rear view diagram

Payne panel

Part #48GS400482

$156.22
In Stock
