Kenmore
Gas Range

Model # 7903260331A Official Kenmore slide-in gas range

Here are the diagrams and repair parts for Official Kenmore 7903260331A slide-in gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

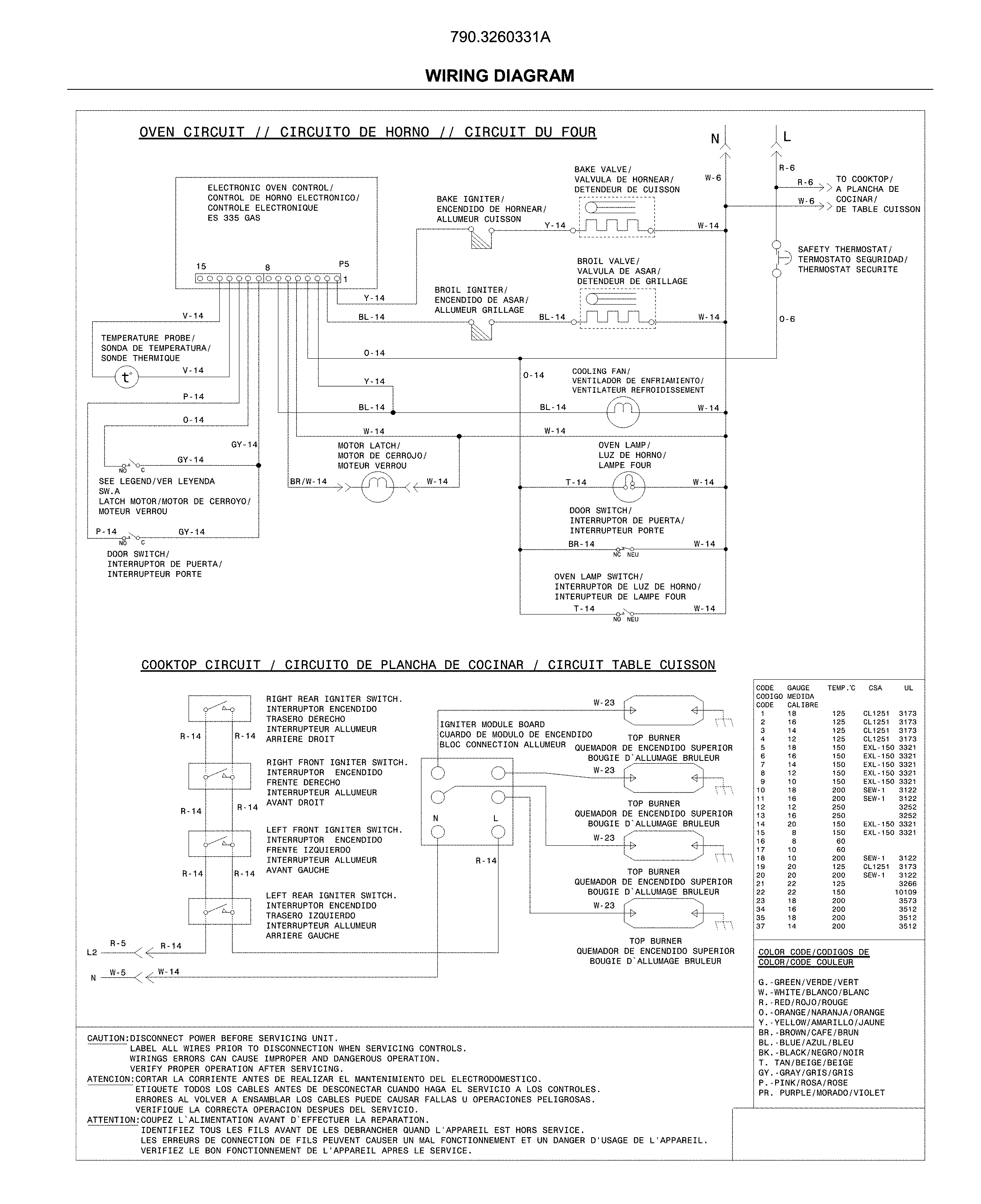

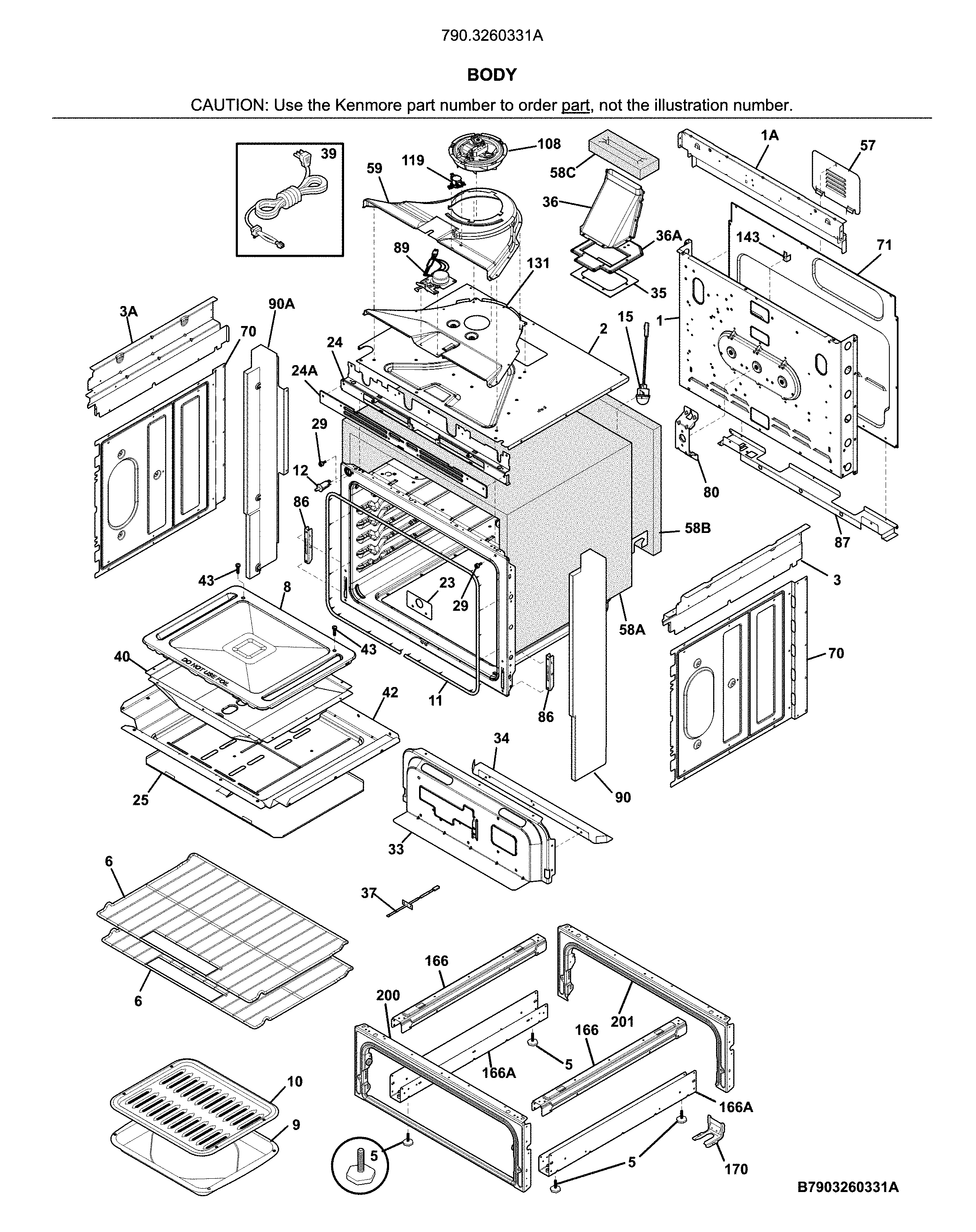

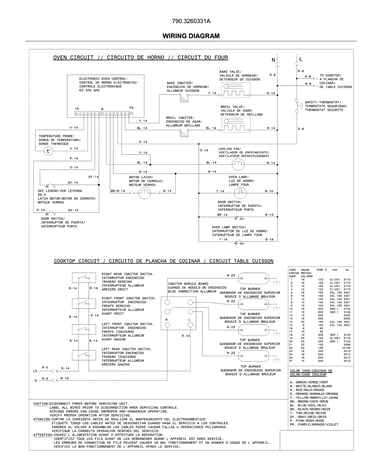

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Range Screw (replaces 316518100, 7316540900) 316540900
#4

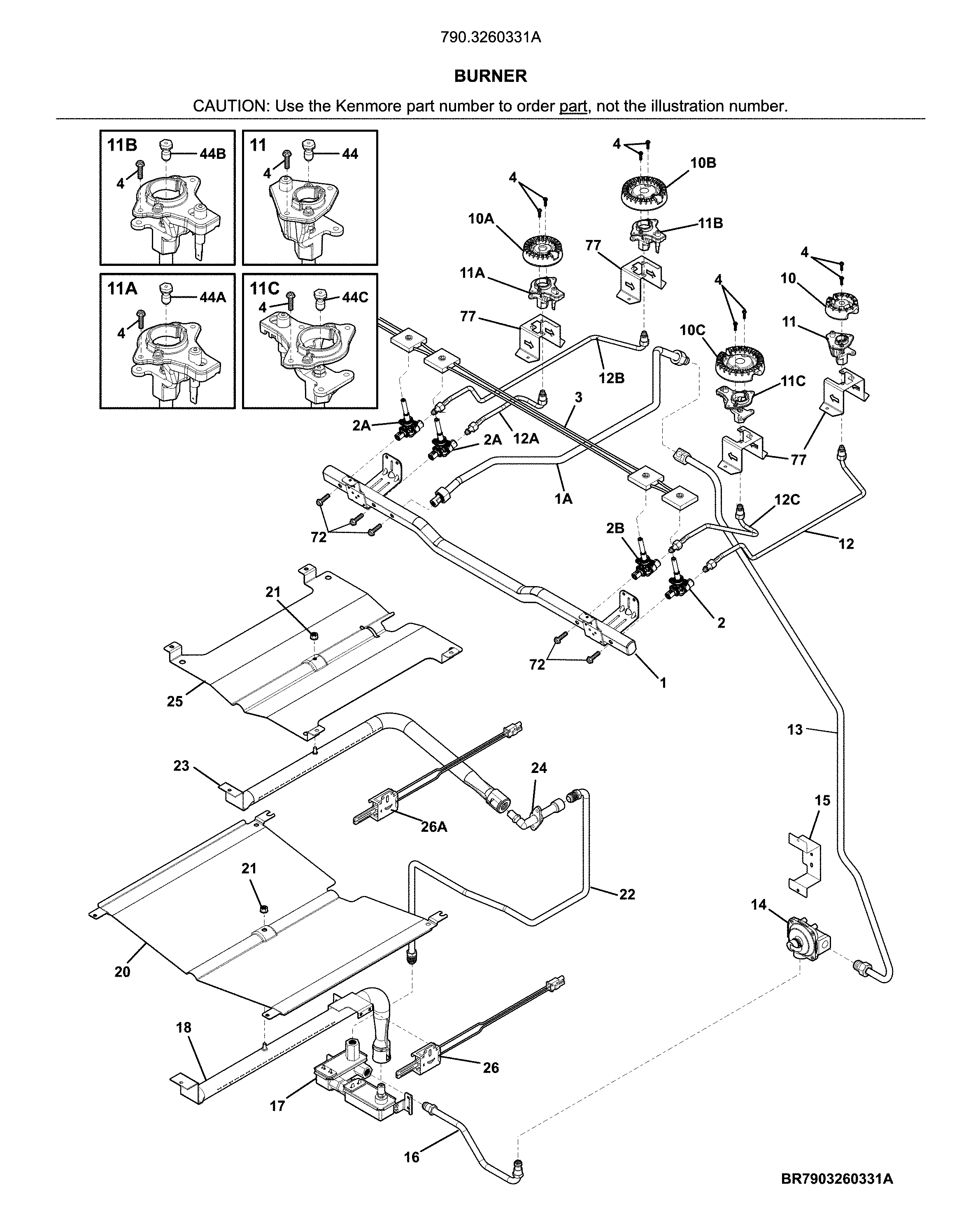

Burner diagram

Range screw (replaces 316518100, 7316540900)

Part #316540900

BEST SELLER
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Range Oven Door Inner Glass 316117503
#8

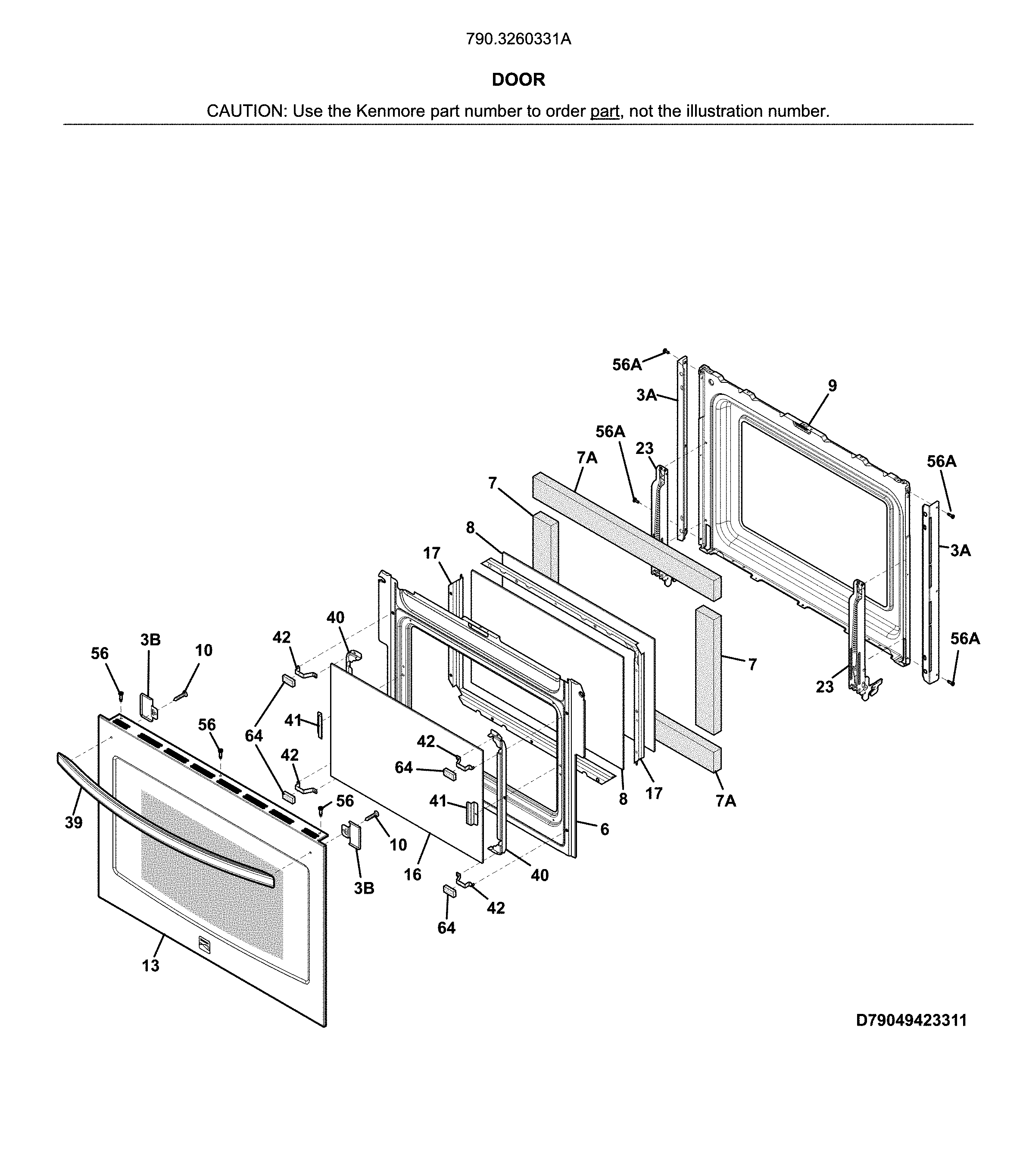

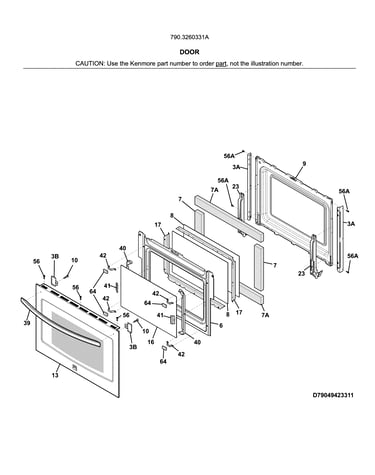

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

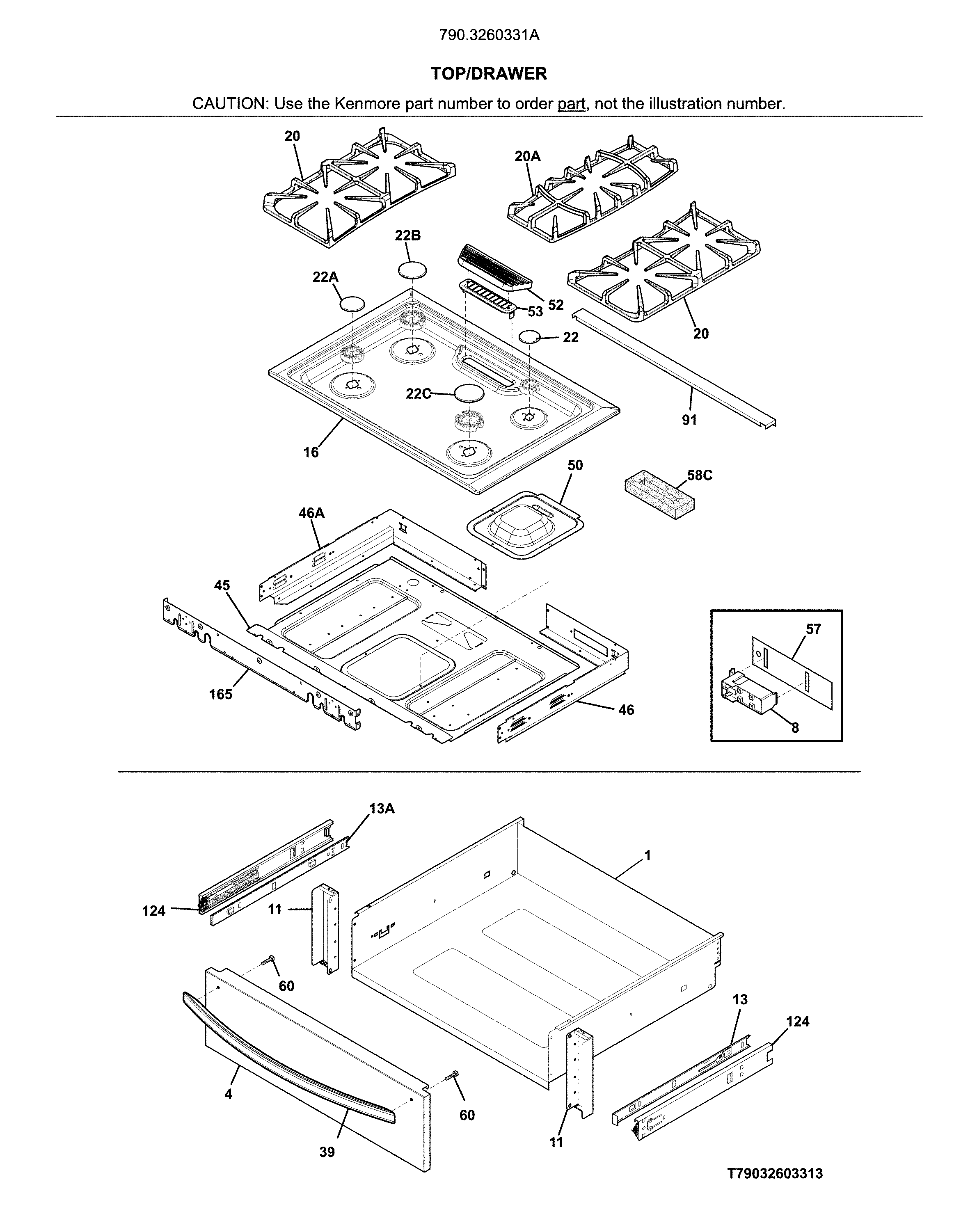

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$27.10 |
18% OFF Phone Price : $33.10
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.22 |
19% OFF Phone Price : $31.22
In Stock
Tappan Range Surface Burner Head (replaces 7316438600) 316438600
#10C

Burner diagram

Tappan range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
8% OFF Phone Price : $72.51
In Stock
Range Spark Module (replaces 316262405) 808608802
#8

Top/drawer diagram

Range spark module (replaces 316262405)

Part #808608802

BEST SELLER
$69.05 |
8% OFF Phone Price : $75.05
In Stock
Range Bake Igniter 139013700
#26

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80 |
11% OFF Phone Price : $112.80
In Stock
Range Oven Gas Valve 316031501
#17

Burner diagram

Range oven gas valve

Part #316031501

BEST SELLER
$199.98 |
6% OFF Phone Price : $211.98
In Stock
Range Oven Control Overlay (replaces 316352010, 316419309) 139091301
#20A

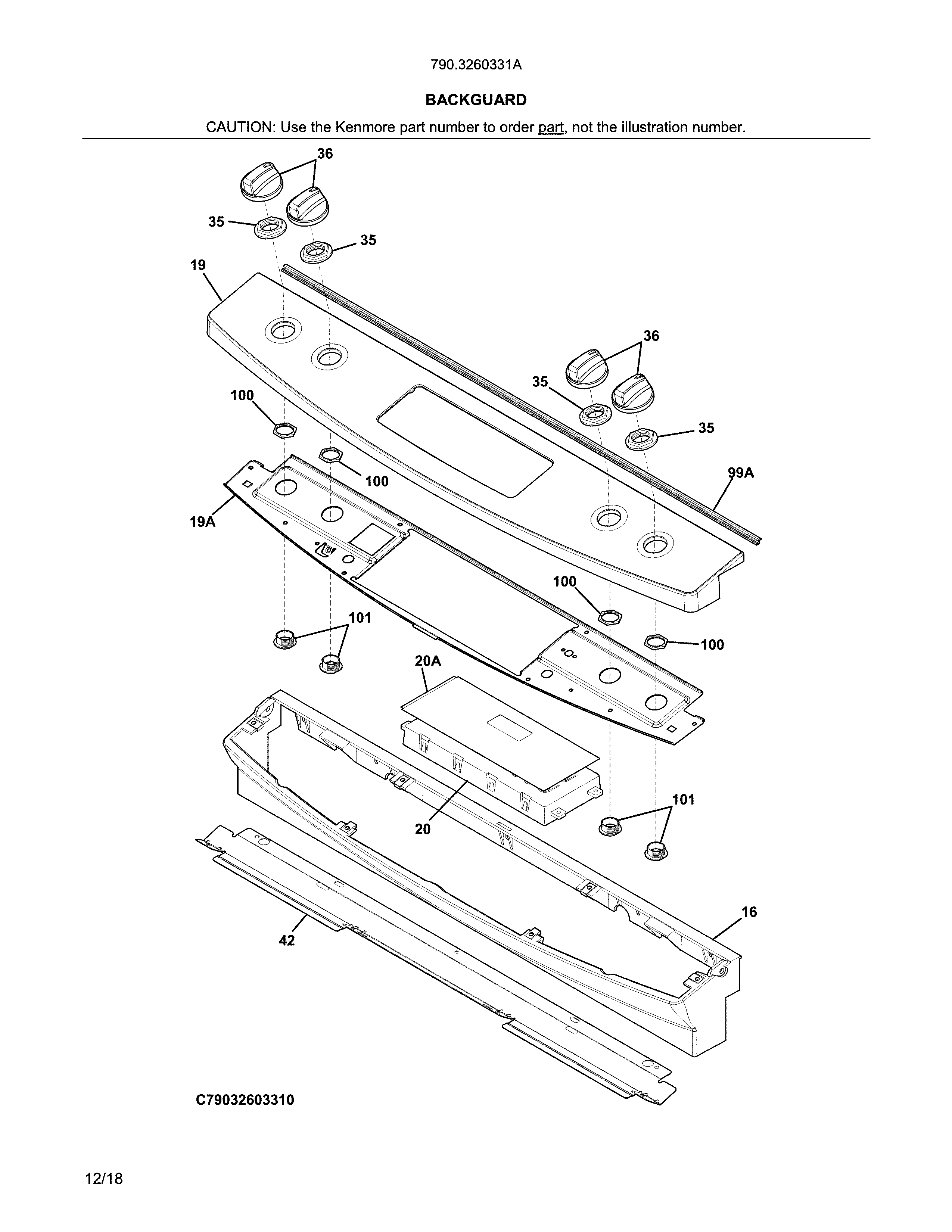

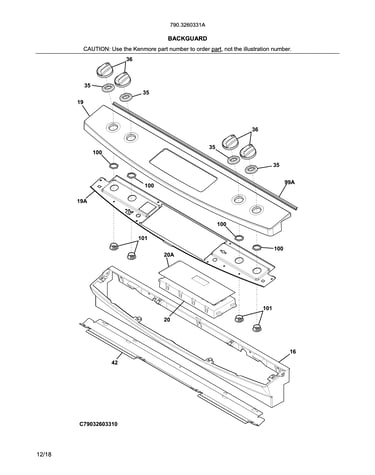

Backguard diagram

Range oven control overlay (replaces 316352010, 316419309)

Part #139091301

BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 7316540700) 316540700
#11A

Burner diagram

Range surface burner igniter and orifice holder (replaces 7316540700)

Part #316540700

BEST SELLER
$78.91 |
7% OFF Phone Price : $84.91
In Stock
