Model # AJCM10ACFH1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCM10ACFH1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Room Air Conditioner Ambient Thermistor WJ27X10139
#55

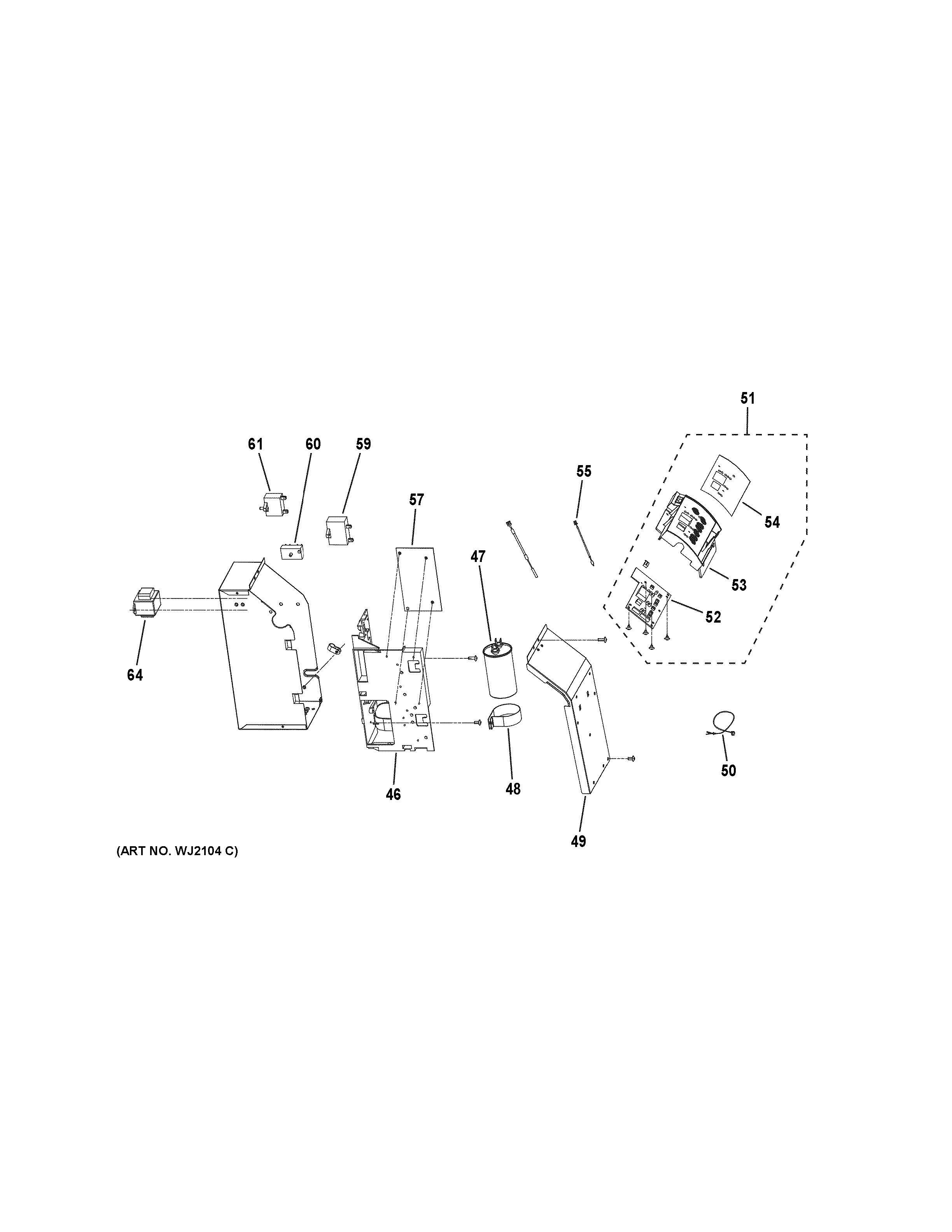

Control parts diagram

Room air conditioner ambient thermistor

Part #WJ27X10139

Replaced by #WJ26X25108

?
Manufacturer substitution
This part replaces WJ27X10139. Substitute parts can look different from the original.
This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Remote Control WP26X20001
#34

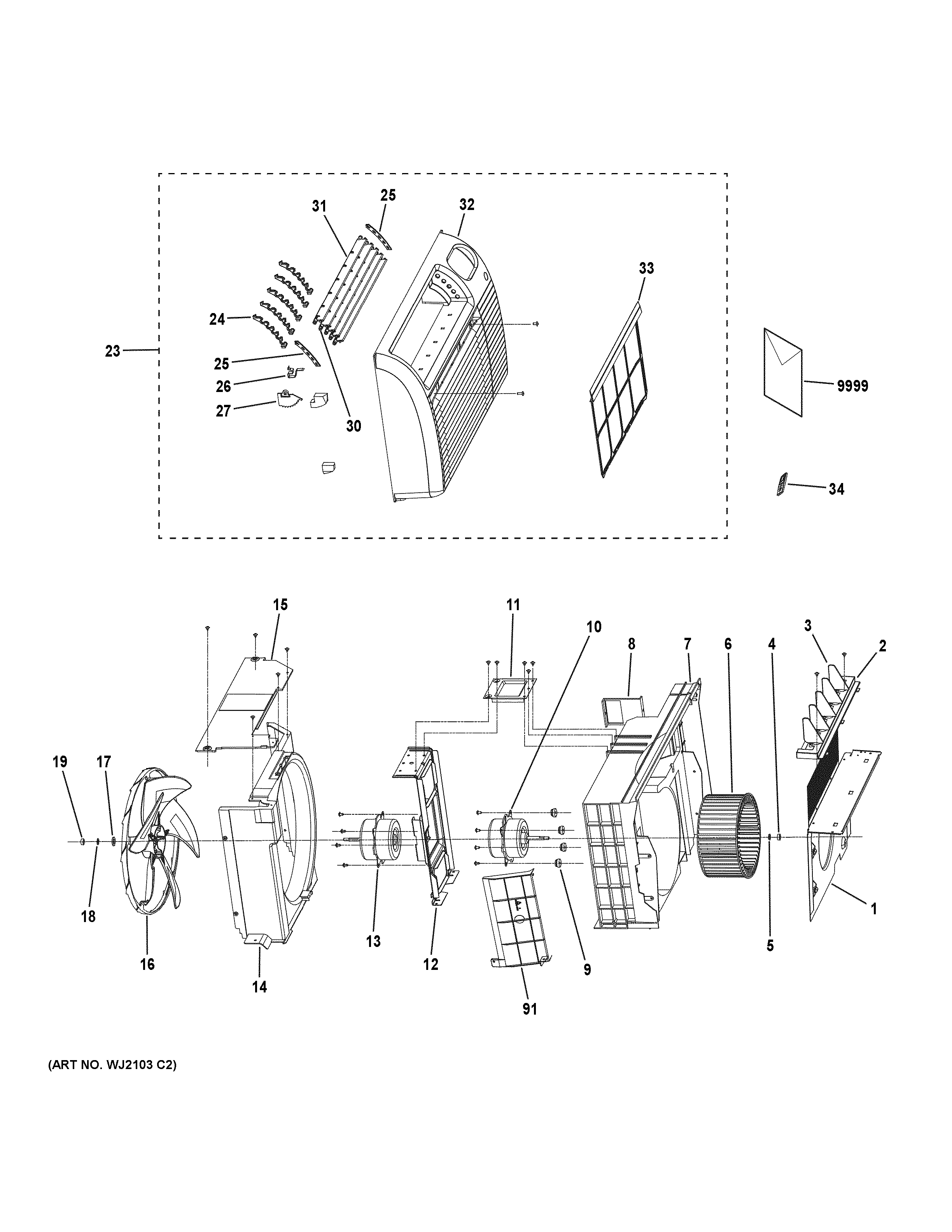

Grille & chassis parts diagram

Remote control

Part #WP26X20001

Replaced by #WJ26X21700

?
Manufacturer substitution
This part replaces WP26X20001. Substitute parts can look different from the original.
$57.80 |
9% OFF Phone Price : $63.80
In Stock
Control Box WJ80X10018
#49

Control parts diagram

Control box

Part #WJ80X10018

$16.97
In Stock
Shroud Cover WJ79X10266
#15

Grille & chassis parts diagram

Shroud cover

Part #WJ79X10266

$8.33
In Stock
Plate WJ80X10019
#24

Grille & chassis parts diagram

Plate

Part #WJ80X10019

$14.81
In Stock
Power Cord WJ35X10179
#50

Control parts diagram

Power cord

Part #WJ35X10179

$149.10
In Stock
Horizontal L WJ71X10774
#30

Grille & chassis parts diagram

Horizontal l

Part #WJ71X10774

This item is not returnable
$7.25
In Stock
Evaporator WJ88X10261
#38

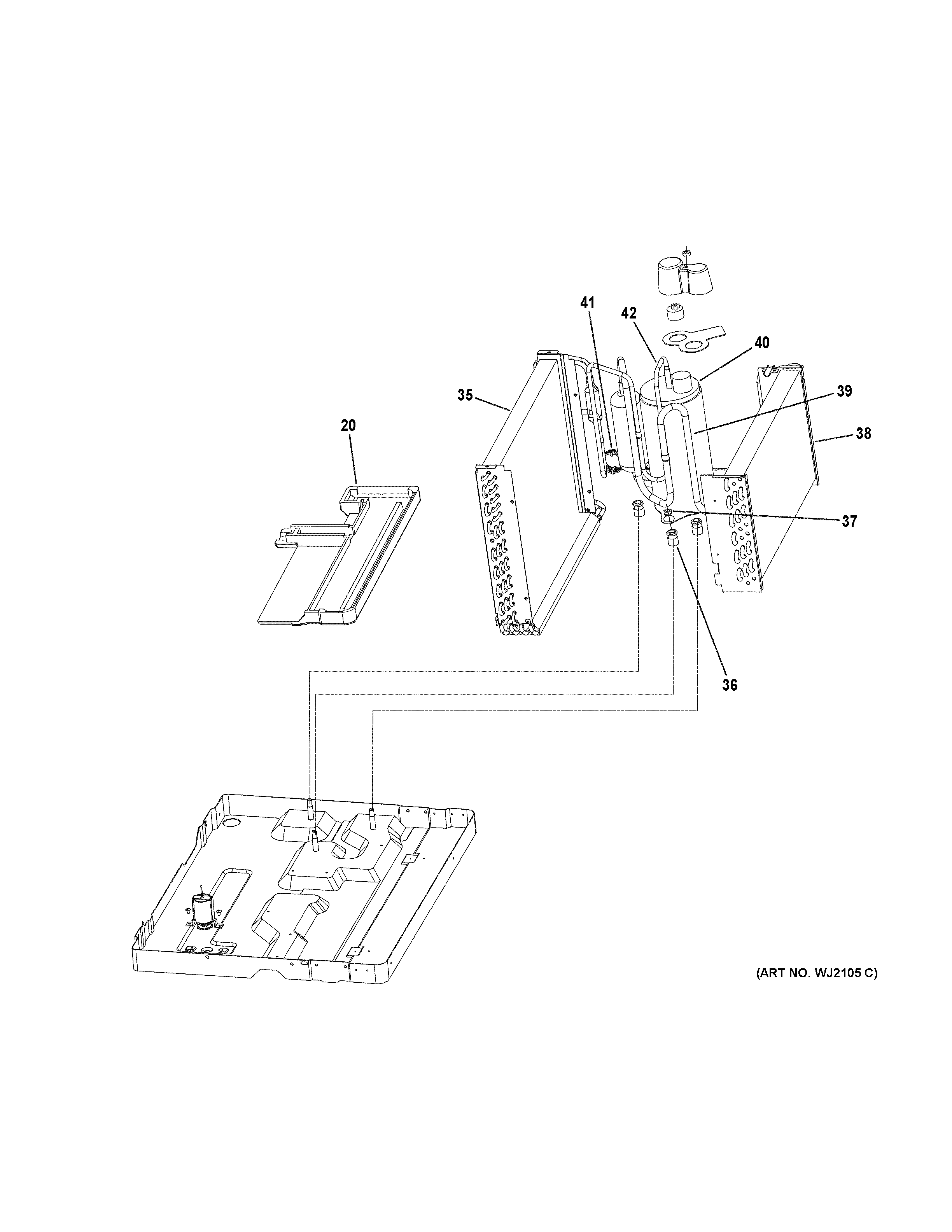

Base pan & unit parts diagram

Evaporator

Part #WJ88X10261

$239.40
In Stock
Centrifugal WJ73X10216
#6

Grille & chassis parts diagram

Centrifugal

Part #WJ73X10216

$39.20
In Stock
Motor Kit 115v WJ49X22065
#10

Grille & chassis parts diagram

Motor kit 115v

Part #WJ49X22065

$189.96
In Stock
