Frigidaire
Top-Mount Refrigerator

Model # FFTR2045VS0 Official Frigidaire top-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR2045VS0 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

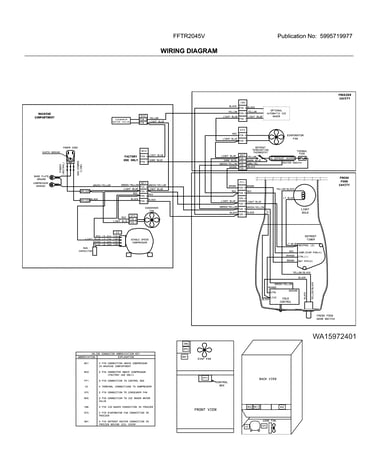

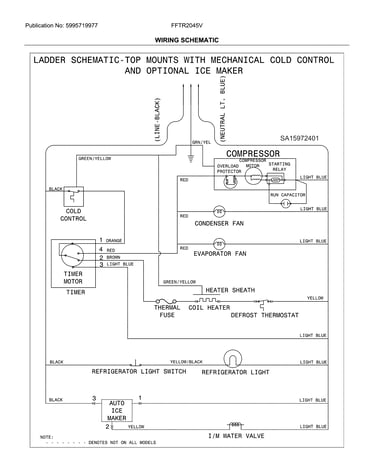

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Refrigerator Defrost Timer 5304522331
#19

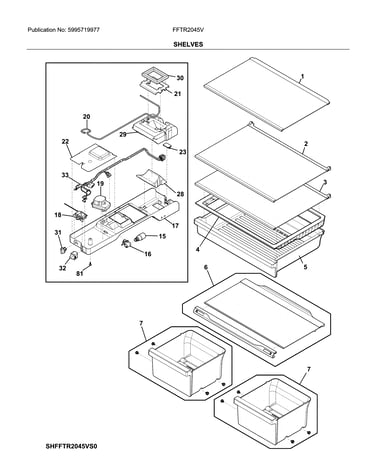

Shelves diagram

Refrigerator defrost timer

Part #5304522331

Replaced by #5304526183

?
Manufacturer substitution
This part replaces 5304522331. Substitute parts can look different from the original.
BEST SELLER
$82.73
In Stock
Refrigerator Temperature Control Thermostat 5304522330
#18

Shelves diagram

Refrigerator temperature control thermostat

Part #5304522330

BEST SELLER
$58.06 |
9% OFF Phone Price : $64.06
In Stock
Refrigerator Defrost Heater And Thermostat 5304522340
#41

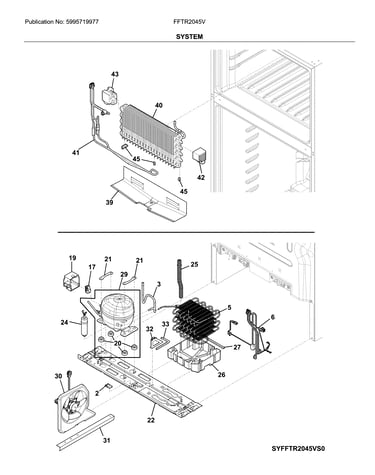

System diagram

Refrigerator defrost heater and thermostat

Part #5304522340

BEST SELLER
$81.16 |
7% OFF Phone Price : $87.16
In Stock
Refrigerator Evaporator Fan Motor 242077704
#16

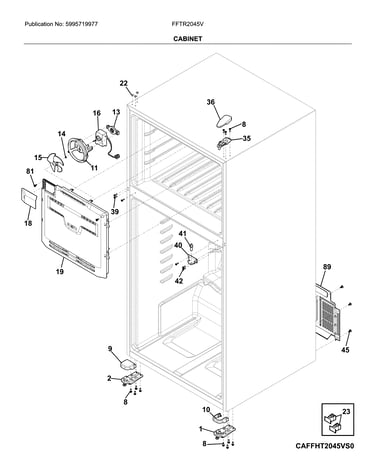

Cabinet diagram

Refrigerator evaporator fan motor

Part #242077704

Replaced by #5304530651

?
Manufacturer substitution
This part replaces 242077704. Substitute parts can look different from the original.
BEST SELLER
$92.48 |
6% OFF Phone Price : $98.48
In Stock
Refrigerator Evaporator Fan Blade 242219302
#15

Cabinet diagram

Refrigerator evaporator fan blade

Part #242219302

BEST SELLER
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Condenser,dynamic 5304519669
#5

System diagram

Condenser,dynamic

Part #5304519669

Replaced by #5304530007

?
Manufacturer substitution
This part replaces 5304519669. Substitute parts can look different from the original.
BEST SELLER
$73.31
In Stock
Refrigerator Machine Compartment Wire Harness 5304519649
#6

System diagram

Refrigerator machine compartment wire harness

Part #5304519649

BEST SELLER
$64.42 |
9% OFF Phone Price : $70.42
In Stock
Evaporator,assembly 5304522324
#40

System diagram

Evaporator,assembly

Part #5304522324

BEST SELLER
$113.70
In Stock
Refrigerator Light Bulb 5304522314
#15

Shelves diagram

Refrigerator light bulb

Part #5304522314

BEST SELLER
$32.22 |
16% OFF Phone Price : $38.22
In Stock
Refrigerator Door Gasket (gray) 5304523138
#3

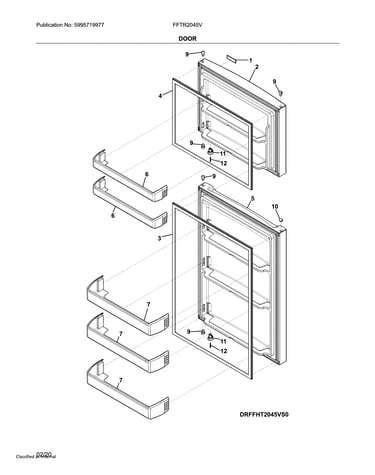

Doors diagram

Refrigerator door gasket (gray)

Part #5304523138

$157.18 |
7% OFF Phone Price : $169.18
In Stock
