Model # WF331ANR/XAA-05 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF331ANR-XAA-05 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

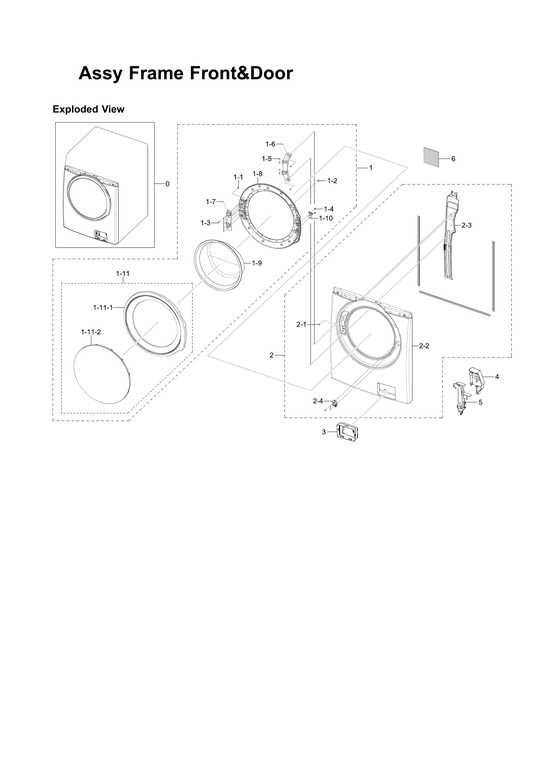

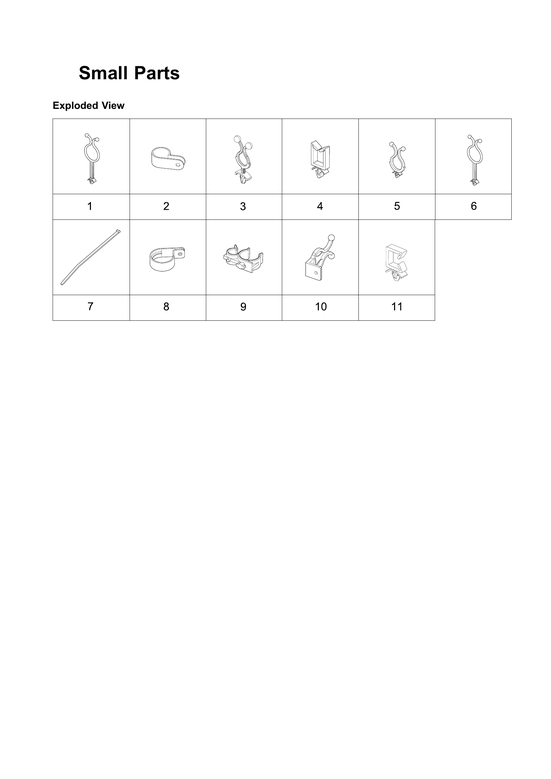

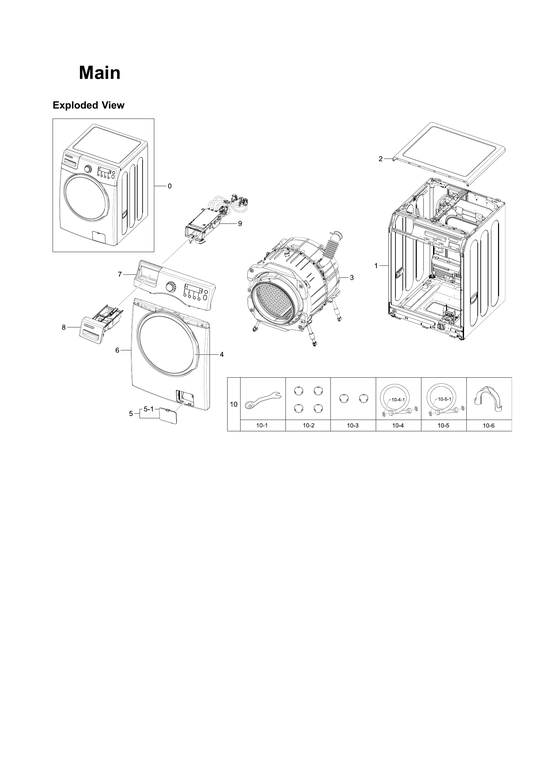

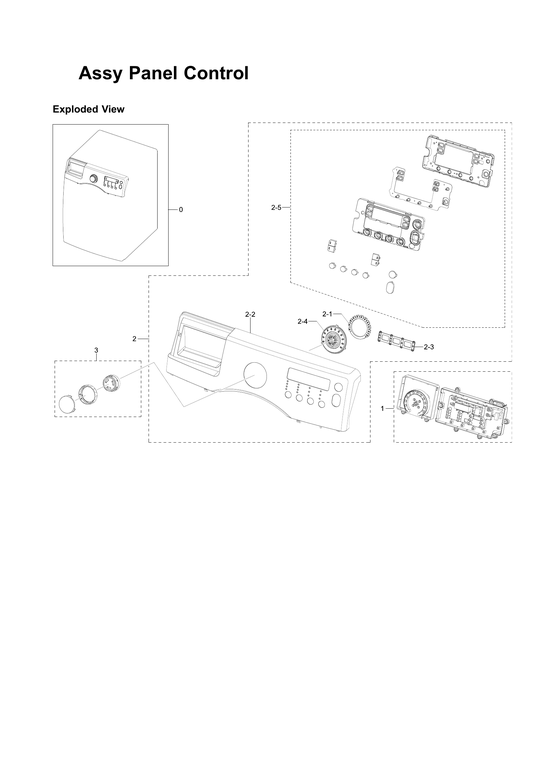

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
#8-5

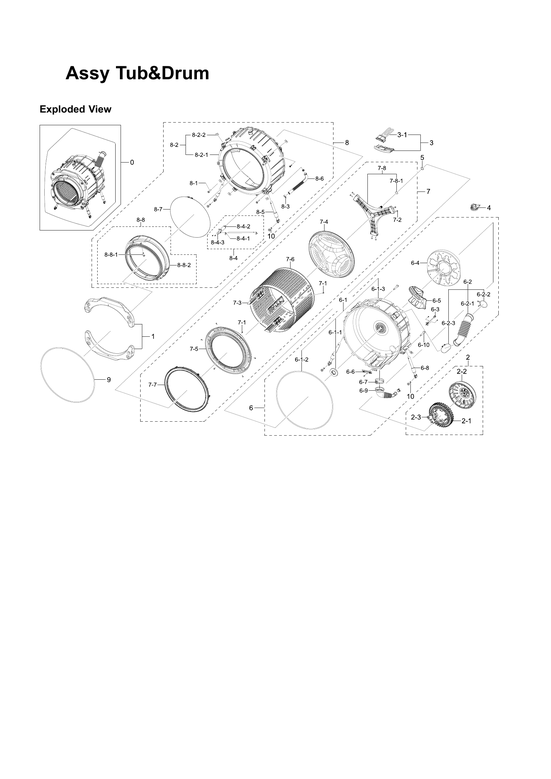

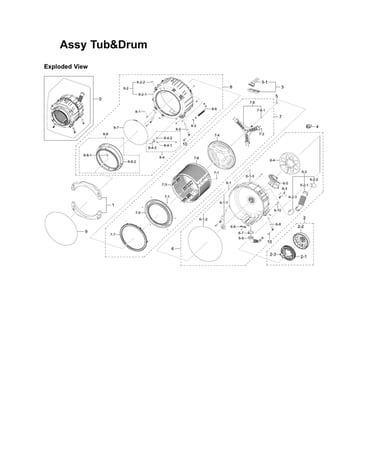

Tub & drum assy diagram

Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$49.01 |
11% OFF Phone Price : $55.01
In Stock
Washer Shock Absorber (replaces Dc66-00650c) DC66-00470B
#6-8

Tub & drum assy diagram

Washer shock absorber (replaces dc66-00650c)

Part #DC66-00470B

BEST SELLER
$30.91 |
16% OFF Phone Price : $36.91
In Stock
Kenmore Washer Drive Motor (replaces Dc31-00111b, Dc97-19994c) DC31-00111A
#2-1

Tub & drum assy diagram

Kenmore washer drive motor (replaces dc31-00111b, dc97-19994c)

Part #DC31-00111A

BEST SELLER
$203.76 |
6% OFF Phone Price : $215.76
In Stock
Washer Motor Rotor Position Sensor DC31-00098A
#2-3

Tub & drum assy diagram

Washer motor rotor position sensor

Part #DC31-00098A

BEST SELLER
$59.00 |
9% OFF Phone Price : $65.00
In Stock
Washer Drain Pump DC31-00054D
#11-2

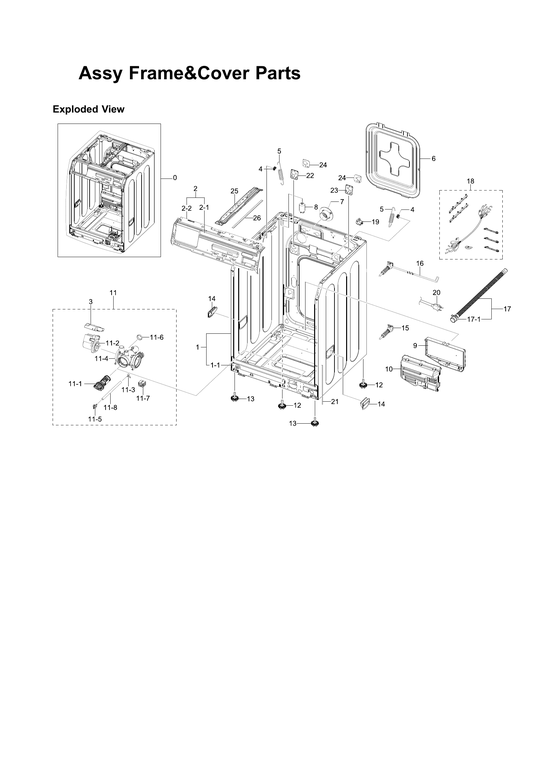

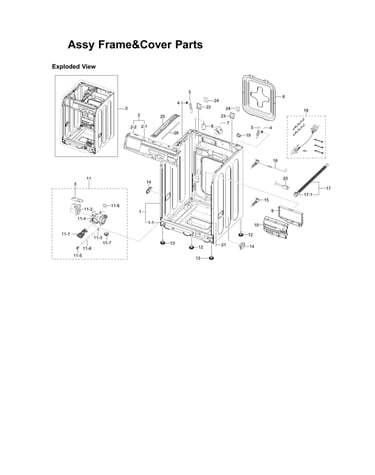

Frame & cover assy diagram

Washer drain pump

Part #DC31-00054D

BEST SELLER
$55.64 |
10% OFF Was : $61.82
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#7-2

Tub & drum assy diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Washer Detergent Dispenser DC97-17022B
#2

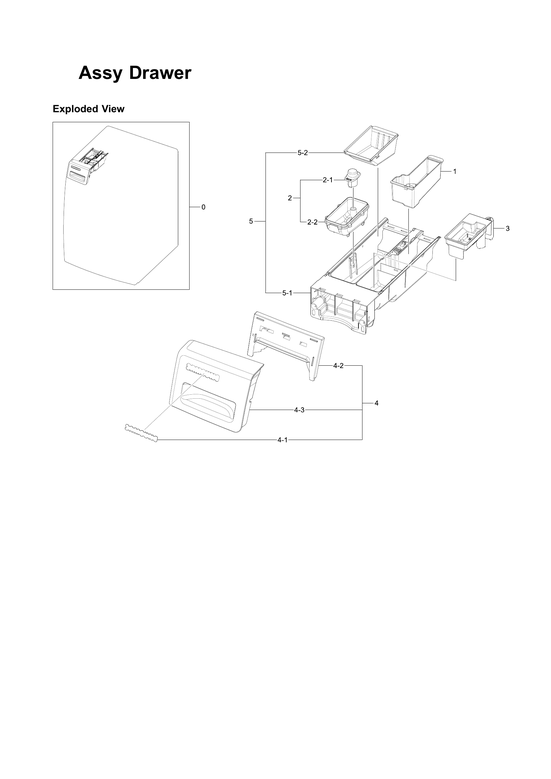

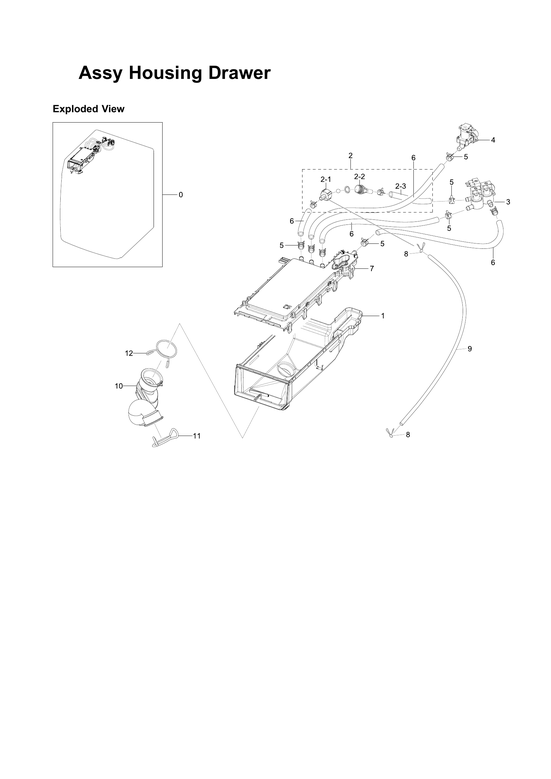

Drawer assy diagram

Washer detergent dispenser

Part #DC97-17022B

BEST SELLER
This item is not returnable
$16.31 |
11% OFF Phone Price : $18.31
In Stock
Kenmore Washer Motor Rotor DC31-00112A
#2-2

Tub & drum assy diagram

Kenmore washer motor rotor

Part #DC31-00112A

BEST SELLER
$158.68 |
7% OFF Phone Price : $170.68
In Stock
Washer Drain Hose (replaces Dc67-00330d) DC97-12534E
#17

Frame & cover assy diagram

Washer drain hose (replaces dc67-00330d)

Part #DC97-12534E

BEST SELLER
$49.47 |
11% OFF Phone Price : $55.47
Back Order
Kenmore Washer Suspension Spring Bracket DC61-02432A
#4

Frame & cover assy diagram

Kenmore washer suspension spring bracket

Part #DC61-02432A

This item is not returnable
$2.17
In Stock
