Model # 11089416610 Official Sears gas dryer

Here are the diagrams and repair parts for Official Sears 11089416610 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Dryer Idler Pulley 691366
#9

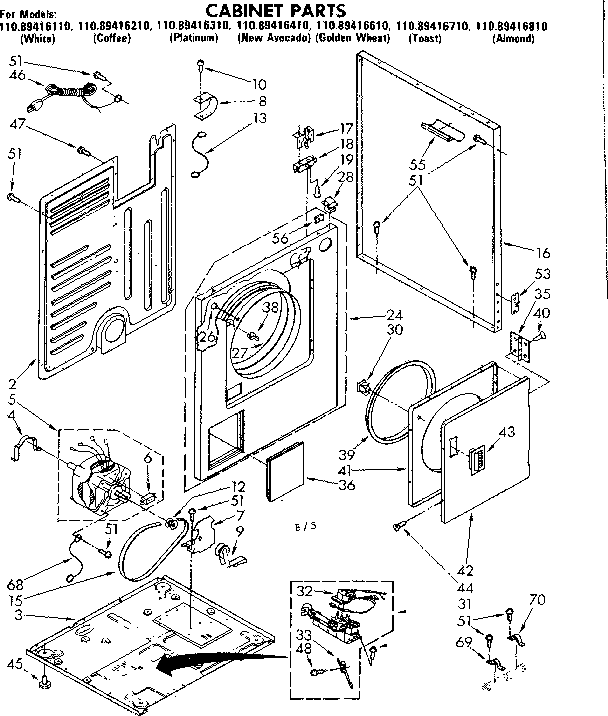

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Switch 337351
#6

Cabinet parts diagram

Switch

Part #337351

Replaced by #279827

?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Motor 695074
#5

Cabinet parts diagram

Motor

Part #695074

Replaced by #279827

?
Manufacturer substitution
This part replaces 695074. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Igniter 660991
#33

Cabinet parts diagram

Dryer igniter

Part #660991

Replaced by #279311

?
Manufacturer substitution
This part replaces 660991. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Fuse 660877
#9

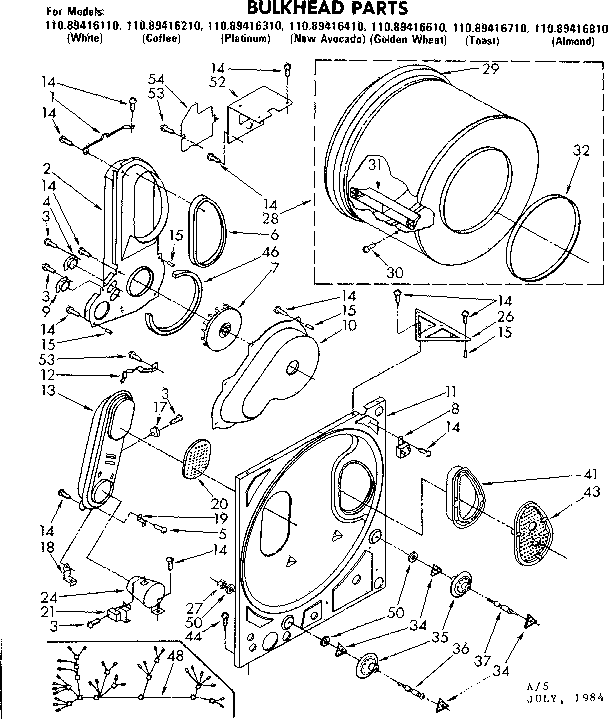

Bulkhead parts diagram

Fuse

Part #660877

Replaced by #WP3390719

?
Manufacturer substitution
This part replaces 660877. Substitute parts can look different from the original.
BEST SELLER
$16.60 |
11% OFF Phone Price : $18.60
In Stock
Dryer Tri-ring Retainer 690997
#34

Bulkhead parts diagram

Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Dryer Door Switch 347207
#18

Cabinet parts diagram

Dryer door switch

Part #347207

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 347207. Substitute parts can look different from the original.
BEST SELLER
$24.22 |
20% OFF Phone Price : $30.22
In Stock
Dryer Radiant Sensor 338906
#21

Bulkhead parts diagram

Dryer radiant sensor

Part #338906

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 338906. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Pulley 694872
#12

Cabinet parts diagram

Pulley

Part #694872

Replaced by #W10837625

?
Manufacturer substitution
This part replaces 694872. Substitute parts can look different from the original.
BEST SELLER
$44.66 |
12% OFF Phone Price : $50.66
In Stock
Shaft 347364
#36

Bulkhead parts diagram

Shaft

Part #347364

Replaced by #WPW10359270

?
Manufacturer substitution
This part replaces 347364. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
