GE
Bottom-Mount Refrigerator

Model # PFS22MIWCWW Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE PFS22MIWCWW bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

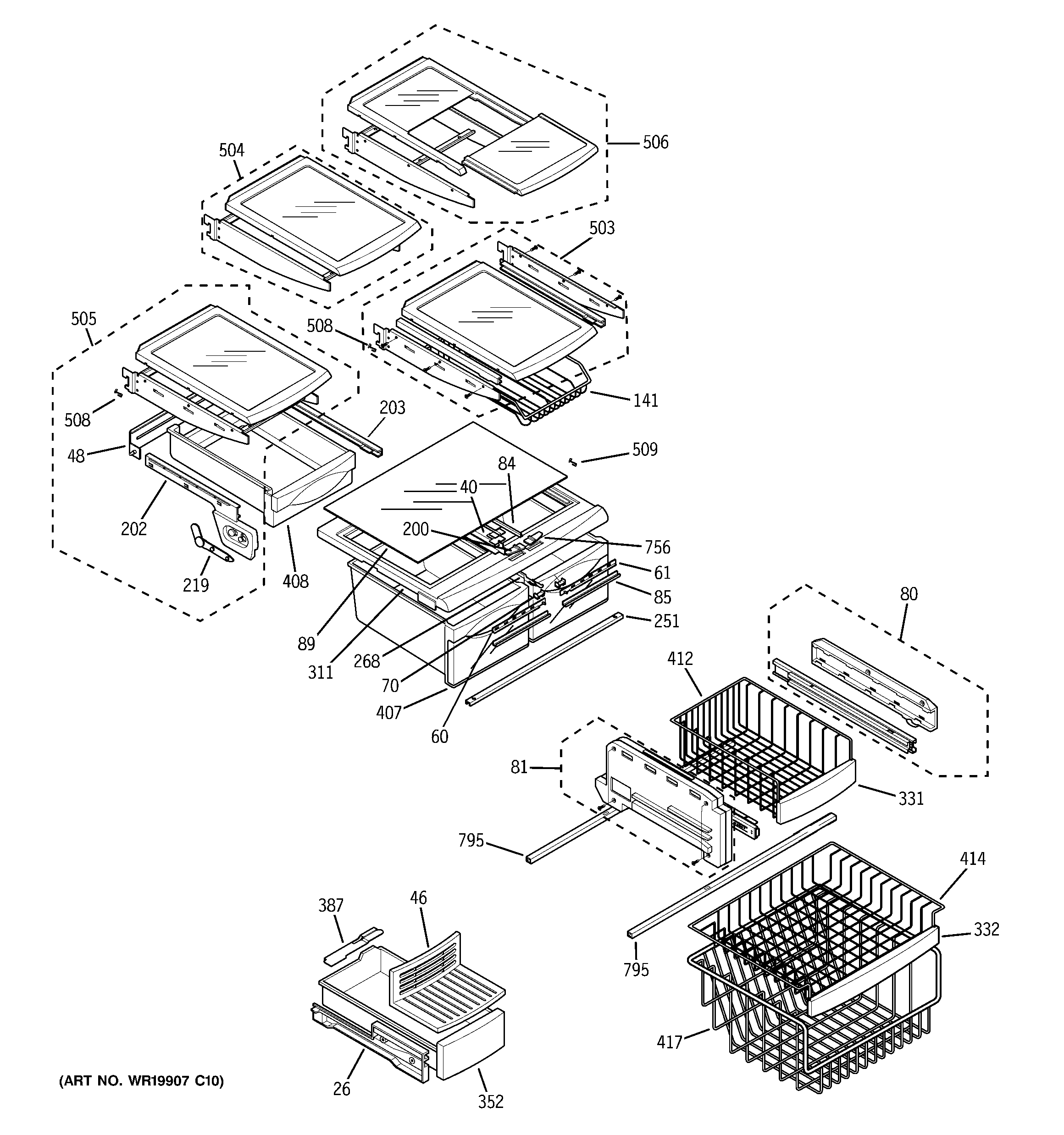

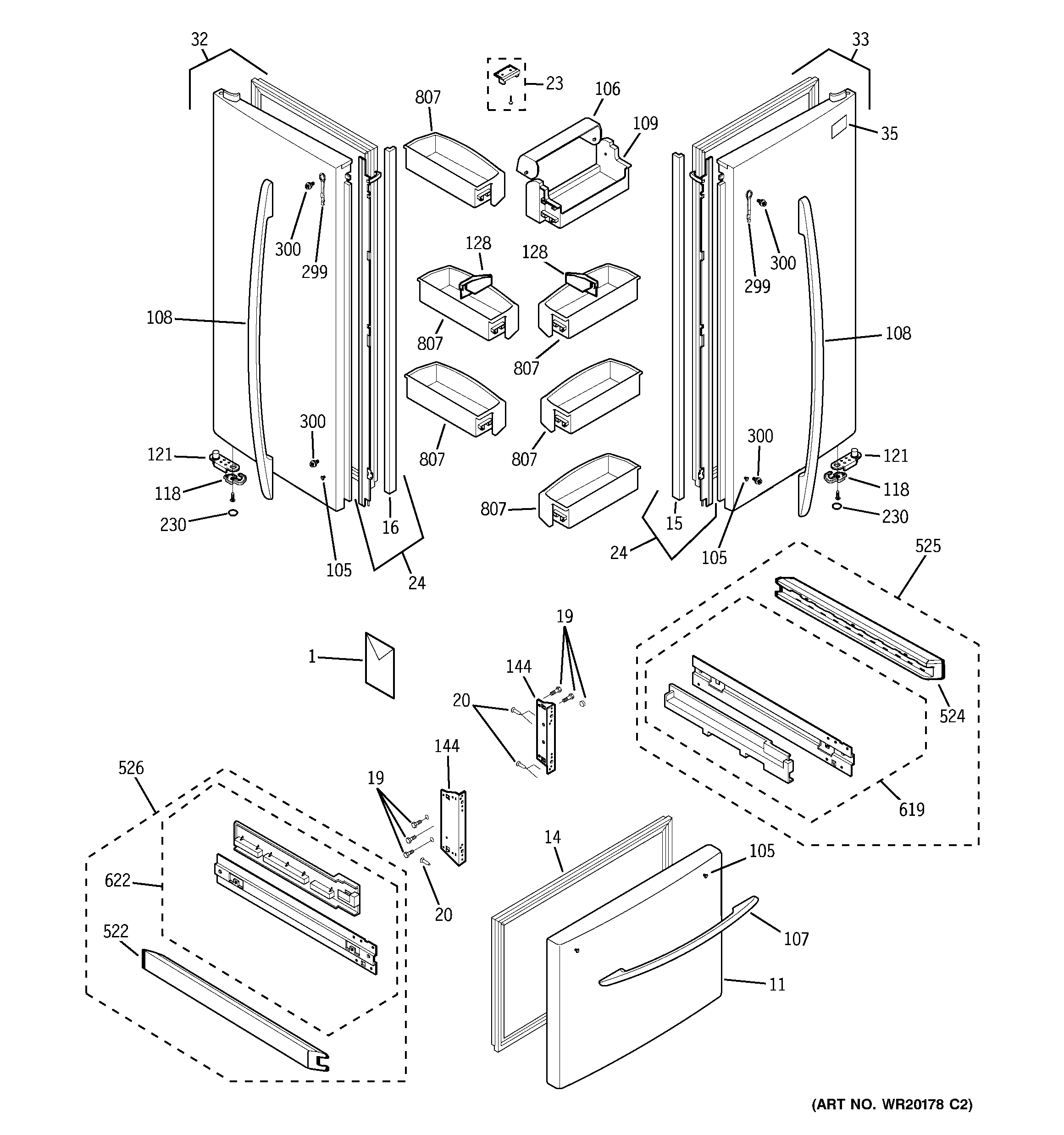

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

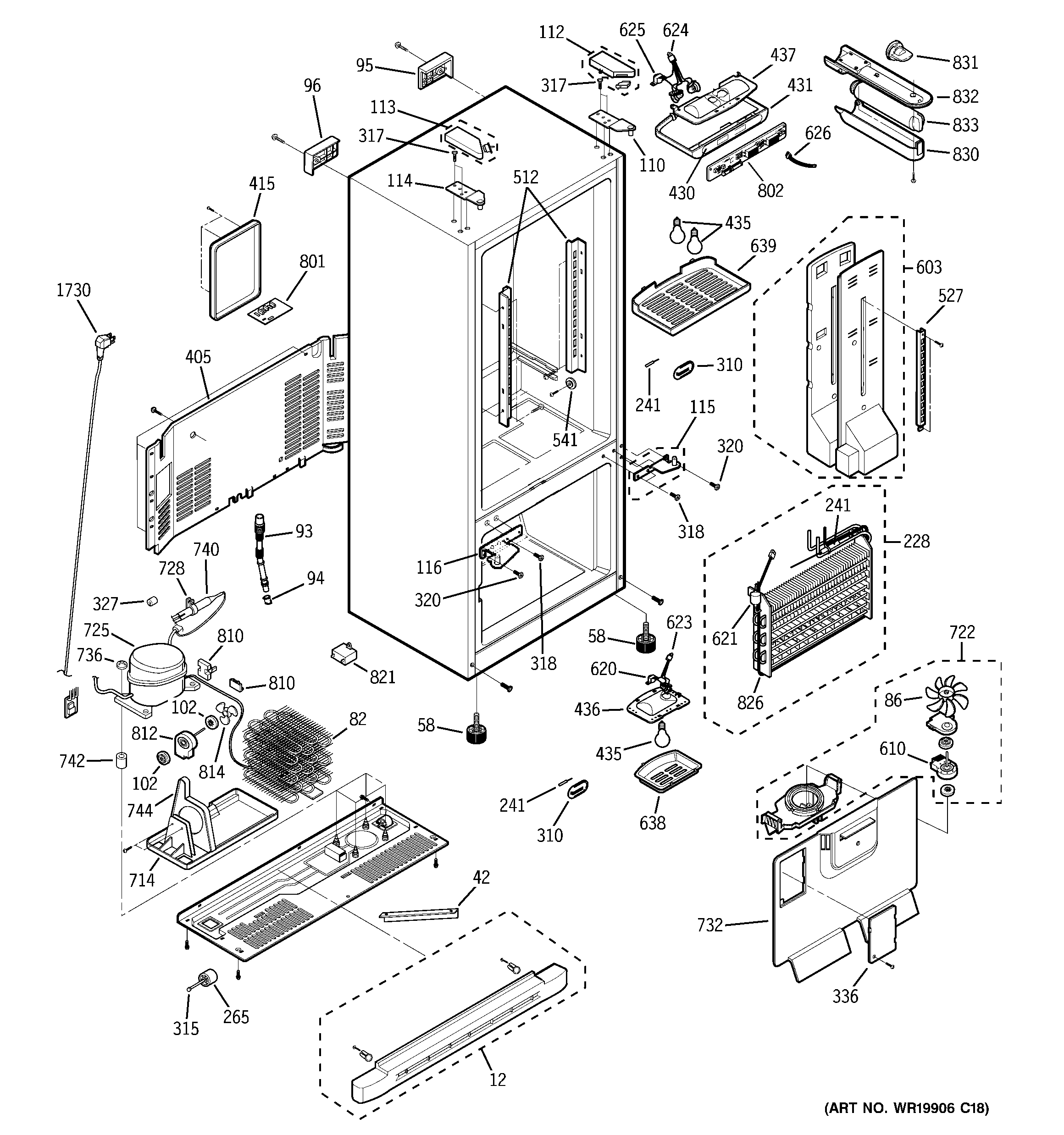

Cabinet diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Dryer Filter WR86X0096
#740

Cabinet diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#435

Cabinet diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Comp. Repl. WR87X10174
#725

Cabinet diagram

Comp. repl.

Part #WR87X10174

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10174. Substitute parts can look different from the original.
BEST SELLER
$394.05 |
$12.00 OFF Phone Price : $406.05
In Stock
Refrigerator Main Board WR55X10526
#801

Cabinet diagram

Refrigerator main board

Part #WR55X10526

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch WR23X10342
#638

Cabinet diagram

Refrigerator light switch

Part #WR23X10342

Replaced by #WR23X21444

?
Manufacturer substitution
This part replaces WR23X10342. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Refrigerator Ice Maker Assembly IM6
#820

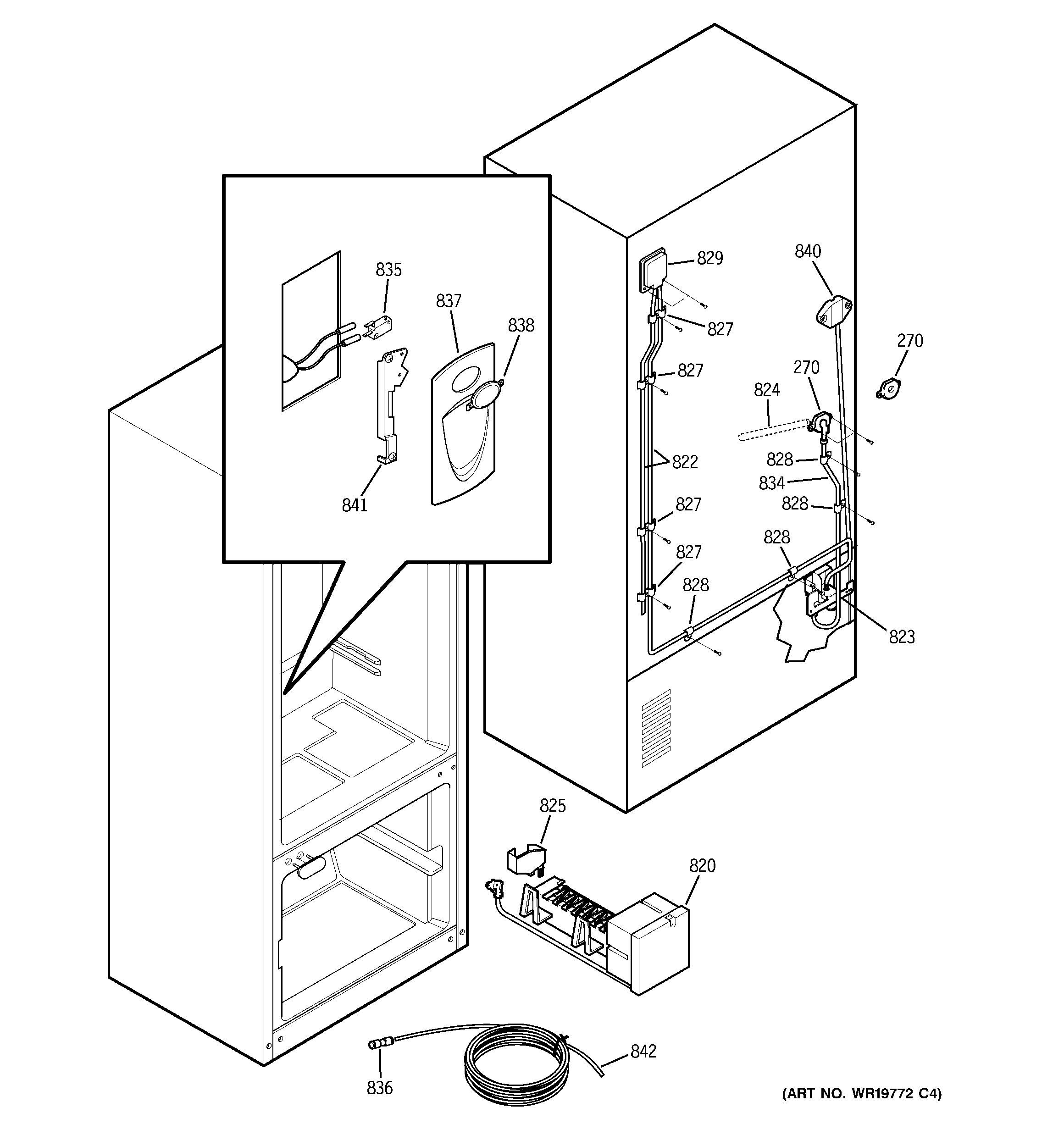

Water system diagram

Refrigerator ice maker assembly

Part #IM6

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Power Cord (replaces Wr23x10049, Wr23x10077, Wr23x10242, Wr23x10311, Wr23x10316, Wr23x10369, Wr23x10370, Wr23x10371, Wr23x10540, Wr23x420) WR23X10300
#1730

Cabinet diagram

Refrigerator power cord (replaces wr23x10049, wr23x10077, wr23x10242, wr23x10311, wr23x10316, wr23x10369, wr23x10370, wr23x10371, wr23x10540, wr23x420)

Part #WR23X10300

$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Electronic Control Board WR55X10522
#802

Cabinet diagram

Refrigerator electronic control board

Part #WR55X10522

$167.27 |
7% OFF Phone Price : $179.27
In Stock
Refrigerator Water Guide WR02X11711
#825

Water system diagram

Refrigerator water guide

Part #WR02X11711

Replaced by #WR29X10092

?
Manufacturer substitution
This part replaces WR02X11711. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
