Model # 1105907730 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 1105907730 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

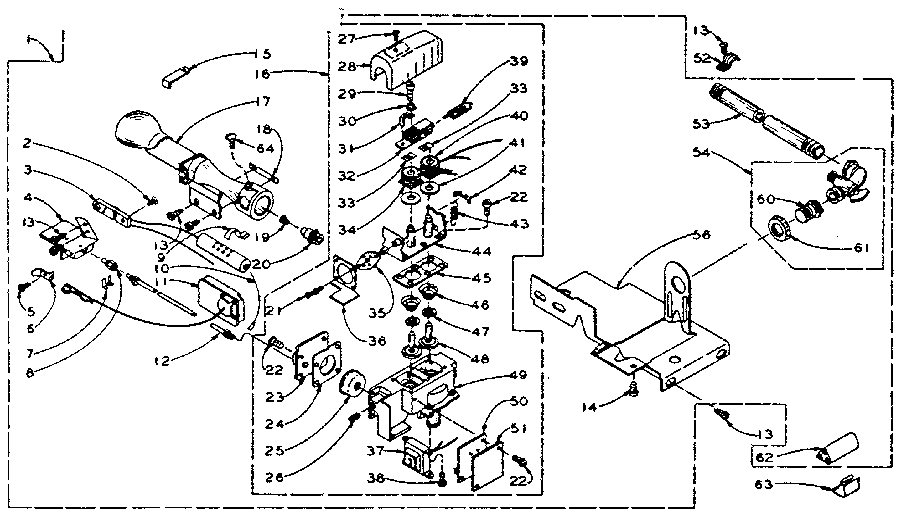

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |
Bulb 233056
#74

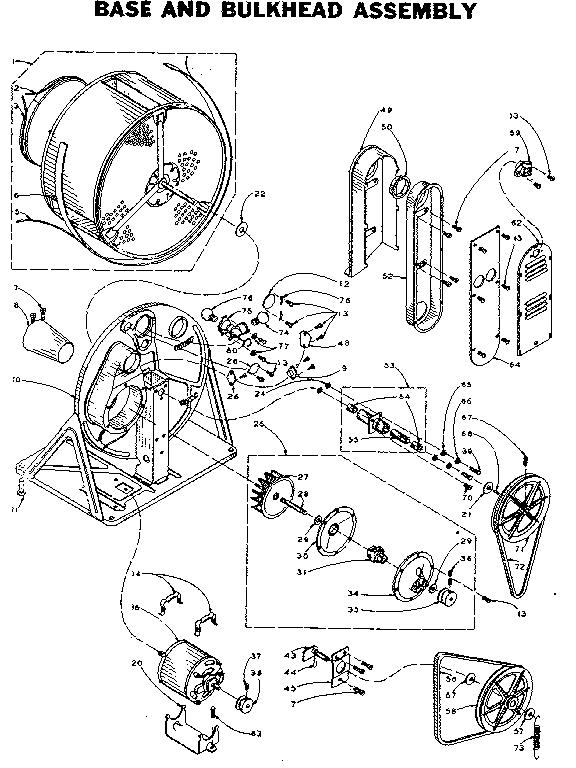

Base and bulkhead assembly diagram

Bulb

Part #233056

Replaced by #40A15

?
Manufacturer substitution
This part replaces 233056. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Thermostat 229420
#59

Base and bulkhead assembly diagram

Thermostat

Part #229420

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 229420. Substitute parts can look different from the original.
BEST SELLER
$55.47 |
10% OFF Phone Price : $61.47
In Stock
Thrust Washer 233520
#29

Base and bulkhead assembly diagram

Thrust washer

Part #233520

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 233520. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Top Panel Clip 18776
#32

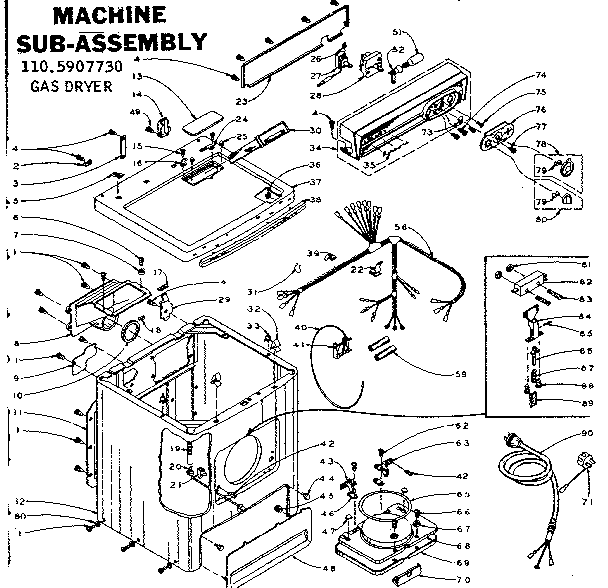

Machine sub-assembly diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
Cabinet Hinge 229807
#43

Machine sub-assembly diagram

Cabinet hinge

Part #229807

Replaced by #WP238460

?
Manufacturer substitution
This part replaces 229807. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Door Seal 234800
#65

Machine sub-assembly diagram

Door seal

Part #234800

Replaced by #W11613302

?
Manufacturer substitution
This part replaces 234800. Substitute parts can look different from the original.
$18.76
In Stock
Cap (white) 233863
#47

Machine sub-assembly diagram

Cap (white)

Part #233863

Replaced by #WP660975

?
Manufacturer substitution
This part replaces 233863. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Bumper 17258
#25

Machine sub-assembly diagram

Bumper

Part #17258

Replaced by #WP17258

?
Manufacturer substitution
This part replaces 17258. Substitute parts can look different from the original.
This item is not returnable
$6.56
In Stock
Screw 172455
#63

Base and bulkhead assembly diagram

Screw

Part #172455

Replaced by #3400500

?
Manufacturer substitution
This part replaces 172455. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 90422
#43

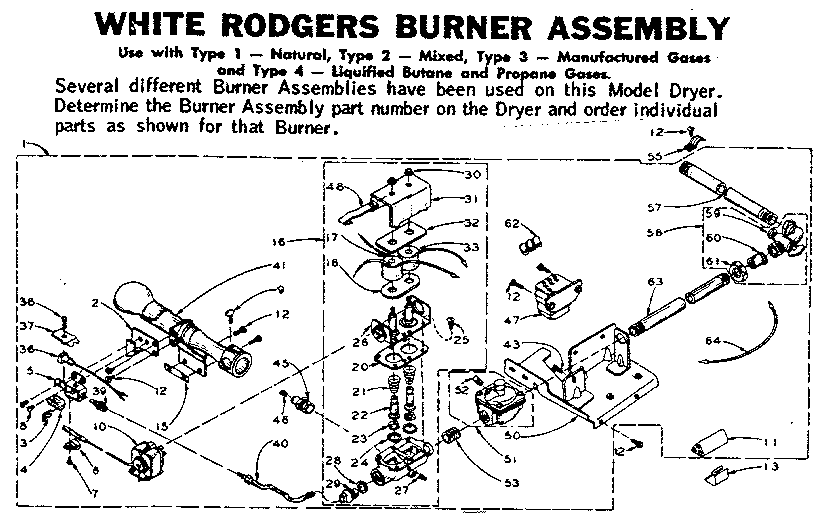

White rodgers burner assembly diagram

Screw

Part #90422

This item is not returnable
$3.29
In Stock
