Model # 240HG-UT10688 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite 240HG-UT10688 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Lawn & Garden Equipment Screw 80048
#1

Chain brake diagram

Lawn & garden equipment screw

Part #80048

The manufacturer no longer makes this part, and there's no substitute part

Cover 95089
#7

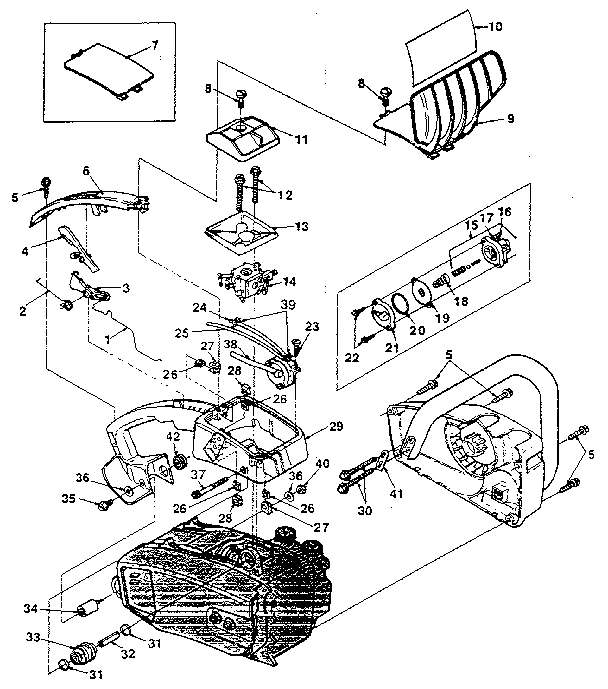

Figure 1 diagram

Cover

Part #95089

The manufacturer no longer makes this part, and there's no substitute part

Crankshaft A-96752
#15

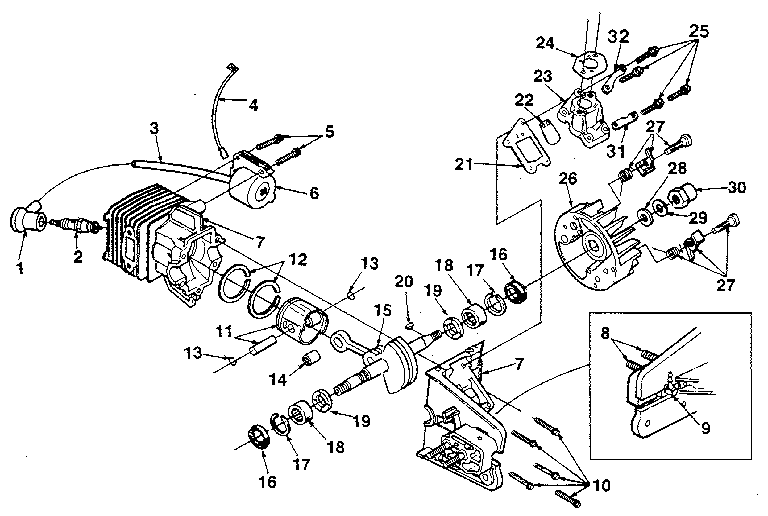

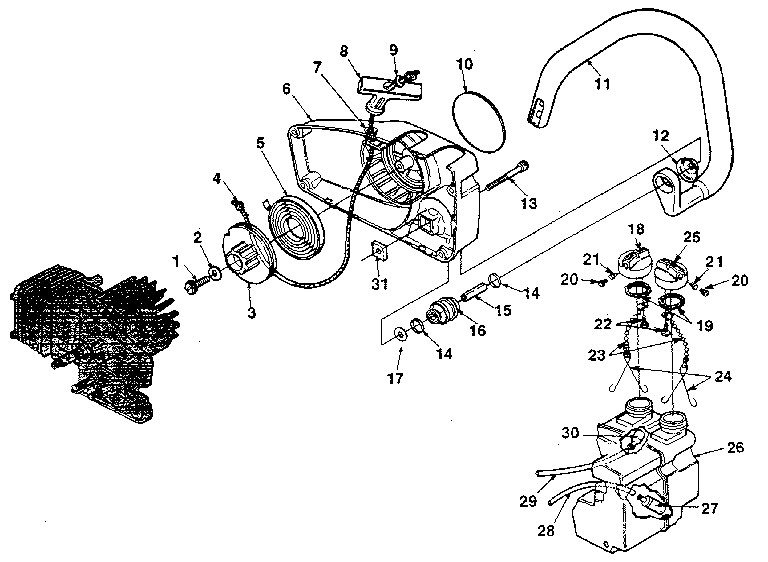

Figure 4 diagram

Crankshaft

Part #A-96752

The manufacturer no longer makes this part, and there's no substitute part

Compound 23488-C

#NI

All parts diagram

Compound

Part #23488-C

The manufacturer no longer makes this part, and there's no substitute part

Screw 97605
#35

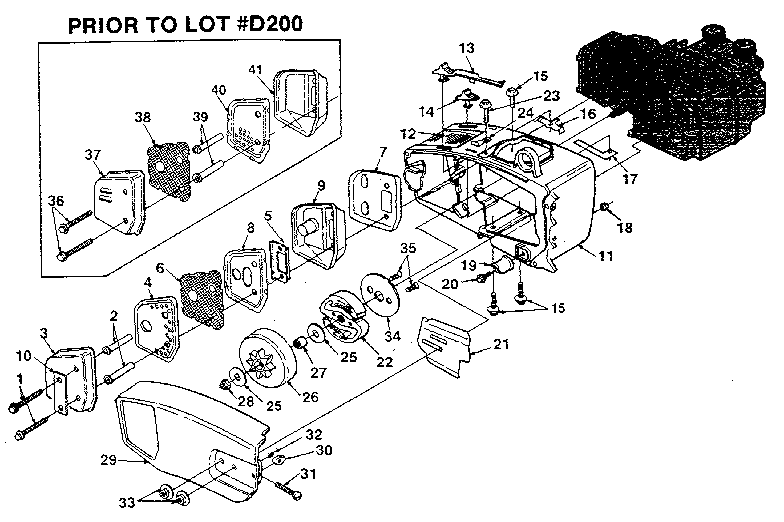

Figure 2 diagram

Screw

Part #97605

The manufacturer no longer makes this part, and there's no substitute part

Cord 68848

#NI

All parts diagram

Cord

Part #68848

The manufacturer no longer makes this part, and there's no substitute part

Chamber 95069
#29

Figure 1 diagram

Chamber

Part #95069

The manufacturer no longer makes this part, and there's no substitute part

Cap 94887-1
#3

Figure 2 diagram

Cap

Part #94887-1

The manufacturer no longer makes this part, and there's no substitute part

Ring 70432-A
Ring

Part #70432-A

The manufacturer no longer makes this part, and there's no substitute part

Cover 69915-1
#34

Figure 2 diagram

Cover

Part #69915-1

The manufacturer no longer makes this part, and there's no substitute part
