Amana
Electric Cooktop

Model # CAK2H30E2-P1131583NE Official Amana electric surface unit

Here are the diagrams and repair parts for Official Amana CAK2H30E2-P1131583NE electric surface unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Cleaner, Coo 0314274
#999E

Miscellaeous information diagram

Cleaner, coo

Part #0314274

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 0314274. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Machine Screw 0041768
#10

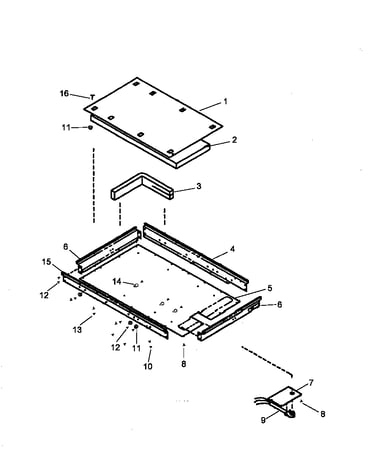

Heater box assy diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Element, Dua 0314899
#29

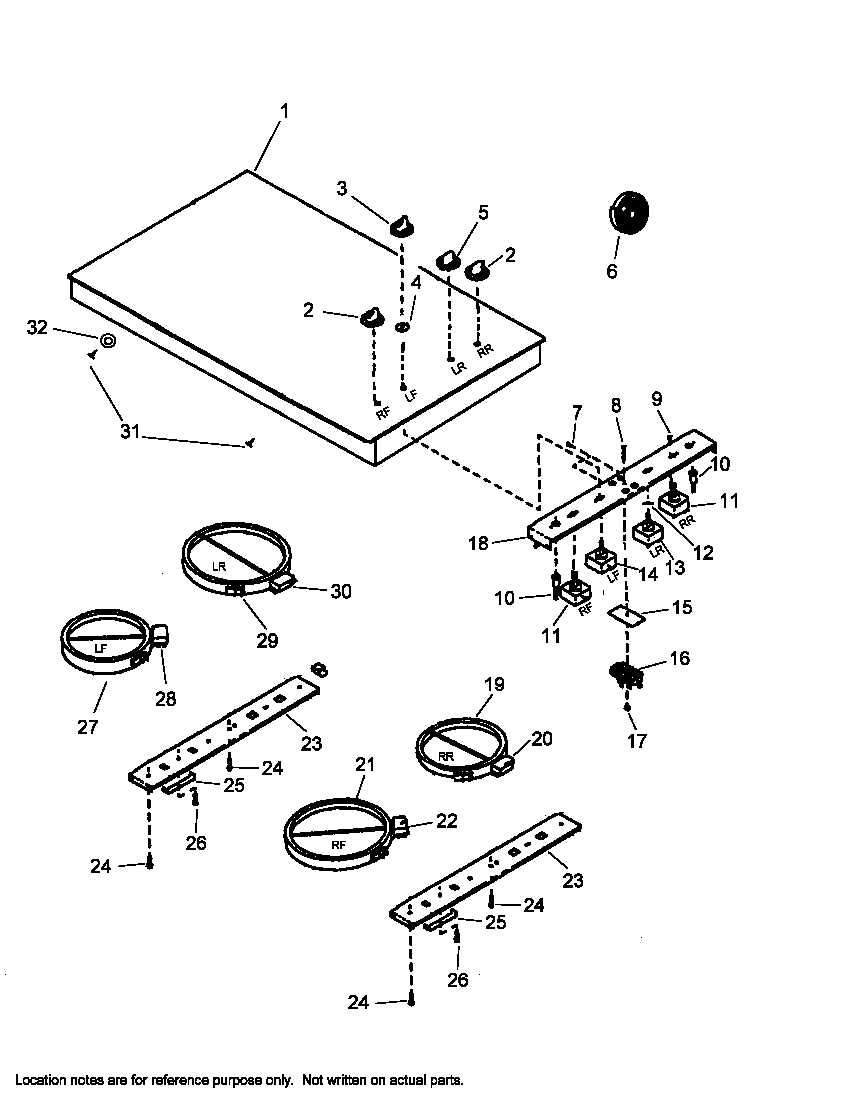

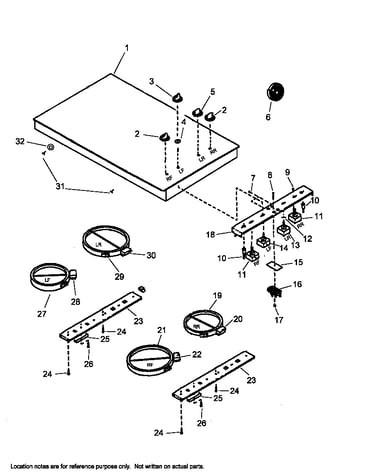

Cooktop assy diagram

Element, dua

Part #0314899

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0314899. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Screw M0216703
#8

Heater box assy diagram

Screw

Part #M0216703

This item is not returnable
$3.40
In Stock
Infinite Knob 314488B
#3

Cooktop assy diagram

Infinite knob

Part #314488B

Replaced by #WP31760601B

?
Manufacturer substitution
This part replaces 314488B. Substitute parts can look different from the original.
$38.84
In Stock
Screw 0041809
Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Element 0307433
#21

Cooktop assy diagram

Element

Part #0307433

The manufacturer no longer makes this part, and there's no substitute part

End Heater Box 307476B
#6

Heater box assy diagram

End heater box

Part #307476B

The manufacturer no longer makes this part, and there's no substitute part

Indictr Lgt 0307458
#10

Cooktop assy diagram

Indictr lgt

Part #0307458

The manufacturer no longer makes this part, and there's no substitute part

Safety Scraper 0314434
#999F

Miscellaeous information diagram

Safety scraper

Part #0314434

The manufacturer no longer makes this part, and there's no substitute part
