Model # WM3770HWA/00 Official LG washer

Here are the diagrams and repair parts for Official LG WM3770HWA-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

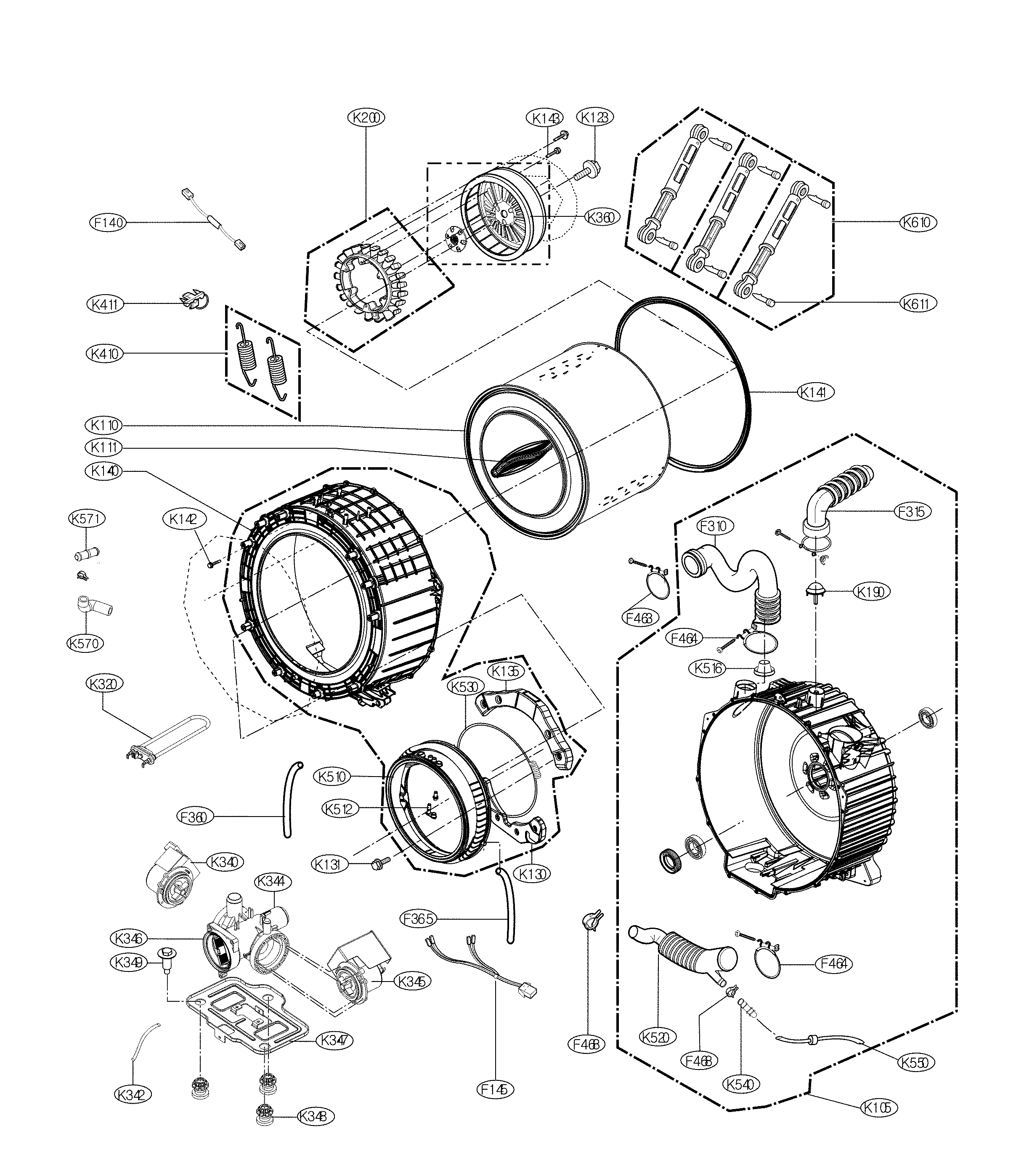

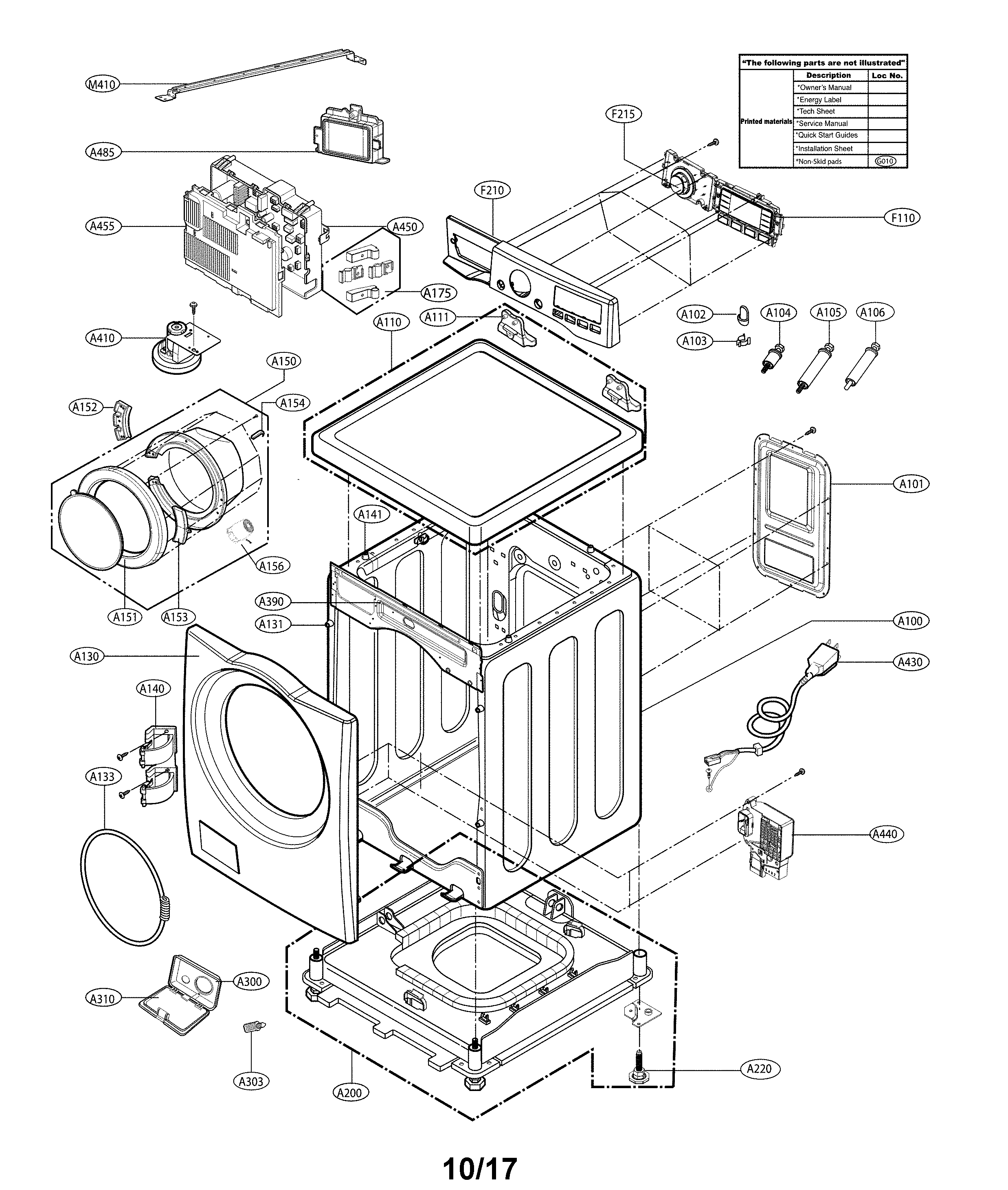

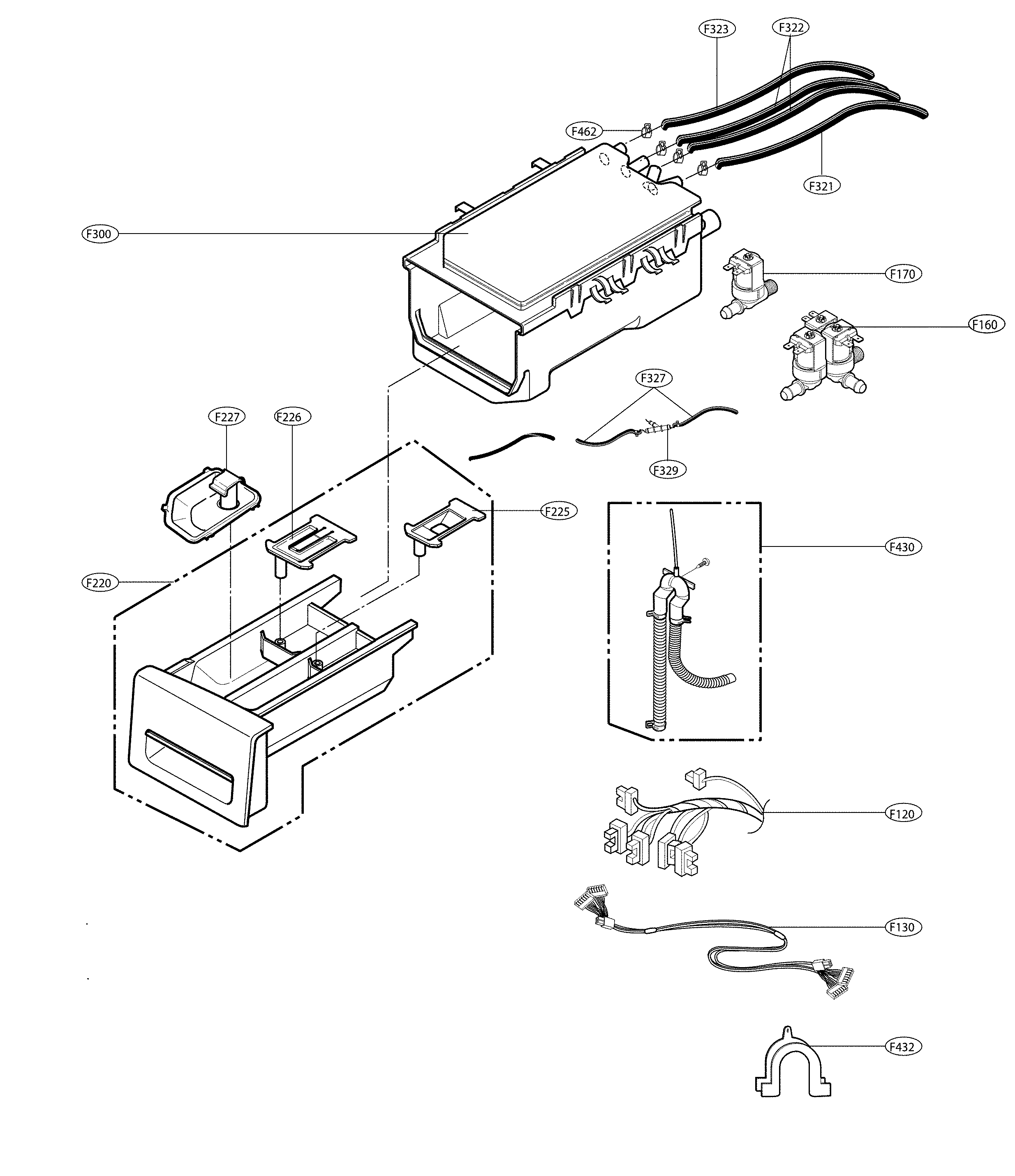

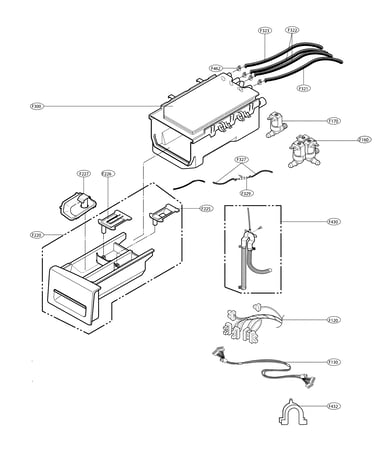

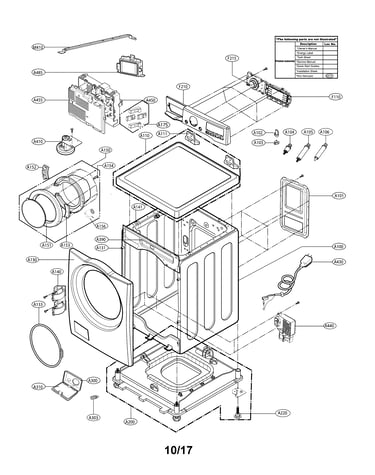

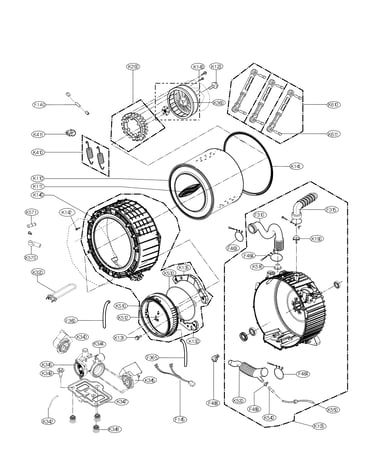

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |

Washer Water Inlet Valve (replaces 5221er1003a, Agm73269503) 5220FR2075L

#F160

All parts diagram

Washer water inlet valve (replaces 5221er1003a, agm73269503)

Part #5220FR2075L

BEST SELLER
$63.59
9% OFF Phone Price : $69.59
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H

#F170

All parts diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53
23% OFF Phone Price : $26.53
In Stock
Washer Door Lock Spring Holder MEG61961401

#A156

All parts diagram

Washer door lock spring holder

Part #MEG61961401

Replaced by #AGM73610701

?
Manufacturer substitution
This part replaces MEG61961401. Substitute parts can look different from the original.
BEST SELLER
$23.70
20% OFF Phone Price : $29.70
In Stock
Washer Door Lock EBF61315802

#A440

All parts diagram

Washer door lock

Part #EBF61315802

BEST SELLER
$92.28
6% OFF Was : $98.17
In Stock
Washer Shock Absorber (replaces Acv72909501) ACV72909503

#K610

All parts diagram

Washer shock absorber (replaces acv72909501)

Part #ACV72909503

BEST SELLER
$31.86
16% OFF Phone Price : $37.86
In Stock
Washer Door Lock Strike MFG63099101

#A154

All parts diagram

Washer door lock strike

Part #MFG63099101

BEST SELLER
$20.47
23% OFF Phone Price : $26.47
In Stock
Washer Door Boot Spring Clamp, Outer (replaces 4861en3004j) 4861ER2001J

#K530

All parts diagram

Washer door boot spring clamp, outer (replaces 4861en3004j)

Part #4861ER2001J

BEST SELLER
$21.49
22% OFF Phone Price : $27.49
In Stock
Clamp Assembly 4861EN3004L

#A133

All parts diagram

Clamp assembly

Part #4861EN3004L

Replaced by #ACA56078801

?
Manufacturer substitution
This part replaces 4861EN3004L. Substitute parts can look different from the original.
BEST SELLER
$17.25
10% OFF Phone Price : $19.25
In Stock
Washer Dispenser Hose 4738ER1004B

#F310

All parts diagram

Washer dispenser hose

Part #4738ER1004B

BEST SELLER
$29.54
17% OFF Phone Price : $35.54
In Stock
Washer Drain Hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, Aem73773301) 5215ER2002G

#F430

All parts diagram

Washer drain hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, aem73773301)

Part #5215ER2002G

BEST SELLER
$37.31
14% OFF Phone Price : $43.31
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
