Model # ED258K6A Official White-Westinghouse dehumidifier - lw34590010

Here are the diagrams and repair parts for Official White-Westinghouse ED258K6A dehumidifier - lw34590010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 45 parts |

#13

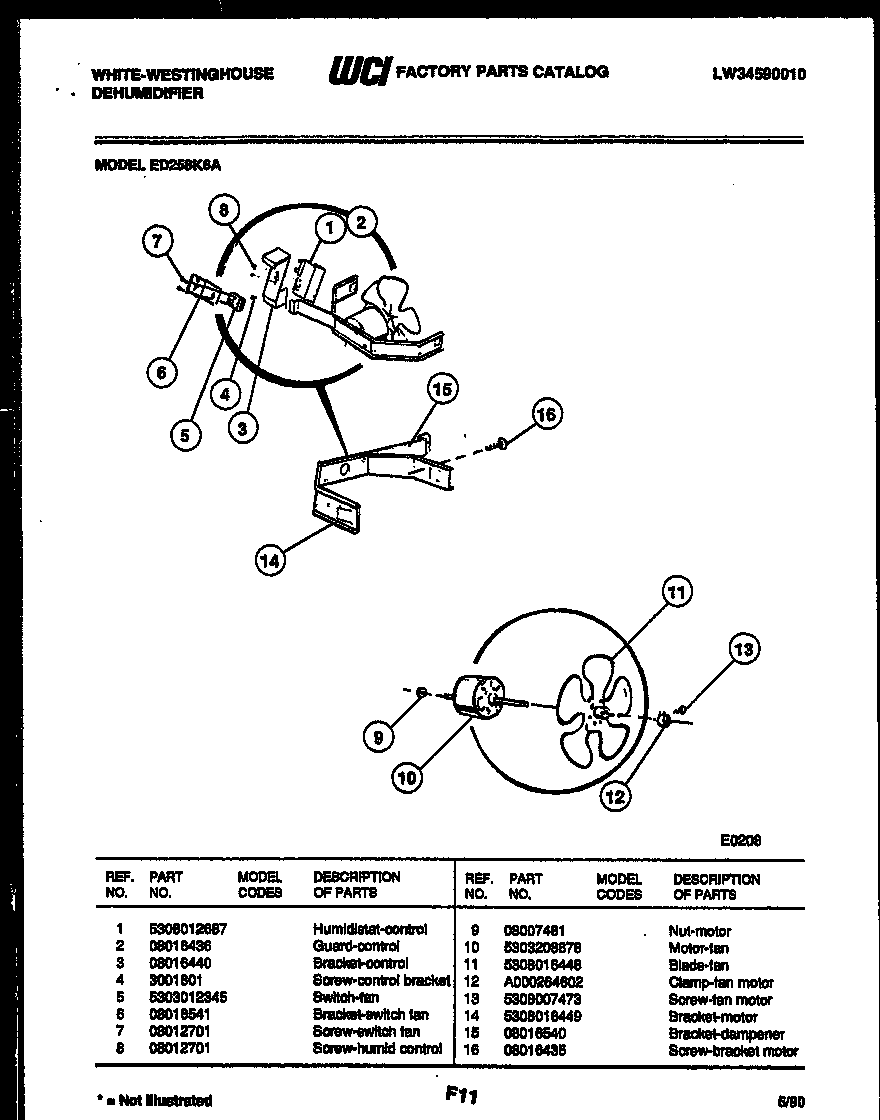

Air control parts diagram

Screw

Part #5308007473

Replaced by #5304455651

$13.26

In Stock

Qty

Screw

Part #08016435

This item is not returnable

$2.16

In Stock

Qty

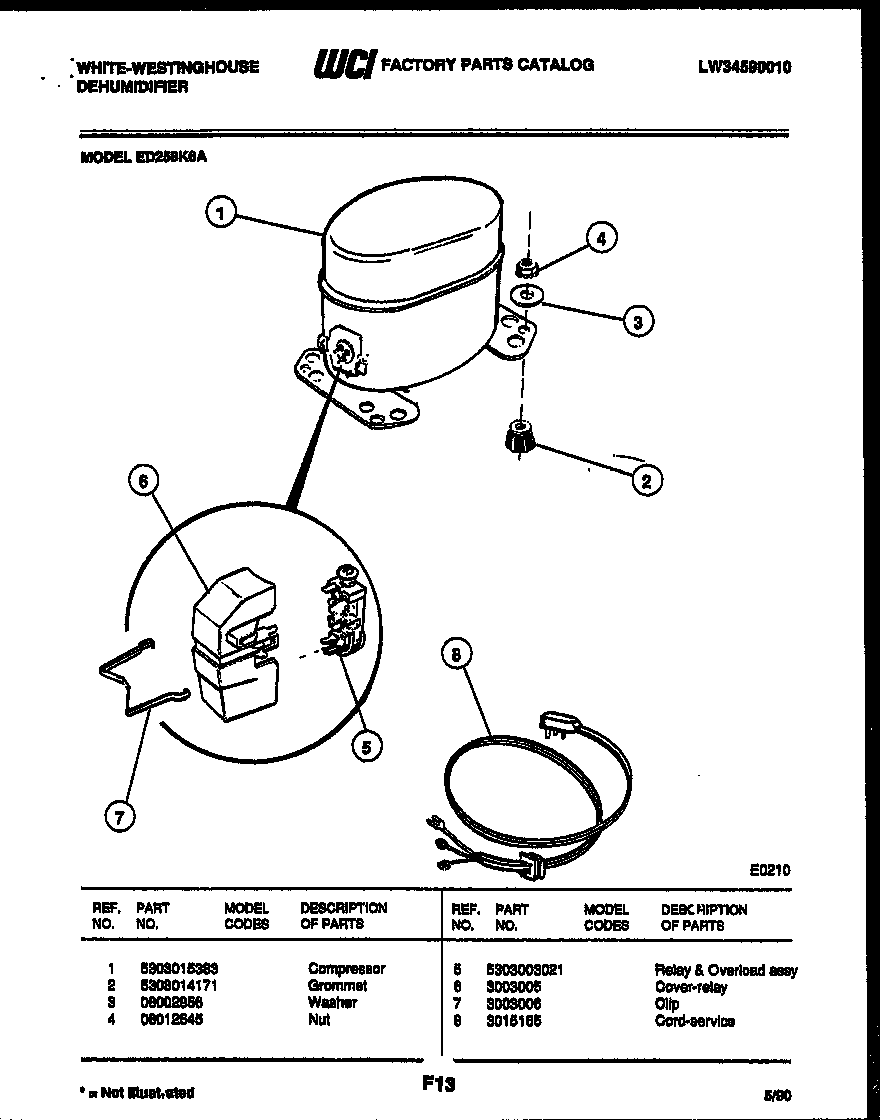

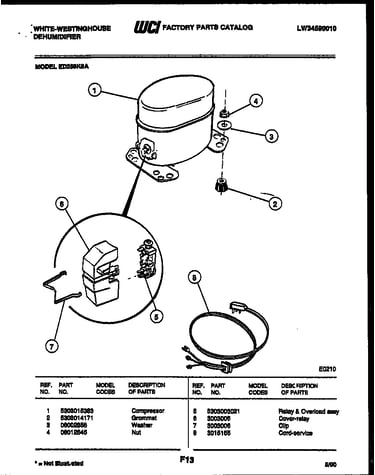

Compressor parts diagram

Compressor

Part #5303015383

$201.99

In Stock

Qty

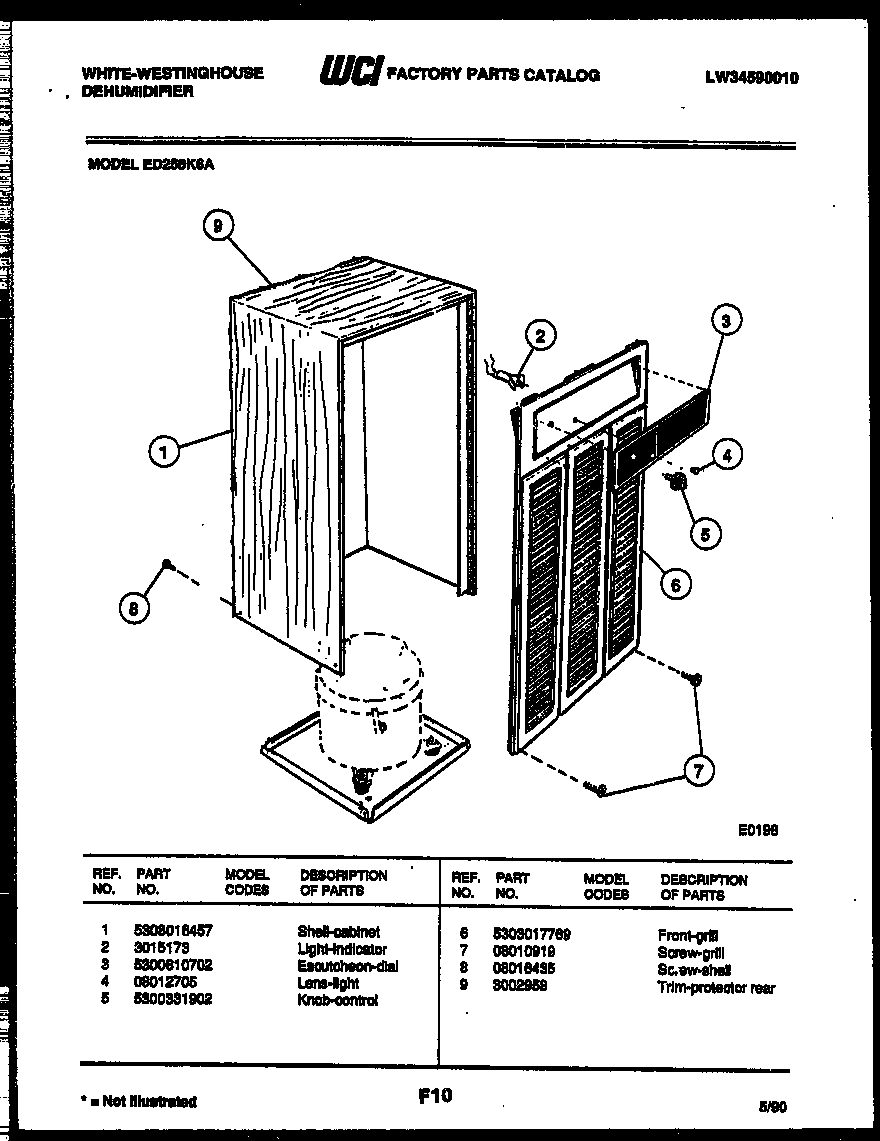

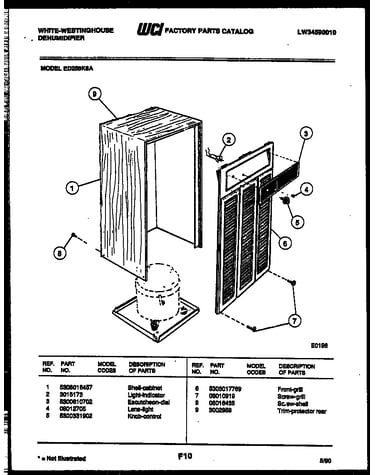

Cabinet parts diagram

Plate dial

Part #5300810702

$7.99

In Stock

Qty

Air control parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable

$5.74

In Stock

Qty

Air control parts diagram

Switch

Part #5303012345

$39.35

In Stock

Qty

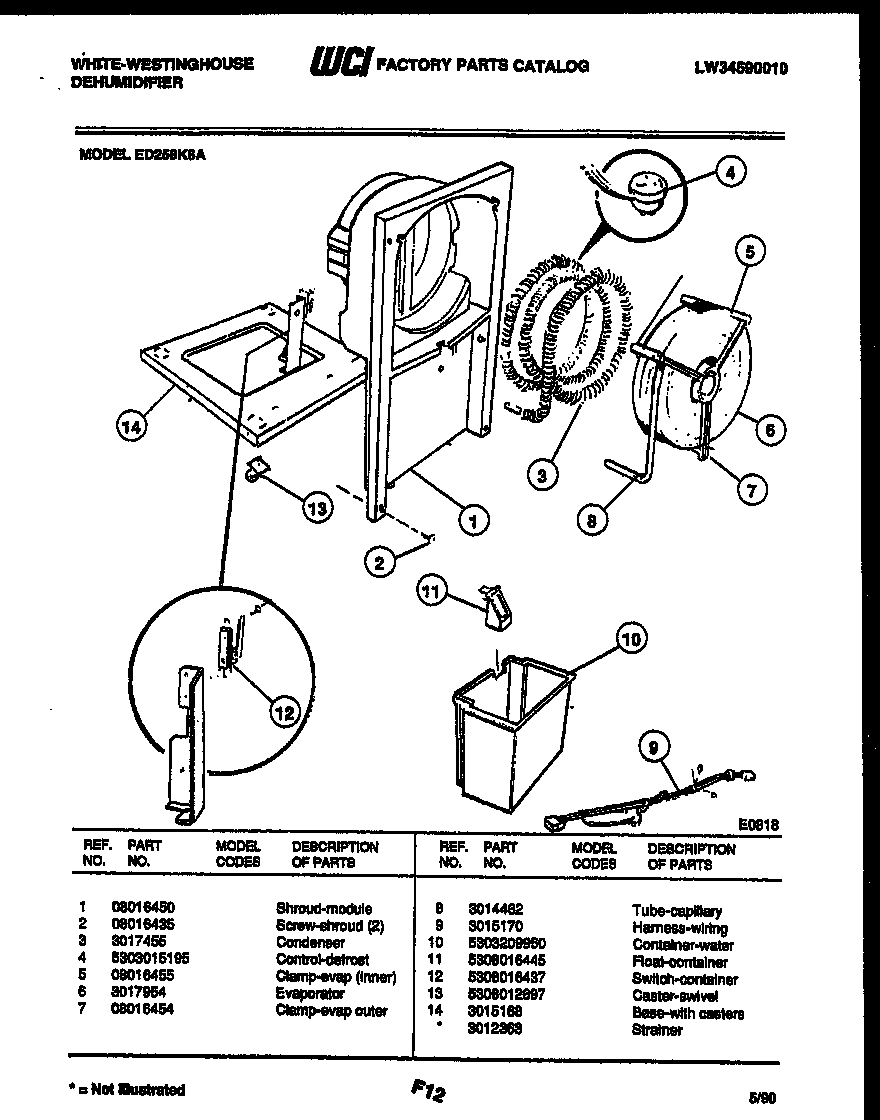

Water and condensing parts diagram

Guard shroud

Part #08016450

The manufacturer no longer makes this part, and there's no substitute part

Air control parts diagram

Bracket

Part #08016440

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Trim

Part #3002958

The manufacturer no longer makes this part, and there's no substitute part

Air control parts diagram

Humd cntrl

Part #5308012687

The manufacturer no longer makes this part, and there's no substitute part
