Model # JKP45WT2WW Official GE electric wall oven
Here are the diagrams and repair parts for Official GE JKP45WT2WW electric wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JKP45WT2WW Wall Ovens
#253

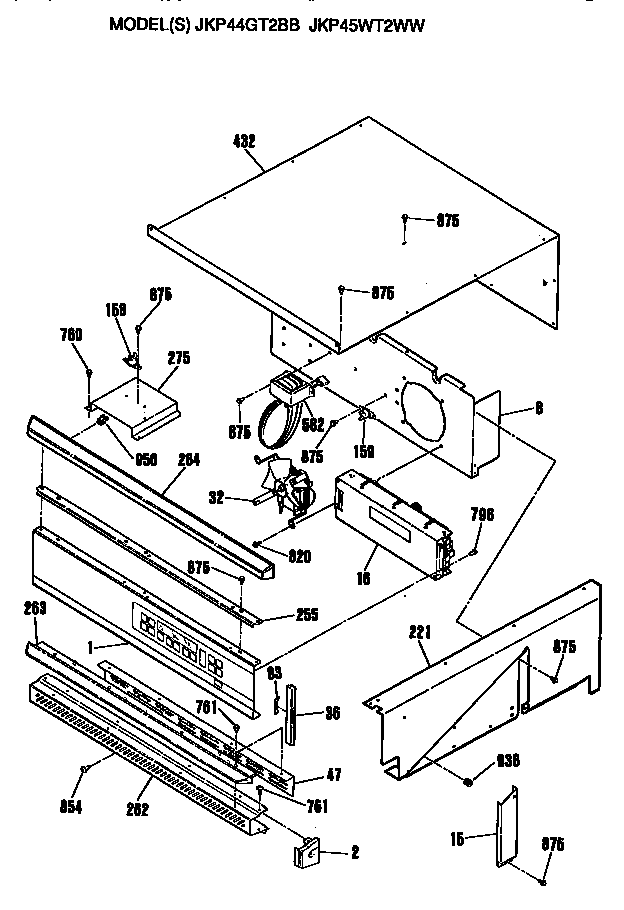

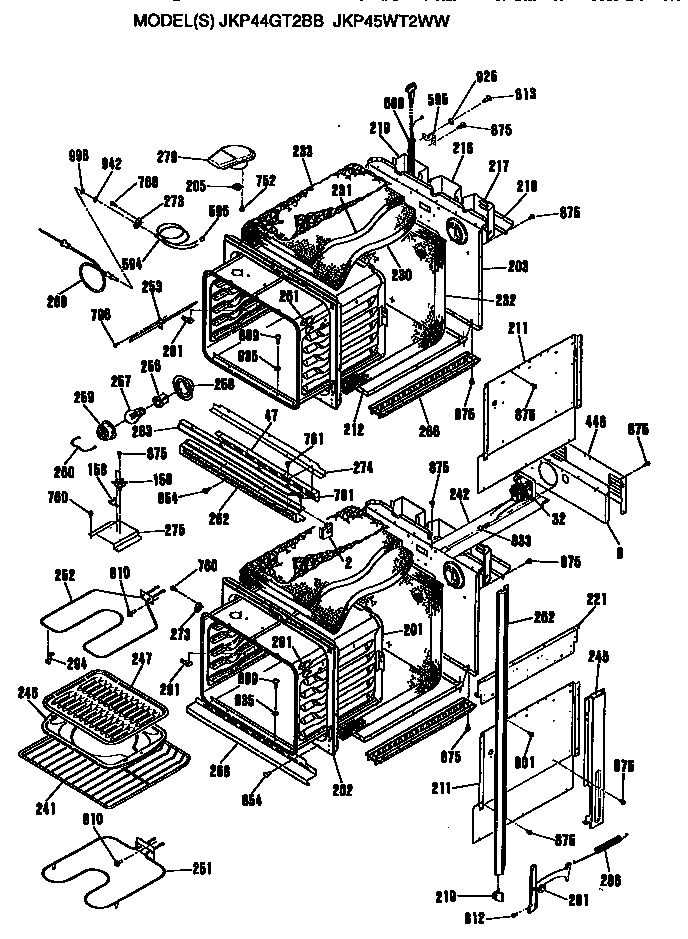

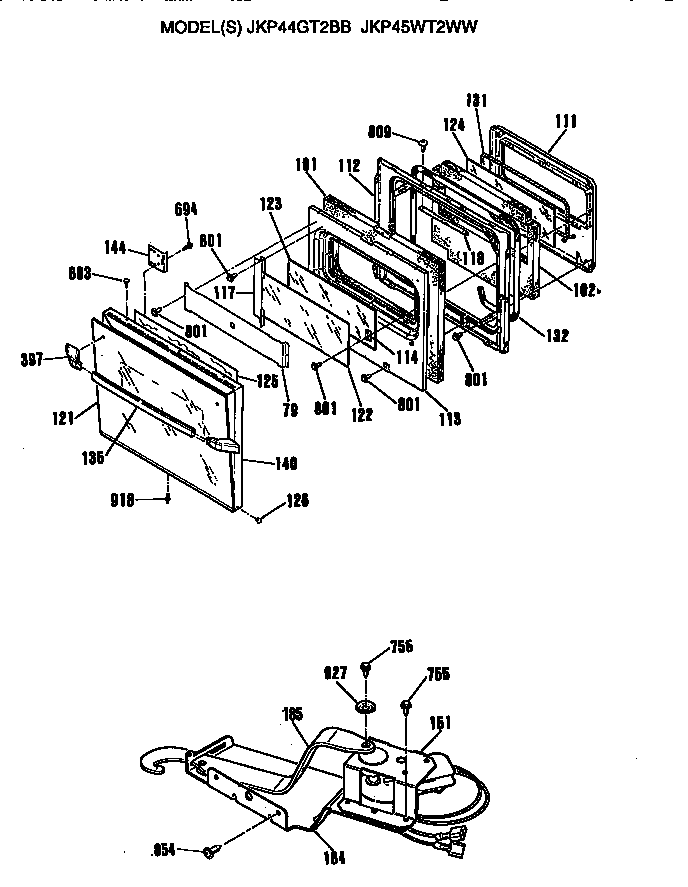

All parts diagram
Sensor
Part #WB20X106
Replaced by #WB21X5301
?
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
$176.02 |
6% OFF Phone Price : $188.02
In Stock
#252
All parts diagram
G.e. range broil element
Part #WB44K5009
$73.97 |
8% OFF Phone Price : $79.97
In Stock
#251
All parts diagram
G.e. range bake element (replaces 347753, wb44k5008)
Part #WB44K5013
$76.05 |
7% OFF Phone Price : $82.05
In Stock
#280
All parts diagram
Range oven meat probe sensor (replaces wb20k5034, wb20x5034, wb20x5064)
Part #WB20X5050
The manufacturer no longer makes this part, and there's no substitute part
#259
All parts diagram
Lamp cover
Part #WB36X389
Replaced by #WB36X192
?
Manufacturer substitution
This part replaces WB36X389. Substitute parts can look different from the original.
This item is not returnable
$13.58 |
13% OFF Phone Price : $15.58
In Stock
#810
All parts diagram
Screw-10-32
Part #WB1X1253
Replaced by #WB1X1130
?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$9.16 |
10% OFF Phone Price : $10.16
In Stock
#801
All parts diagram
Screw-4-pk
Part #WB1M01
Replaced by #WB1M1
?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$7.17 |
12% OFF Phone Price : $8.17
In Stock
#241
All parts diagram
Oven rack
Part #WB48K5006
Replaced by #WB48T10093
?
Manufacturer substitution
This part replaces WB48K5006. Substitute parts can look different from the original.
$72.53 |
8% OFF Phone Price : $78.53
In Stock
#761
All parts diagram
Range screw
Part #WB1K5062
This item is not returnable
$9.16 |
10% OFF Phone Price : $10.16
In Stock
#131
All parts diagram
Range oven door gasket (replaces wb02x9168, wb2x9381)
Part #WB2X9168
This item is not returnable
$14.24 |
12% OFF Phone Price : $16.24
In Stock
