Model # ZHU36RDP2BB Official GE electric range

Here are the diagrams and repair parts for Official GE ZHU36RDP2BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

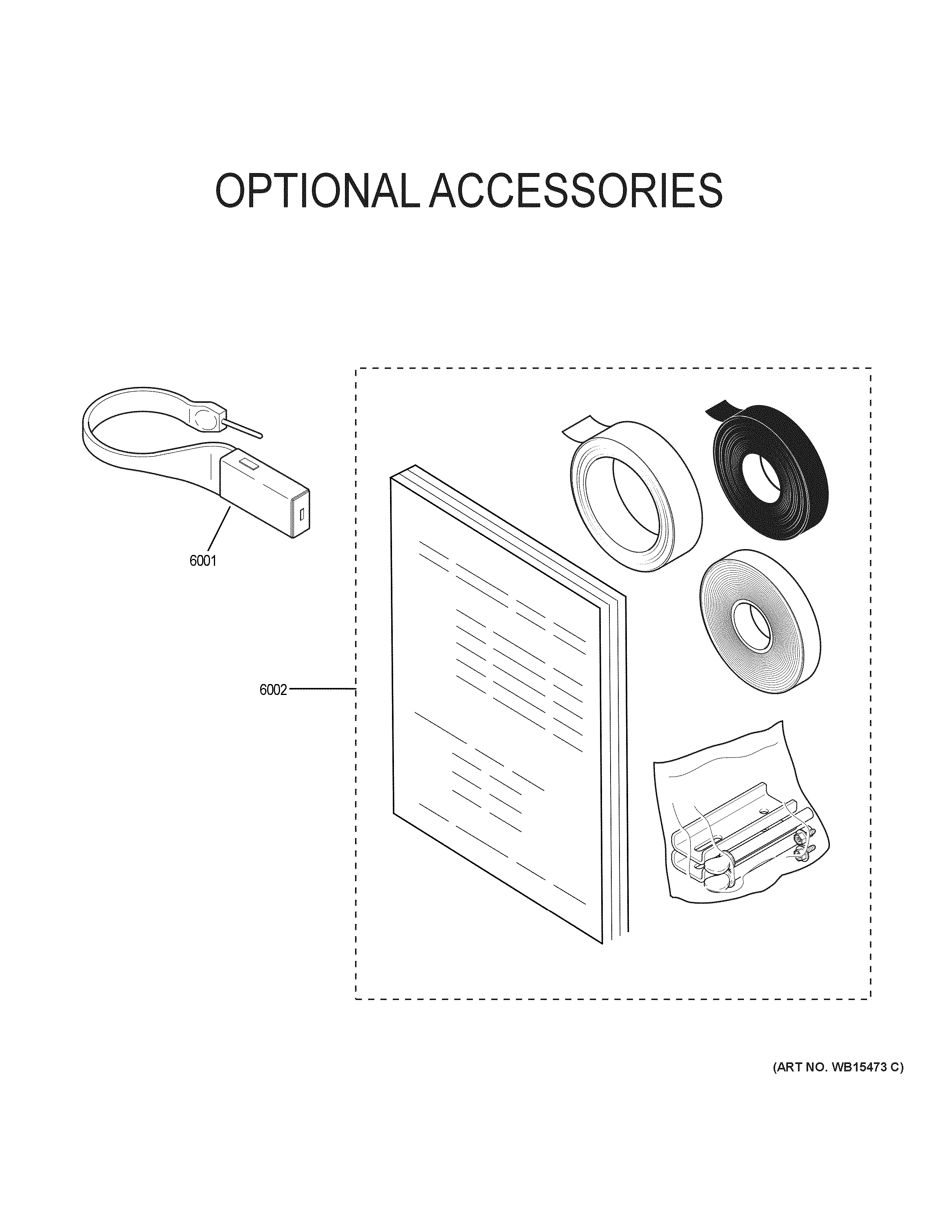

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Element Induction 2500w WB30X38226
#12

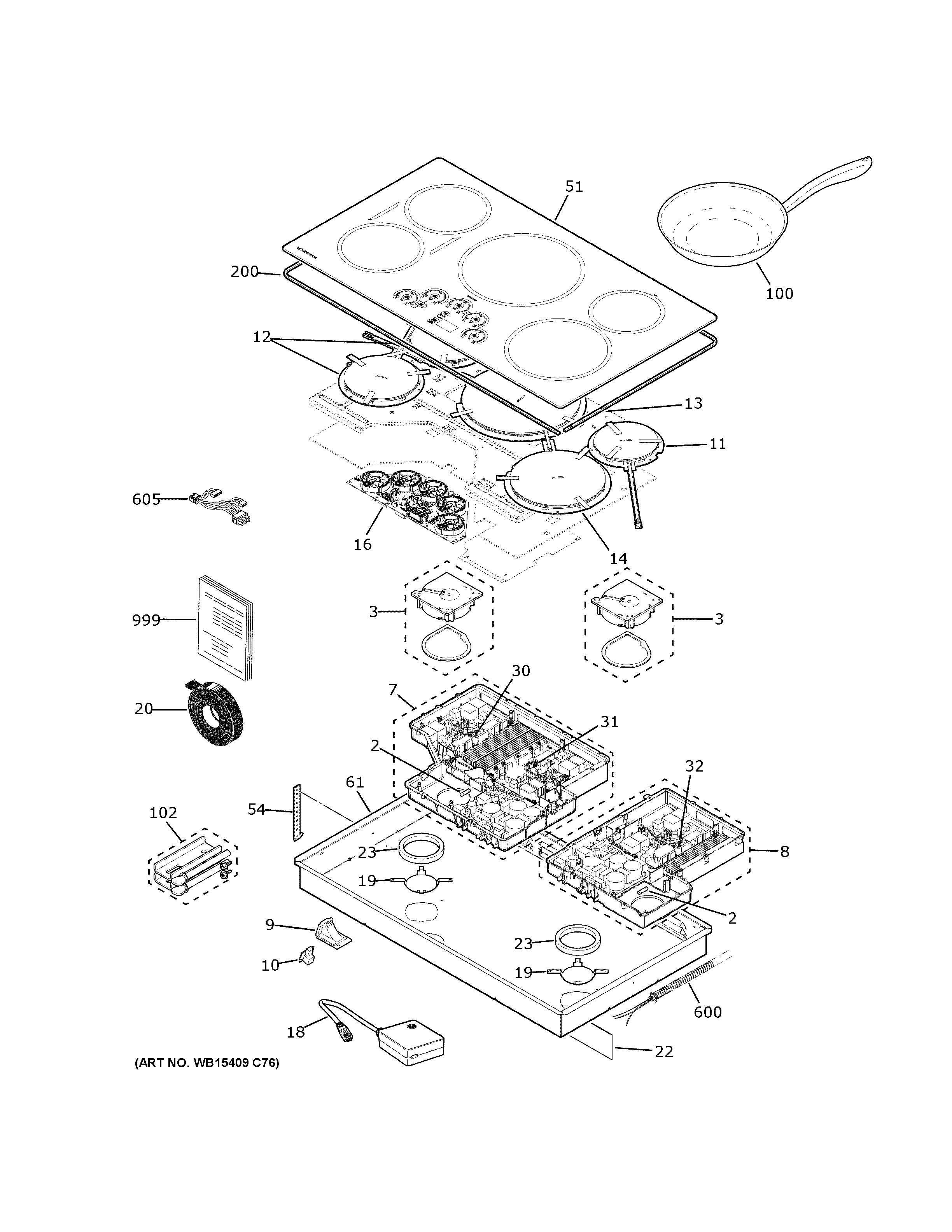

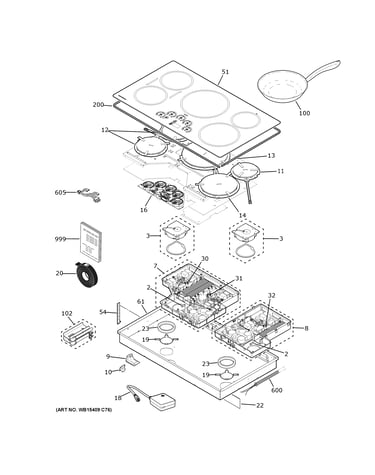

Control panel & cooktop diagram

Element induction 2500w

Part #WB30X38226

$100.60
In Stock
Element Induction 3700w WB30X38227
#13

Control panel & cooktop diagram

Element induction 3700w

Part #WB30X38227

$111.10
In Stock
Tub Insulation WB35X24125
#200

Control panel & cooktop diagram

Tub insulation

Part #WB35X24125

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Baffle WB02X26802
#22

Control panel & cooktop diagram

Baffle

Part #WB02X26802

$58.85 |
9% OFF Phone Price : $64.85
In Stock
Conduit Wire Asm WB18X31555
#600

Control panel & cooktop diagram

Conduit wire asm

Part #WB18X31555

$109.84
In Stock
Induction Assembly WB27X42895
#7

Control panel & cooktop diagram

Induction assembly

Part #WB27X42895

$616.00
In Stock
Cooktop Main Top Seal (replaces Wb2x9902) WB02X26088
#20

Control panel & cooktop diagram

Cooktop main top seal (replaces wb2x9902)

Part #WB02X26088

$51.24 |
10% OFF Phone Price : $57.24
In Stock
Hestan Module Asm (replaces Wb27x32243) WB27X40326
#18

Control panel & cooktop diagram

Hestan module asm (replaces wb27x32243)

Part #WB27X40326

$144.06
In Stock
Generator Board Assembly Center WB27X42898
#31

Control panel & cooktop diagram

Generator board assembly center

Part #WB27X42898

$213.82
In Stock
