Angle Grinder

Model # DW840 TYPE 2 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DW840 TYPE 2 angle grinder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DW840 TYPE 2 Power Tools
Nameplate 657361-00
#821

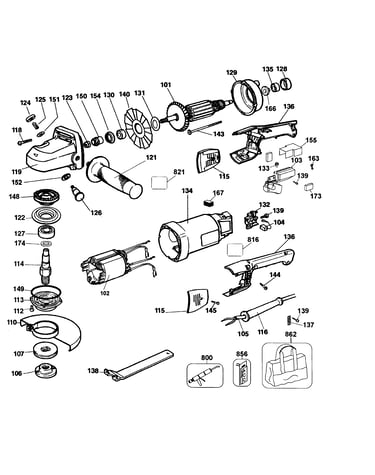

Grinder assy diagram

Nameplate

Part #657361-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ball Bearing 605040-03
#135

Grinder assy diagram

Craftsman ball bearing

Part #605040-03

This item is not returnable
In Stock
Cord Clamp 930103-00
#137

Grinder assy diagram

Cord clamp

Part #930103-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Side Handle N239381
#121

Grinder assy diagram

Angle grinder side handle

Part #N239381

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Screw 562097-00
#139

Grinder assy diagram

Angle grinder screw

Part #562097-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Spindle Lock 391018-00
#126

Grinder assy diagram

Angle grinder spindle lock

Part #391018-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Cutting Wheel Flange, Outer 390426-00
#106

Grinder assy diagram

Angle grinder cutting wheel flange, outer

Part #390426-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 930753-00
#131

Grinder assy diagram

Washer

Part #930753-00

The manufacturer no longer makes this part, and there's no substitute part

Pad 620051-00
#173

Grinder assy diagram

Pad

Part #620051-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Motor Rotor Assembly 402875-10
#101

Grinder assy diagram

Angle grinder motor rotor assembly

Part #402875-10

The manufacturer no longer makes this part, and there's no substitute part
