Model # EBU2X24BA1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EBU2X24BA1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Valve Txv 1174451
#4A

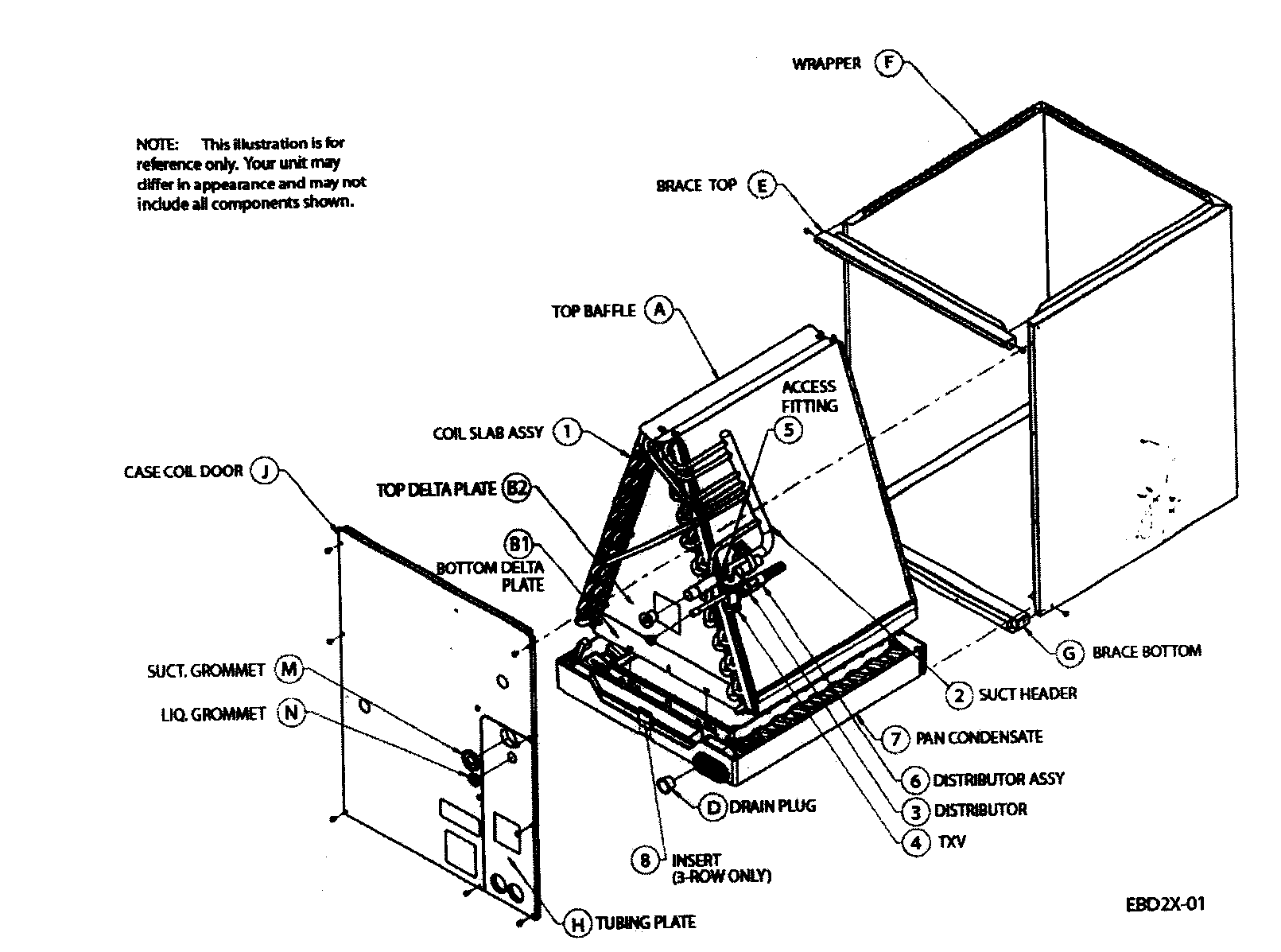

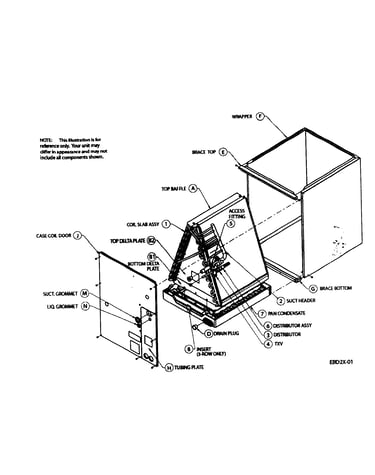

Cabinet parts diagram

Valve txv

Part #1174451

$201.24
In Stock
Fitting 1171507
#5

Cabinet parts diagram

Fitting

Part #1171507

This item is not returnable
$4.51
In Stock
Adapter 1085010
#D

Cabinet parts diagram

Adapter

Part #1085010

$10.20
In Stock
Grommet 1173157
#N

Cabinet parts diagram

Grommet

Part #1173157

This item is not returnable
$2.16
In Stock
Pan Conden 1173096
#7

Cabinet parts diagram

Pan conden

Part #1173096

$185.78
In Stock
Door Cased 1173225
#J

Cabinet parts diagram

Door cased

Part #1173225

The manufacturer no longer makes this part, and there's no substitute part

Deck, Front 1173207
#G

Cabinet parts diagram

Deck, front

Part #1173207

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate 1173104
#B1

Cabinet parts diagram

Bottom plate

Part #1173104

The manufacturer no longer makes this part, and there's no substitute part

Suct Hdr Asy 1173143
#2

Cabinet parts diagram

Suct hdr asy

Part #1173143

The manufacturer no longer makes this part, and there's no substitute part

Baffle Top 1173237
#A

Cabinet parts diagram

Baffle top

Part #1173237

The manufacturer no longer makes this part, and there's no substitute part
