GE
Gas Range

Model # JGS968SEK3SS Official GE gas range

Here are the diagrams and repair parts for Official GE JGS968SEK3SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 198 parts  |
Range Oven Burner Igniter WB13T10045
#316

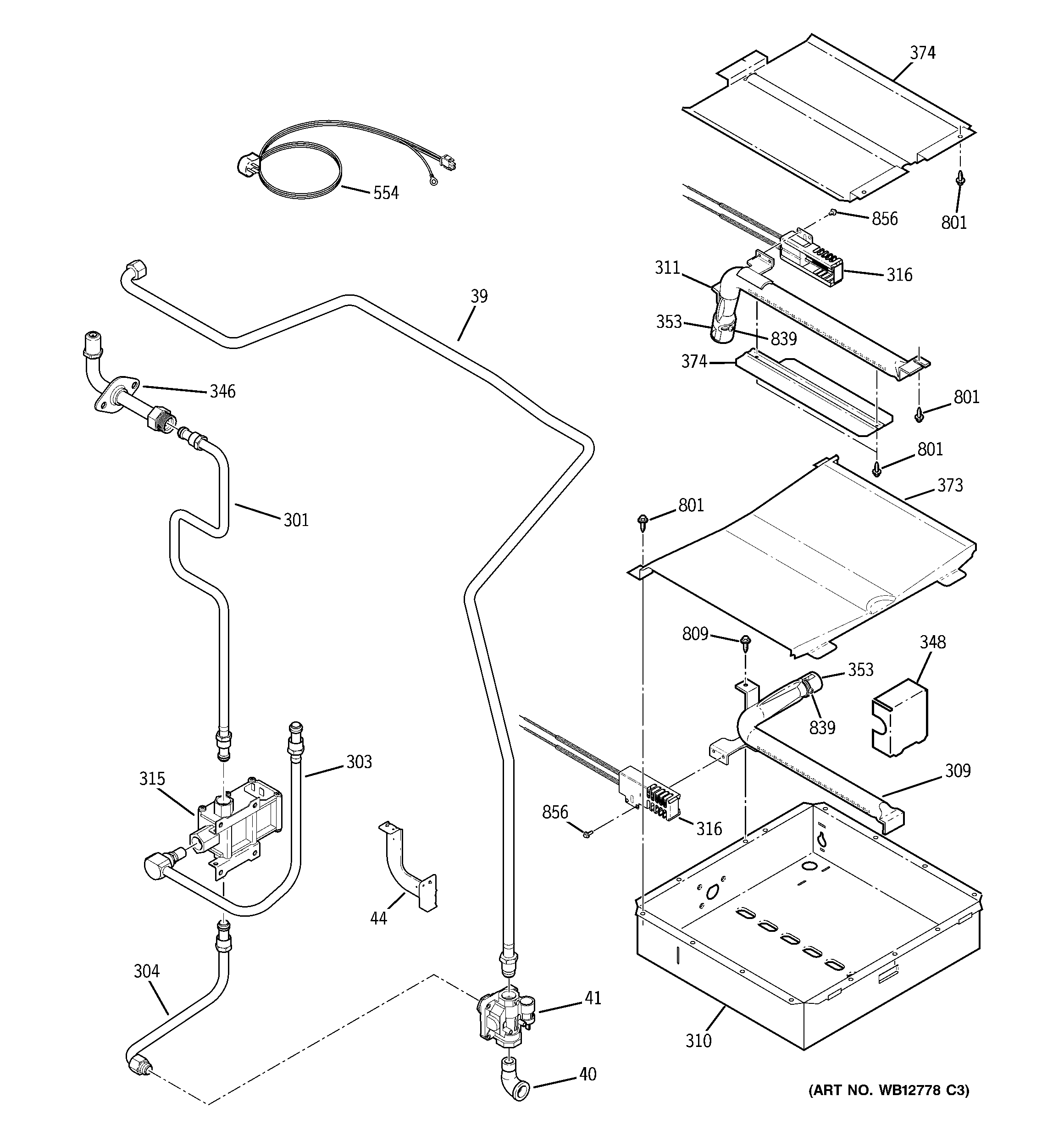

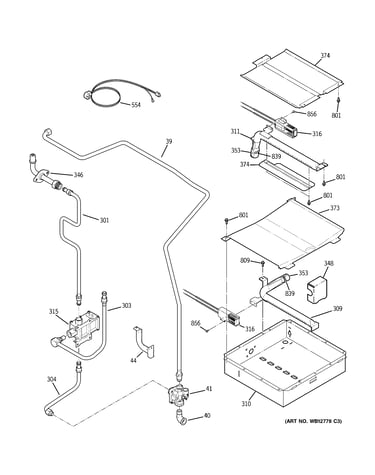

Gas & burner parts diagram

Range oven burner igniter

Part #WB13T10045

BEST SELLER
$114.38 |
9% OFF Phone Price : $126.38
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#977

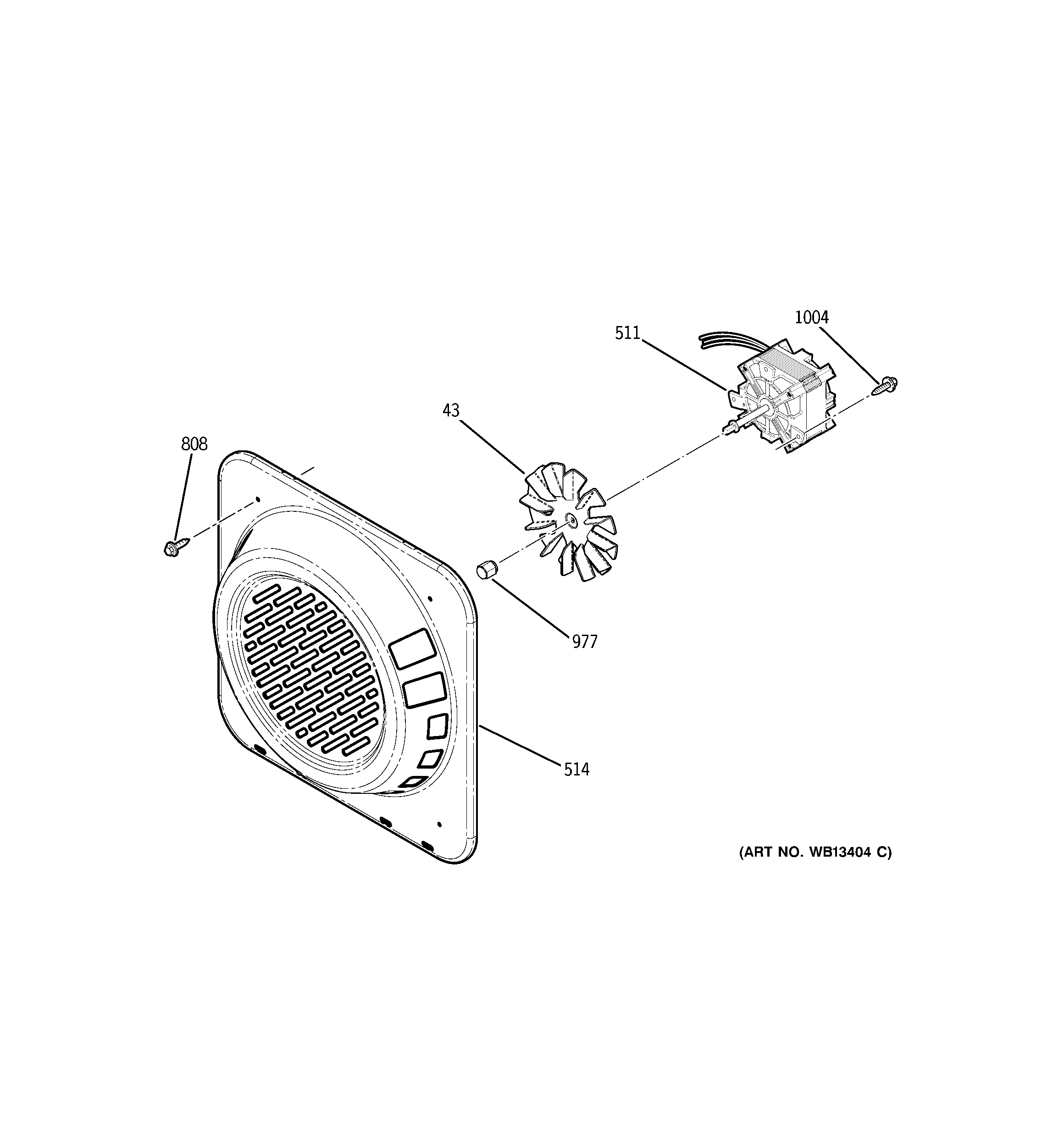

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Grate Rubber Foot WB02T10101
#45

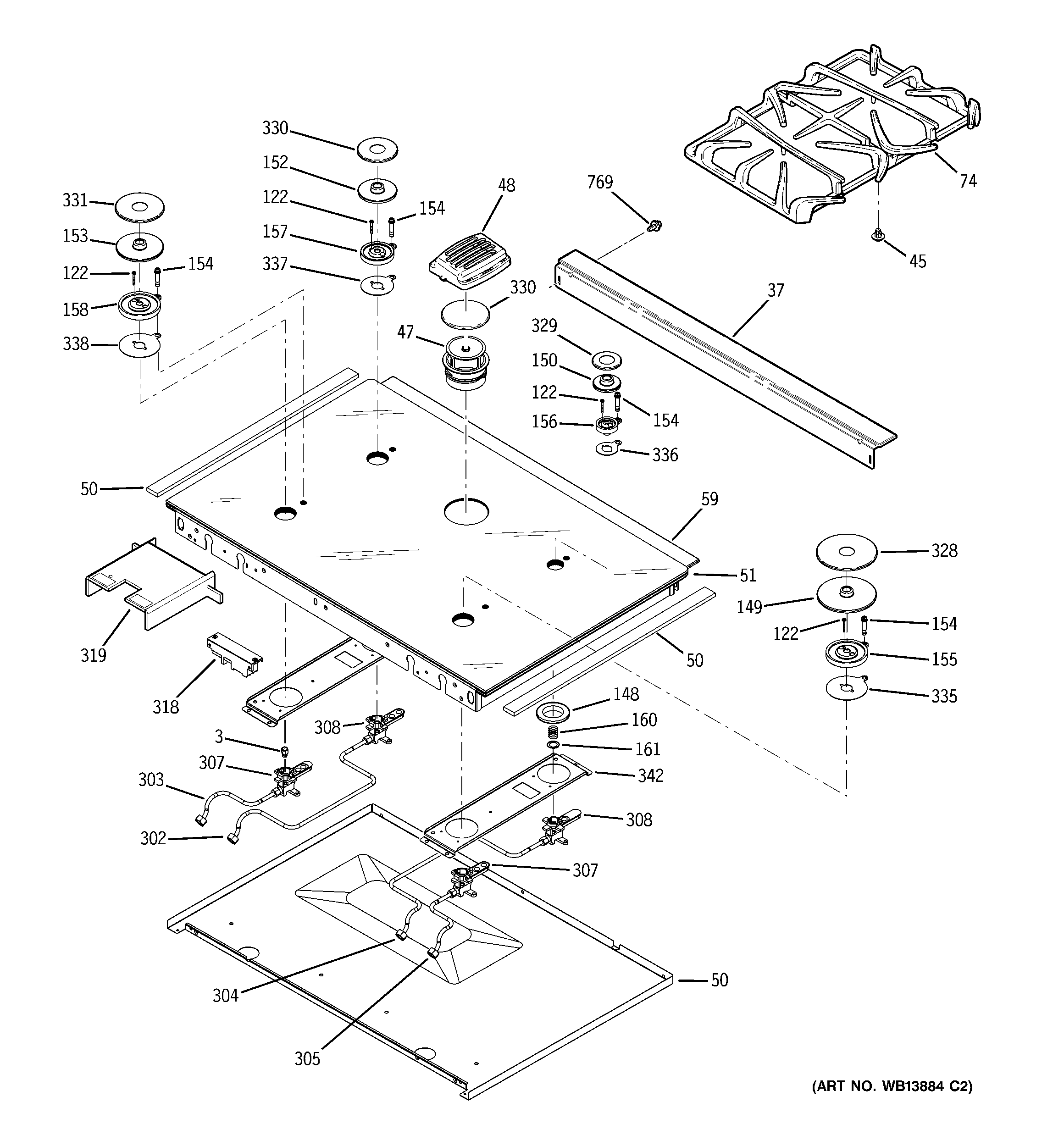

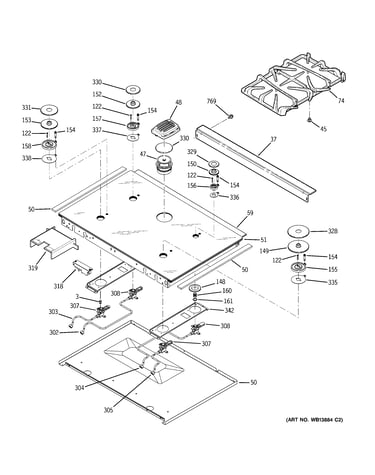

Cooktop diagram

Grate rubber foot

Part #WB02T10101

Replaced by #WB02T10461

?
Manufacturer substitution
This part replaces WB02T10101. Substitute parts can look different from the original.
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5150
#699

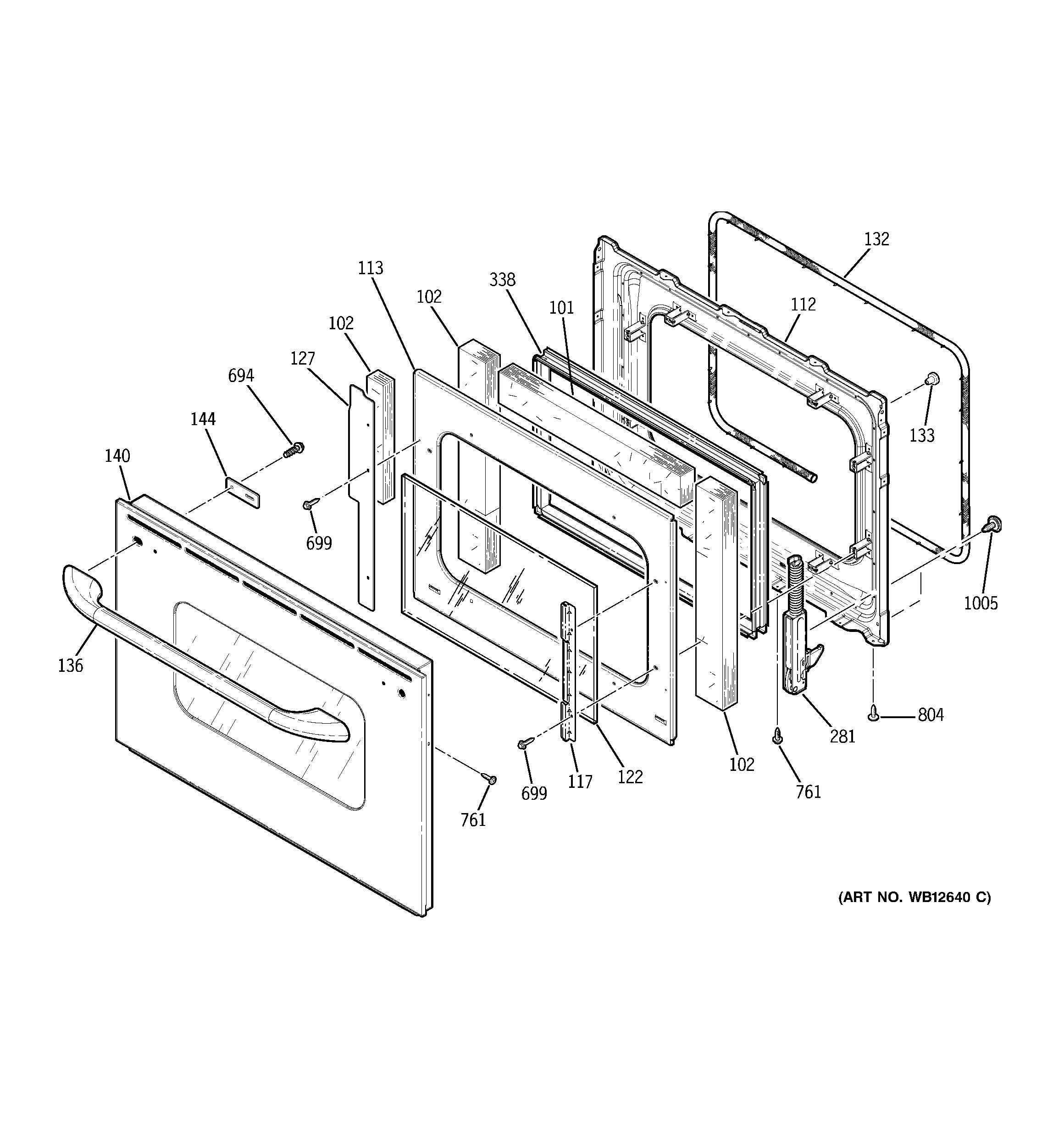

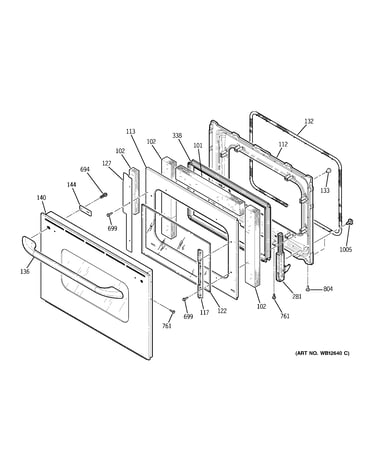

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Range Bake Burner WB16T10022
#309

Gas & burner parts diagram

Range bake burner

Part #WB16T10022

$53.70 |
10% OFF Phone Price : $59.70
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket WB04T10050
#132

Door diagram

Range oven door gasket

Part #WB04T10050

$48.78 |
11% OFF Phone Price : $54.78
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
