Model # MSZ-GE09NA-8 Official Mitsubishi split-type air conditioner

Here are the diagrams and repair parts for Official Mitsubishi MSZ-GE09NA-8 split-type air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Central Air Conditioner Electronic Control Board E12E79440
#12

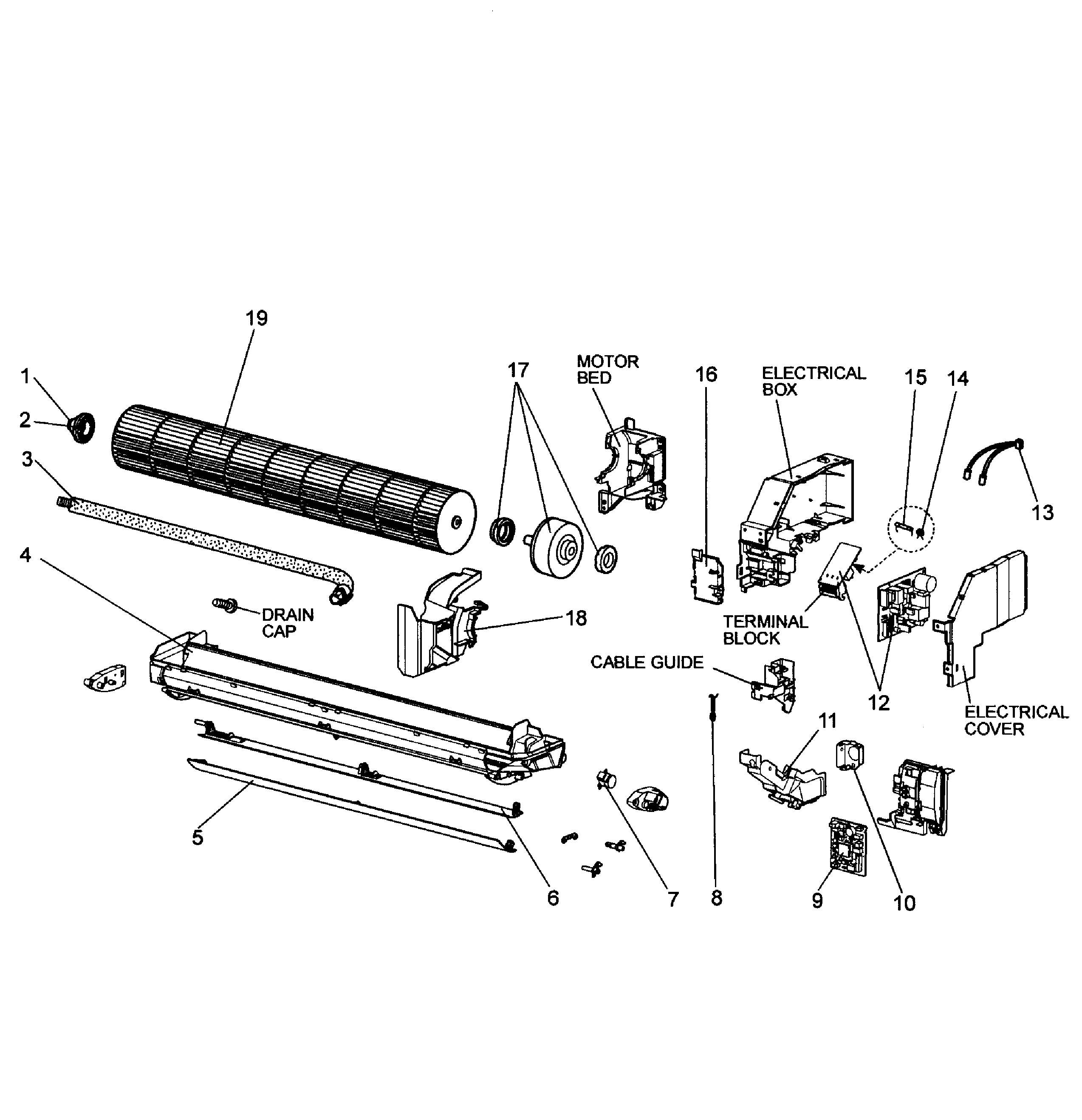

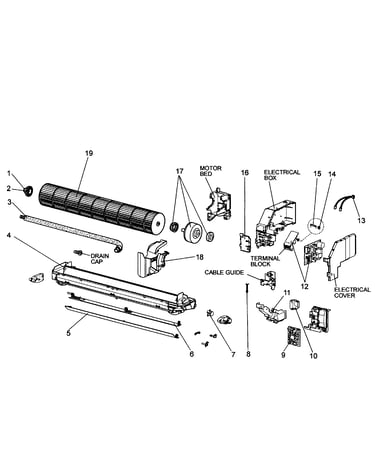

Fan assy diagram

Central air conditioner electronic control board

Part #E12E79440

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Anti-allergy Air Filter MAC-408FT-E
#NI

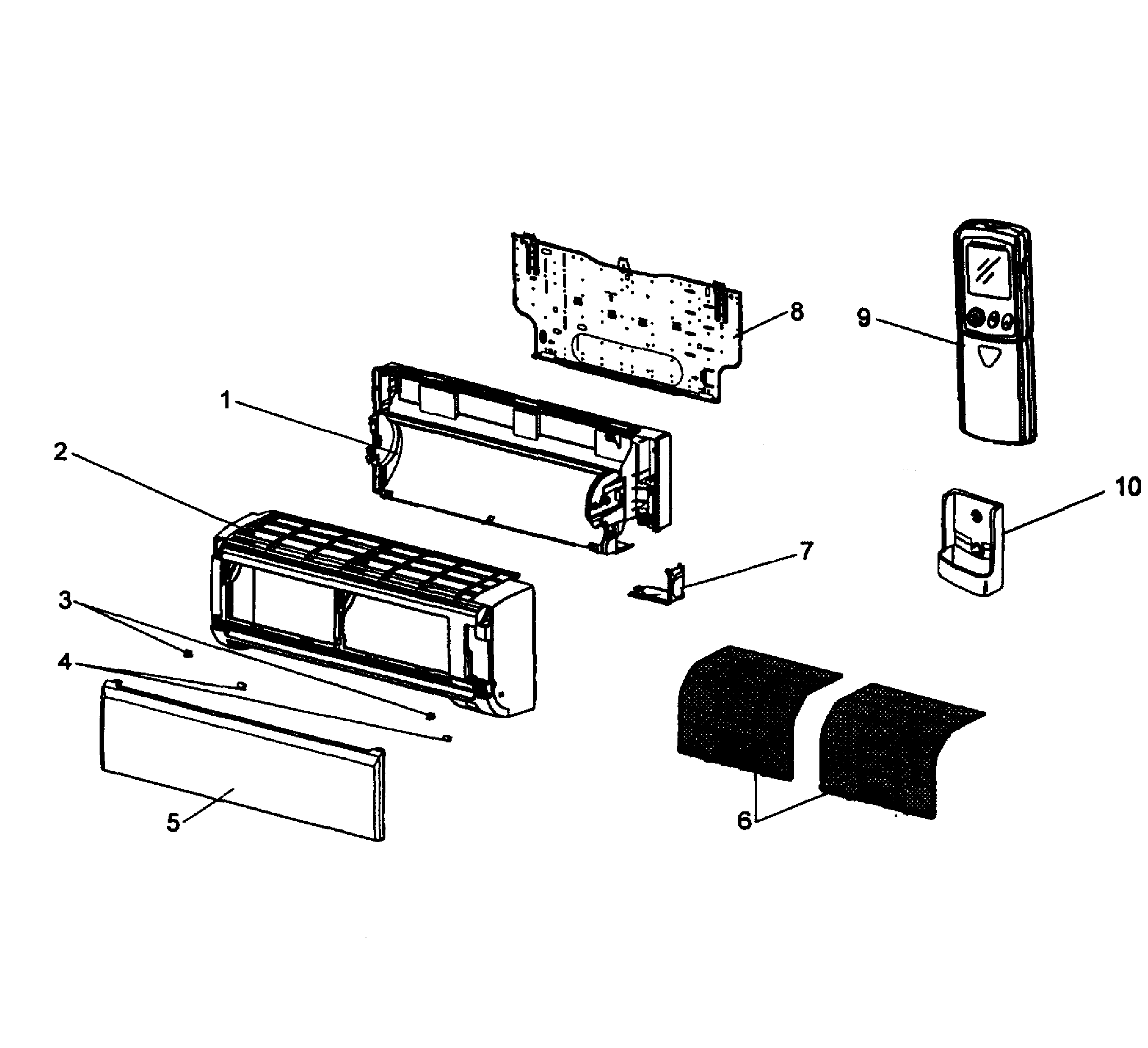

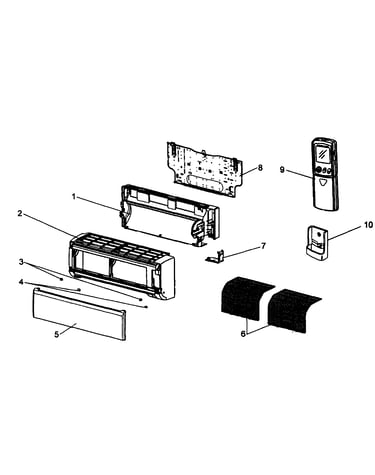

Cabinet parts diagram

Room air conditioner anti-allergy air filter

Part #MAC-408FT-E

The manufacturer no longer makes this part, and there's no substitute part

Corner Box E12D68975
#7

Cabinet parts diagram

Corner box

Part #E12D68975

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Blower Wheel Bearing E12001504
#2

Fan assy diagram

Central air conditioner blower wheel bearing

Part #E12001504

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Remote Control E12E79426
#9

Cabinet parts diagram

Room air conditioner remote control

Part #E12E79426

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Remote Control Holder E12527083
#10

Cabinet parts diagram

Room air conditioner remote control holder

Part #E12527083

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Assembly E12E79235
#4

Fan assy diagram

Nozzle assembly

Part #E12E79235

The manufacturer no longer makes this part, and there's no substitute part

V A Clamp E12E79784
#16

Fan assy diagram

V a clamp

Part #E12E79784

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Blower Wheel E12A89302
#19

Fan assy diagram

Room air conditioner blower wheel

Part #E12A89302

The manufacturer no longer makes this part, and there's no substitute part

Furnace Air Filter E12F63100
#6

Cabinet parts diagram

Furnace air filter

Part #E12F63100

The manufacturer no longer makes this part, and there's no substitute part
