Model # 72180802400 Official Kenmore Elite microwave

Here are the diagrams and repair parts for Official Kenmore Elite 72180802400 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

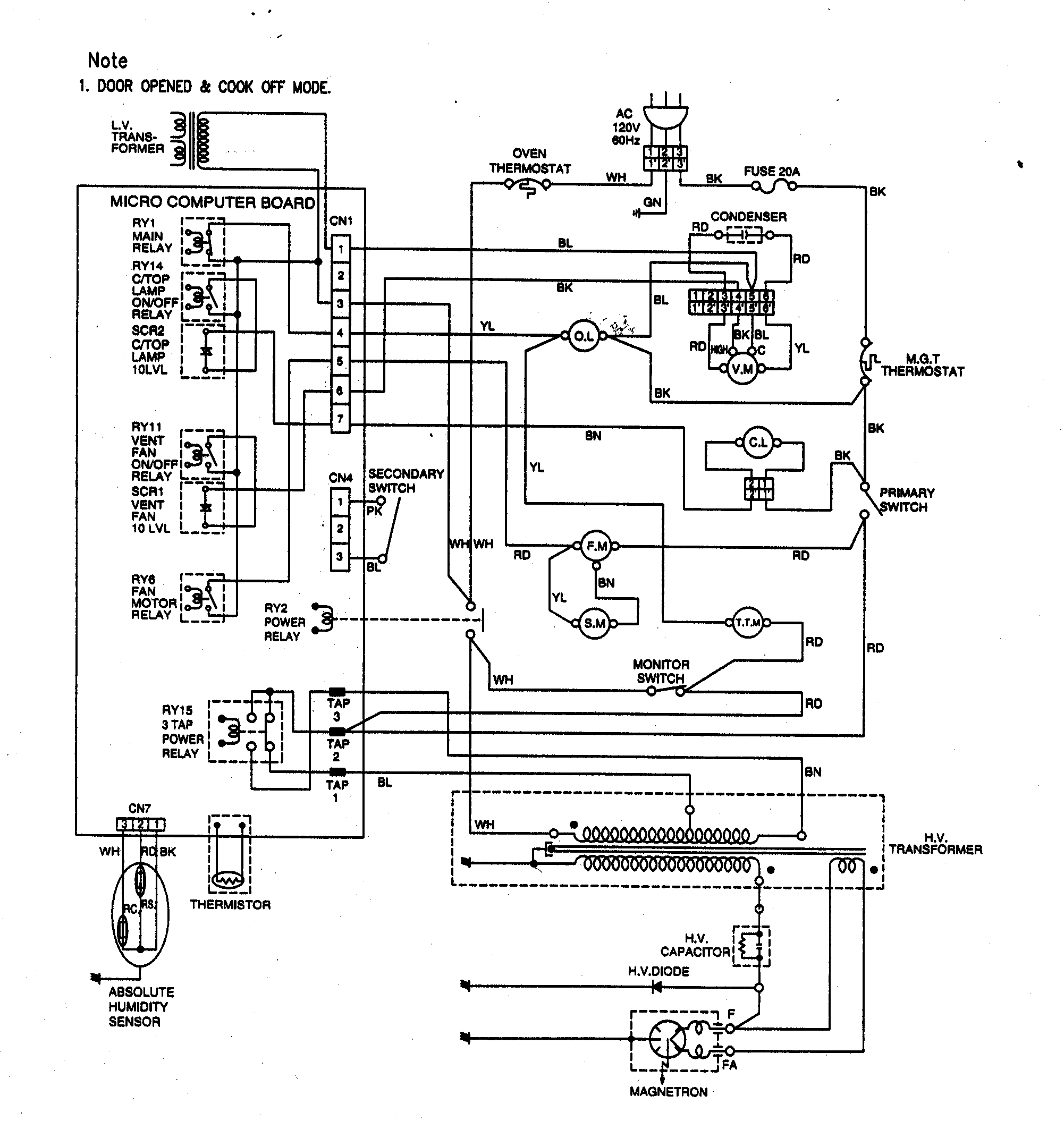

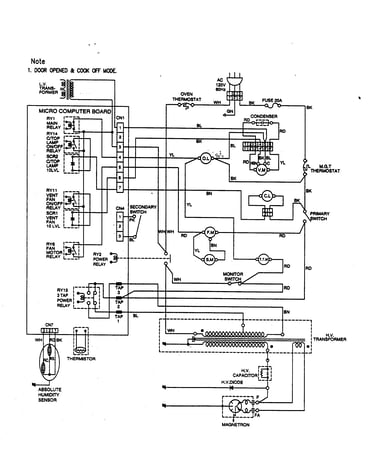

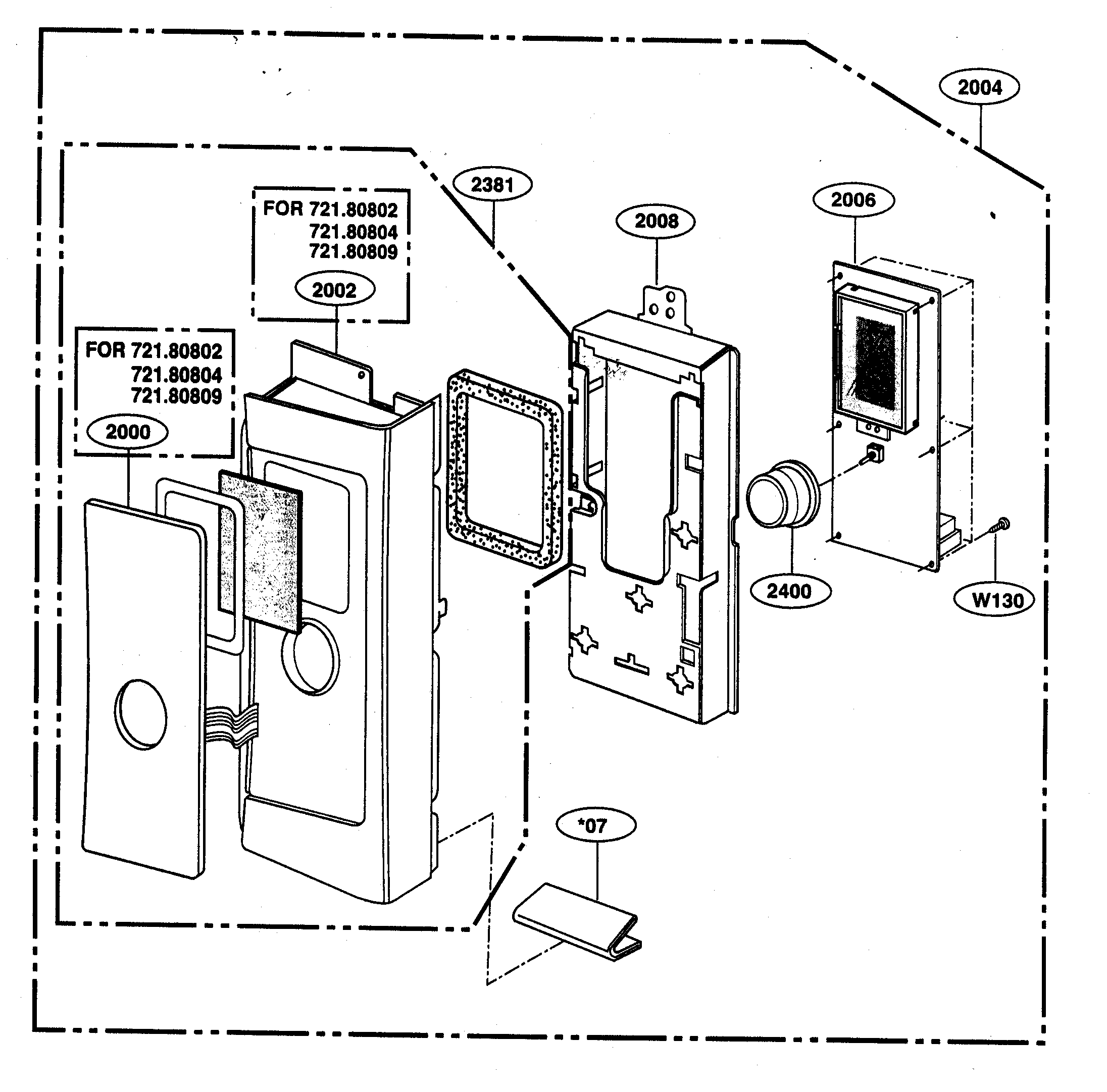

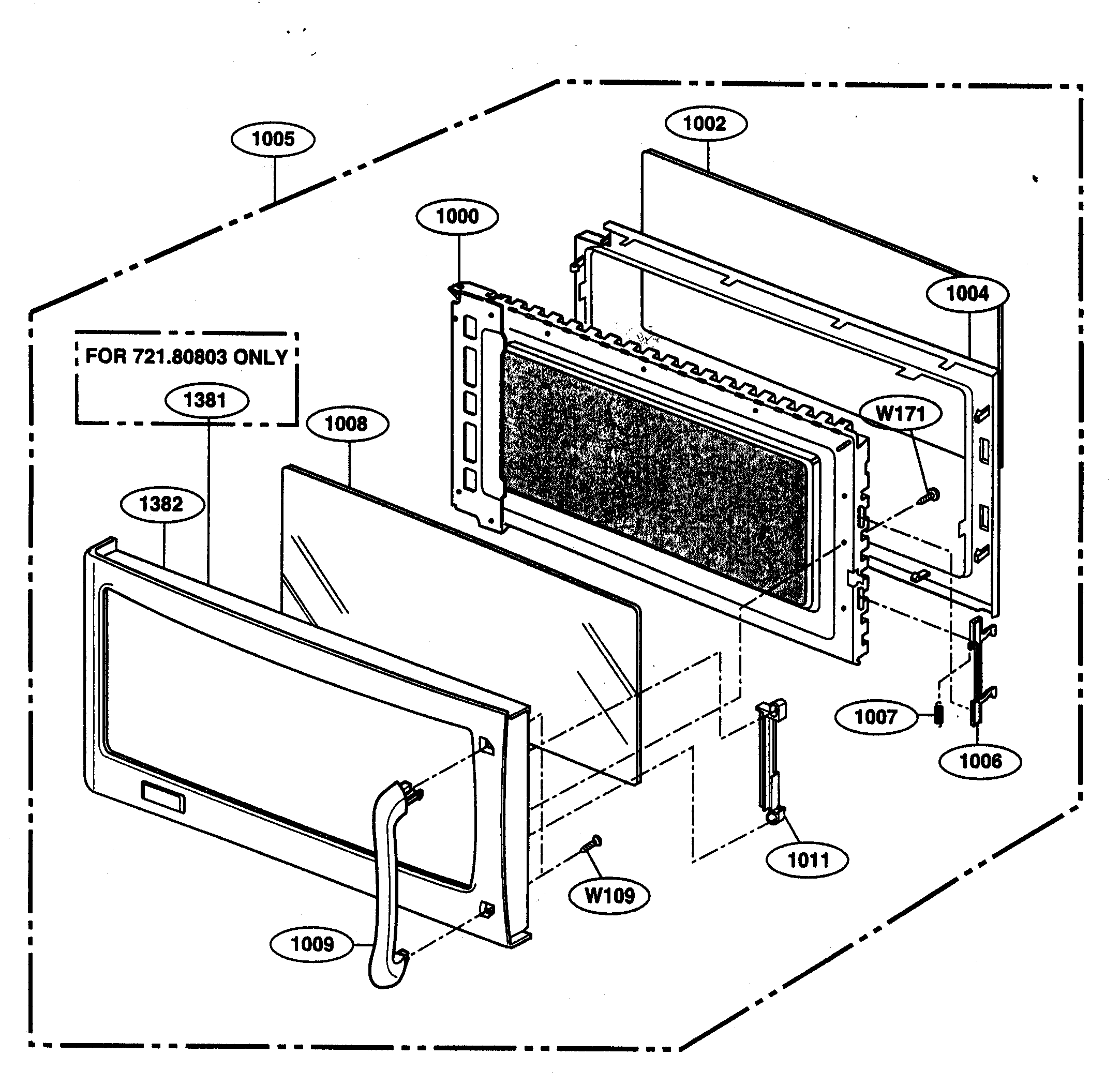

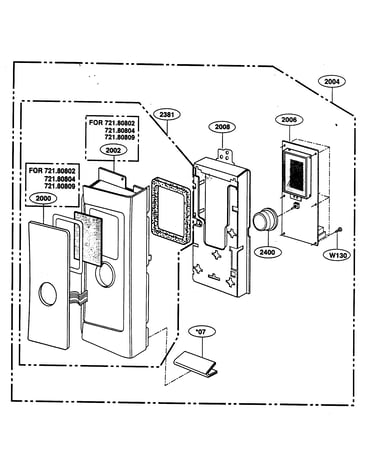

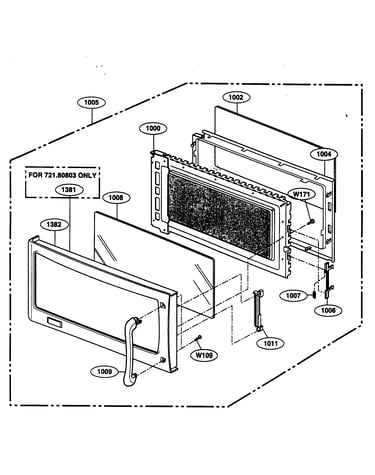

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Microwave Magnetron 6324W1A001E
#5009

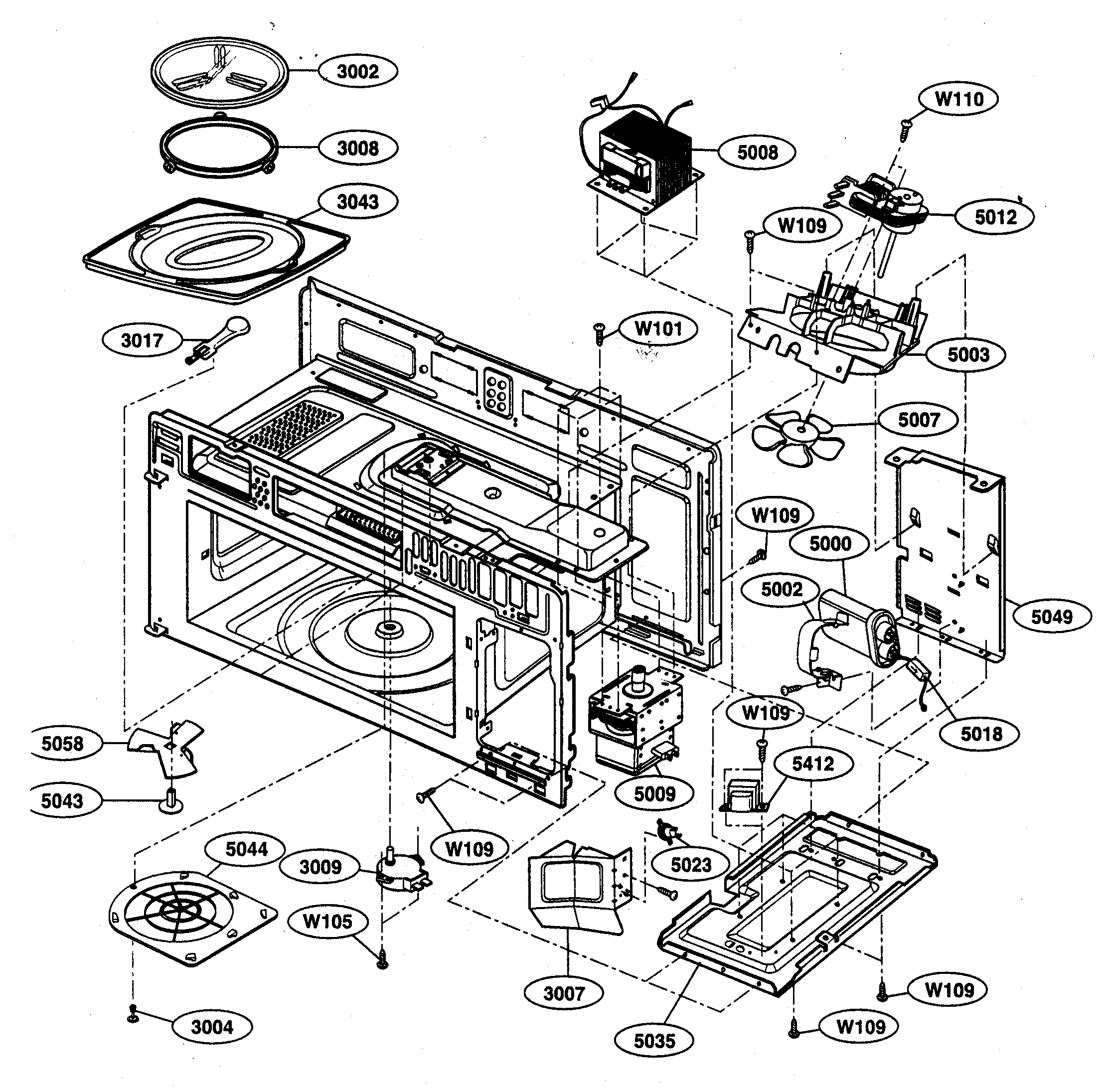

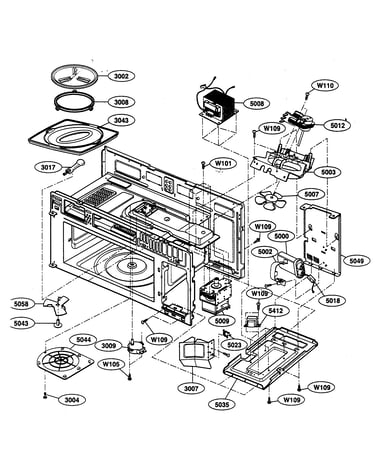

Interior parts 1 diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Microwave Charcoal Filter 5230W1A003A
#5037

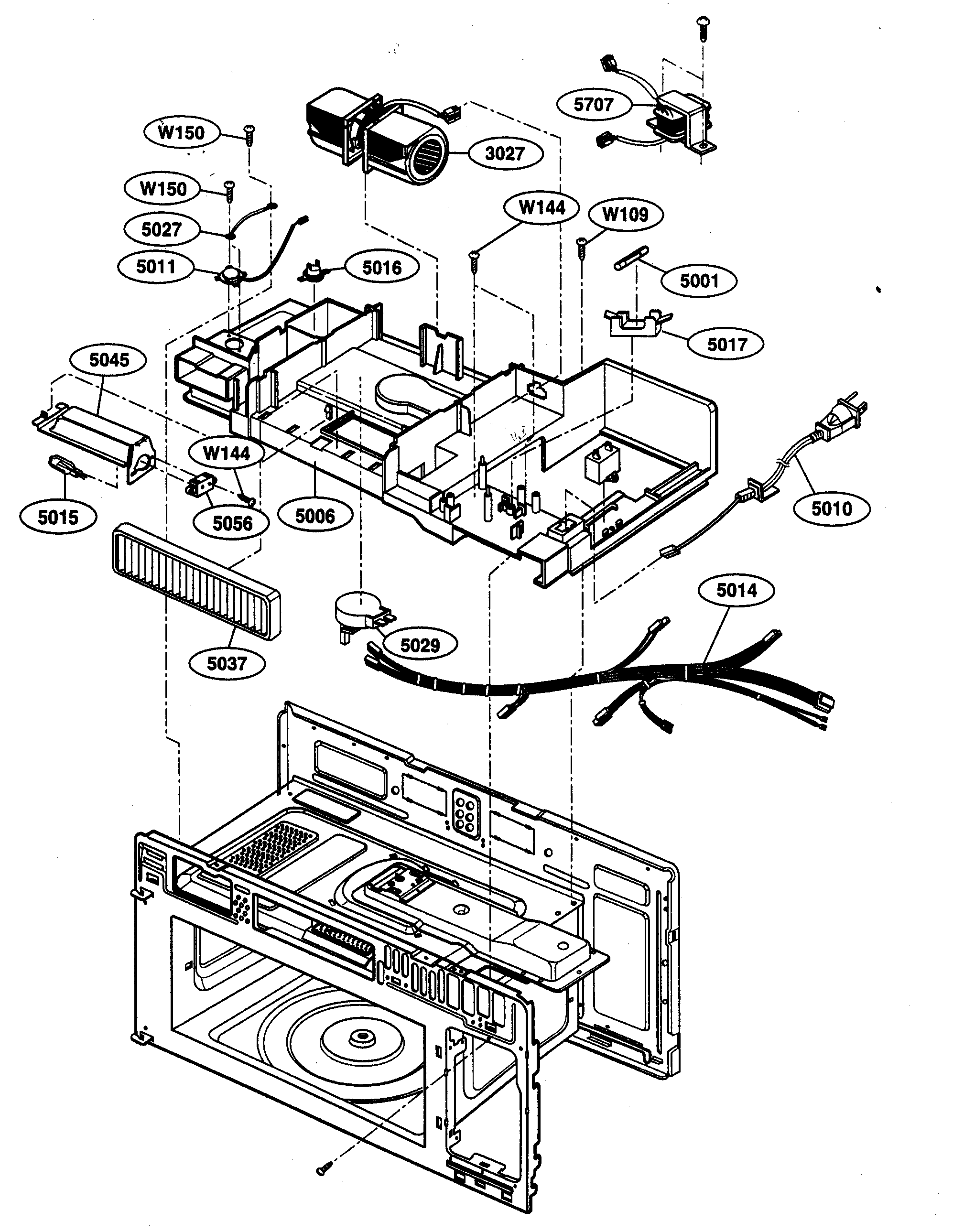

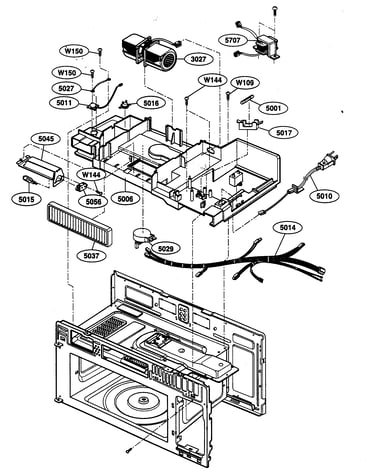

Interior parts 2 diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$31.19 |
16% OFF Phone Price : $37.19
In Stock
Goldstar Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
#5000

Interior parts 1 diagram

Goldstar microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Grease Filter 2B72705B
#3026

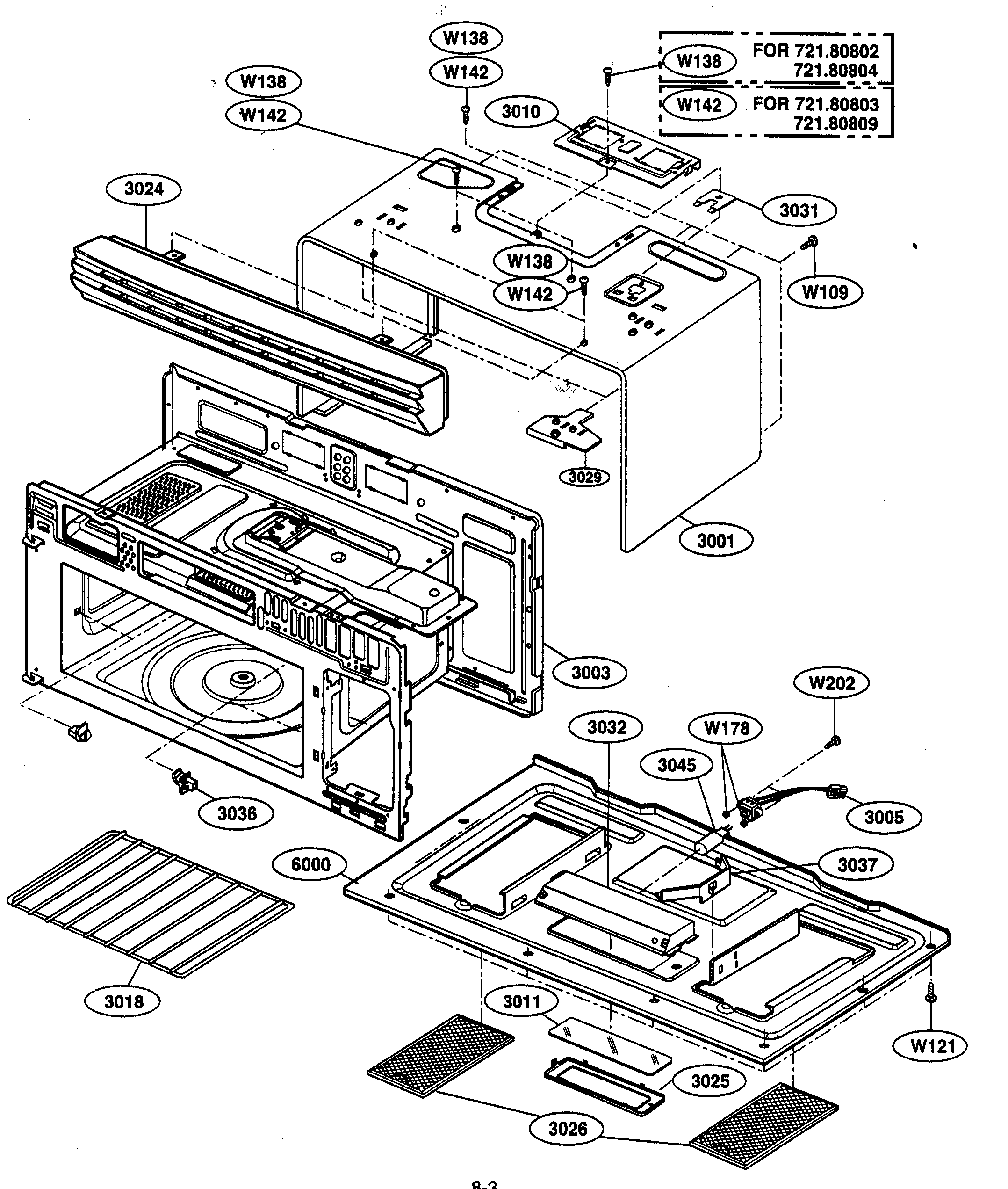

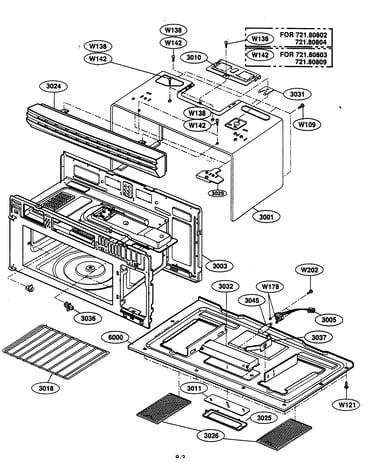

Oven cavity parts diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$10.14 |
16% OFF Phone Price : $12.14
In Stock
Microwave Micro-switch 6600W1K004B
#4003

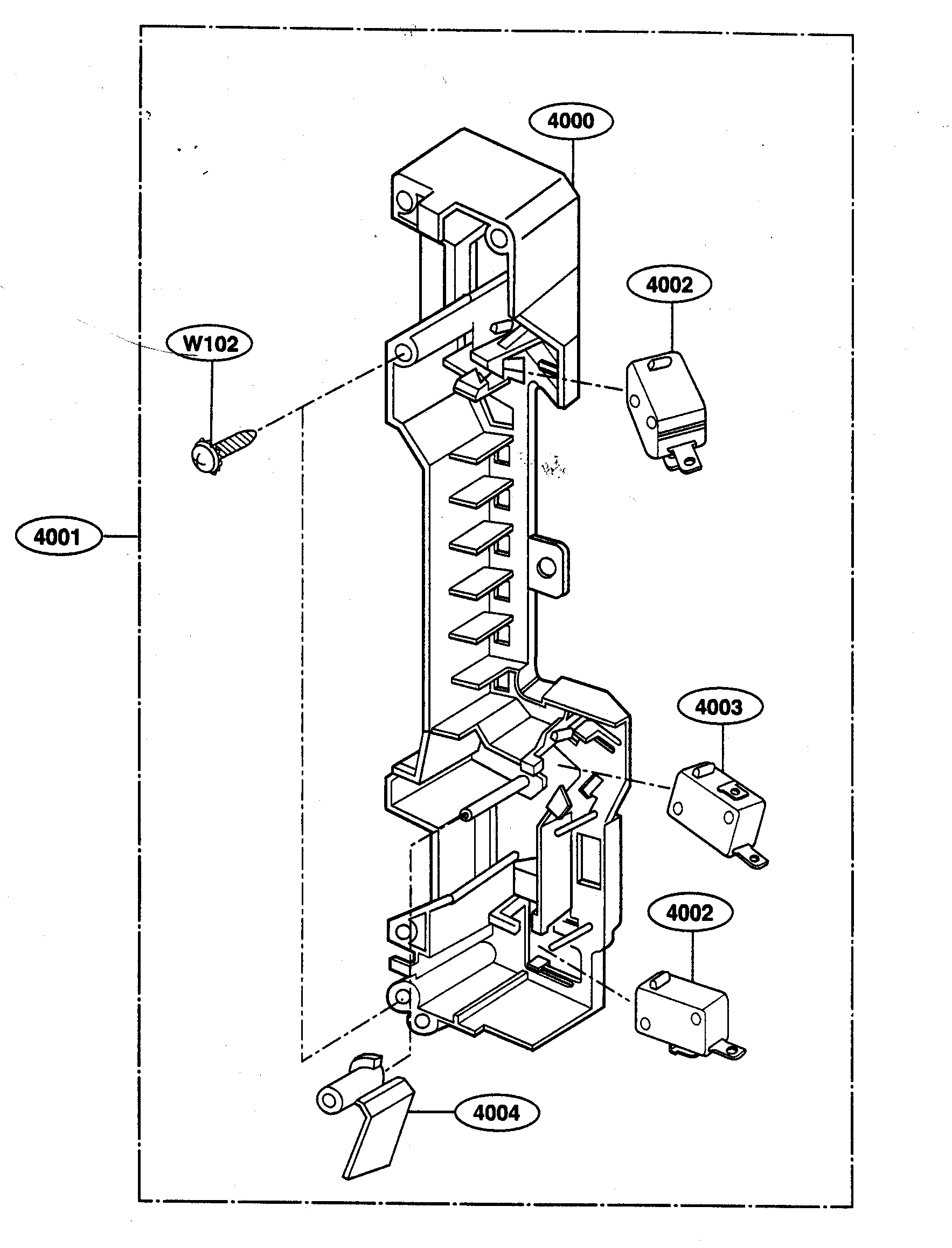

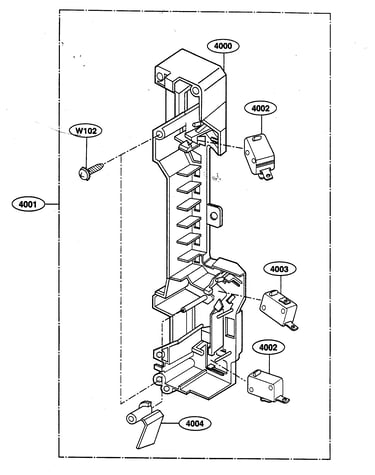

Latch board parts diagram

Microwave micro-switch

Part #6600W1K004B

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 6600W1K004B. Substitute parts can look different from the original.
BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Micro-switch 6600W1K004C
#4002

Latch board parts diagram

Microwave micro-switch

Part #6600W1K004C

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K004C. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Light Bulb 6912A40002A
Microwave light bulb

Part #6912A40002A

Replaced by #6912A40002E

?
Manufacturer substitution
This part replaces 6912A40002A. Substitute parts can look different from the original.
BEST SELLER
$13.76 |
13% OFF Phone Price : $15.76
In Stock
Us Pressed Steel Microwave Fuse 3B74133K
#5001

Interior parts 2 diagram

Us pressed steel microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Thermostat (replaces 6930w1a002k, 6930wrt003c) 6930W1A003J
#5016

Interior parts 2 diagram

Microwave thermostat (replaces 6930w1a002k, 6930wrt003c)

Part #6930W1A003J

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

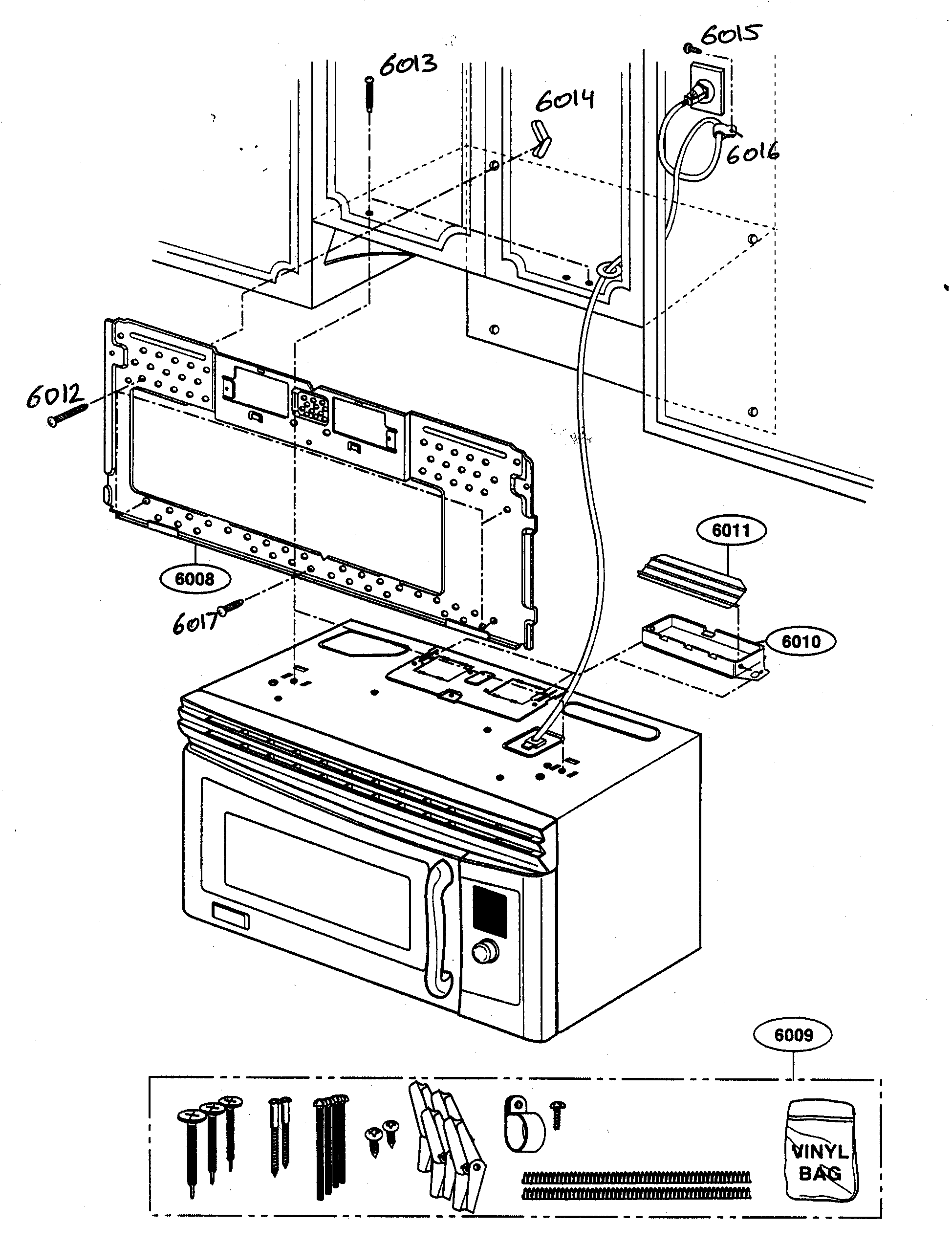

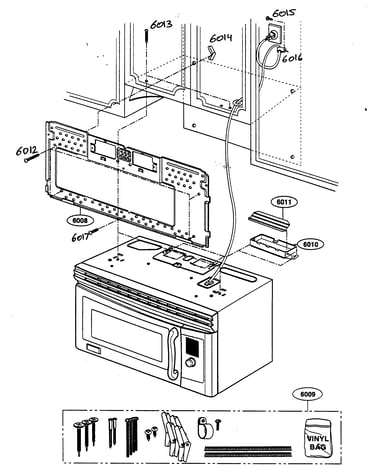

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
