GE
Side-By-Side Refrigerator

Model # GSS20DBTNCC Official GE refrigerator - t series

Here are the diagrams and repair parts for Official GE GSS20DBTNCC refrigerator - t series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

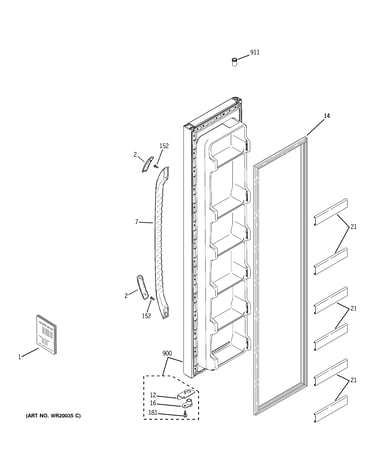

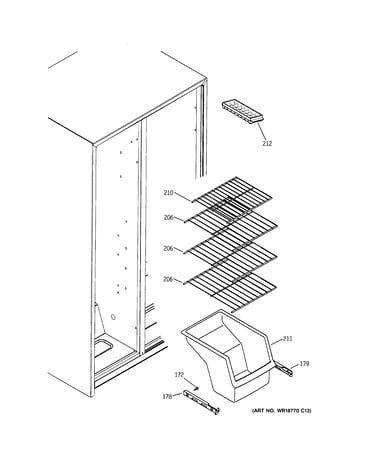

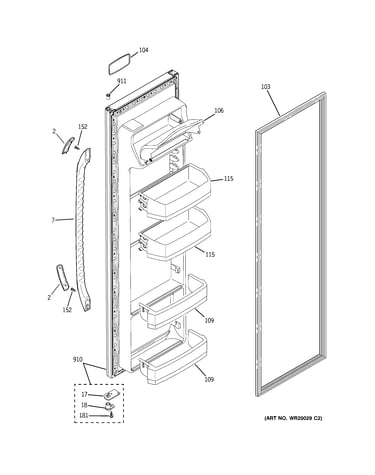

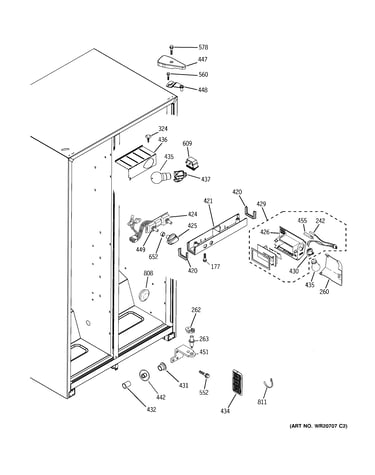

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Refrigerator Temperature Sensor WR55X10735
#241

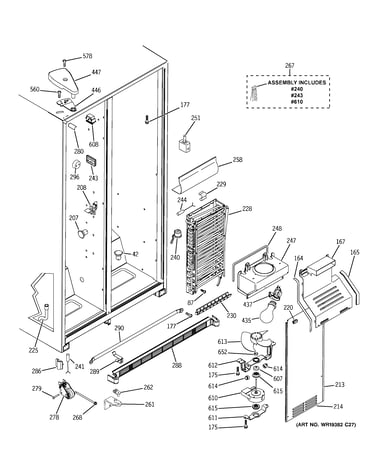

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10735

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10735. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR55X10737
#244

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10737

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10737. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Filter Dryer WR86X96
#740

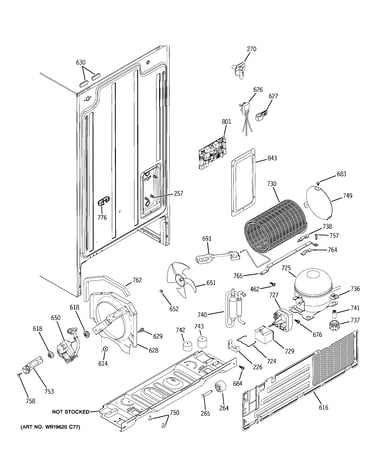

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Capacitor WR62X0079
#729

Sealed system & mother board diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Compressor WR87X10211
#725

Sealed system & mother board diagram

Refrigerator compressor

Part #WR87X10211

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10211. Substitute parts can look different from the original.
BEST SELLER
$394.05 |
$12.00 OFF Phone Price : $406.05
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Condenser Fan (replaces Wr60x10171) WR60X10220
#650

Sealed system & mother board diagram

Refrigerator condenser fan (replaces wr60x10171)

Part #WR60X10220

BEST SELLER
$44.21 |
12% OFF Phone Price : $50.21
In Stock
Heater Harness WR51X10097
#230

Freezer section diagram

Heater harness

Part #WR51X10097

Replaced by #WR51X10101

?
Manufacturer substitution
This part replaces WR51X10097. Substitute parts can look different from the original.
BEST SELLER
$49.88 |
11% OFF Phone Price : $55.88
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#479

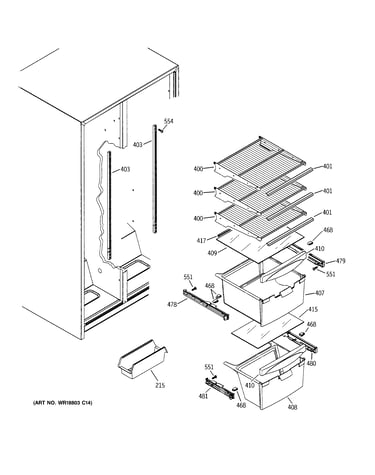

Fresh food shelves diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
