GE
Countertop Microwave

Model # JE1555T01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JE1555T01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

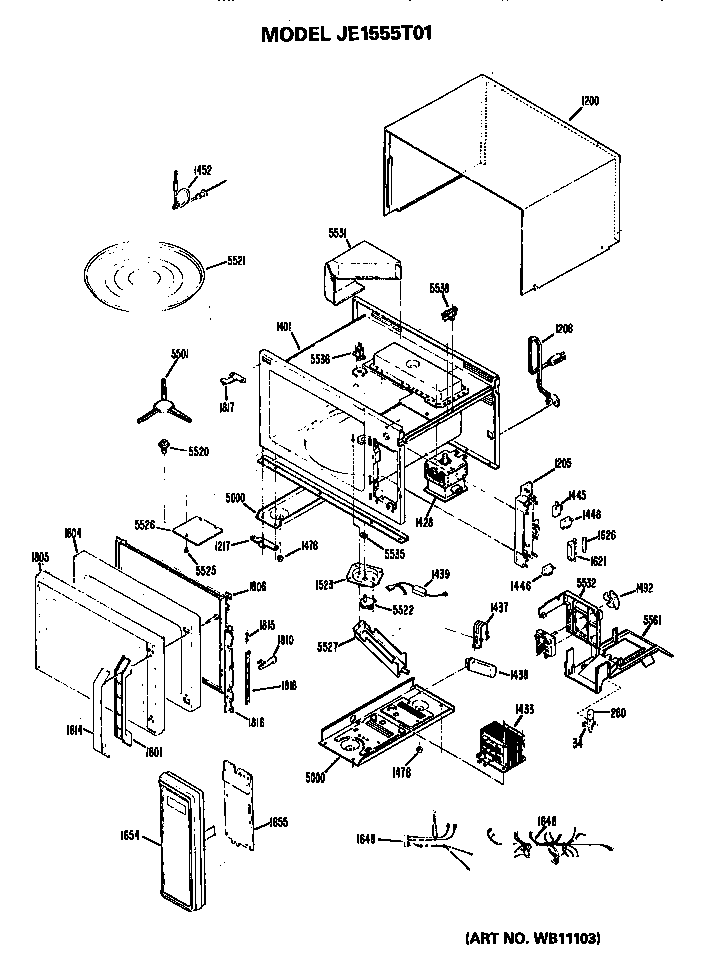

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Cookbook Je1 49-4929

#LITR

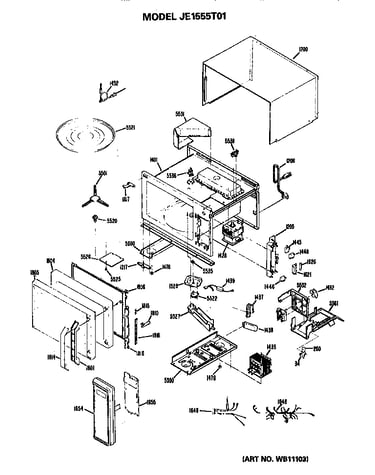

All parts diagram

Cookbook je1

Part #49-4929

In Stock
Ge Use And Care Guide 49-4934

#9999

All parts diagram

Ge use and care guide

Part #49-4934

In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Hinge-lower WB14X123

#1217

All parts diagram

Hinge-lower

Part #WB14X123

The manufacturer no longer makes this part, and there's no substitute part

Power Cor WB18X331

#1206

All parts diagram

Power cor

Part #WB18X331

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly WB56X1927

#1804

All parts diagram

Door assembly

Part #WB56X1927

The manufacturer no longer makes this part, and there's no substitute part

Cover WB2X9310

#5527

All parts diagram

Cover

Part #WB2X9310

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Roller WB2X9284

#5501

All parts diagram

Microwave turntable roller

Part #WB2X9284

The manufacturer no longer makes this part, and there's no substitute part

Handle WB15X278

#1801

All parts diagram

Handle

Part #WB15X278

The manufacturer no longer makes this part, and there's no substitute part

Bracket-turntable Mount WB2X9304

#1523

All parts diagram

Bracket-turntable mount

Part #WB2X9304

The manufacturer no longer makes this part, and there's no substitute part
