Model # 11659319212 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11659319212 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Vacuum Foam Filter 4370713
#8

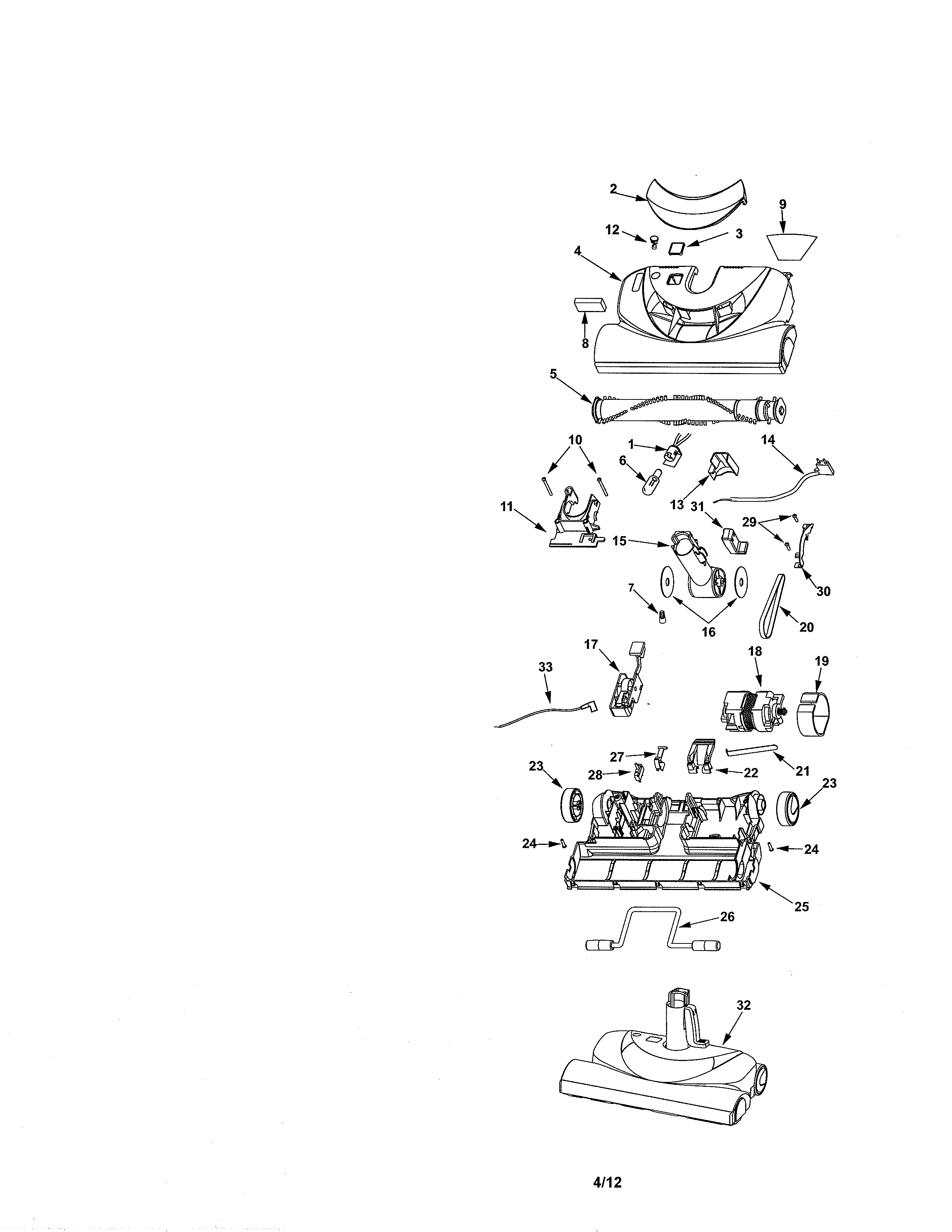

Power mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt KC28SBZTZ000
#20

Power mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

The manufacturer no longer makes this part, and there's no substitute part

Foot Pedal KC47AATYZM0H
#31

Power mate diagram

Foot pedal

Part #KC47AATYZM0H

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel KS4153196
#15

Power mate diagram

Vacuum powermate swivel

Part #KS4153196

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel Seal KS742019
#16

Power mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel KC99CBZTZV04
#23

Power mate diagram

Vacuum powermate wheel

Part #KC99CBZTZV04

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Front Axle KS744029
#26

Power mate diagram

Vacuum powermate front axle

Part #KS744029

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Housing KC98RDWMZN05
#4

Power mate diagram

Nozzle housing

Part #KC98RDWMZN05

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
#24

Power mate diagram

Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Reflector KC84HBZTZ000
#9

Power mate diagram

Nozzle reflector

Part #KC84HBZTZ000

The manufacturer no longer makes this part, and there's no substitute part
