Model # 32-2227-00-01 Official Tappan gas range - lt32488340

Here are the diagrams and repair parts for Official Tappan 32-2227-00-01 gas range - lt32488340, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Range Power Cord 3131425
#16A

Body parts diagram

Range power cord

Part #3131425

Replaced by #5304509199

?
Manufacturer substitution
This part replaces 3131425. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Screw 636T143P01
#12B

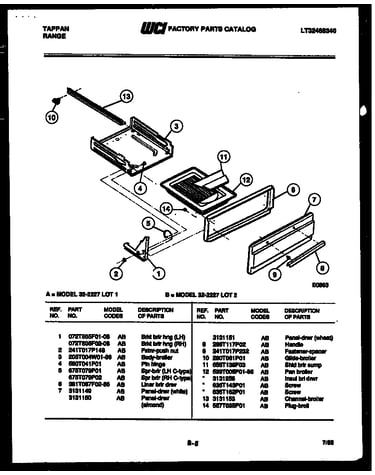

Broiler drawer parts diagram

Screw

Part #636T143P01

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 636T143P01. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Grate 283T013W01-18
#8

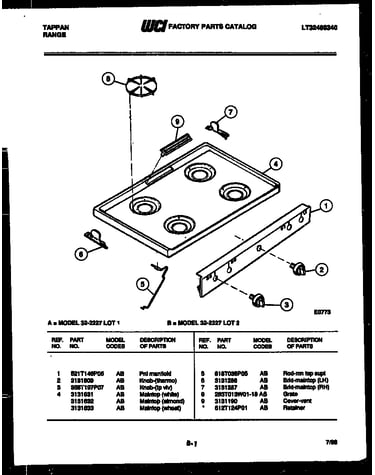

Cooktop parts diagram

Grate

Part #283T013W01-18

Replaced by #316055800

?
Manufacturer substitution
This part replaces 283T013W01-18. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Plate-oven L 3051218
#19A

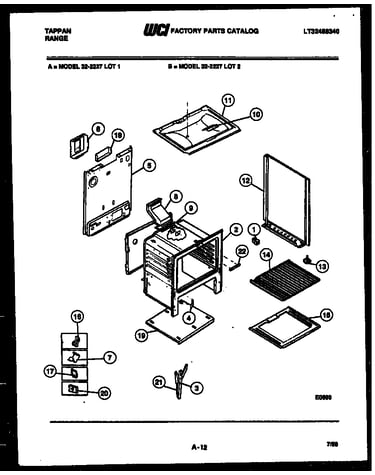

Body parts diagram

Plate-oven l

Part #3051218

$54.42
In Stock
End 3051136
#2

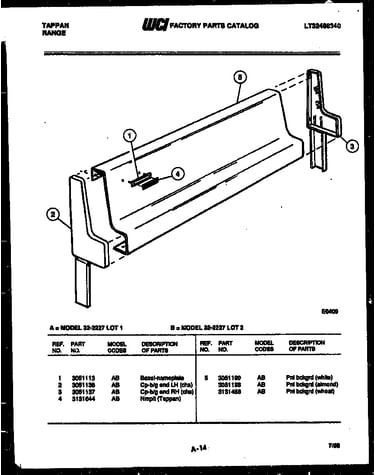

Backguard diagram

End

Part #3051136

This item is not returnable
$4.42
In Stock
Spring 3131575
#21

Body parts diagram

Spring

Part #3131575

This item is not returnable
$6.96
In Stock
Cover-flue 3131191
#18

Body parts diagram

Cover-flue

Part #3131191

This item is not returnable
$3.99
In Stock
End Cap 123T123P01
#4

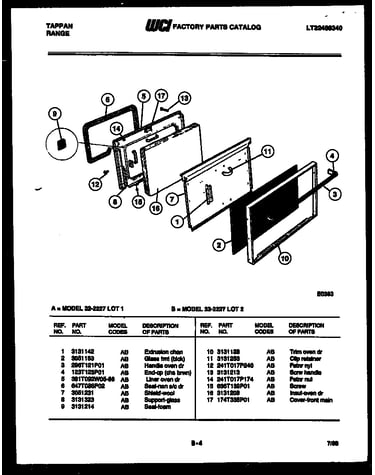

Door parts diagram

End cap

Part #123T123P01

Replaced by #316137003

?
Manufacturer substitution
This part replaces 123T123P01. Substitute parts can look different from the original.
$36.89 |
14% OFF Phone Price : $42.89
In Stock
Igniter 316T039P03
#29

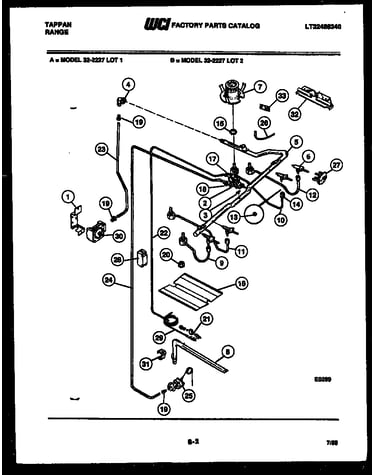

Burner, manifold and gas control diagram

Igniter

Part #316T039P03

Replaced by #5303934047

?
Manufacturer substitution
This part replaces 316T039P03. Substitute parts can look different from the original.
$350.28
In Stock
Igniter 3131330
#28

Burner, manifold and gas control diagram

Igniter

Part #3131330

Replaced by #5303200332

?
Manufacturer substitution
This part replaces 3131330. Substitute parts can look different from the original.
$242.35
In Stock
