GE
Side-By-Side Refrigerator

Model # ZSEB480NYA Official GE refrigerator - y series

Here are the diagrams and repair parts for Official GE ZSEB480NYA refrigerator - y series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

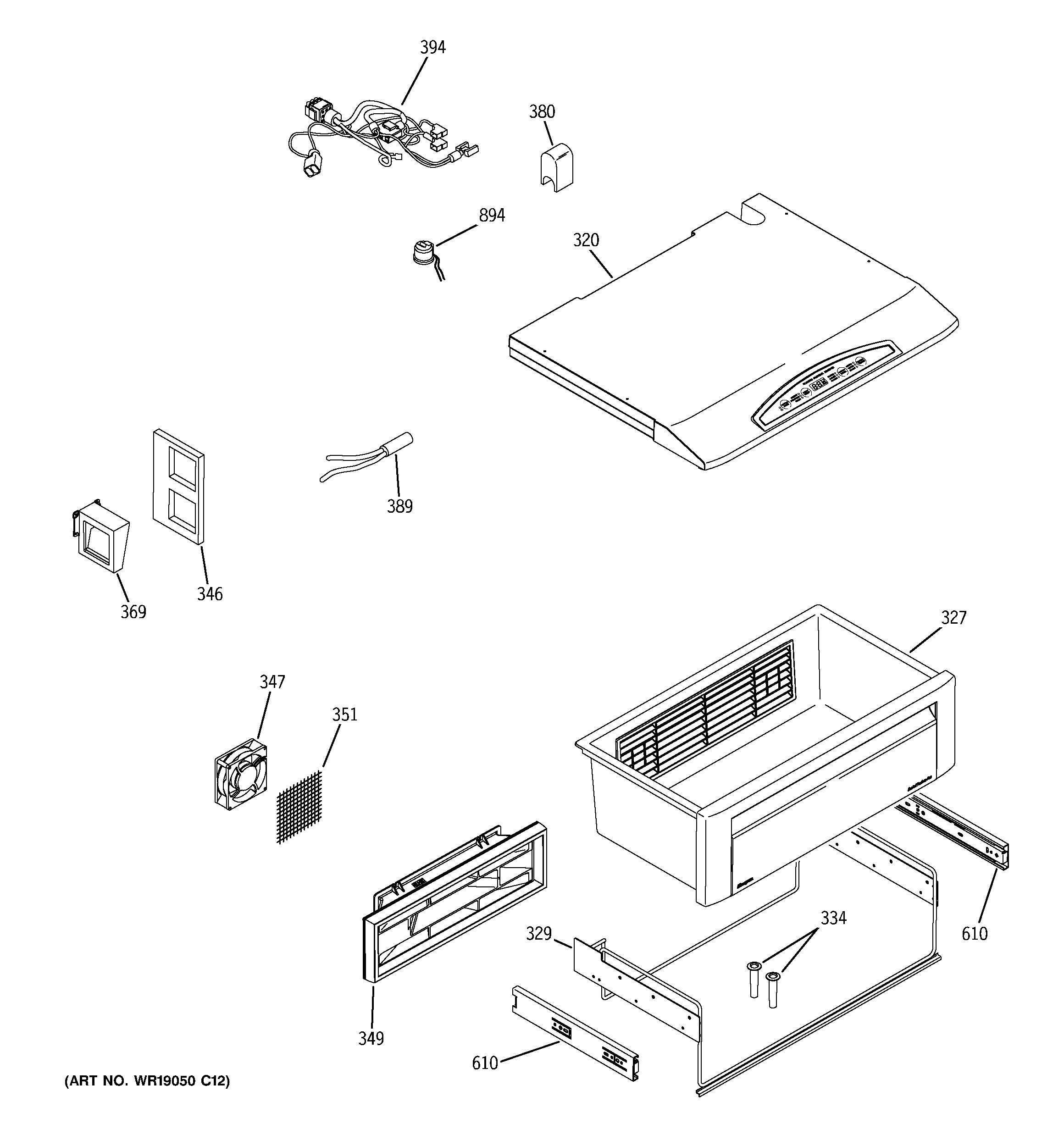

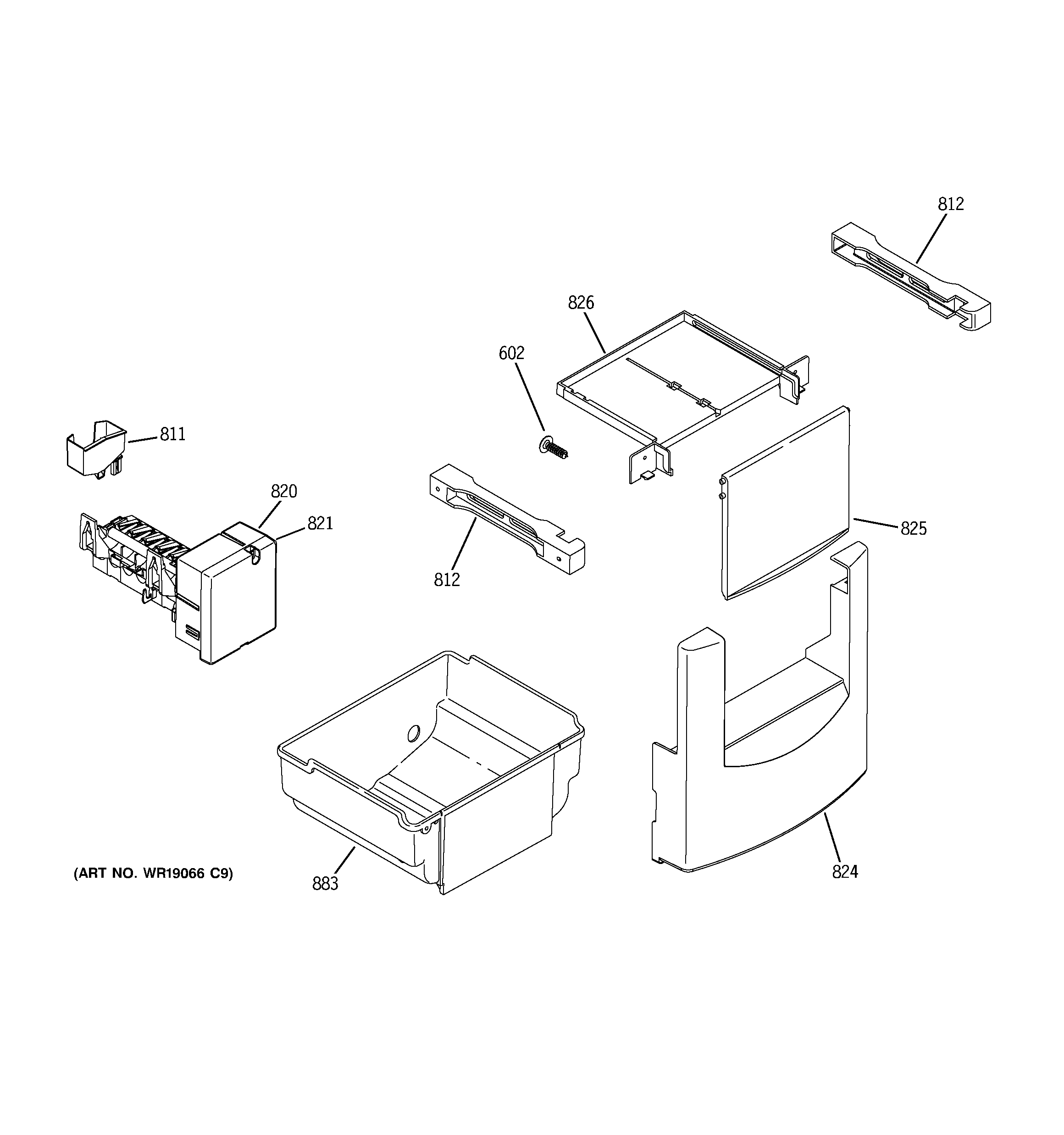

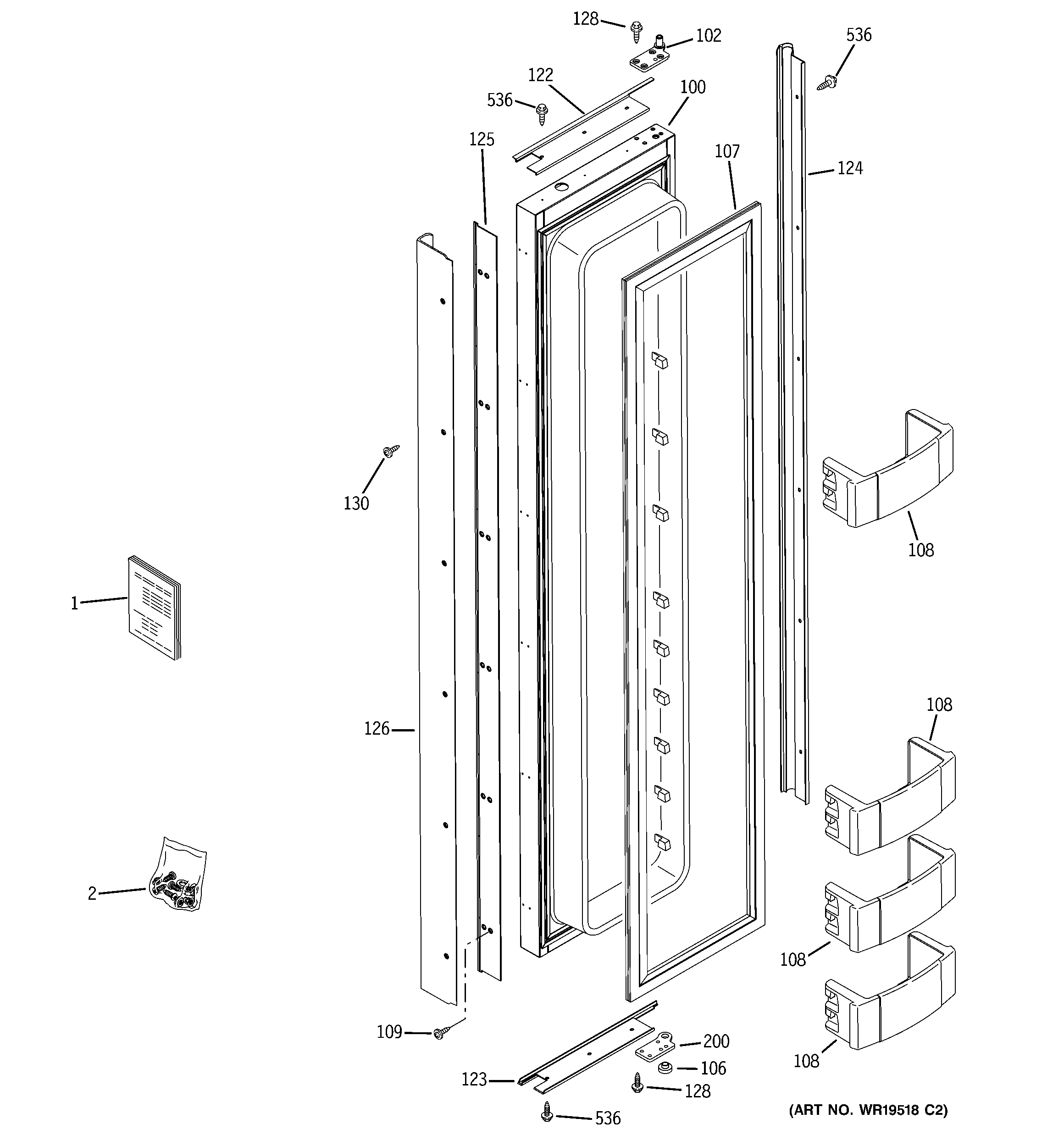

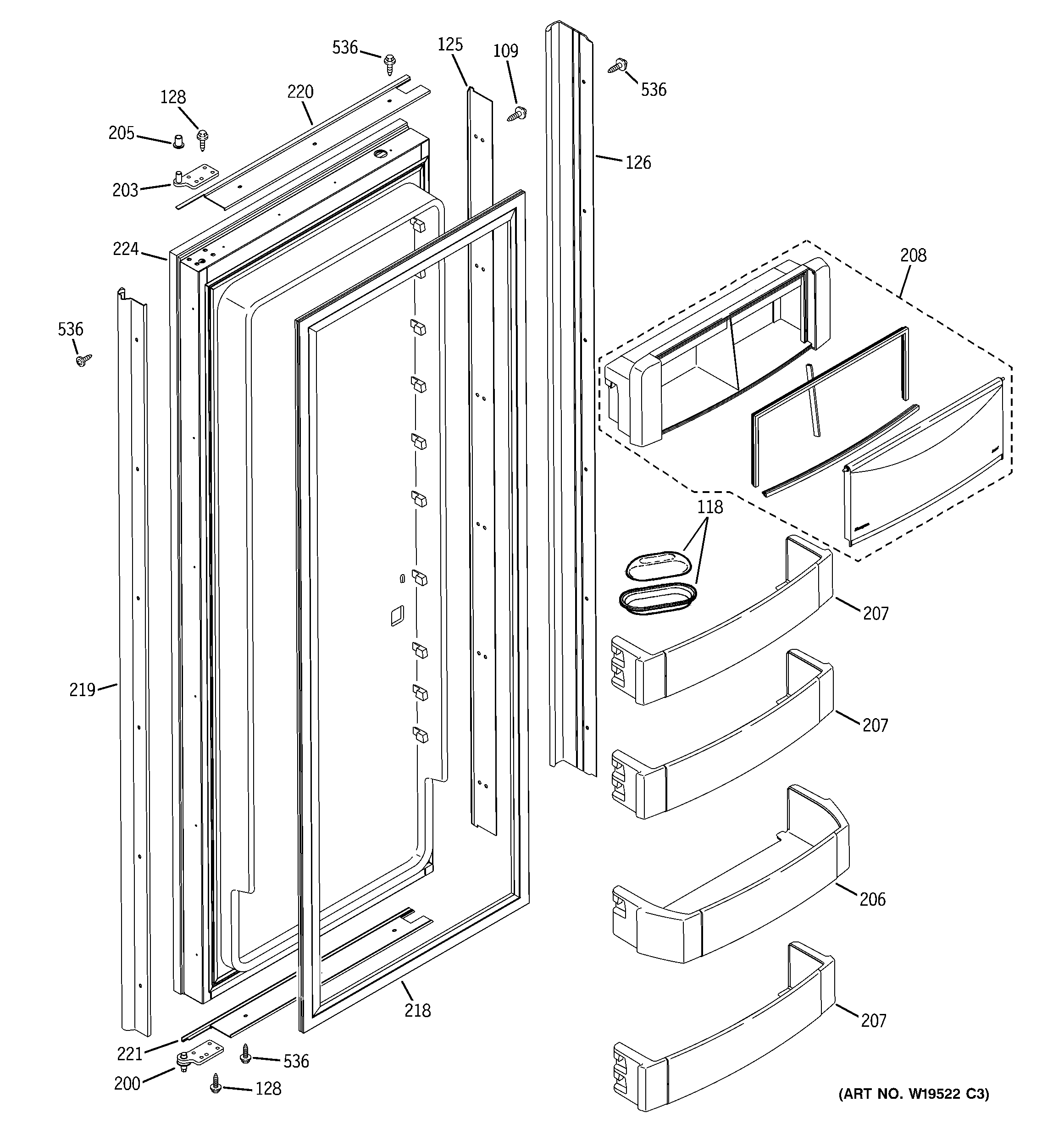

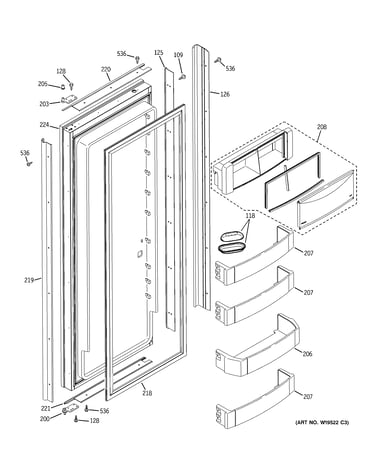

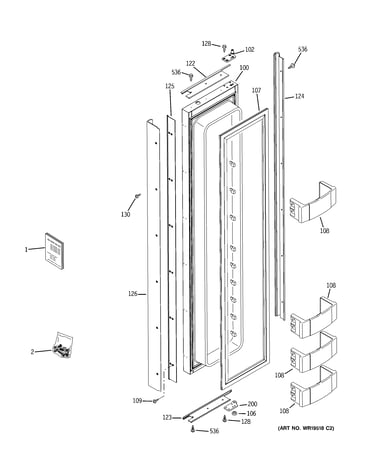

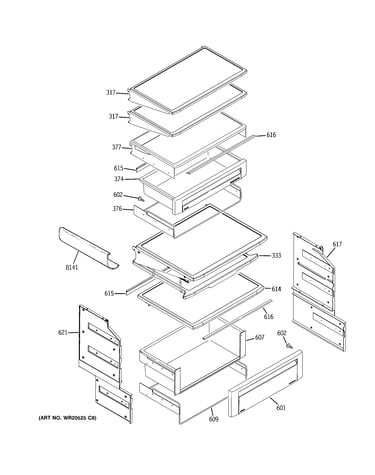

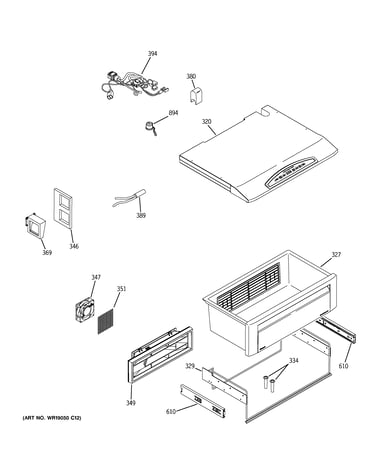

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Temperature Sensor WR55X10030
Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Toe Kick WR74X10125
#706

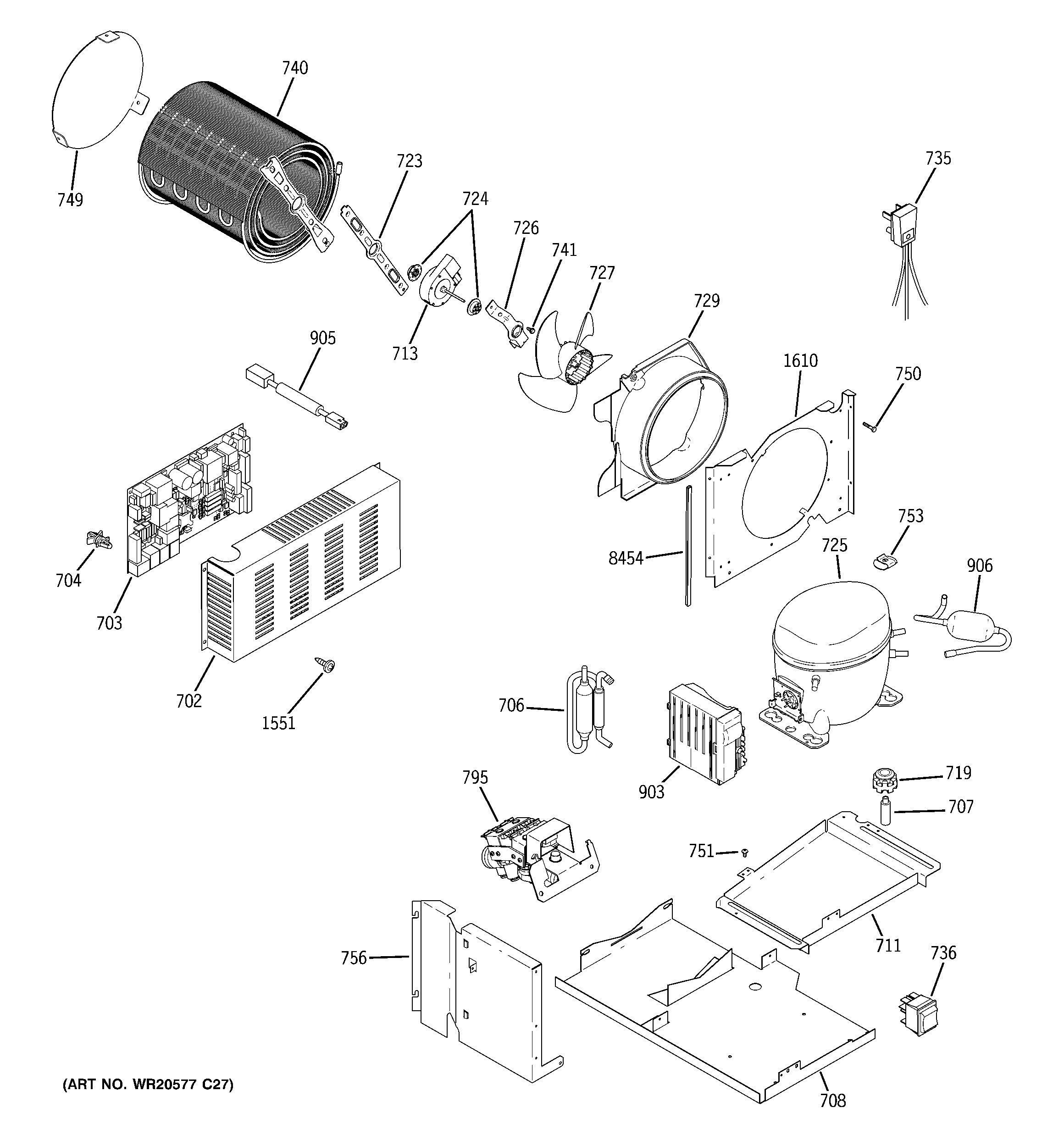

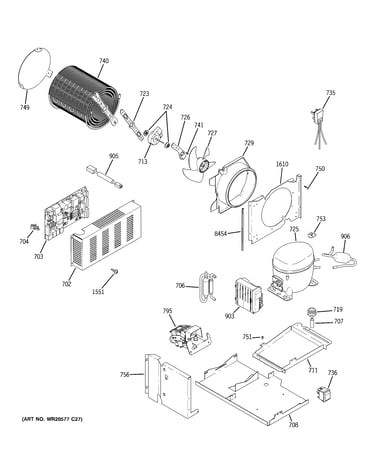

Sealed system & mother board diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#303

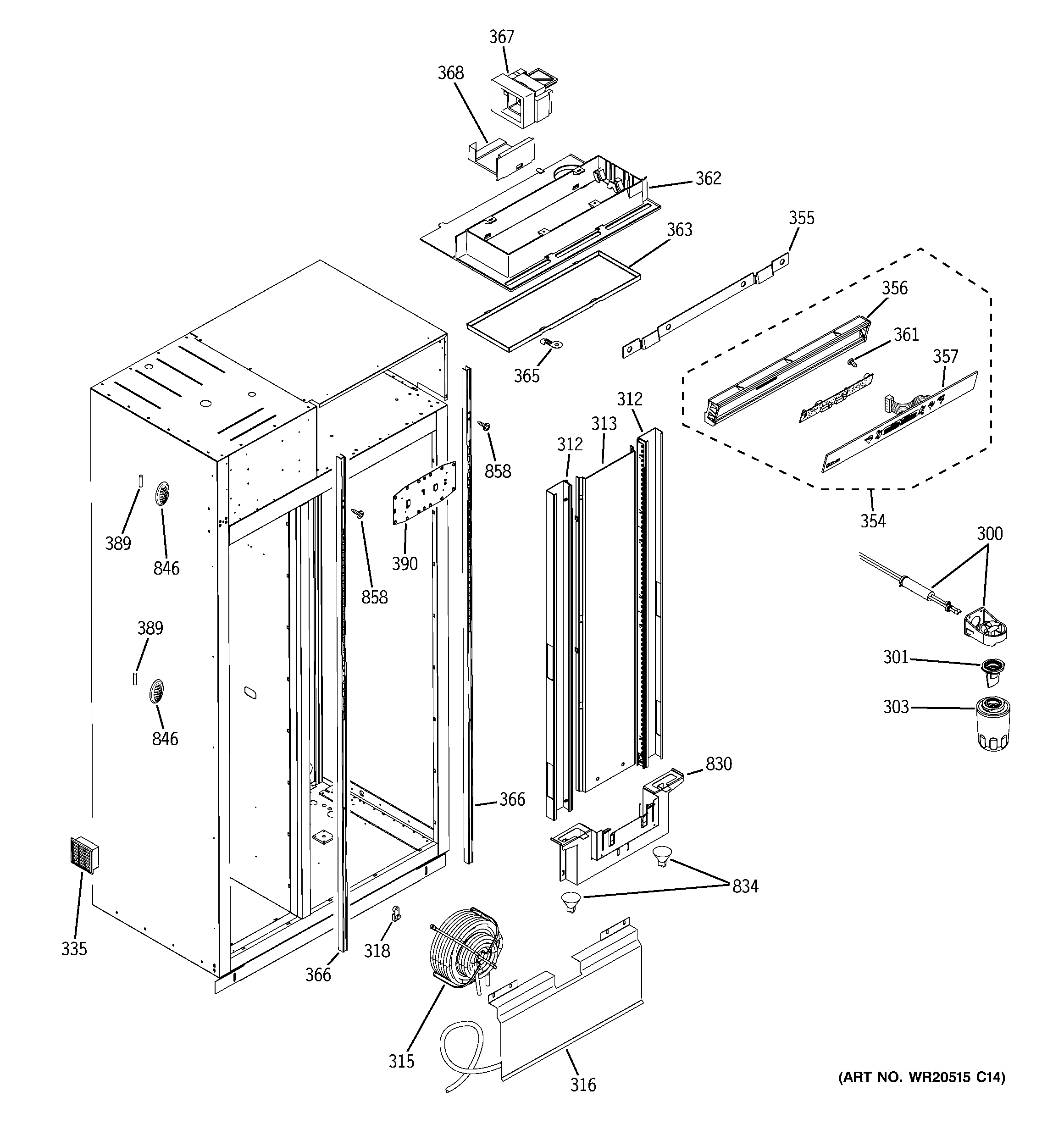

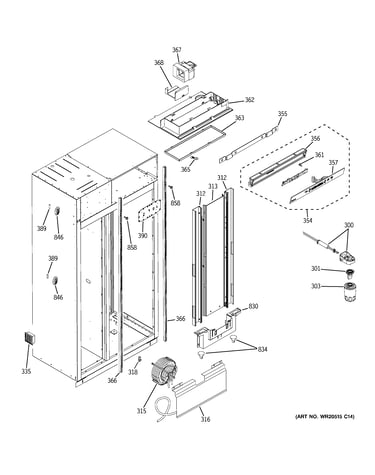

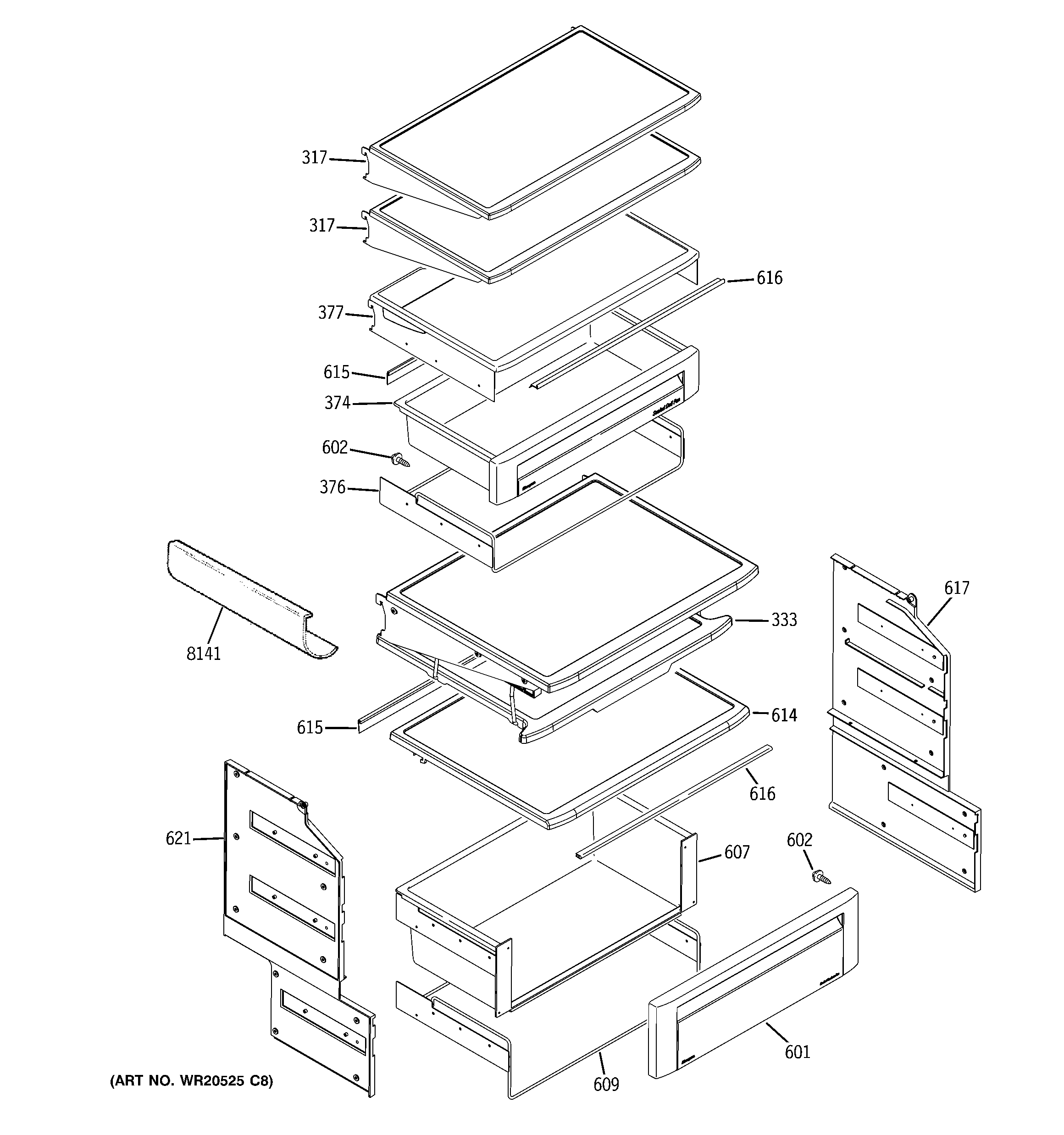

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
BEST SELLER
$64.22
In Stock
G.e. Refrigerator Compressor (replaces Wr87x10044, Wr87x10064, Wr87x10121, Wr87x10123, Wr87x10180) WR87X10111
#725

Sealed system & mother board diagram

G.e. refrigerator compressor (replaces wr87x10044, wr87x10064, wr87x10121, wr87x10123, wr87x10180)

Part #WR87X10111

BEST SELLER
$626.82 |
$12.00 OFF Phone Price : $638.82
In Stock
Refrigerator Water Filter Bypass WR02X11705
#301

Fresh food section diagram

Refrigerator water filter bypass

Part #WR02X11705

Replaced by #WR17X22070

?
Manufacturer substitution
This part replaces WR02X11705. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Evaporator Fan Blade WR60X10050
#859

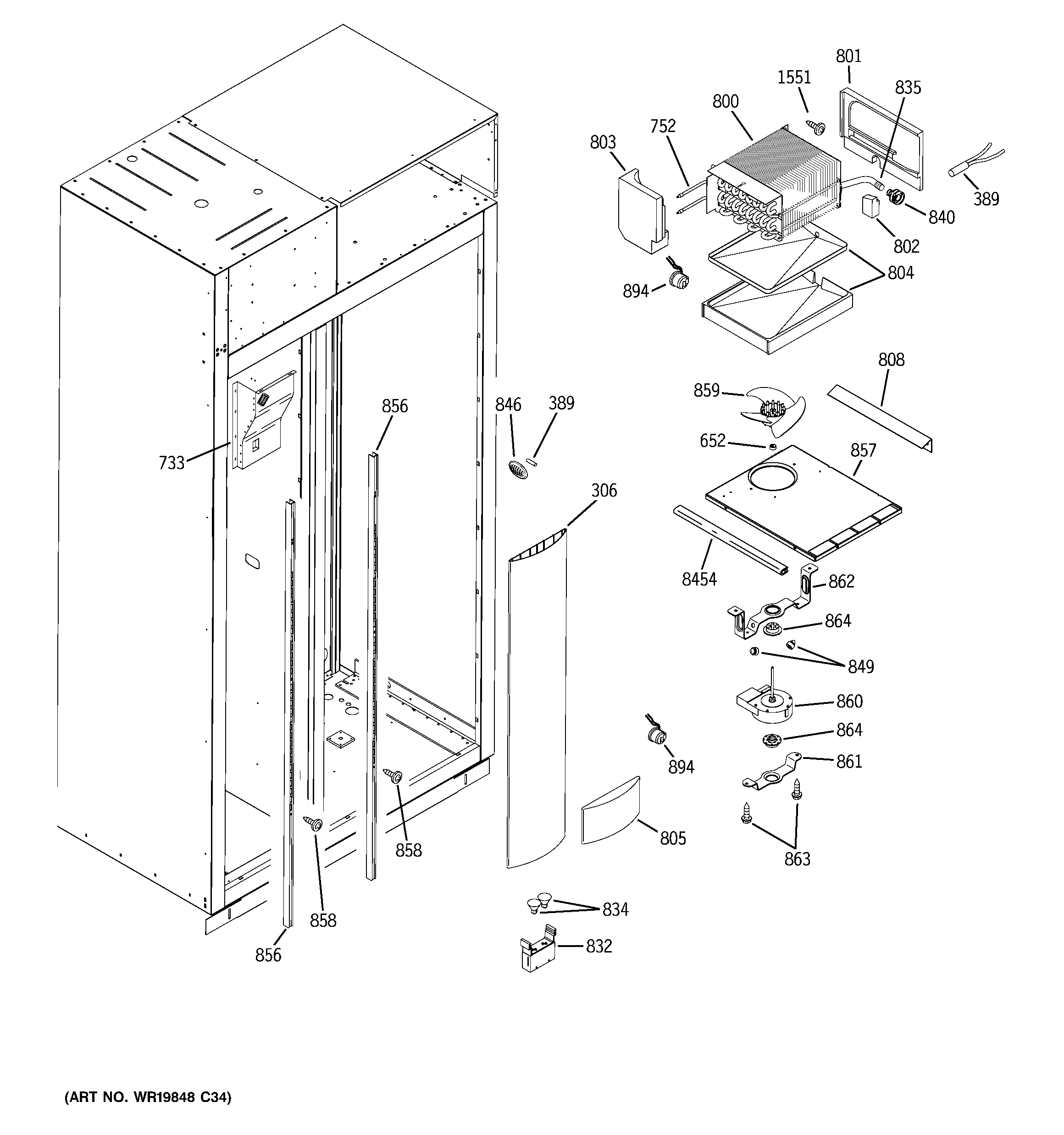

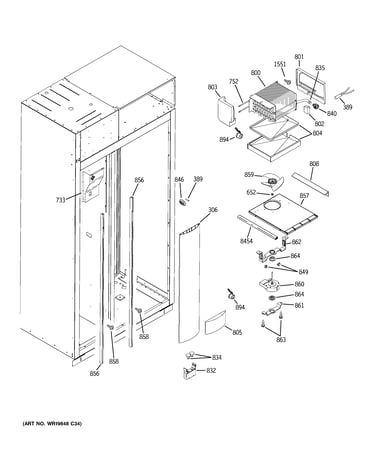

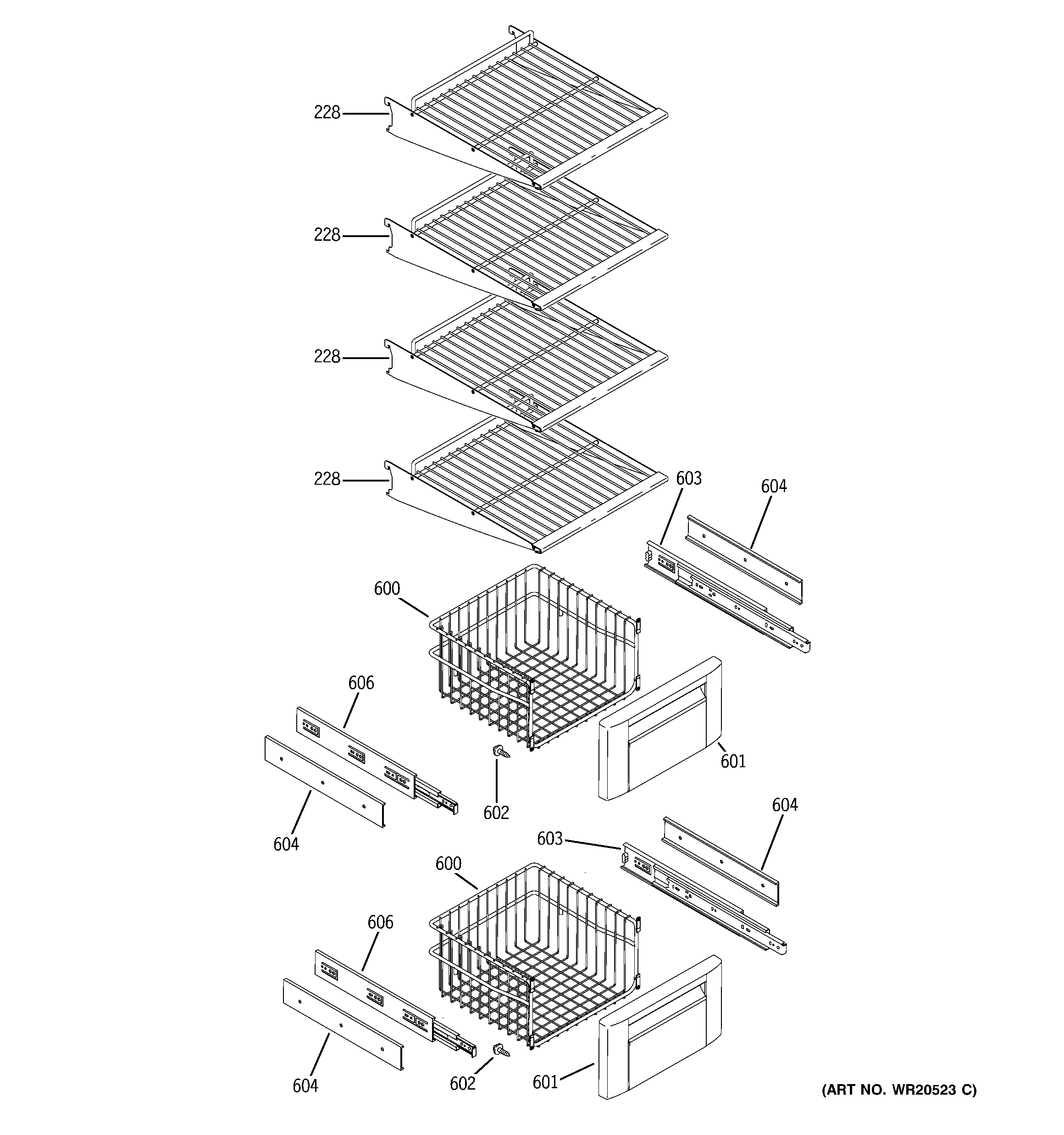

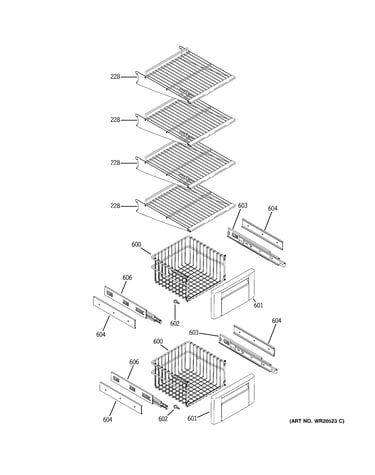

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10050

Replaced by #WR60X41627

?
Manufacturer substitution
This part replaces WR60X10050. Substitute parts can look different from the original.
BEST SELLER
$8.94
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#652

Freezer section diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Rocker Swt WR23X0475
#546

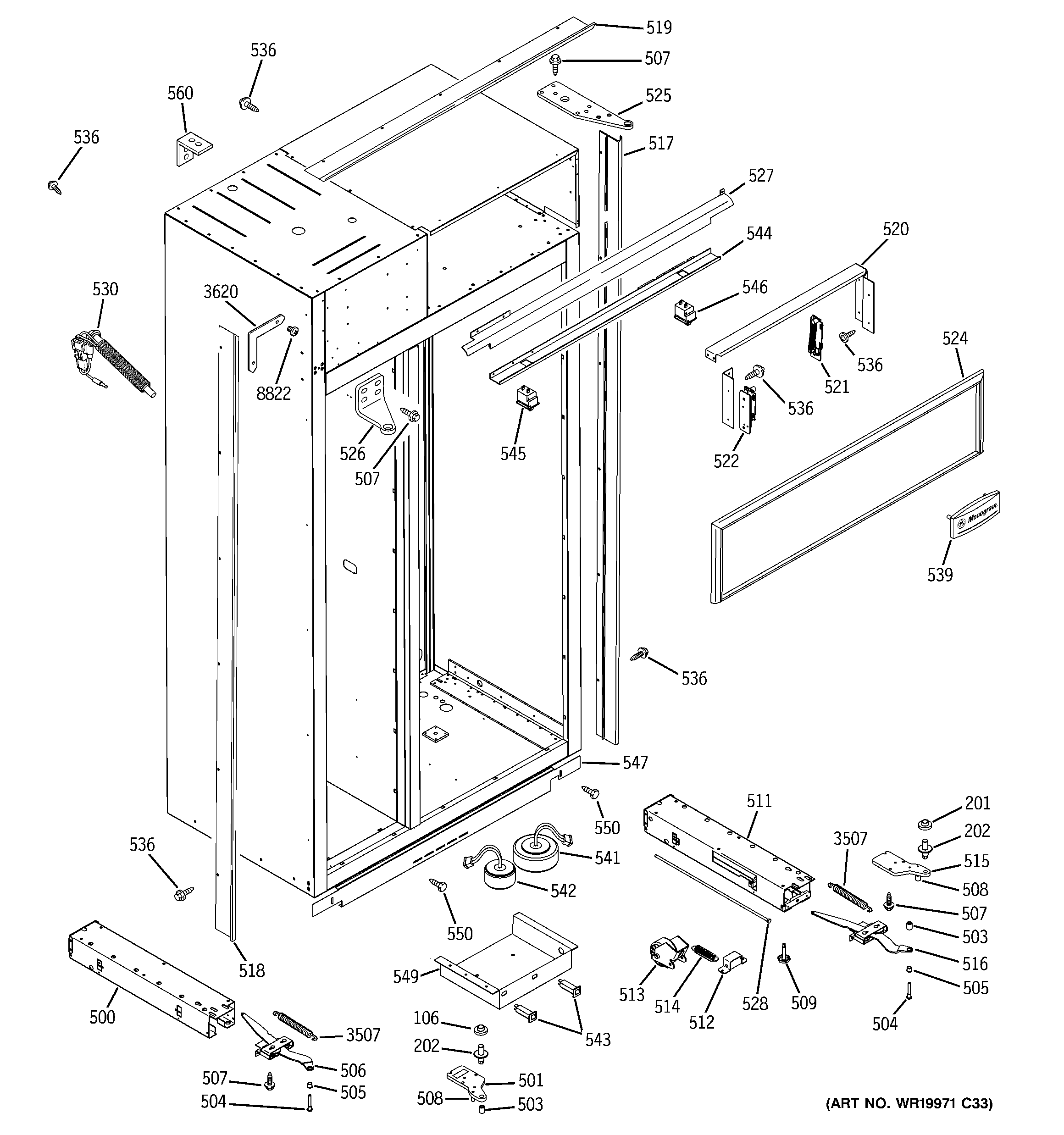

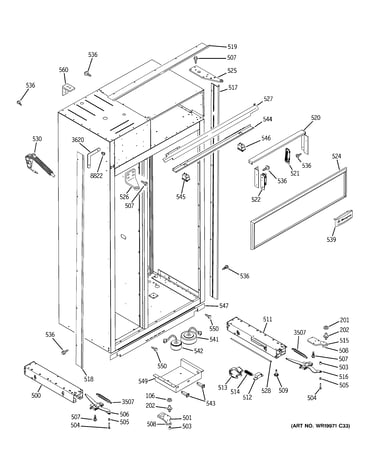

Case parts diagram

Rocker swt

Part #WR23X0475

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0475. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Water Filter Head And Tubing WR02X13046
#300

Fresh food section diagram

Refrigerator water filter head and tubing

Part #WR02X13046

Replaced by #WR17X22069

?
Manufacturer substitution
This part replaces WR02X13046. Substitute parts can look different from the original.
$58.11 |
9% OFF Phone Price : $64.11
In Stock
Refrigerator Accumulator WR86X10038
#906

Sealed system & mother board diagram

Refrigerator accumulator

Part #WR86X10038

$67.60 |
8% OFF Phone Price : $73.60
In Stock
