Gas Water Heater

Model # 8-75-NQRT6 Official Superior gas water heater

Here are the diagrams and repair parts for Official Superior 8-75-NQRT6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Water Heater Thermocouple 9000283
#14

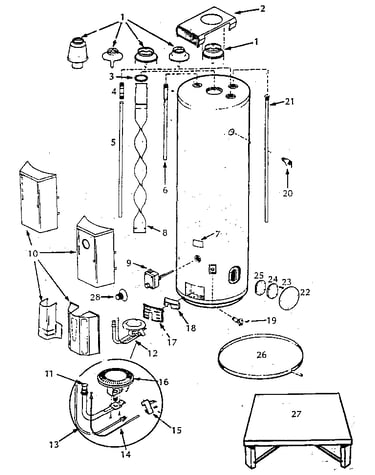

Round gas diagram

Water heater thermocouple

Part #9000283

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 9001314
#6

Round gas diagram

Anode rod

Part #9001314

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9001314. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Draft Hood 9001303
#1

Round gas diagram

Draft hood

Part #9001303

$9.49
In Stock
Door 9000369
#18

Round gas diagram

Door

Part #9000369

This item is not returnable
$2.49
In Stock
Heater Stand 9001422
#27A

Round gas diagram

Heater stand

Part #9001422

Replaced by #9005744005

?
Manufacturer substitution
This part replaces 9001422. Substitute parts can look different from the original.
$115.49
In Stock
Pilot Assembly 9000285
#15

Round gas diagram

Pilot assembly

Part #9000285

Replaced by #9000285-15

?
Manufacturer substitution
This part replaces 9000285. Substitute parts can look different from the original.
$25.81
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#13

Round gas diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Drain Pan 9000743
#26B

Round gas diagram

Drain pan

Part #9000743

The manufacturer no longer makes this part, and there's no substitute part

Ring 9000297
#3

Round gas diagram

Ring

Part #9000297

Replaced by #100109288

?
Manufacturer substitution
This part replaces 9000297. Substitute parts can look different from the original.
$33.33
In Stock
Anode Rod 9000734
#21

Round gas diagram

Anode rod

Part #9000734

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9000734. Substitute parts can look different from the original.
$60.00
In Stock
